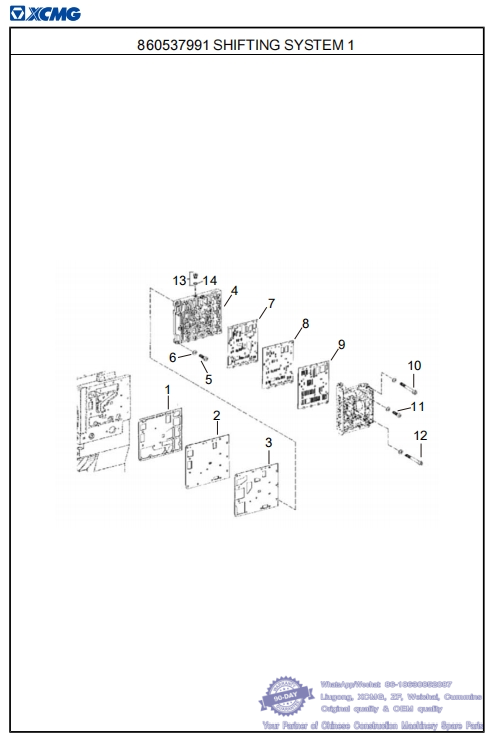

141 860537991 SHIFTING SYSTEM 1-- XCMG Motor Grader GR215 Spare Parts Catalog
800355590 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 860116172 1 GASKET
2 860116188 1 COVER PLATE
3 860116173 1 GASKET whatsapp 86-18630852087
4 860119907 1 TUBE PLATE
5 860143884 11 CAP SCREW
6 860116278 28 WASHER8.4×13
7 860116175 1 GASKET
8 860116194 1 COVER PLATE
9 860116174 1 GASKET whatsapp 86-18630852087
10 860143934 5 CAP SCREW
11 860143932 11 CAP SCREW
12 860143933 1 CAP SCREW
13 860143945 1 PLUG SCREW
14 860116284 1 O-RING

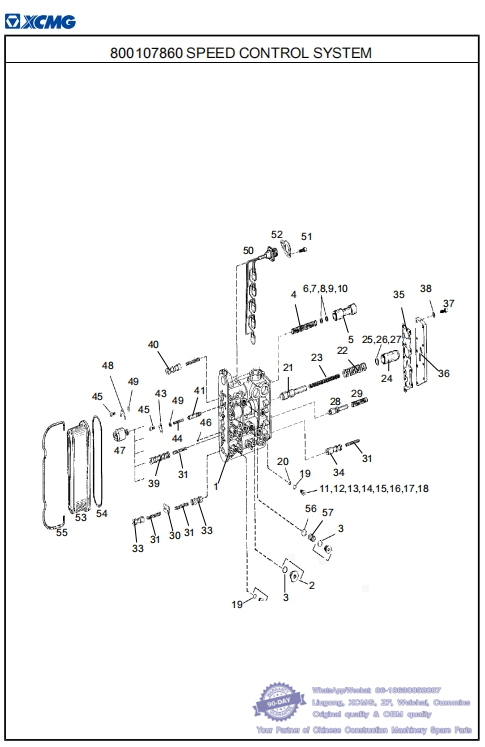

142 800107860 SPEED CONTROL SYSTEM-- XCMG Motor Grader GR215 Spare Parts Catalog
800355590 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 860546810 1 VALVE BLOCK
2 860143972 1 SCREW IN THE SLEEVE
3 860163691 2 O-RING
4 860130588 1 SPRING whatsapp 86-18630852087
5 860143974 1 PISTON
6 860143861 2 WASHER
7 860143860 2 REGULATING PAD
8 860143859 2 REGULATING PAD
9 860143866 2 REGULATING PAD
10 860143865 2 REGULATING PAD
11 860143961 1 HOLE OPENING
12 860143962 1 PLATE WITH HOLE
13 860143963 1 PLATE WITH HOLE
14 860143968 1 PLATE WITH HOLE
15 860143969 1 PLATE WITH HOLE
16 860143964 1 PLATE WITH HOLE whatsapp 86-18630852087
17 860143970 1 PLATE WITH HOLE
18 860143971 1 PLATE WITH HOLE
19 860163602 1 O-RING
20 860116451 1 O-RING
21 860143950 1 PISTON
22 860130589 1 SPRING
23 860130590 1 SPRING
24 860143951 1 PISTON
25 860546804 1 REGULATING PAD
26 860546803 1 REGULATING PAD
27 860546805 1 REGULATING PAD
28 860143966 1 PISTON
29 860143930 1 SPRING whatsapp 86-18630852087
30 860143952 1 LIMIT PLATE
31 860130591 5 SPRING
33 860143954 2 PISTON
34 860143953 1 PISTON
143 800107860 SPEED CONTROL SYSTEM-- XCMG Motor Grader GR215 Spare Parts Catalog
800355590 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
35 860116182 1 GASKET
36 860546809 1 SHIELD
37 860143880 9 CAP SCREW
38 860143863 9 WASHER
39 860143955 1 PISTON
40 860143956 1 PISTON whatsapp 86-18630852087
41 860127072 2 RELIEF VALVE
43 860143973 1 FIXING PLATE
44 860143928 1 SPRING
45 860143882 5 CAP SCREW
46 860116388 10 BALL
47 800352299 5 SOLENOID VALVE
48 800352300 5 FIXING PLATE
49 860143908 5 WASHER
50 860139059 1 DUST REMOVAL WIRING HARNESS
51 860143883 2 CAP SCREW
52 860143960 1 FIXING PLATE
53 860546807 1 COVER
54 860116176 1 O-RING whatsapp 86-18630852087
55 860143957 1 CLAMP
56 860143873 2 BALL
57 800107115 2 SPRING

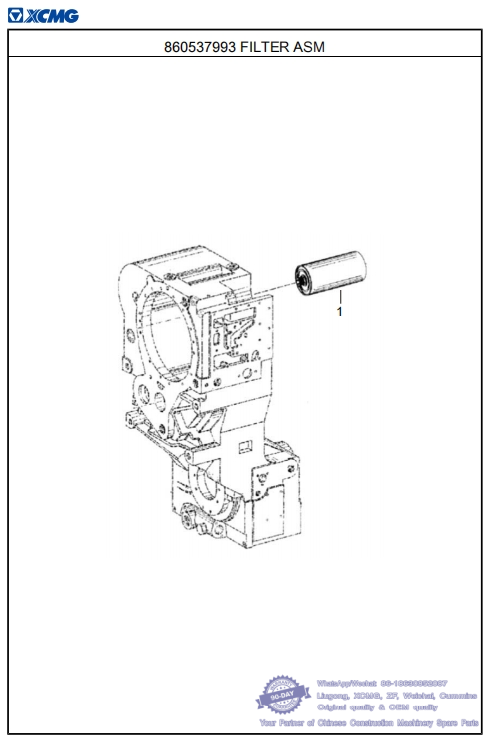

144 860537993 FILTER ASM-- XCMG Motor Grader GR215 Spare Parts Catalog
800355590 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 8601347011 0750131053TRANSMISSION FILTER whatsapp 86-18630852087

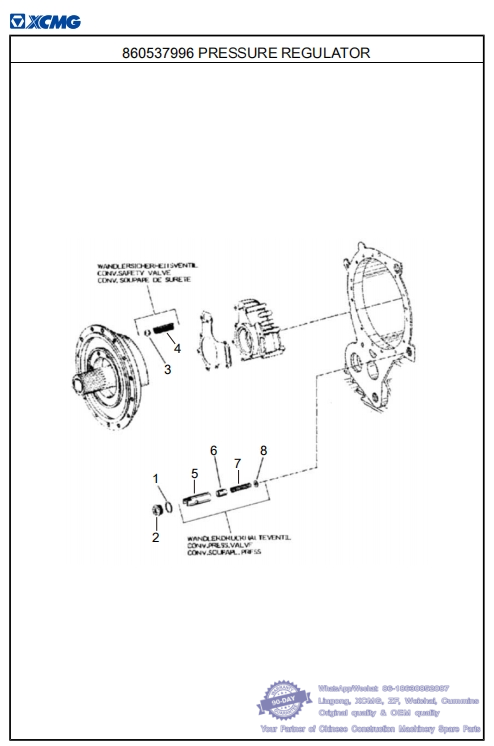

145 860537996 PRESSURE REGULATOR-- XCMG Motor Grader GR215 Spare Parts Catalog
800355590 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 860116285 1 O-RING
2 860143887 1 PLUG SCREW whatsapp 86-18630852087
3 860119586 1 BALL
4 860119587 1 SPRING
5 860119588 1 VALVE SLEEVE
6 860143975 1 PISTON
7 860119590 1 SPRING whatsapp 86-18630852087
8 860119591 1 WASHER
