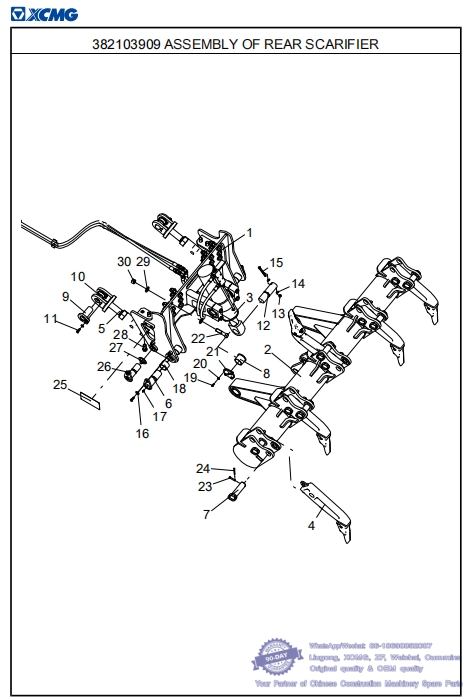

146 382103909 ASSEMBLY OF REAR SCARIFIER-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 381204345 1 BASE FRAME whatsapp 86-18630852087
2 381204327 1 GEAR CARRIER
3 381204592 1 BACK RIPPER HYDRAULIC SYSTEM 300
4 382300130 5 RABBLE BLADE ASSEMBLY 304
5 381203194 2 PRELOADED ROD 306
6 381204320 2 HINGE PIN
7 381204325 10 PIN
8 381204373 2 FLANGE SHAFT SLEEVE
9 381100952 2 HINGE PIN
10 380603418 2 COPPER BUSH whatsapp 86-18630852087
11 805006412 8 BOLT M12×30 (DACROMET) GB/T5783-2000
12 381204308 1 PIN
13 805238396 1 NUT M12 (DACROMET) GB/T6184-2000
14 329900303 6 THICKENED FLAT WASHER
15 805046560 1 BOLT M12×100 (DACROMET) GB/T5783-2000
16 329900298 4 THICKENED LARGE WASHER
17 801103215 6 OIL CUP M10×1 JB/T7940.1-1995
18 381204372 4 SELF-SLIDING BEARING
19 805046508 8 BOLT M8×20 (DACROMET) GB/T5783-2000
20 329900302 8 THICKENED FLAT WASHER
21 380901117 2 COVER whatsapp 86-18630852087
22 805005958 12 BOLT M24×100 (DACROMET) GB/T5782-2000
23 381204309 10 FIXING PIN
24 805639798 10 PIN 3.2×40 GB/T91-2000
25 382103910 1 REAR SCARIFIER NAMEPLATE
26 381204342 2 HINGE PIN
27 381204300 23 MILD STEEL GASKET TWO
28 805046596 6 BOLT M24×60 GB/T5783-2000
29 805338299 30 WASHER 24 (DACROMET) GB/T1230-2006 whatsapp 86-18630852087
30 805203192 12 NUT M24 (DACROMET) GB/T6170-2000

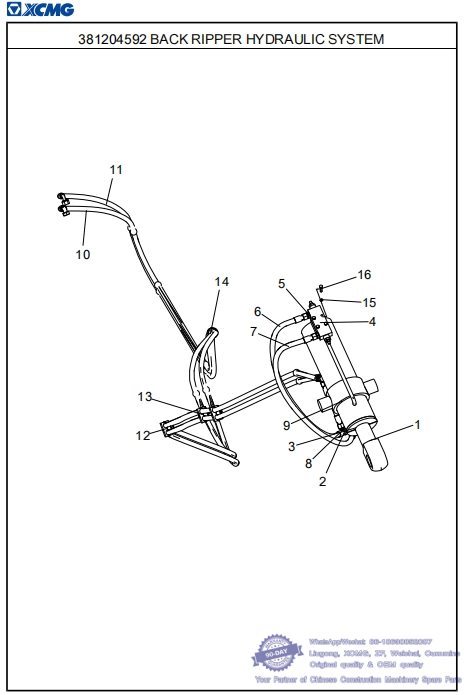

147 381204592 BACK RIPPER HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382103909 ASSEMBLY OF REAR SCARIFIER
No. PART NUMBER QTY NAME NOTE PAGE
1 803011223 1 LIFT CYLINDER OF REAR SCARIFIER 302 whatsapp 86-18630852087
2 803163645 4 JOINT
3 803309219 2 JOINT
4 803045151 1 COUNTERBALANCE VALVE
5 803105653 2 JOINT
6 803373869 1 HOSE ASSEMBLY
7 803272581 1 HOSE ASSEMBLY whatsapp 86-18630852087
8 803103775 5 JOINT
9 803303282 2 HOSE ASSEMBLY
10 803453344 1 HOSE ASSEMBLY
11 803453343 1 HOSE ASSEMBLY
12 803414033 1 PIPE CLAMP whatsapp 86-18630852087
13 803184000 2 PIPE CLAMP
14 803300795 1 CUTTING SLEEVE Φ45 TJBC
15 805338259 4 WASHER 8 (DACROMET) GB/T93-1987
16 805046516 4 BOLT M8×50 (DACROMET) GB/T5783-2000 whatsapp 86-18630852087

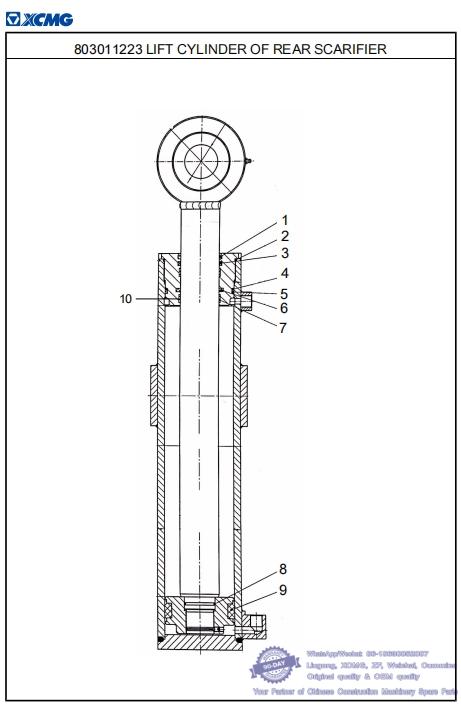

148 803011223 LIFT CYLINDER OF REAR SCARIFIER-- XCMG Motor Grader GR2205T Spare Parts Catalog
381204592 BACK RIPPER HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 860537621 1 SCRAPER SEAL 70×80×6.3/10
2 860537622 1 O-RING D125×3.55 whatsapp 86-18630852087
3 860537623 1 SEALING RING 70×80×6/7
4 860537624 1 RETAINER RING 125×116.6×2
5 860537625 1 O-RING D115×5.3 (LOW TEMPERATURE)
6 860537626 1 STEP SEAL, 70×85.5×63 (EQUIPPED WITH LOW TEMPERATURE whatsapp 86-18630852087
7 860537627 2 SUPPORT RING GBS-5815-70
8 860537628 1 O-RING 55×3.1 (LOW TEMPERATURE)
9 860537629 1 COMBINED SEAL 125×100×25.4/ whatsapp 86-18630852087
10 803453373 1 SEALING PACKET

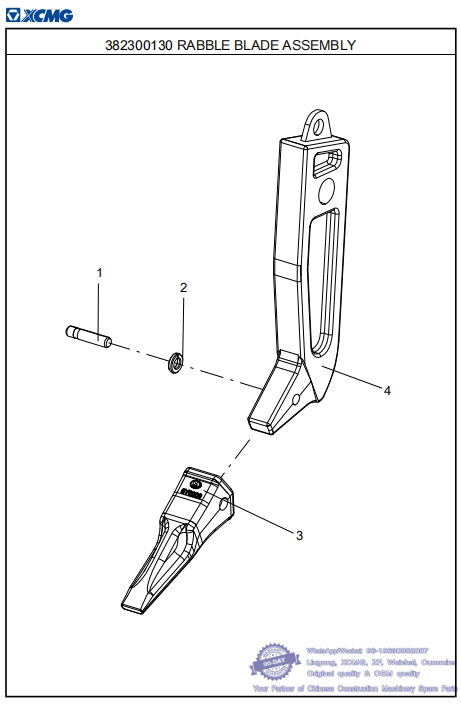

149 382300130 RABBLE BLADE ASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
382103909 ASSEMBLY OF REAR SCARIFIER
No. PART NUMBER QTY NAME NOTE PAGE
1 382300122 1 PIN whatsapp 86-18630852087
2 382300149 1 JUMP RING
3 382300157 1 GEAR
4 382300107 1 RAKE ROD whatsapp 86-18630852087

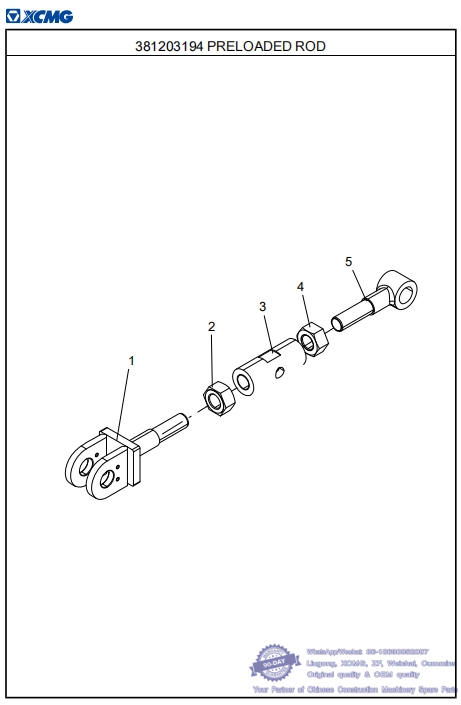

150 381203194 PRELOADED ROD-- XCMG Motor Grader GR2205T Spare Parts Catalog
382103909 ASSEMBLY OF REAR SCARIFIER
No. PART NUMBER QTY NAME NOTE PAGE
1 381203161 1 ROD I whatsapp 86-18630852087
2 381301507 1 LOCK NUT II
3 382100639 1 PRELOADED SLEEVE
4 381301504 1 LOCK NUT I whatsapp 86-18630852087
5 381203193 1 ROD II
