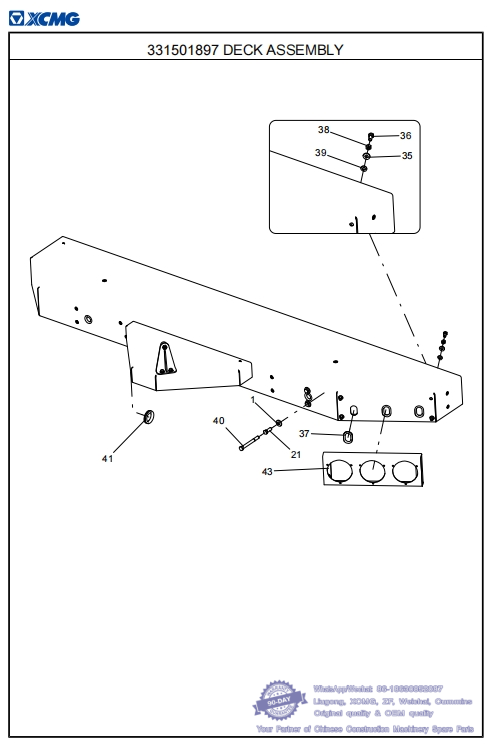

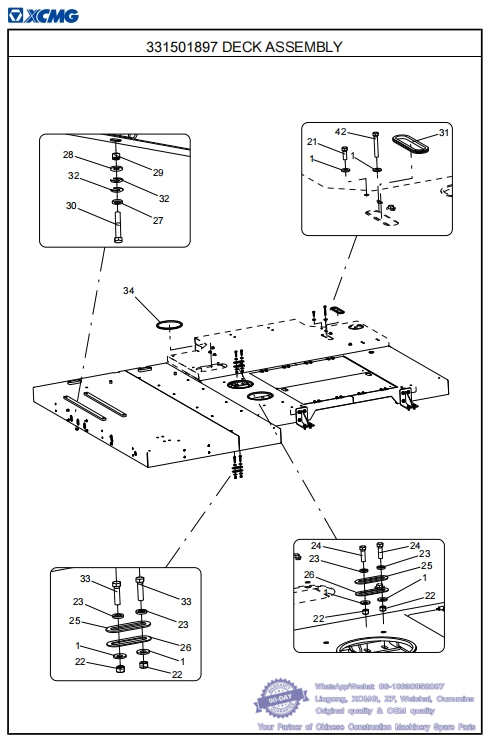

151 331501897 DECK ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
21 805006413 46 BOLT M12×35 GB/T5783-2000 whatsapp 86-18630852087
22 805238372 8 NUT M12 GB/T6170-2000
23 805338313 8 WASHER 12 GB/T1230-2006
24 805006287 4 BOLT M12×40 GB/T5783-2000
25 331401141 4 ADJUSTABLE PAD
26 331401142 4 ADJUSTABLE PAD whatsapp 86-18630852087
27 805338296 4 WASHER 16 GB/T1230-2006
28 805301377 4 WASHER 16 DIN6796
29 805238374 4 NUT M16 GB/T6170-2000
30 805006391 4 BOLT M16×90 GB/T5782-2000
31 801972055 2 SEAL L=520 whatsapp 86-18630852087
32 329900761 6 CUSHION
33 805006414 4 BOLT M12×45 GB/T5783-2000
34 801968315 3 SEAL L=800
152 331501897 DECK ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
35 805301373 8 WASHER 10 DIN6796 whatsapp 86-18630852087
36 805011330 8 BOLT M10×25 GB/T5783-2000
37 330103023 6 OVERLINE RUBBER RING
38 805238371 8 NUT M10 GB/T6170-2000
39 805338279 8 WASHER 10 GB/T97.1-2002
40 805046433 10 BOLT M12×120 GB/T5782-2000
41 330104349 7 OVERLINE RUBBER RING whatsapp 86-18630852087
42 805047774 4 BOLT M12×80 GB/T5783-2000
43 331500479 2 LAMP SHADE

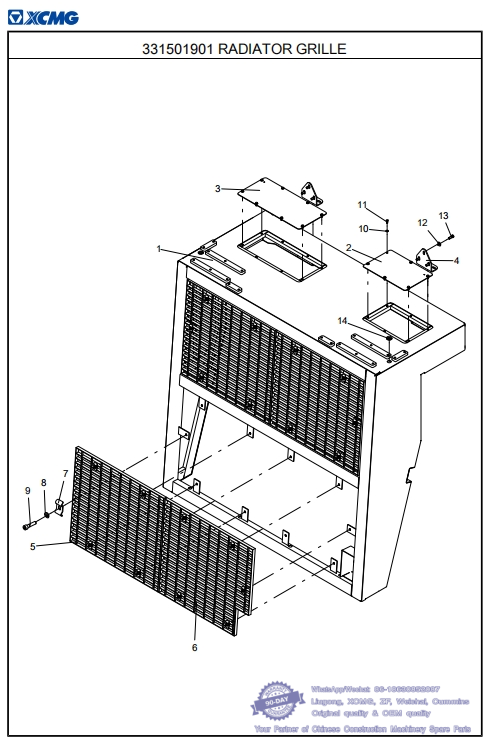

153 331501901 RADIATOR GRILLE-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501897 DECK ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331501947 1 WATER TANK HOOD WELDING ASSEMBLY
2 331500556 1 COVER PLATE
3 331500557 1 COVER PLATE
4 331500558 2 MOUNTING SEAT whatsapp 86-18630852087
5 331501948 3 FRONT GRILLE I
6 331501949 1 FRONT GRILLE II
7 330301054 20 GRILLE FIXING BLOCK
8 805338279 20 WASHER 10 GB/T97.1-2002
9 805140726 20 SCREW M10×45 GB/T70.1-2008
10 805301384 14 WASHER 8 DIN6796
11 805046508 14 BOLT M8×20 GB/T5783-2000 whatsapp 86-18630852087
12 805301374 6 WASHER 12 DIN6796
13 805006413 6 BOLT M12×35 GB/T5783-2000
14 330101767 2 OVERLINE RUBBER RING

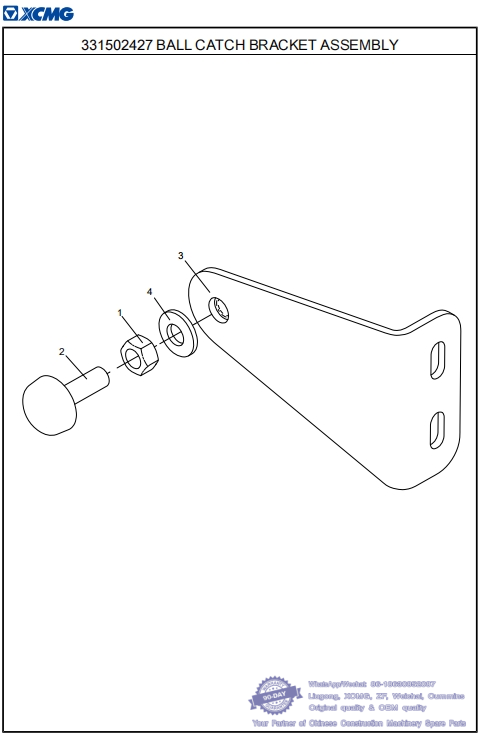

154 331502427 BALL CATCH BRACKET ASSEMBLY- XCMG Mining Dump Truck XDR100 Parts Catalog
331501897 DECK ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 805238371 1 NUT M10 GB/T6170-2000 whatsapp 86-18630852087
2 330103387 1 BALL CATCH-15
3 331502428 1 BALL CATCH BRACKET
4 805301373 1 WASHER 10 DIN679 whatsapp 86-18630852087

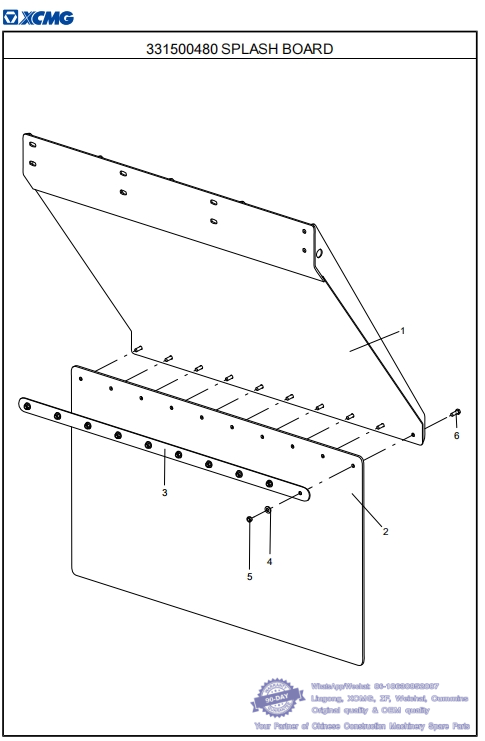

155 331500480 SPLASH BOARD- XCMG Mining Dump Truck XDR100 Parts Catalog
331501897 DECK ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331500635 1 FENDER FRAME whatsapp 86-18630852087
2 331500636 1 SPLASH BOARD
3 331500637 1 PRESSURE PLATE
4 805301373 10 WASHER 10 DIN6796
5 805238371 10 NUT M10 GB/T6170-2000 whatsapp 86-18630852087
6 805046416 10 BOLT M10×30 GB/T5783-2000
