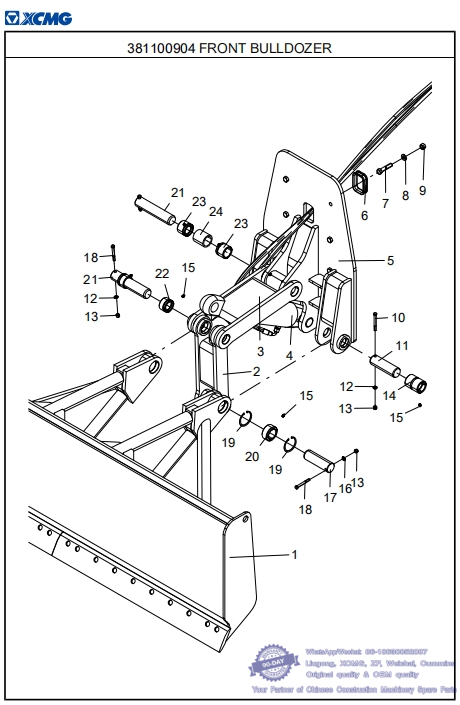

151 381100904 FRONT BULLDOZER-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 381100362 1 BLADE ASSY 312 whatsapp 86-18630852087
2 380901135 1 PULL ROD
3 381100366 1 CONNECTING ROD
4 381101204 1 FRONT BLADE HTDRAULIC TUBE 314
5 381100907 1 BASE FRAME
6 380902677 1 RUBBER SLEEVE
7 805046680 10 BOLT M20×90 (DACROMET) GB/T5782-2000
8 329900385 10 THICKENED FLAT WASHER
9 805238375 10 NUT M20 (DACROMET) GB/T6170-2000
10 805046470 3 BOLT M12×110 (DACROMET) GB/T5782-2000 whatsapp 86-18630852087
11 381100360 2 HINGE PIN
12 805338280 6 WASHER 12 (DACROMET) GB/T97.1-2002
13 805200098 6 NUT M12 GB/T889.1-2000
14 381100368 2 COPPER SLEEVE
15 801100336 7 OIL CUP M10×1 JB/T7940.1-1995
16 805338261 6 WASHER 12 (DACROMET) GB/T93-1987
17 381600219 2 PIN whatsapp 86-18630852087
18 805046649 3 BOLT M12×100 (DACROMET) GB/T5782-2000
19 805400009 2 RETAINER RING 90 GB/T893.1-1986
20 800515285 1 JOINT BEARING GE60ES GB/T9163-2001
21 381600221 2 PIN
22 380901134 2 COPPER SLEEVE whatsapp 86-18630852087
23 381600434 2 COPPER SLEEVE
24 381600433 1 SLEEVE

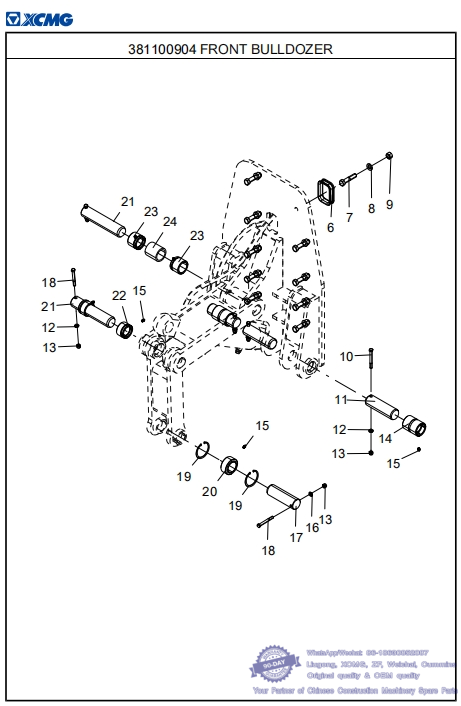

152 381100904 FRONT BULLDOZER-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
6 380902677 1 RUBBER SLEEVE whatsapp 86-18630852087
7 805046680 10 BOLT M20×90 (DACROMET) GB/T5782-2000
8 329900385 10 THICKENED FLAT WASHER
9 805238375 10 NUT M20 (DACROMET) GB/T6170-2000
10 805046470 3 BOLT M12×110 (DACROMET) GB/T5782-2000
11 381100360 2 HINGE PIN
12 805338280 6 WASHER 12 (DACROMET) GB/T97.1-2002 whatsapp 86-18630852087
13 805200098 6 NUT M12 GB/T889.1-2000
14 381100368 2 COPPER SLEEVE
15 801100336 7 OIL CUP M10×1 JB/T7940.1-1995
16 805338261 6 WASHER 12 (DACROMET) GB/T93-1987
17 381600219 2 PIN
18 805046649 3 BOLT M12×100 (DACROMET) GB/T5782-2000
19 805400009 2 RETAINER RING 90 GB/T893.1-1986 whatsapp 86-18630852087
20 800515285 1 JOINT BEARING GE60ES GB/T9163-2001
21 381600221 2 PIN
22 380901134 2 COPPER SLEEVE
23 381600434 2 COPPER SLEEVE
24 381600433 1 SLEEVE whatsapp 86-18630852087

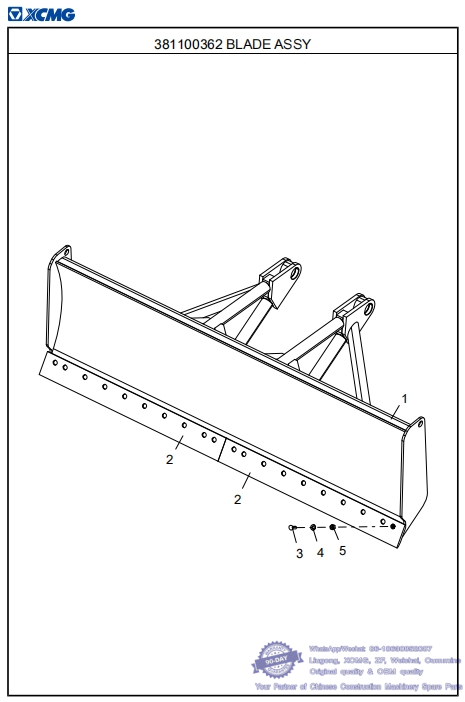

153 381100362 BLADE ASSY-- XCMG Motor Grader GR2205T Spare Parts Catalog
381100904 FRONT BULLDOZER
No. PART NUMBER QTY NAME NOTE PAGE
1 381100343 1 BLADE whatsapp 86-18630852087
2 381600477 2 BLADE
3 805048217 20 BOLT M16×55 (DACROMET) GB/T10-2013
4 805338296 20 WASHER 16 GB/T1230-2006 whatsapp 86-18630852087
5 805203508 20 NUT M16 GB/T1229-2006

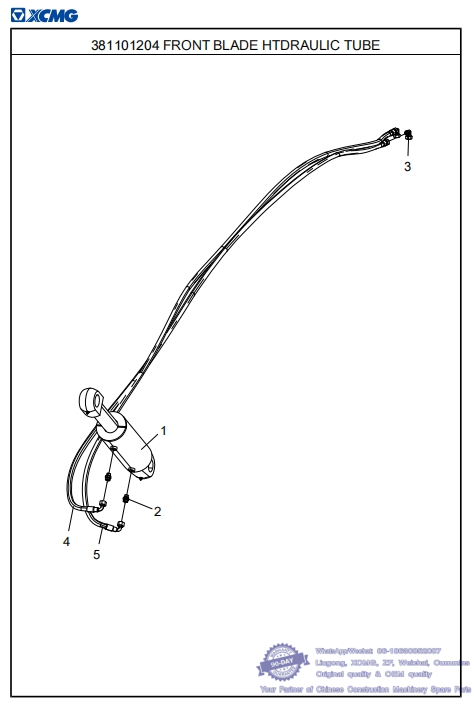

154 381101204 FRONT BLADE HTDRAULIC TUBE-- XCMG Motor Grader GR2205T Spare Parts Catalog
381100904 FRONT BULLDOZER
No. PART NUMBER QTY NAME NOTE PAGE
1 803097424 1 LIFT OIL CYLINDER OF FRONT BULLDOZING PLATE
2 803103818 2 JOINT whatsapp 86-18630852087
3 803103775 2 JOINT
4 803180798 1 HOSE ASSEMBLY
5 803180799 1 HOSE ASSEMBLY whatsapp 86-18630852087
155 382301612 FRONT COUNTERWEIGHT-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 382301611 1 FRONT COUNTERWEIGHT whatsapp 86-18630852087
2 805047076 10 BOLT M20×60 GB/T5783-2000
3 805338297 10 WASHER 20 (DACROMET) GB/T1230-2006 whatsapp 86-18630852087
