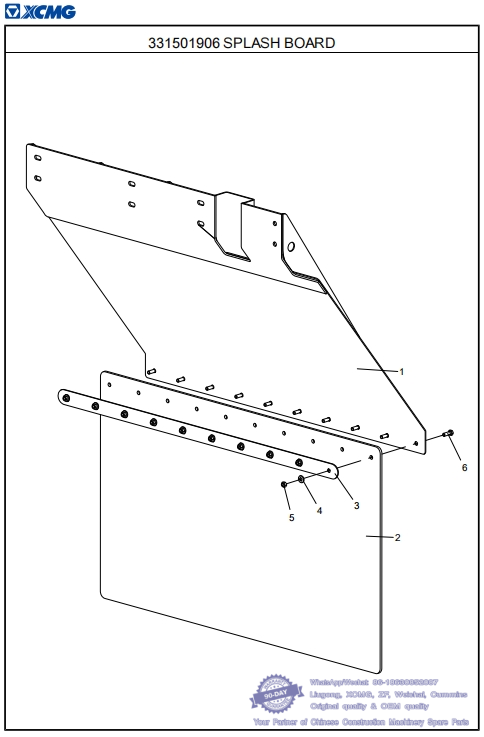

156 331501906 SPLASH BOARD-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501897 DECK ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331501996 1 FENDER FRAME
2 331500636 1 SPLASH BOARD whatsapp 86-18630852087
3 331500637 1 PRESSURE PLATE
4 805301373 10 WASHER 10 DIN6796
5 805238371 10 NUT M10 GB/T6170-2000 whatsapp 86-18630852087
6 805046416 10 BOLT M10×30 GB/T5783-2000

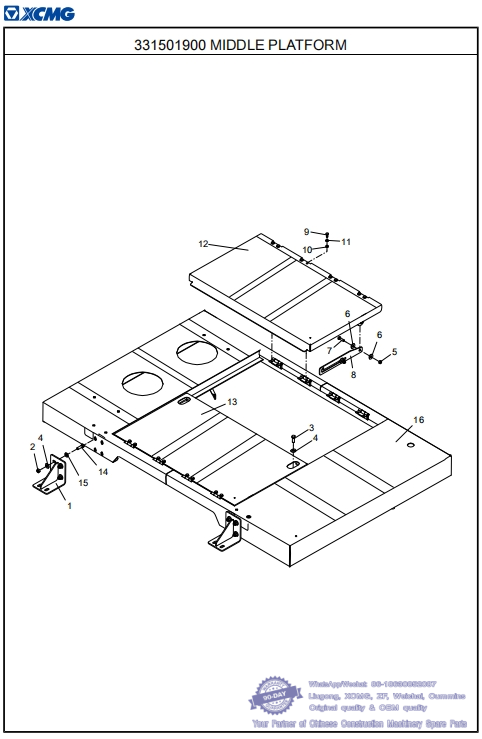

157 331501900 MIDDLE PLATFORM-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501897 DECK ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331501923 2 FIXED SEAT
2 805238372 8 NUT M12 GB/T6170-2000 whatsapp 86-18630852087
3 805006413 2 BOLT M12×35 GB/T5783-2000
4 805301374 10 WASHER 12 DIN6796
5 805238371 4 NUT M10 GB/T6170-2000
6 805338268 8 WASHER 10 GB/T96.1-2002
7 805046528 4 BOLT M10×35 GB/T5783-2000 whatsapp 86-18630852087
8 331500516 2 SUPPORT PLATE
9 805046508 16 BOLT M8×20 GB/T5783-2000
10 805238378 16 NUT M8 GB/T6170-2000
11 805301384 16 WASHER 8 DIN6796 whatsapp 86-18630852087
12 331501924 1 ACCESS DOOR I
13 331501925 1 ACCESS DOOR II
14 805006287 8 BOLT M12×40 GB/T5783-2000
15 805338313 8 WASHER 12 GB/T1230-2006 whatsapp 86-18630852087
16 331501922 1 MIDDLE PLATFORM WELDING ASSEMBLY

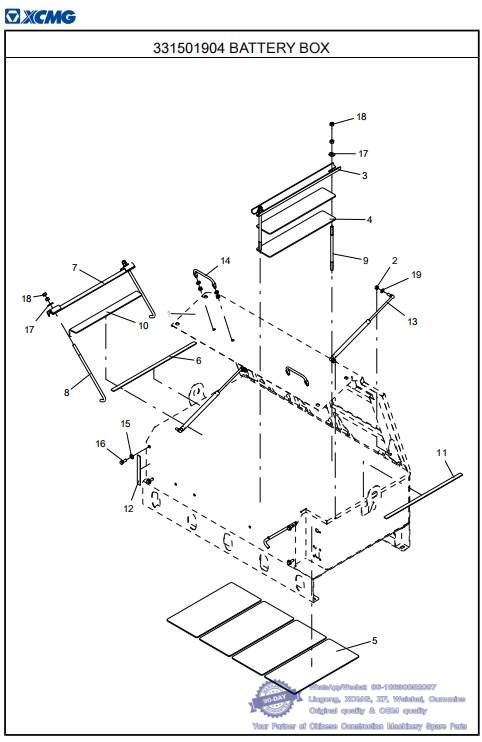

158 331501904 BATTERY BOX-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501897 DECK ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331501962 1 GEARBOX BODY
2 805238415 8 NUT M10 GB/T6184-2000 whatsapp 86-18630852087
3 331500642 3 BATTERY PRESSING PLATE
4 331500643 5 RUBBER SEAT
5 331500644 4 RUBBER SEAT
6 331500645 1 RUBBER SEAT
7 331500646 2 SIDE PRESSING PLATE
8 331500647 4 INCLINED PULL ROD whatsapp 86-18630852087
9 332200423 6 PULL ROD
10 331500643 2 RUBBER SEAT
11 331500648 1 RUBBER SEAT whatsapp 86-18630852087
12 331500649 2 RUBBER SEAT
13 801737287 2 GAS SPRING
14 801541262 2 HANDLE whatsapp 86-18630852087
15 805301373 4 WASHER 10 DIN6796
16 805046416 4 BOLT M10×30 GB/T5783-2000 whatsapp 86-18630852087
17 805301374 10 WASHER 12 DIN6796
18 805238372 20 NUT M12 GB/T6170-2000
19 805338279 8 WASHER 10 GB/T97.1-2002

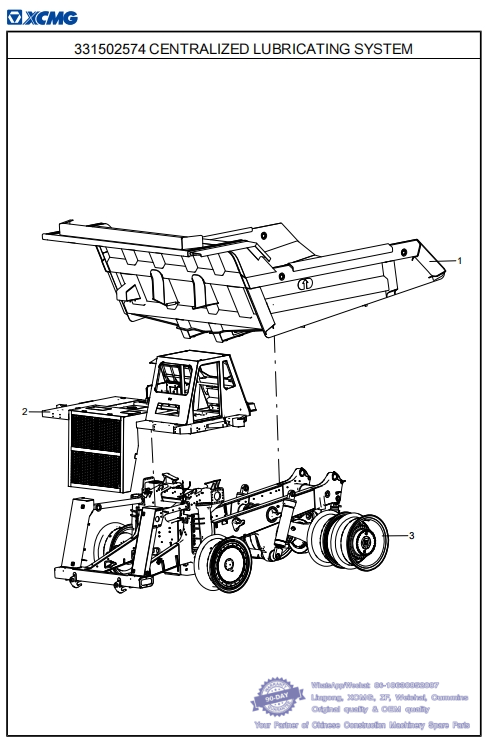

159 331502574 CENTRALIZED LUBRICATING SYSTEM- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
1 331502584 1 CARRIAGE LUBRICATION ARRANGEMENT 326 whatsapp 86-18630852087
2 331502580 1 WALKING PLATFORM LUBRICATION ARRANGEMENT 328
3 331502575 1 FRAME TRANSMISSION LUBRICATION ARRANGEMENT 330 whatsapp 86-18630852087

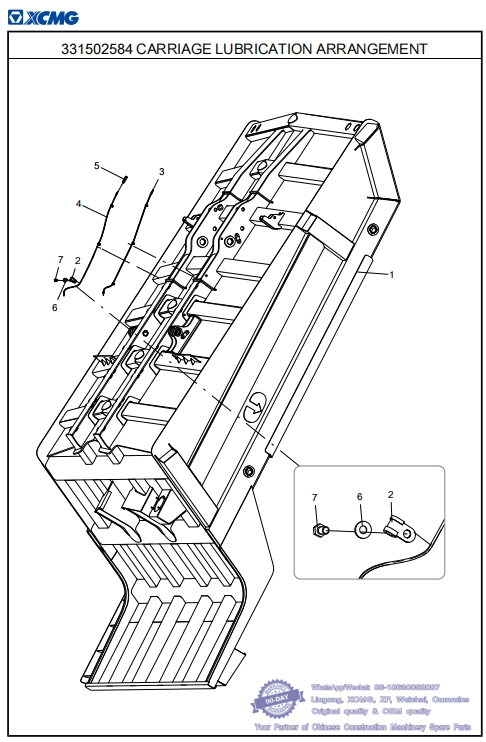

160 331502584 CARRIAGE LUBRICATION ARRANGEMENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502574 CENTRALIZED LUBRICATING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331502585 1 CARRIAGE LUBRICATION ACCESSORY whatsapp 86-18630852087
2 819908676 6 RUBBER SLEEVE HOOP
3 801142438 1 RG8.8 LUBRICATION PIPE ASSEMBLY
4 801142437 1 RG8.8 LUBRICATION PIPE ASSEMBLY
5 801141196 2 BUTT JOINT
6 805301373 6 WASHER 10 DIN6796 whatsapp 86-18630852087
7 805046525 6 BOLT M10×20 GB/T5783-2000
