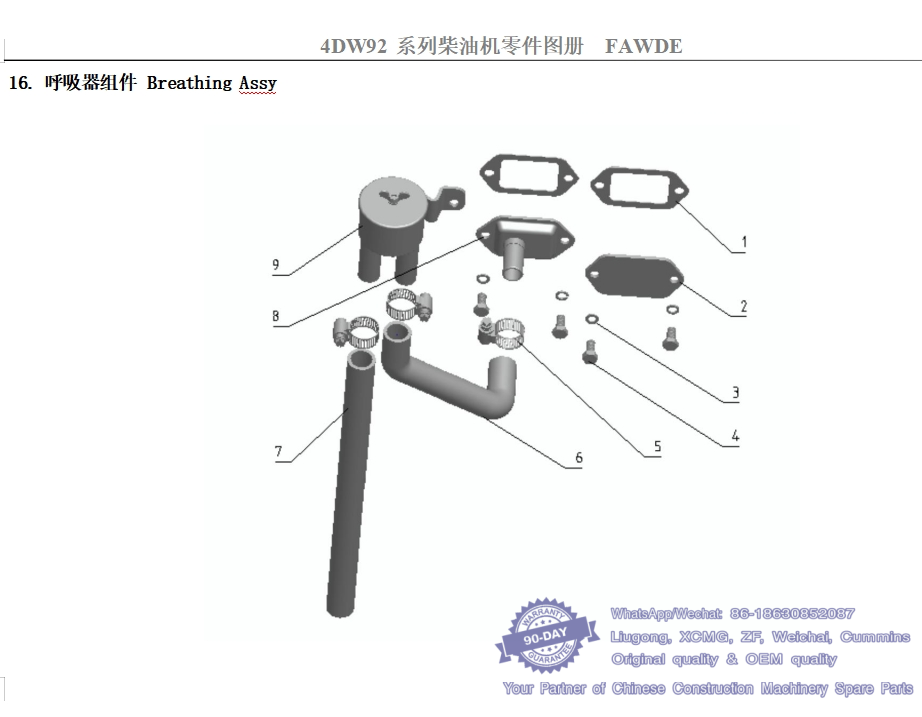

16、呼吸器组件 BreathingAssy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1014016AB03-0000 | 垫片 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1014027BB03-0000 | 盖板 | Cover board | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q150B0816 | 六角头螺栓 | Hexagon-headed bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 4 | Q40408 | 弹簧垫圈 | Spring washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 5 | Q67632 | B 型蜗杆传动式软管环箍 | Hoop | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 6 | 1014008-B61-BF1A | 进气胶管 | Hose，inlet | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | 1014009-B03-0000 | 出气胶管 | Hose，outlet | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 8 | 1014020AB61-BF1A | 呼吸器盖板焊合件 | Breathing cover board | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 9 | 1014100AB61-BF1A | 呼吸器总成 | Breathing assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

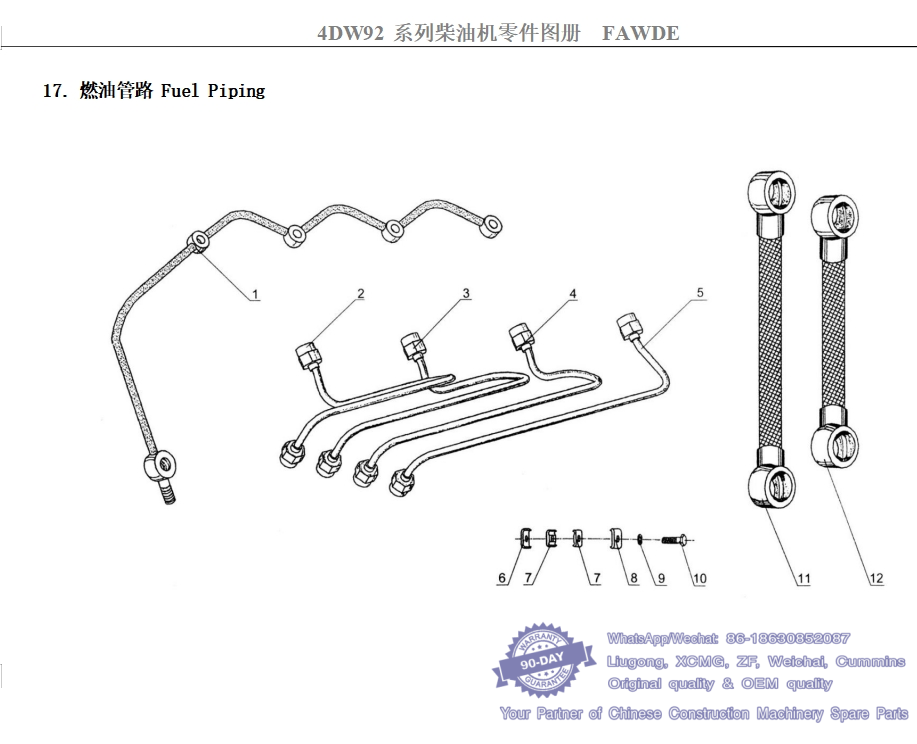

17. 燃油管路 Fuel Piping-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | ||||||||||
| A | B | C | D | E | F | G | H | I | |||||
| 1 | 1104050AB03-0000 | 喷油体回油管总成 | Fuel injector leak-off pipe assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 1129010-B59-AS10 | 第一缸高压油管总成 | 1st cylinder high pressure fuel pipe | assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | 1129015-B59-AS10 | 第二缸高压油管总成 | 2nd cylinder high pressure fuel pipe | assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 4 | 1129020-B59-AS10 | 第三缸高压油管总成 | 3rd cylinder high pressure fuel pipe | assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 5 | 1129025-B59-AS10 | 第四缸高压油管总成 | 4th cylinder high pressure fuel pipe | assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 6 | 1129046AB01-0000 | 高压油管夹子底板 | High pressure fuel pipe clamp lower | piece | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 7 | 1129042-B01-0000 | 高压油管夹子衬垫 | Rubber clamp pad | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 8 | 1129041AB01-0000 | 高压油管夹子压板 | High pressure fuel pipe clamp upper | piece | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 9 | Q40305 | 弹簧垫圈 | Single washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 10 | Q150B0525 | 六角头螺栓 | Hexagon bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 11 | 1104030-B41-KM10 | 燃油管总成—输油泵至柴滤 | Fuel deliver flexible pipe assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 1104040-B41-KM10 | 燃油管总成—柴滤至喷油泵 | Fuel deliver flexible pipe assy | l | l | l | l | l | l | l | l | l | |

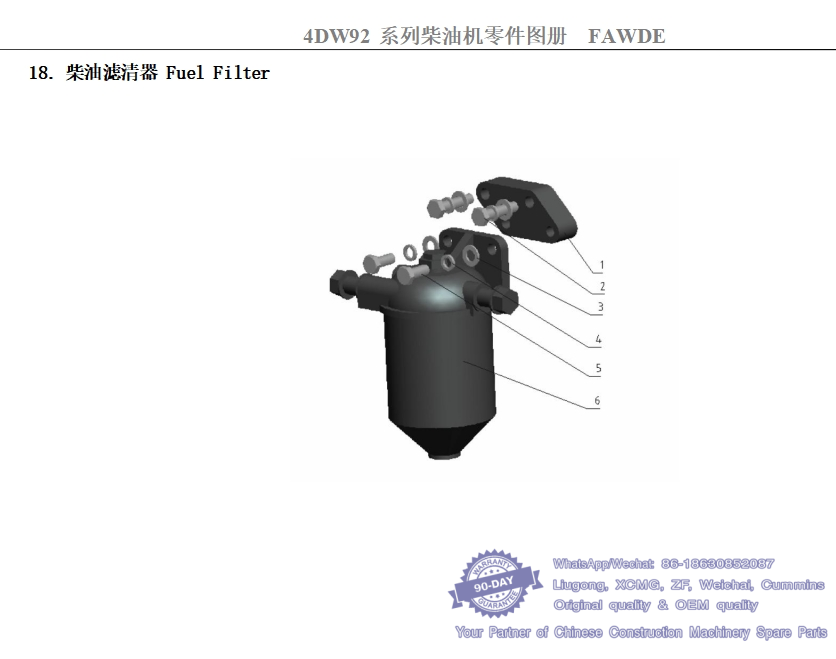

18. 柴油滤清器 Fuel Filter-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1117022-B56-AS10 | 支撑板-柴虑支架 | Facing bar | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | Q150B0835 | 六角头螺栓 | Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 3 | Q40108 | 平垫圈 | Washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 4 | Q40308 | 弹簧垫圈 | Spring washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 5 | Q150B0820 | 六角头螺栓 | Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 6 | 1117010-B01-0000K | 燃油滤清器总成 | Fuel fiter | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 1117010-B01-0000W | 燃油滤清器总成 | Fuel fiter | 1 | 1 | ||||||||
| 1117010-B01-0000B | 燃油滤清器总成 | Fuel fiter | 1 | 1 | ||||||||

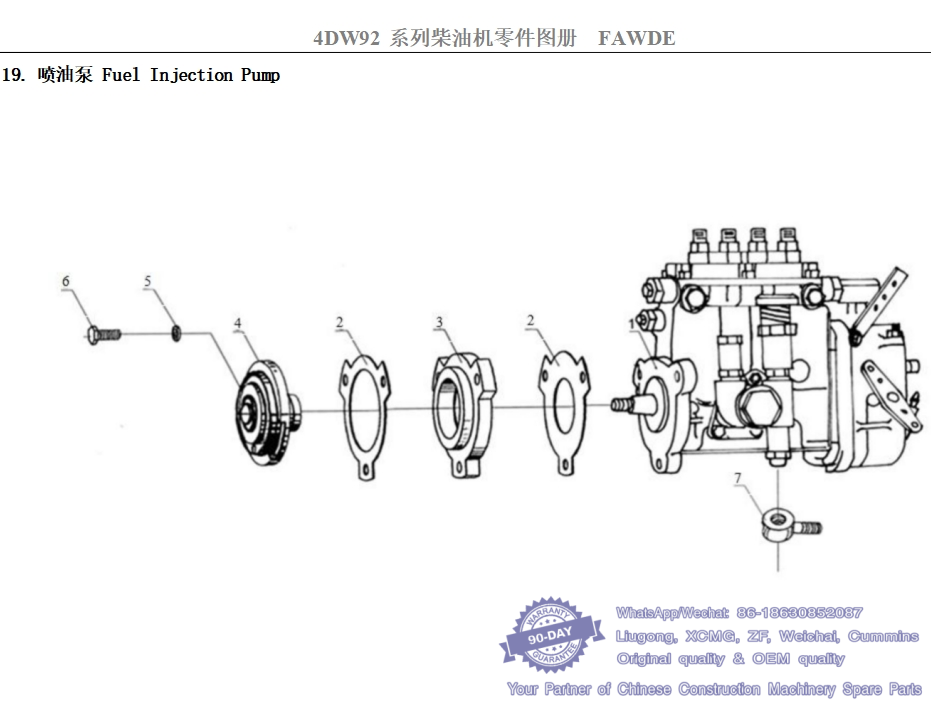

19. 喷油泵 Fuel Injection Pump-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | . 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1111000-B59-YFD20 | 喷油泵部件 | Fuel injection pump parts | 1 | 1 | 1 | ||||||
| 1111010-B59-AS10K | 喷油泵总成 | Fuel injection pump parts | 1 | 1 | 1 | |||||||
| 1111000-B5H-HMS20W | 喷油泵及控制器总成 | Fuel injection pump parts | 1 | |||||||||
| 1111000-B5C-YFD20W | 喷油泵部件 | Fuel injection pump parts | 1 | |||||||||
| 1111000-B5J-HMS20W | 喷油泵及控制器总成 | Fuel injection pump parts | 1 | |||||||||
| 2 | llll012-B01-0000 | 喷油泵联接盘垫片 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | 1111011AB03-0000 | 喷油泵垫块 | Pad | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 4 | llll012-B01-0000 | 喷油泵联接盘垫片 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 5 | 1111013-B01-0000 | 提前器 | Injection-advance device | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 6 | Q40306 | 弹簧垫圈 | Spring washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| 7 | Q150B0616 | 六角头螺栓 | Hexagon-headed bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| 8 | 1111107A101-OE60 | 进油管接头体 | Fuel inlet connection | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

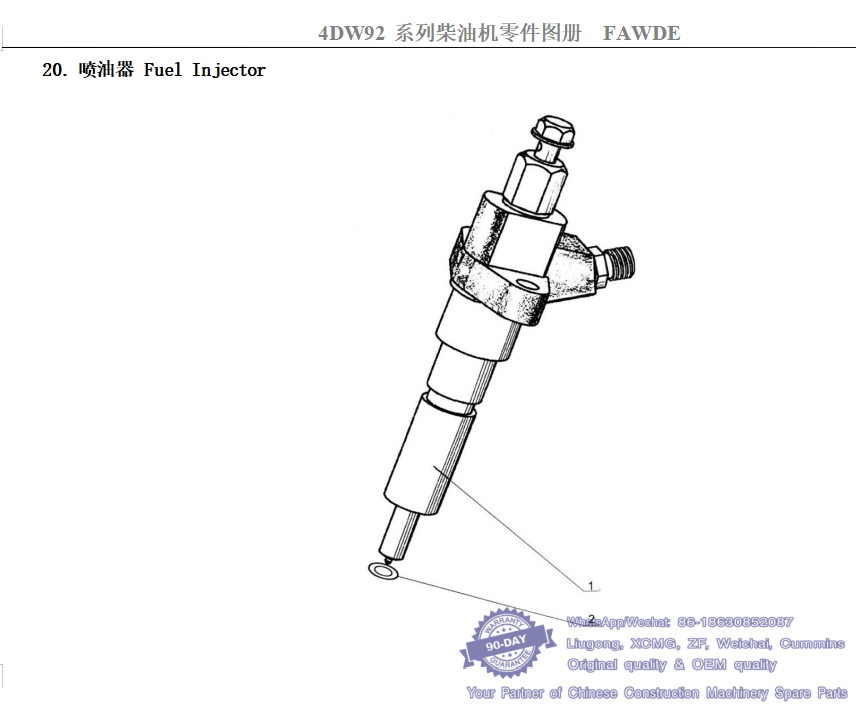

20. 喷油器 Fuel Injector-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Descripion | 数量 Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 1 | 1112100-B03-0000 | 喷油器总成 Fuel injector assy | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 2 | 1112308-001-0000 | 调整垫片 Washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
