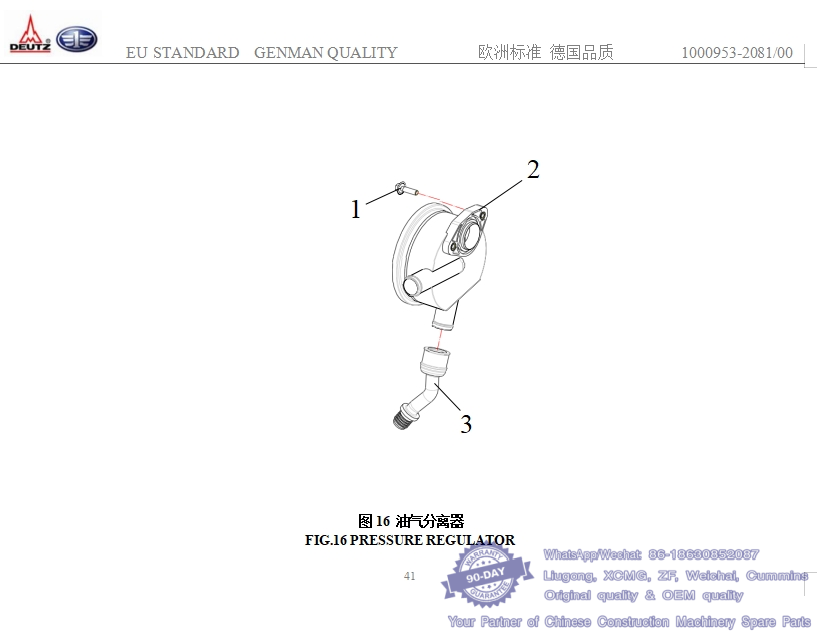

16、油气分离器 PRESSURE REGULATOR-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 CQ2180620TF36 内六角圆柱头螺钉 CHEESE HEAD SCREW 2 whatsapp 86-18630852087
1014621-52D垫圈 ISO 7092-6-140HV-A4C PLAIN WASHER ISO 7092-6-140HV-A4C2
2 1014015-30D 油气分离器总成 PRESSURE REGULATOR 1
3 1014016-52D 橡胶套管－回油 RUBBER SLEEVE 1 whatsapp 86-18630852087

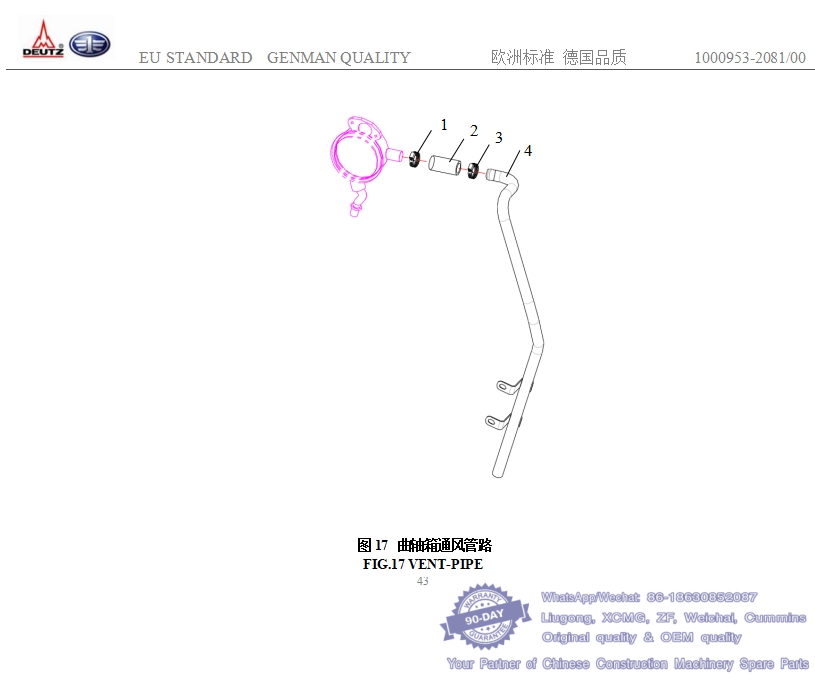

17、曲轴箱通风管路 VENT-PIPE-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 CQ67635B 弹簧箍 DIN 3021-A-29X15 SPRING CLIP DIN 3021-A-29X15 1 whatsapp 86-18630852087
2 1014013-52D 连接胶管 H 3407-B1-22X 29X 50 RUBBER HOSE H 3407 -B1-22X 29X 50 1
3 CQ67635B 弹簧箍 DIN 3021-A-29X15 SPRING CLIP DIN 3021-A-29X15 1
4 1014030A56D 通气管总成 VENT-PIPE 1 whatsapp 86-18630852087
18、机油冷却器 OIL COOLER(1)-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1013035A56D 机油冷却器总成 OIL COOLER 1 whatsapp 86-18630852087
2 1009619-52D 六角头凸缘螺栓 EN1662 -F-M8X20-LG2,5-10.9-ZNAL-A HEXAGON BOLT EN1662 -F-M8X20-LG2,5-10.9-ZNAL-A 7
3 04254804 (壳体总成包含 Included in) 机油冷却器密封垫 OIL COOLER SEAL 2
4 01143364 (壳体总成包含 Included in) 六角头凸缘螺栓 EN 1662 -F-M8X80-10.9-ZNAL-A HEXAGON BOLT EN 1662 -F-M8X80-10.9-ZNAL-A 3
5 1013617-52D 螺塞 H2812-908 -M18X1,5-ST-A4C-PRE80 SCREW PLUG H2812-908-M18X1,5-ST-A4C-PRE80 1
6 1013621-52D 密封垫 DIN 7603-A18X22-CU SEALING RING DIN 7603-A18X22-CU 1
7 01180290 (壳体总成包含 Included in) 密封圈 H 2927- 20 X 2,5 -EPDM-6-70 O-RING H 2927- 20 X 2,5 -EPDM-6-70 1
8 04906092 (壳体总成包含 Included in) 法兰盘 FLANGE 1
9 01181433 (壳体总成包含 Included in) 六角头凸缘螺栓 EN 1662 -F-M8X20-LG2,5-10.9-ZNAL-A HEXAGON BOLT EN 1662 -F-M8X20 LG2,5-10.9-ZNAL-A 2
10 01118760 (壳体总成包含 Included in) 密封垫 DIN 7603-A26X31-CU SEALING RING DIN 7603-A26X31-CU 1
11 01148158 (壳体总成包含 Included in) 螺塞 DIN 908-M26X1,5-ST-ZNAL-A SCREW PLUG DIN 908-M26X1,5-ST-ZNAL-A 1
12 04254754 (壳体总成包含 Included in) 机油冷却器旁通阀总成 BY-PASS COMPONENT 1
13 -(壳体总成包含 Included in) 限压阀总成 PRESSURE LIMITING VALVE ASSEMBLY 1
14 04254803 (壳体总成包含 Included in) 壳体密封垫 COOLER BOX SEAL 1
15 04299502 机油冷却器壳体紧固件总成 OIL COOLER BOX FASTENINGS ASSEMBLY 1
16 01181431(壳体总成包含 Included in) 六角头凸缘螺栓 EN 1662 -F-M8X50-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M8X50-10.9-ZNAL-A 5
17 04254443 (壳体总成包含 Included in) 螺纹套（滤清器接头 A）SCREWED BUSH 1
18 04254442 (壳体总成包含 Included in) 螺纹套（滤清器接头 B） SCREWED BUSH 1
19 01172112 (壳体总成包含 Included in) 螺纹件 H 2358 - AM10X1X 10 THREADED INSERT 1
20 3509643-52D 密封垫 DIN 7603-A10X13,5-CU SEALING RING DIN 7603-A10X13,5-CU 1
21 1013646-52D 螺塞 DIN 908-M10X1-ST-ZNAL-A SCREW PLUG DIN 908 -M10X1-ST-ZNAL-A 1
22 1013656-56D 密封圈 H 2927- 38 X 4 -EPDM-6-70 O-RING H 2927- 38 X 4 -EPDM-6-70 2
23 1013054-56D 连接管—机油冷却器缸体进水腔 CONNECTING PIPE 1
24 1013043-56D 进水腔盖板 COVER PLATE 1 whatsapp 86-18630852087
25 1009626-52D 六角头凸缘螺栓 EN 1662-F-M8X35-10.9-A4C HEXAGON BOLT EN 1662-F-M8X35-10.9-A4C 7
Q1840850TF36六角头凸缘螺栓 HEXAGON BOLT
26 1013042-56D 密封垫－机油冷却器进水腔盖板 GASKET 1
27 1160450-41E 连接管总成 CONNECTION PIPE ASSEMBLY 1

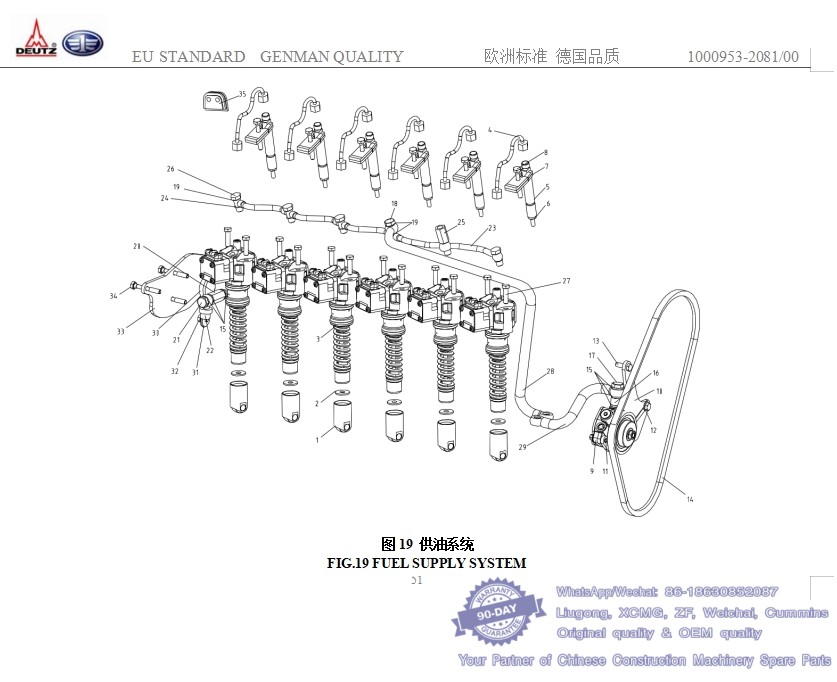

19、供油系统 FUEL SUPPLY SYSTEM（1）-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1111020-52D 单体泵挺柱总成 ROLLER TAPPET 6 whatsapp 86-18630852087
2 1111068B52D 调整垫-喷油泵 ADJUST SHIM 6
3 1111010-11E 单体泵总成 FUEL INJECT. PUMP 6
4 1129010-56D 高压油管总成 HIGH PRESSURE FUEL LINE 6
5 1112010C32E 喷油器总成 FUEL INJECTOR 6
6 1112012-52D 喷油器垫 SEALING RING FOR FUEL INJECTOR 6
7 1112014-52D 喷油器压板 CLAW 12
8 1112619-52D 六角梅花凸缘螺栓 H 2032 -HBM8X50-10.9-ZNAL-A TORX-HEAD BOLT H 2032-HBM8X50-10.9-ZNAL-A 6
9 1106250A30D 燃油输油泵总成(带皮带轮) FUEL SUPPLY PUMP(WITH PULLEY) 1
10 1106252-56D 连接板-燃油输油泵 CLAMPING ARM 1
11 3754627-52D 六角头凸缘螺栓 EN 1662 -F-M8X25-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M8X25-10.9-ZNAL-A 2
12 1106609-52D 平垫圈,ISO 7092-7349-8,4-ST-A4C PLAIN WASHER ISO 7092-7349-8,4-ST-A4C 1
13 CQ1500825F36 六角头导颈螺栓 ISO 4017-M8X25-8.8-ZNAL-A HEXAGON BOLT ISO 4017-M8X25-8.8-ZNAL-A 2
14 1106656A56D 齿形三角带 H 3710 -AVX 13X 1061LA-WA* V-BELT H 3710-AVX 13X 1061LA-WA* 1
15 1104617-52D 密封垫 DIN 7603-A14X20-CU SEALING RING DIN 7603-A14X20-CU 1
16 1104048-52D 密封垫-缸体进油接头处 SEALING RING 1
17 1104647-52D 空心螺栓 H 3102-E10 M-ST-A4C HOLLOW SCREW H 3102-E10 M-ST-A4C 1
18 1104442-56D 空心螺栓 HOLLOW SCREW 1
19 1104694B30D 复合式密封垫圈 SEALING RING 7
20 1104086-30D 过渡接头-接缸体 TRANSITION ADAPTER 1
21 1104065-52D 回油阀 PRESSURESTAT 1 whatsapp 86-18630852087
22 1104072-52D 回油接头 BANJO FITTING 1
23 1104090-56D 连接电控单体泵燃油管装配总成 FUEL LINE 1
24 1104092B30D 复合式密封垫圈 SEALING RING 6
25 1104086-56D 燃油温度传感器过渡螺套 THREADED SOCKET 1
26 1104098-30D 空心螺栓-接单体泵 HOLLOW SCREW 4
27 0118 1764 喷油泵固定螺栓 COLLAR SCREW 12
28 1104030B56D 燃油管总成-输油泵至燃油滤 OIL PIPE ASSEMBLY 1 whatsapp 86-18630852087
29 1104040B56D 燃油管总成-燃油滤至单体泵进油管 OIL PIPE ASSEMBLY 1
30 1002626-52D 螺塞 DIN 908-M14X1,5-ST-A4C SCREW PLUG DIN 908 -M14X1,5-ST-A4C 1
3509644-52D密封垫 DIN7603-A14X18-Cu SEALING RING DIN7603-A14X18-Cu1
31 1110016-30D 垫片 PLAIN WASHER 1
32 CQ1500812TF36 六角头导颈螺栓 ISO 4017 -M 8 X 12 - 10.9-A4C HEXAGON BOLT ISO 4017 -M8X12-10.9-A4C 1
33 1110017A56D 调速器孔盖板 COVER 1
34 1010627-52D 六角头凸缘螺栓 EN 1662 -F-M8X55-10.9-ZNAL-A HEXAGON BOLT EN 1662 -F-M8X55-10.9-ZNAL-A 5
35 1129016-52D 密封橡胶套 RUBBER SEAL 6
whatsapp 86-18630852087

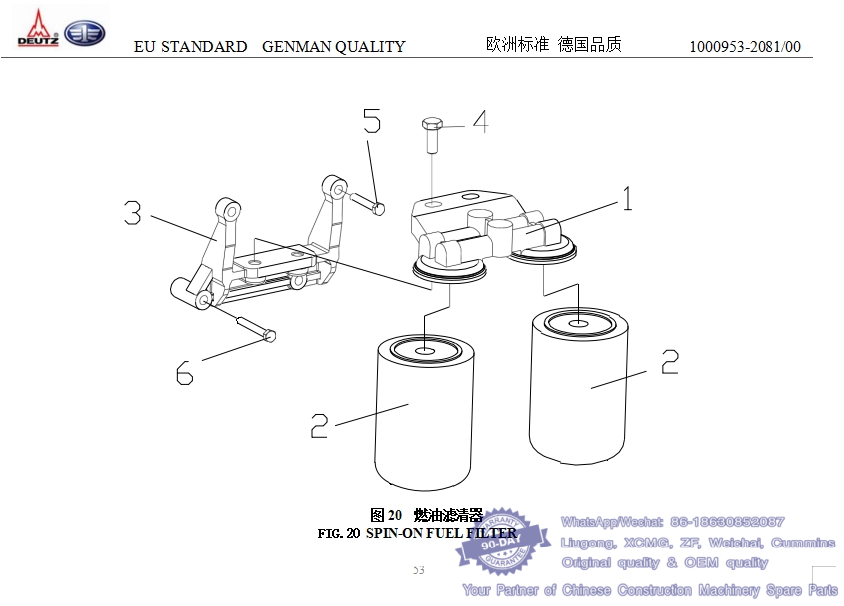

20、燃油滤清器 SPIN-ON FUEL FILTER-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1117020-52D 燃油滤清器底座总成 BRACKET ASSEMBLY 1
2 1117050A52D 燃油滤清器滤芯总成 FUEL FILTER CORE 2 whatsapp 86-18630852087
3 1117041-56D 燃油细滤器支架 BRACKET 1
4 Q1841235TF36 组合螺栓 HEXAGON BOLT WASHER ASSEMBLY 2
5 Q1840850TF36 组合螺栓 HEXAGON BOLT WASHER ASSEMBLY 2 whatsapp 86-18630852087
6 Q1840855TF36 组合螺栓 HEXAGON BOLT WASHER ASSEMBLY 2
