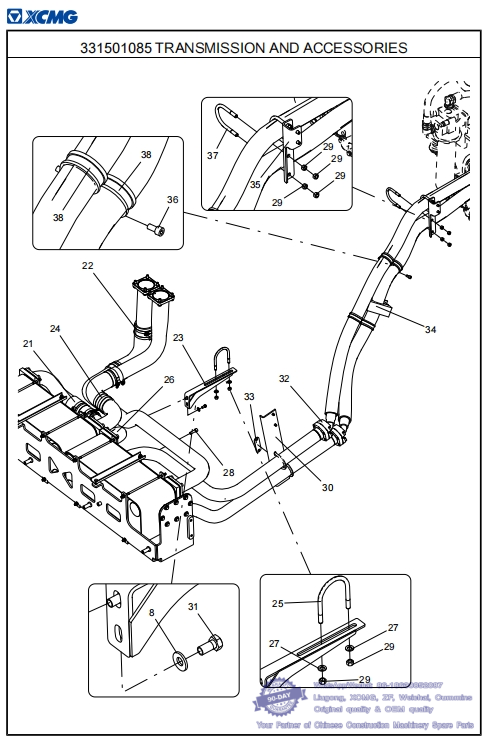

166 331501085 TRANSMISSION AND ACCESSORIES-- XCMG Mining Dump Truck XDR100 Parts Catalog
331500145 DRIVE SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331501148 1 TRANSMISSION COMPONENT 342 whatsapp 86-18630852087
2 331501483 1 TRANSMISSION OIL FILLING PIPE COMPONENT 348
3 803449971 1 HOSE ASS'Y
4 331501144 1 OIL PIPE
5 331501146 1 OIL PIPE
6 331501135 1 ENGINE RETURN PIPE
7 805006287 8 BOLT M12×40 GB/T5783-2000 whatsapp 86-18630852087
8 805301373 14 WASHER 10 DIN6796
9 331501134 2 WASHER
10 331501136 1 ENGINE WATER OUTLET PIPE
11 331505290 1 HOSE
12 331501137 1 HOSE
13 803449970 1 HOSE ASS'Y
14 331501141 1 WATER PIPE
15 331501145 1 WATER PIPE
16 805140062 16 SCREW M12×30 GB/T70.1-2008 whatsapp 86-18630852087
17 331502868 2 CUSHION
18 331501139 1 WATER PIPE
19 331501147 1 OIL COOLER ASSEMBLY 352
20 331501138 4 WASHER
167 331501085 TRANSMISSION AND ACCESSORIES-- XCMG Mining Dump Truck XDR100 Parts Catalog
331500145 DRIVE SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
21 331501140 1 HOSE
22 803388673 4 HOSE CLAMP whatsapp 86-18630852087
23 331501159 1 BRACKET
24 800104440 8 HOOP
25 805011258 1 BOLT 89 JB/ZQ4321-2006
26 331501142 1 WATER PIPE
27 805338281 6 WASHER 12 GB/T97.1-2002
28 805139877 8 SCREW M12×40 GB/T70.1-2008
29 805238372 14 NUT M12 GB/T6170-2000
30 331501132 1 SUPPORT PLATE
31 805046525 6 BOLT M10×20 GB/T5783-2000
32 803384672 4 FLANGE ASSEMBLY
33 331501131 2 ADJUSTABLE PAD whatsapp 86-18630852087
34 803442765 1 HEAVY NYLON PIPE CLAMP
35 331501133 1 SUPPORT PLATE
36 805139925 4 SCREW M10×20 GB/T70.1-2008
37 805000001 4 BOLT 76 JB/ZQ4321-2006
38 800104640 4 RUBBER SLEEVE HOOP

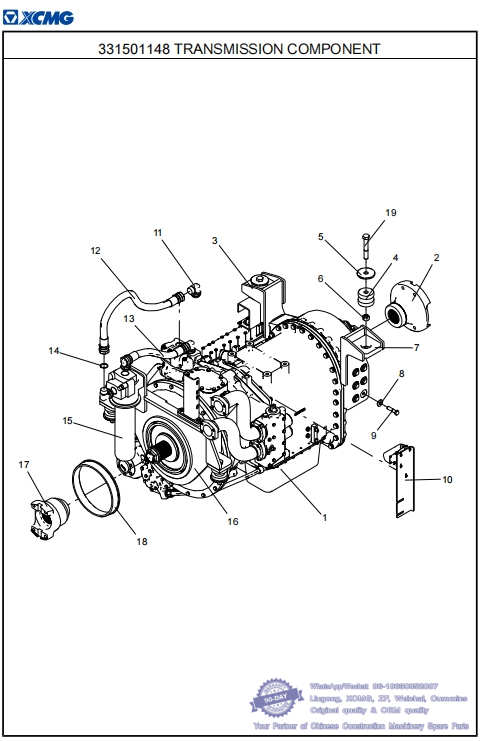

168 331501148 TRANSMISSION COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501085 TRANSMISSION AND ACCESSORIES
No. PART NUMBER QTY NAME NOTE PAGE
1 800357203 1 GEARBOX ASSEMBLY whatsapp 86-18630852087
2 800357676 1 TRANSMISSION OUTPUT FLANGE YOKE
3 331506065 1 RIGHT SUSPENSION
4 803406751 4 DAMPER
5 331500037 4 BASEPLATE
6 805238491 4 NUT M22 GB/T6184-2000 whatsapp 86-18630852087
7 331506064 1 LEFT SUSPENSION
8 805301377 12 WASHER 16 DIN6796
9 805049390 12 BOLT 5/8-11UNC×2-1/2
10 331501154 1 ELECTRIC PUSH ROD ASSEMBLY 346
11 803407034 4 90° JOINT
12 803407031 1 OIL OUTLET PIPE ASSEMBLY
13 803407032 1 RETURN OIL PIPE ASSEMBLY whatsapp 86-18630852087
14 803407033 4 O-RING
15 803407036 1 REMOTE FILTER
16 331501156 1 FRONT SUSPENSION
17 800357677 1 TRANSMISSION INPUT FLANGE YOKE
18 331501155 1 BUSH
19 805047775 4 BOLT M22×140 GB/T5782-2000 whatsapp 86-18630852087

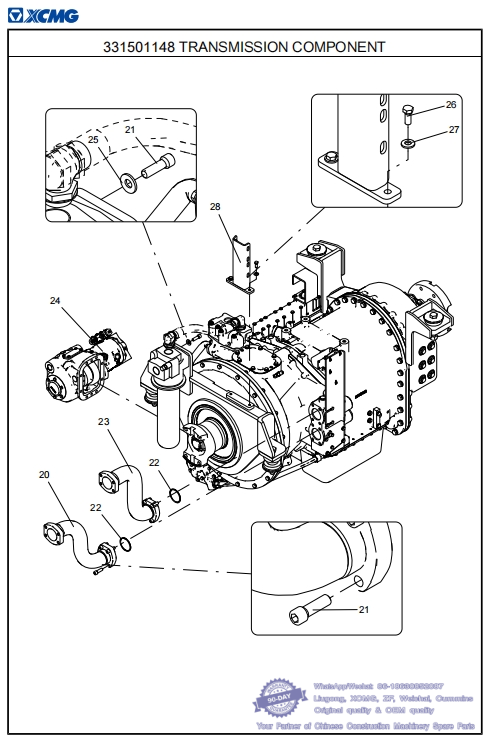

169 331501148 TRANSMISSION COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501085 TRANSMISSION AND ACCESSORIES
No. PART NUMBER QTY NAME NOTE PAGE
20 331501149 1 COOLING OIL OUTLET PIPE whatsapp 86-18630852087
21 805141302 12 SCREW 1/2-13UNC×1-1/2
22 803303453 2 ORING 69.44×3.53-S AS568
23 331501150 1 COOLING OIL RETURN PIPE
24 800357675 1 POWER TAKE-OFF ASSEMBLY
25 805301374 4 WASHER 12 DIN6796
26 805011330 2 BOLT M10×25 GB/T5783-2000 whatsapp 86-18630852087
27 805301373 2 WASHER 10 DIN6796
28 331501151 1 HYDRAULIC PIPE BRACKET

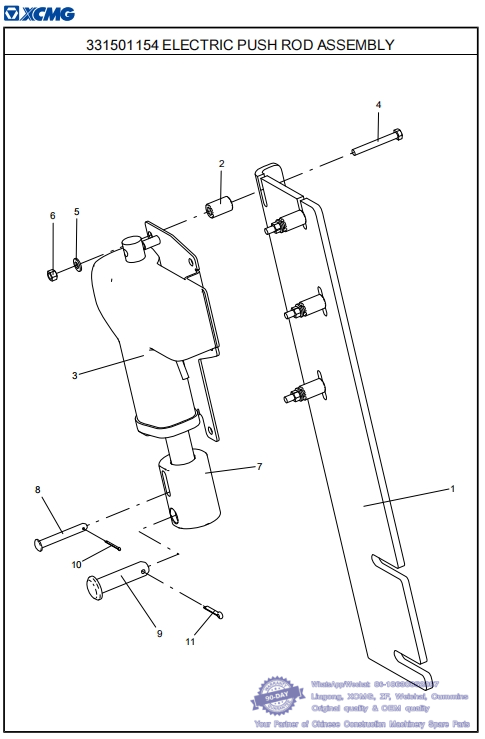

170 331501154 ELECTRIC PUSH ROD ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501148 TRANSMISSION COMPONENT
No. PART NUMBER QTY NAME NOTE PAGE
1 331501193 1 BASEPLATE
2 331501192 4 SUPPORTING COLUMN whatsapp 86-18630852087
3 803548644 1 ELECTRIC PUSH ROD
4 805046923 4 BOLT M5×40 GB/T5782-2000
5 805301382 4 WASHER 5 DIN6796
6 805238482 4 NUT M5 GB/T6170-2000
7 331501191 1 COUPLING SLEEVE
8 331501190 1 PIN whatsapp 86-18630852087
9 331501189 1 PIN
10 805600022 1 PIN 1.6×20 GB/T91-2000
11 805600001 1 PIN 3.2×20 GB/T91-2000
