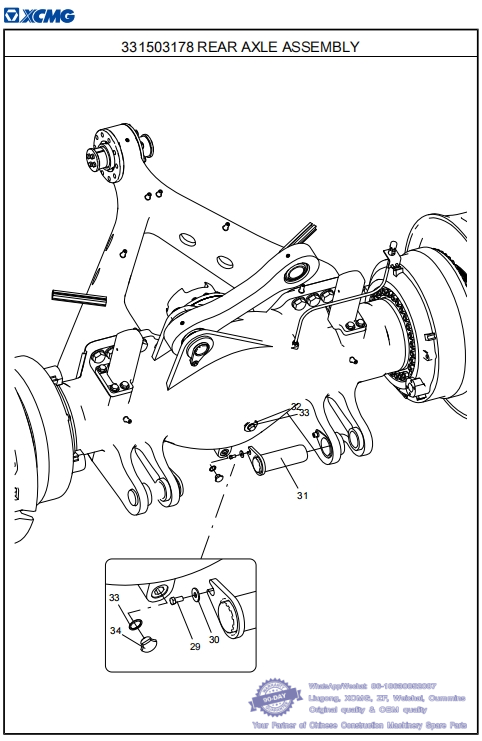

176 331503178 REAR AXLE ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331500145 DRIVE SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
29 805046469 3 BOLT M12×25 GB/T5783-2000 whatsapp 86-18630852087
30 805338269 3 WASHER 12 GB/T96.1-2002
31 331500429 2 SUSPENSION CYLINDER PIN SHAFT
32 803270963 1 SCREW PLUG M30×2 JB/ZQ4450-2006
33 805300055 2 WASHER 30 JB/T982-1977
34 803377265 1 SCREW PLUG M30×2 QC/T385-1999 whatsapp 86-18630852087

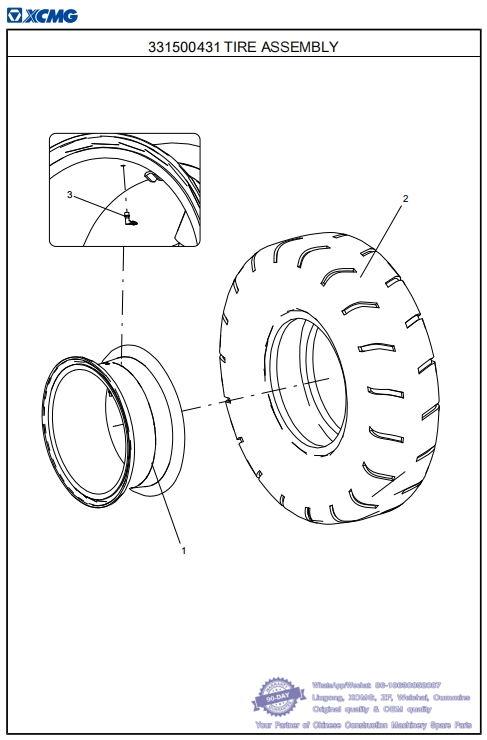

177 331500431 TIRE ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503178 REAR AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 800357605 1 WHEEL RIM ASSEMBLY 362 whatsapp 86-18630852087
2 800357604 1 TIRE
3 800989929 1 VALVE ASSEMBLYNPT1/2 whatsapp 86-18630852087

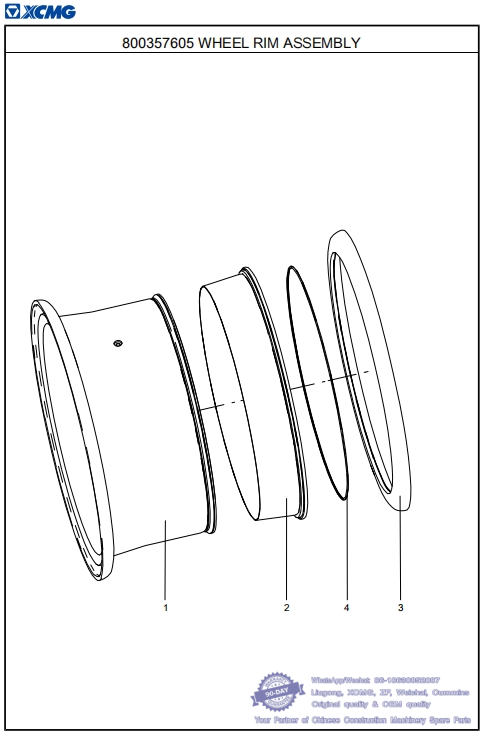

178 800357605 WHEEL RIM ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501091 FRONT WHEEL ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 800369721 1 RIM BASE whatsapp 86-18630852087
2 800369720 1 RIM RETAINER
3 800369718 1 WHEEL RIM RETAINER RING whatsapp 86-18630852087
4 800369719 1 RIM SEAL RING

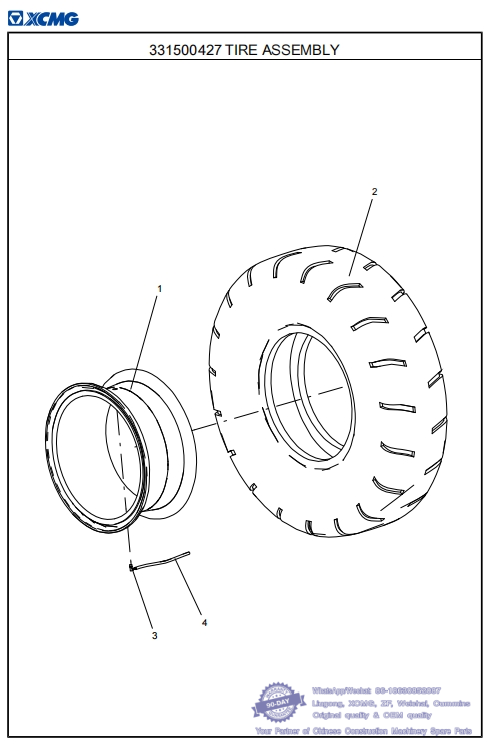

179 331500427 TIRE ASSEMBLY- XCMG Mining Dump Truck XDR100 Parts Catalog
331503178 REAR AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 800357605 1 WHEEL RIM ASSEMBLY 362 whatsapp 86-18630852087
2 800357604 1 TIRE
3 800989929 1 VALVE ASSEMBLYNPT1/2 whatsapp 86-18630852087
4 800988758 1 675MMHOSE

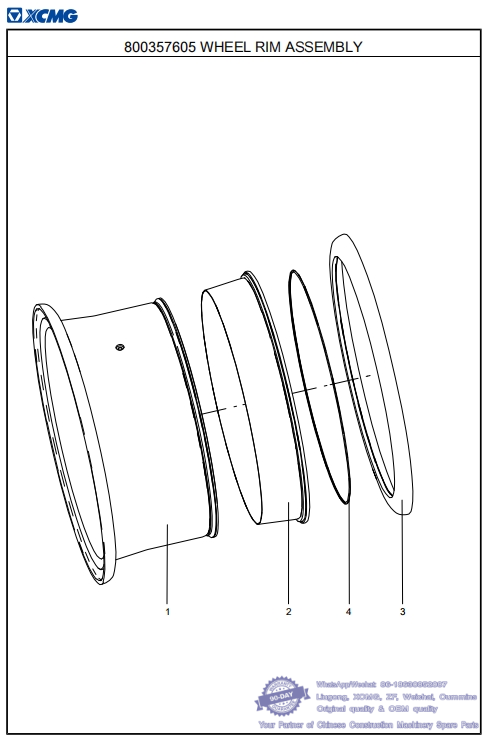

180 800357605 WHEEL RIM ASSEMBLY- XCMG Mining Dump Truck XDR100 Parts Catalog
331501091 FRONT WHEEL ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 800369721 1 RIM BASE whatsapp 86-18630852087
2 800369720 1 RIM RETAINER
3 800369718 1 WHEEL RIM RETAINER RING
4 800369719 1 RIM SEAL RING whatsapp 86-18630852087
