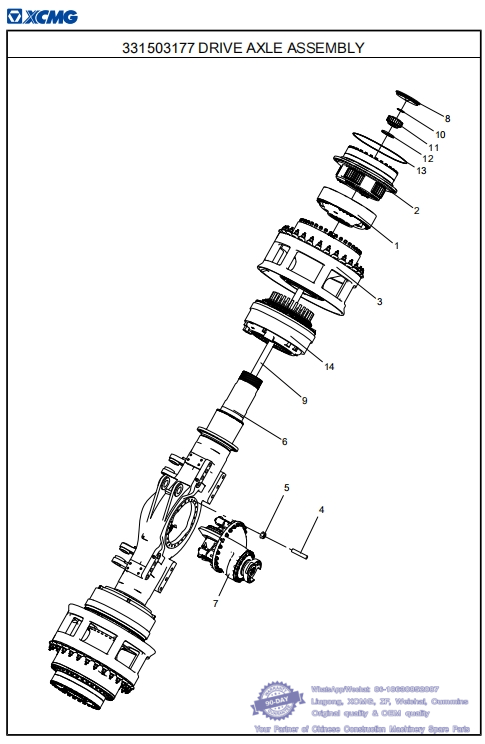

181 331503177 DRIVE AXLE ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503178 REAR AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331503222 2 CLASS-2 GEAR RING BRACKET ASSEMBLY 370
2 331503226 2 WHEEL REDUCER ASSEMBLY 372
3 331503213 2 HUB ASSEMBLY 378 whatsapp 86-18630852087
4 331503255 22 STUD
5 331503216 22 DTFLOCK NUT M20
6 331503179 1 AXLE HOUSING WELDING ASSEMBLY
7 331503182 1 MAIN REDUCER AND DIFFERENTIAL ASSEMBLY 380
8 331503250 2 COVER PLATE
9 331503251 2 SHAFT whatsapp 86-18630852087
10 805400092 2 HOLD WASHER 85 GB/T894.1-1986
11 331503253 2 PRIMARY SUN GEAR
12 331503252 2 THRUST WASHER whatsapp 86-18630852087
13 803418039 2 ORING 728X4
14 800365404 2 REAR BRAKE ASSEMBLY 388

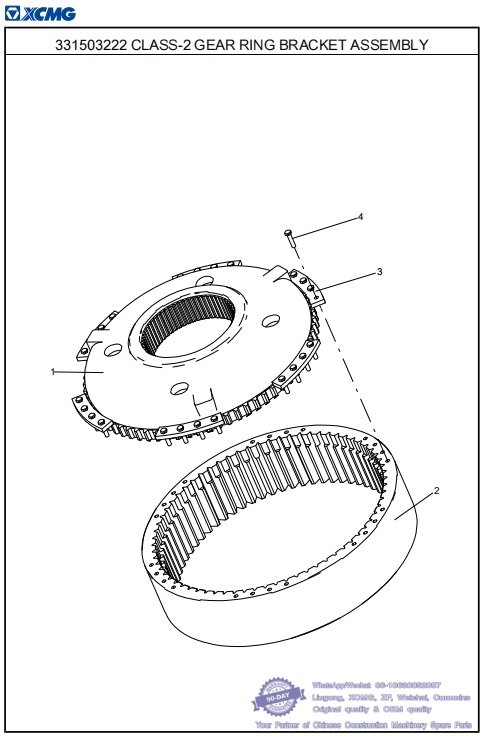

182 331503222 CLASS-2 GEAR RING BRACKET ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503177 DRIVE AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331503223 1 CLASS-2 GEAR RING BRACKET whatsapp 86-18630852087
2 331503224 1 SECONDARY RING GEAR
3 331503225 6 RETAINER
4 805046778 24 BOLT M10×45 GB/T32.1-1988 whatsapp 86-18630852087

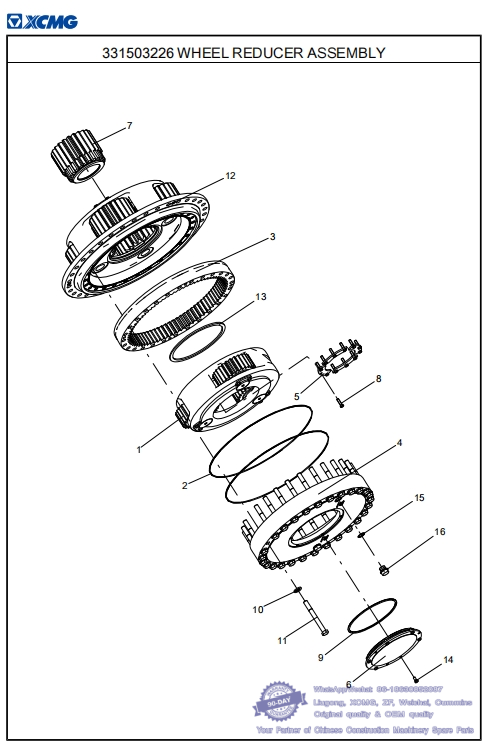

183 331503226 WHEEL REDUCER ASSEMBLY- XCMG Mining Dump Truck XDR100 Parts Catalog
331503177 DRIVE AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331503236 1 CLASS-1 REDUCER ASSEMBLY 374
2 803443838 2 DIN3771 ORING600X3.53
3 331503246 1 PRIMARY RING GEAR whatsapp 86-18630852087
4 331503247 1 SEAT COVER
5 331503248 4 RETAINER
6 331503250 1 COVER PLATE
7 331503249 1 SECONDARY SUN GEAR
8 805049442 12 BOLT M10×1×40 GB/T5786-2000 whatsapp 86-18630852087
9 803309145 1 ORING 272×7 GB/T3452.1-2005
10 805338297 28 WASHER 20 GB/T1230-2006
11 805000710 28 BOLT M20×190 GB/T5782-2000
12 331503227 1 CLASS-2 REDUCER ASSEMBLY 376
13 331503245 1 THRUST WASHER whatsapp 86-18630852087
14 805046472 6 BOLT M10×20 GB/T5783-2000
15 805300055 2 WASHER 30 JB/T982-1977
16 803270963 2 SCREW PLUG M30×2 JB/ZQ4450-2006

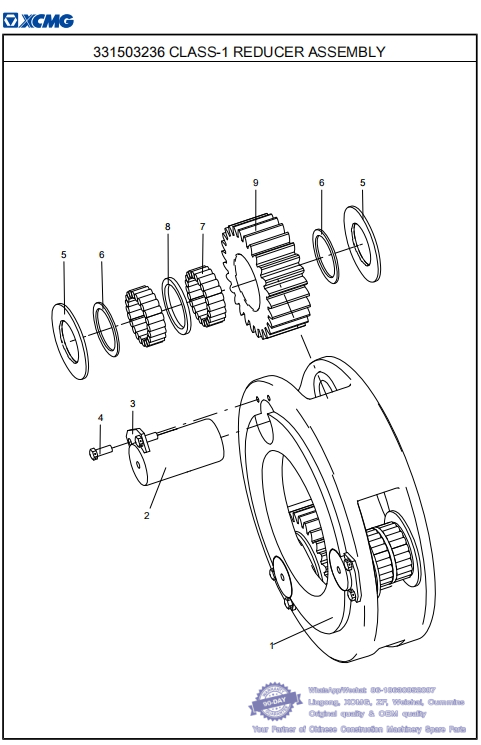

184 331503236 CLASS-1 REDUCER ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503226 WHEEL REDUCER ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331503237 1 PRIMARY PLANET CARRIER
2 331503238 3 PRIMARY PLANET SHAFT whatsapp 86-18630852087
3 331503239 3 RETAINER
4 805000155 6 BOLT M12×30 GB/T32.1-1988
5 331503240 6 THRUST PLATE
6 331503241 6 THRUST WASHER whatsapp 86-18630852087
7 331503242 132 ROLLERΦ13X30
8 331503243 3 SPACER RING
9 331503244 3 PRIMARY PLANET GEAR

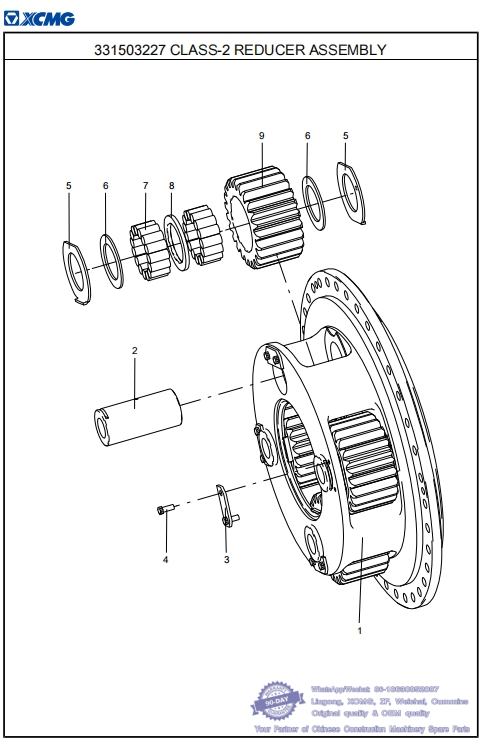

185 331503227 CLASS-2 REDUCER ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503226 WHEEL REDUCER ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331503228 1 CLASS-2 PLANET WHEEL BRACKET whatsapp 86-18630852087
2 331503229 4 SECONDARY PLANET SHAFT
3 331503230 4 RETAINER
4 805000155 8 BOLT M12×30 GB/T32.1-1988
5 331503231 8 THRUST PLATE whatsapp 86-18630852087
6 331503232 8 THRUST WASHER
7 331503233 120 ROLLERΦ24X50 whatsapp 86-18630852087
8 331503234 4 SPACER RING
9 331503235 4 SECONDARY PLANET GEAR
