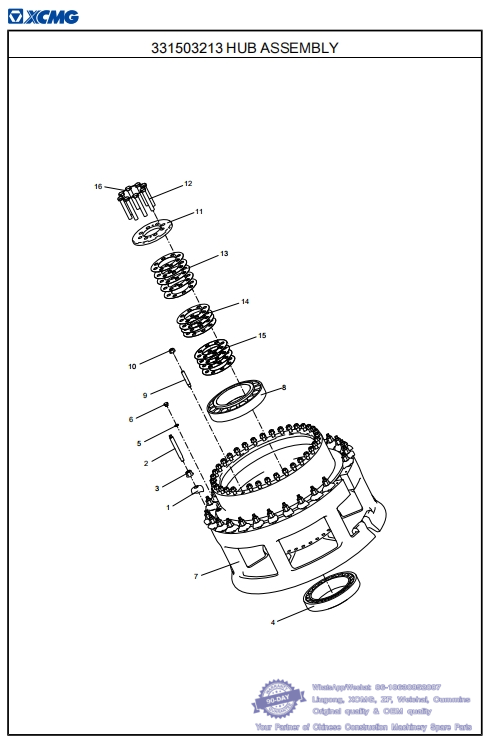

186 331503213 HUB ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503177 DRIVE AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331500437 27 RIM LOCK BLOCK whatsapp 86-18630852087
2 331500461 27 STUD
3 331500436 27 LOCK NUT
4 800554835 1 REAR FRONT BEARING INNER/OUTER RING
5 805300054 1 WASHER 20 JB/T982-1977
6 803383347 1 SCREW PLUG M20×1.5 QC/T385-1999
7 331503214 1 REAR-WHEEL HUB
8 800554836 1 REAR FRONT BEARING INNER/OUTER RING
9 331503215 36 STUD whatsapp 86-18630852087
10 331503216 36 DTFLOCK NUT M20
11 331503218 1 RETAINER
12 805047639 8 BOLT M24×160 GB/T32.1-1988 whatsapp 86-18630852087
13 331503217 5 CLEARANCE ADJUSTMENT SHEET
14 331503220 4 CLEARANCE ADJUSTMENT SHEET
15 331503219 4 CLEARANCE ADJUSTMENT SHEET
16 331503221 1 LOCKING STEEL WIRE

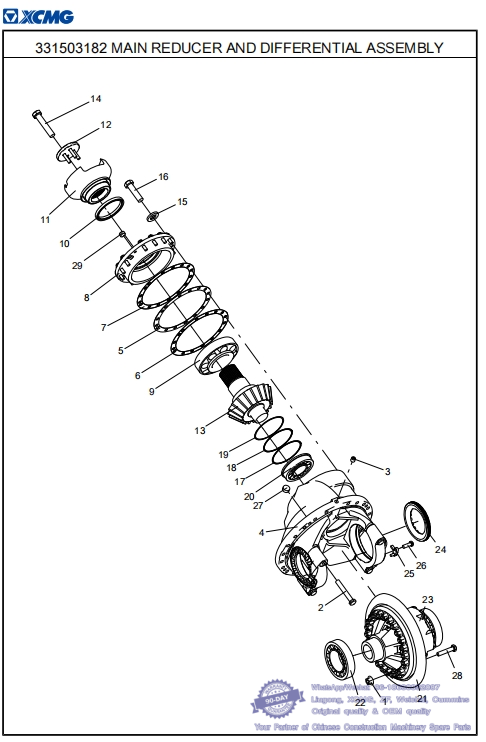

187 331503182 MAIN REDUCER AND DIFFERENTIAL ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503177 DRIVE AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331503201 24 DTFLOCK NUT M22
2 805047639 4 BOLT M24×160 GB/T32.1-1988 whatsapp 86-18630852087
3 805140299 2 SCREW M24×25 GB/T77-2007
4 331503268 1 MAIN REDUCER HOUSING ASSEMBLY 382
5 331503189 1 CLEARANCE ADJUSTMENT SHEET
6 331503190 1 CLEARANCE ADJUSTMENT SHEET
7 331503191 1 CLEARANCE ADJUSTMENT SHEET
8 331503188 1 BEARING SEAT
9 800554838 1 BEARING INNER/OUTER RING
10 803164087 1 LIP SEAL B160×190×15 GB/T9877-2008
11 331503183 1 FORK HEAD ASSEMBLY 384 whatsapp 86-18630852087
12 331503187 1 PRESSURE PLATE
13 331503195 1 DRIVEN SPIRAL BEVEL GEAR
14 805051880 4 AMERICAN SYSTEM HEXAGON BOLT5/8-11UNCX80-2B
15 805338377 15 WASHER 18 GB/T1230-2006
16 805004815 14 BOLT M16×60 GB/T5783-2000
17 331503192 1 CLEARANCE ADJUSTMENT SHEET
18 331503193 1 CLEARANCE ADJUSTMENT SHEET
19 331503194 1 CLEARANCE ADJUSTMENT SHEET
20 800554837 1 BEARING INNER/OUTER RING
21 331503197 1 DRIVEN SPIRAL BEVEL GEAR whatsapp 86-18630852087
22 800554839 2 BEARING INNER/OUTER RING
23 331503196 1 DIFFERENTIAL ASSEMBLY 386
24 331503199 2 NUT
25 331503198 2 CATCH PIN
26 805002196 4 BOLT M12×35 GB/T32.1-1988
27 805140302 4 SCREW M20×12 GB/T77-2007
28 331503200 24 BOLTM22X2.5 10.9 whatsapp 86-18630852087
29 805140298 3 SCREW M16×10 GB/T77-2007

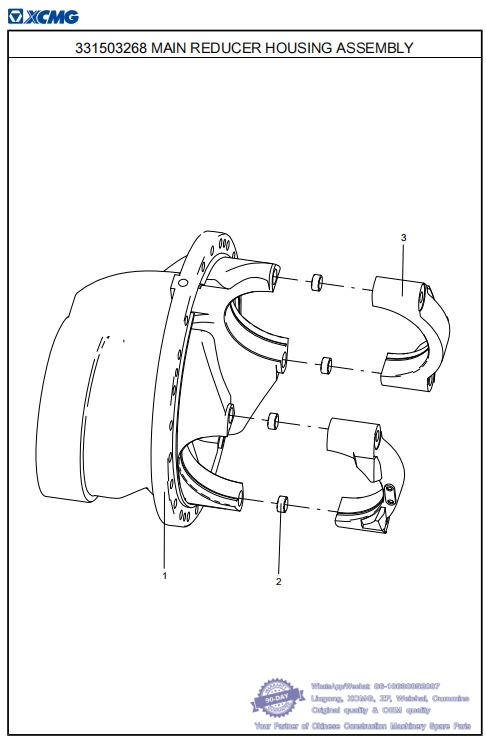

188 331503268 MAIN REDUCER HOUSING ASSEMBLY- XCMG Mining Dump Truck XDR100 Parts Catalog
331503182 MAIN REDUCER AND DIFFERENTIAL ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331503210 1 MAIN REDUCER HOUSING whatsapp 86-18630852087
2 331503212 4 POSITIONING SLEEVE
3 331503211 2 BEARING CAP whatsapp 86-18630852087

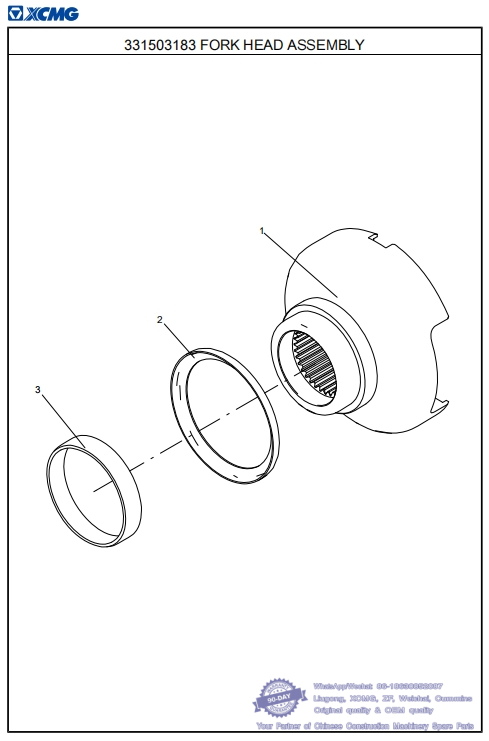

189 331503183 FORK HEAD ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503182 MAIN REDUCER AND DIFFERENTIAL ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331503186 1 INPUT FLANGE YOKE whatsapp 86-18630852087
2 331503184 1 DUST CAP
3 331503185 1 SPACER SLEEVE

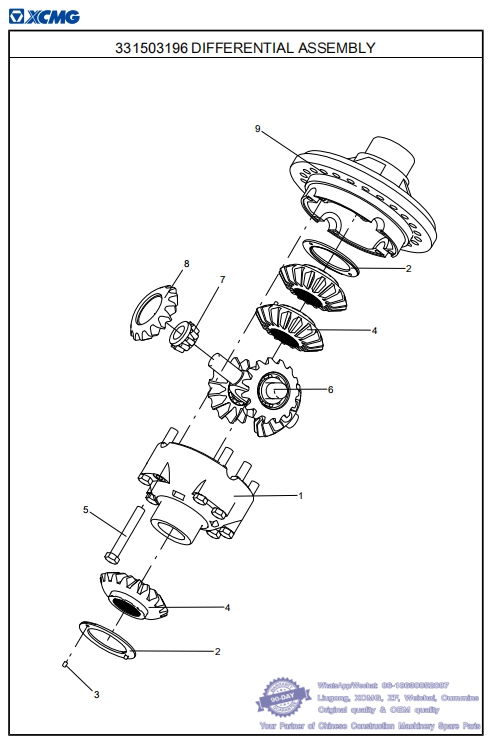

190 331503196 DIFFERENTIAL ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503182 MAIN REDUCER AND DIFFERENTIAL ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331503208 1 DIFFERENTIAL LEFT HOUSING whatsapp 86-18630852087
2 331503207 2 AXLE SHAFT GEAR WASHER
3 331503203 4 SET PIN
4 331503209 3 SIDE BEVEL GEAR
5 805041424 8 BOLT M24×2×160 GB/T5785-2000
6 331503205 1 SPIDER whatsapp 86-18630852087
7 800556394 4 TIMKEN BEARING5356/5355
8 331503204 4 PLANET CONE GEAR
9 331503206 1 DIFFERENTIAL RIGHT HOUSING
