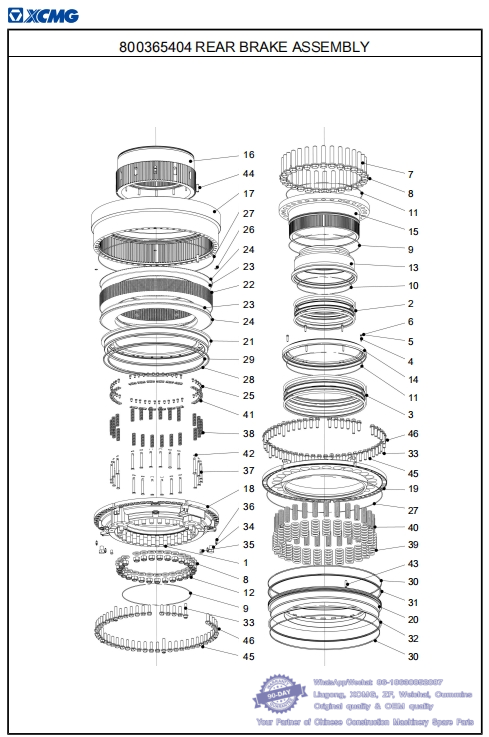

191 800365404 REAR BRAKE ASSEMBLY- XCMG Mining Dump Truck XDR100 Parts Catalog
331503177 DRIVE AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 800369546 28 STUD
2 800369506 1 SMALL MOTIVE SEAL whatsapp 86-18630852087
3 800369507 1 BIG MOTIVE SEAL
4 800369508 12 BOLT
5 800369509 12 MAT
6 800369510 6 LOCKING IRON WIRE
7 800369511 30 BOLT
8 800369512 58 MAT
9 800369513 2 ORING
10 800369514 1 ORING
11 800369515 2 ORING
12 800369516 28 SELF-LOCKING NUT whatsapp 86-18630852087
13 800369517 1 INNER SEAL HOLDER RING
14 800369518 1 OUTER SEAL HOLDER RING
15 800369519 1 DRIVING WHEEL
16 800369520 1 DRIVE DISC
17 800369521 1 HOUSING
18 800369522 1 TRAVELING PISTON RING
19 800369523 1 SPRING SEAT COVER
20 800369524 1 PARKING PISTON
21 800369525 1 TRAVELING PISTON
22 800369526 13 FRICTION PLATE
23 800369527 12 FRICTION DISC
24 800369528 2 RETAINER
25 800369561 48 BOLT
26 800369562 3 ORING
27 800369563 2 ORING whatsapp 86-18630852087
28 800369564 1 DRING
29 800369565 1 DRING
30 800369531 2 HOLD WASHER
31 800369529 1 OGSEAL RING
32 800369530 1 ODSEAL RING
33 800369545 10 HEXAGON SOCKET SCREW

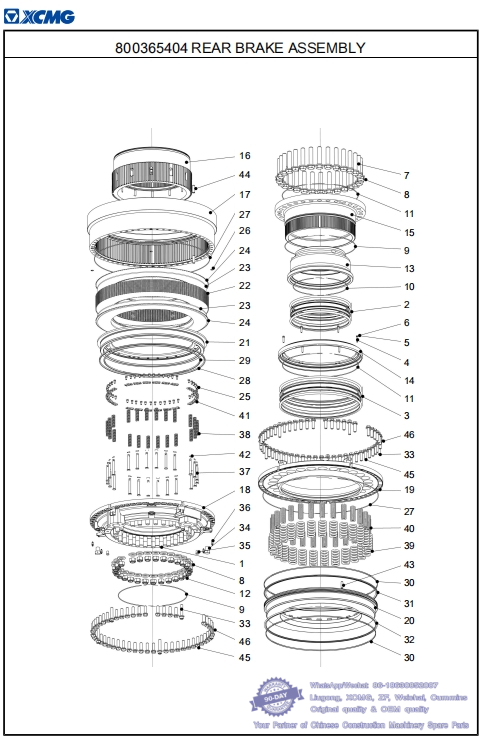

192 800365404 REAR BRAKE ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503177 DRIVE AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
34 800369533 2 PLUG
35 800369532 2 PLUG
36 800369534 4 EXHAUST BOLT whatsapp 86-18630852087
37 800369535 24 RETURN PIN
38 800369536 24 RETURN SPRING
39 800369537 27 SPRING
40 800369538 27 SPRING
41 800369539 24 MOUNTING PLATE whatsapp 86-18630852087
42 800369540 24 PIN
43 800369541 1 PIN
44 800369542 2 PIN
45 800369543 98 BOLT whatsapp 86-18630852087
46 800369544 108 MAT

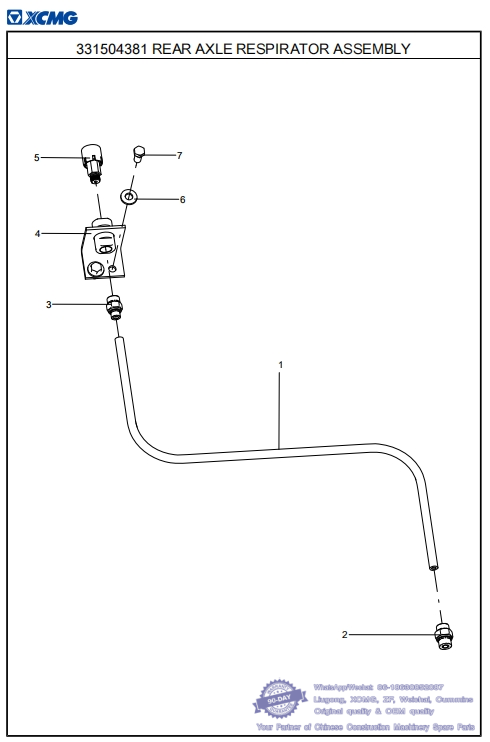

193 331504381 REAR AXLE RESPIRATOR ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503178 REAR AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 803304142 1 HOSE ASS'Y whatsapp 86-18630852087
2 803177583 1 CONNECTOR BODY
3 803163758 1 CONNECTOR BODY
4 331504382 1 CROSSOVER COUPLING WELDING COMPONENT
5 804002775 1 XDM100 REAR AXLE BREATHABLE CAP COMPONENT
6 805301374 2 WASHER 12 DIN6796 whatsapp 86-18630852087
7 805046469 2 BOLT M12×25 GB/T5783-2000

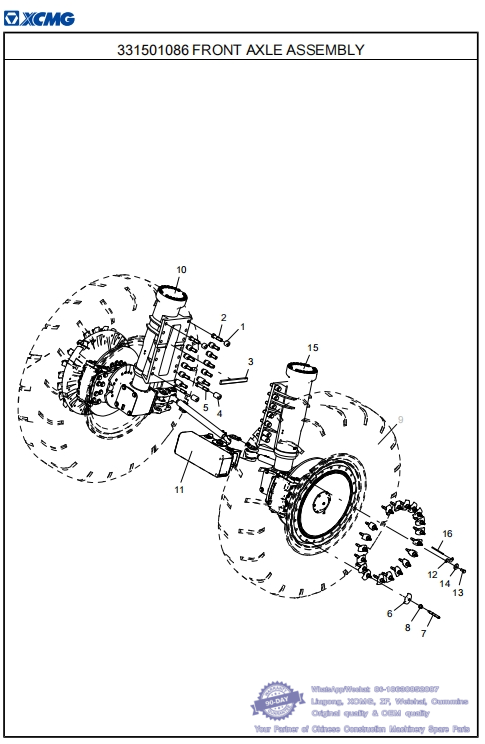

194 331501086 FRONT AXLE ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331500145 DRIVE SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331501090 20 WASHER
2 805049619 20 BOLT M33×140 GB/T5782-2000 whatsapp 86-18630852087
3 331501089 2 FLAT KEY
4 331501088 8 WASHER
5 805049373 8 BOLT M33×180 GB/T5782-2000
6 331501087 40 LOCK BLOCK whatsapp 86-18630852087
7 331500461 40 STUD
8 331500436 40 LOCK NUT
9 331501091 2 FRONT WHEEL ASSEMBLY 396
10 331501092 1 RIGHT FRONT AXLE 400
11 331501093 1 STEERING ASSEMBLY 406
12 331500439 2 PIPE CLIP SEAT
13 805046469 2 BOLT M12×25 GB/T5783-2000 whatsapp 86-18630852087
14 805338270 2 WASHER 12 GB/T96.1-2002
15 331501094 1 LEFT FRONT AXLE 410
16 800988551 2 260MMHOSE

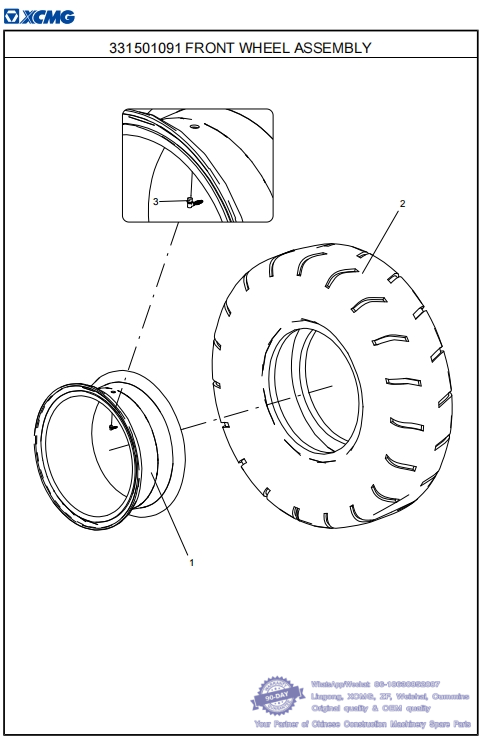

195 331501091 FRONT WHEEL ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501086 FRONT AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 800357605 1 WHEEL RIM ASSEMBLY 398 whatsapp 86-18630852087
2 800357604 1 TIRE
3 800990423 1 INTEGRATED VALVE ASSEMBLY NPT1/2 whatsapp 86-18630852087
