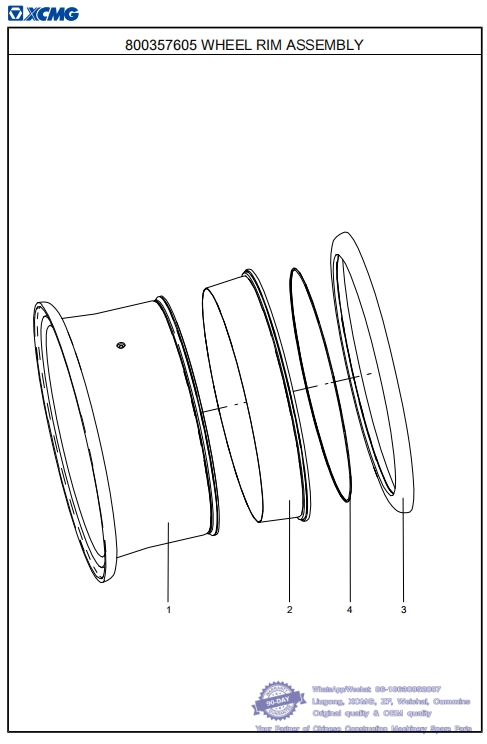

196 800357605 WHEEL RIM ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501091 FRONT WHEEL ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 800369721 1 RIM BASE whatsapp 86-18630852087
2 800369720 1 RIM RETAINER
3 800369718 1 WHEEL RIM RETAINER RING
4 800369719 1 RIM SEAL RING whatsapp 86-18630852087

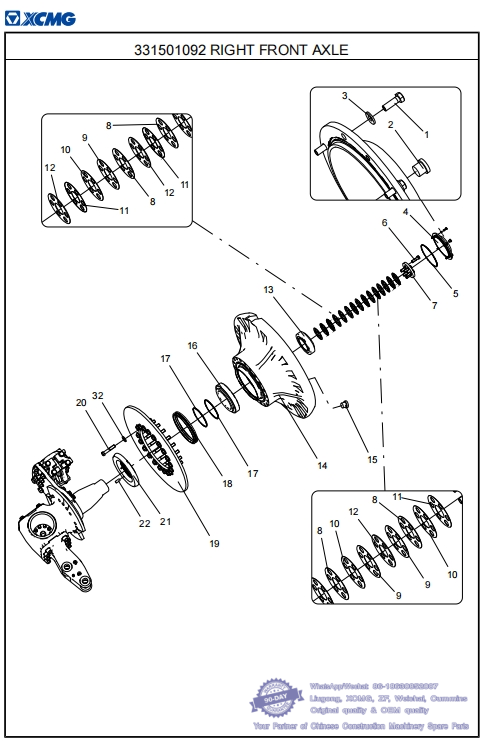

197 331501092 RIGHT FRONT AXLE-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501086 FRONT AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 805046416 6 BOLT M10×30 GB/T5783-2000 whatsapp 86-18630852087
2 803195711 1 PLUG
3 805301373 6 WASHER 10 DIN6796
4 331501100 1 COVER
5 803407030 1 ORING 246×4
6 805048834 6 BOLT M20×70 GB/T32.1-1988
7 331501101 1 BEARING PRESSING PLATE
8 331501105 3 CUSHION whatsapp 86-18630852087
9 331501104 3 CUSHION
10 331501103 3 CUSHION
11 331501102 3 CUSHION
12 331501106 3 CUSHION
13 800554860 1 BEARING 95525/95925
14 331501107 1 FRONT WHEEL HUB
15 803112285 1 PLUG
16 800554861 1 BEARING 93825/93125
17 803407028 2 ORING 209×5
18 803407029 1 FLOATING SEAL
19 331501098 1 BRAKE DISC whatsapp 86-18630852087
20 805006423 29 BOLT M24×130 GB/T5782-2000
21 331501108 1 BEARING SPACER
22 805639326 2 PIN 8×18 GB/T119.1-2000

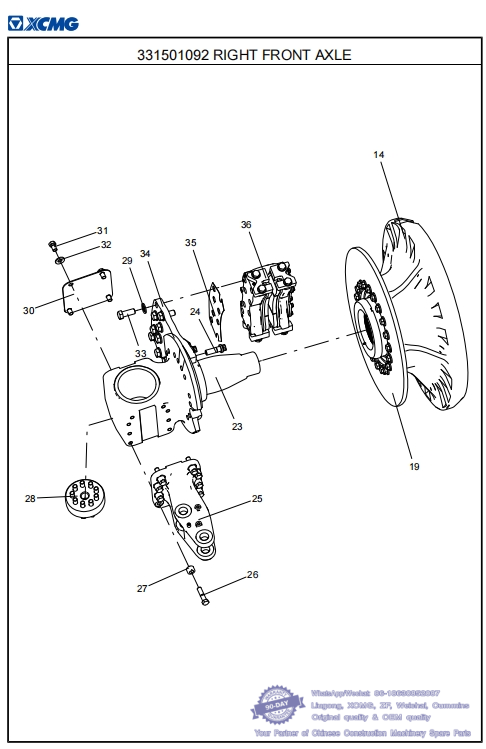

198 331501092 RIGHT FRONT AXLE-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501086 FRONT AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
23 331501110 1 STEERING KNUCKLE whatsapp 86-18630852087
24 805051926 8 TWELVE-POINT FLANGE FACE BOLT M30×2×90 ASME B18.2.5M
25 331505329 1 RIGHT STEERING KNUCKLE ARM
26 805005958 8 BOLT M24×100 GB/T5782-2000
27 331501096 17 WASHER
28 331501097 1 FRONT SUSPENSION CYLINDER PRESSING PLATE
29 330302741 8 WASHER
30 331502562 1 CLOSURE PLATE WELDING PIECE
31 805047884 4 BOLT M24×40 GB/T5783-2000 whatsapp 86-18630852087
32 805301380 24 WASHER 24 DIN6796
33 805047970 8 AMERICAN SCREW BOLT
34 331501109 1 BRAKE STAND
35 330100832 1 CUSHION
36 800357674 1 CALIPER DISC BRAKE 404

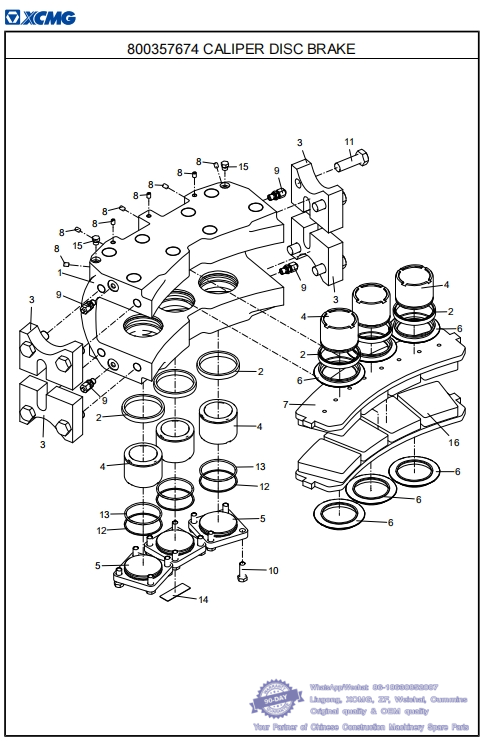

199 800357674 CALIPER DISC BRAKE- XCMG Mining Dump Truck XDR100 Parts Catalog
331501094 LEFT FRONT AXLE
No. PART NUMBER QTY NAME NOTE PAGE
1 800361564 1 BRAKE CALIPER
2 800361562 6 U-SHAPED SEAL whatsapp 86-18630852087
3 800361558 4 BRAKE PAD HOLDER
4 800361559 6 PISTON
5 800361561 3 CYLINDER HEAD
6 800361557 6 PISTON BELLOWS whatsapp 86-18630852087
7 800362666 2 BRAKE DISC
8 800361555 13 SEALING OIL PLUG
9 803103339 4 CONNECTOR
10 805001929 12 BOLT M12×35 GB/T5782-2000
11 805048220 8 BOLT
12 800361563 3 CLOSED TYPE LOOSE RIB whatsapp 86-18630852087
13 800361560 3 O-RING
14 330301963 1 SIGNAGE
15 800361556 2 SEALING OIL PLUG
16 800362665 6 SEALING ELEMENT SERVICE KIT whatsapp 86-18630852087

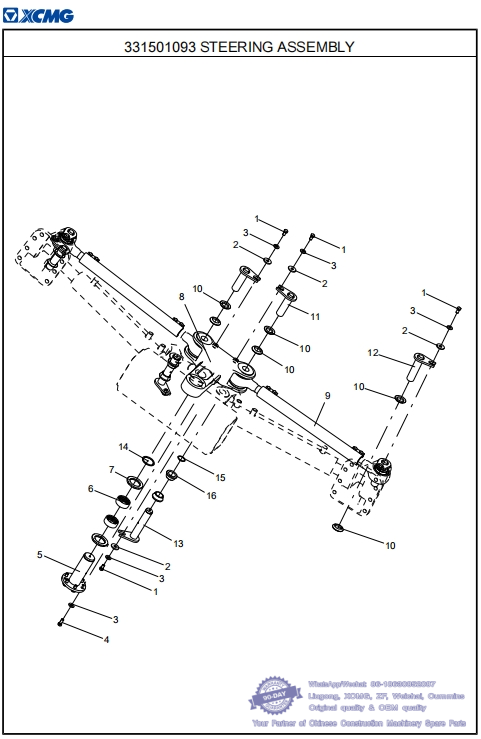

200 331501093 STEERING ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501086 FRONT AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 805006417 8 BOLT M16×30 GB/T5783-2000 whatsapp 86-18630852087
2 805338447 8 WASHER 16 GB/T5287-2002
3 805301377 14 WASHER 16 DIN6796
4 805006332 6 BOLT M16×40 GB/T5783-2000
5 331501119 1 PIN ASSEMBLY
6 331501118 2 SLEEVE
7 331501117 2 SPACER SLEEVE
8 331501120 1 STEERING ARM
9 331501116 2 STEERING PULL ROD 408 whatsapp 86-18630852087
10 331501115 12 BEARING SPACER
11 331501114 2 PIN ASSEMBLY
12 331501113 4 PIN ASSEMBLY
13 331501112 2 PIN ASSEMBLY whatsapp 86-18630852087
14 805407889 1 JUMP RING 80×2.5
15 805407888 2 SNAP RING 50×2
16 331501111 4 BEARING SPACER
