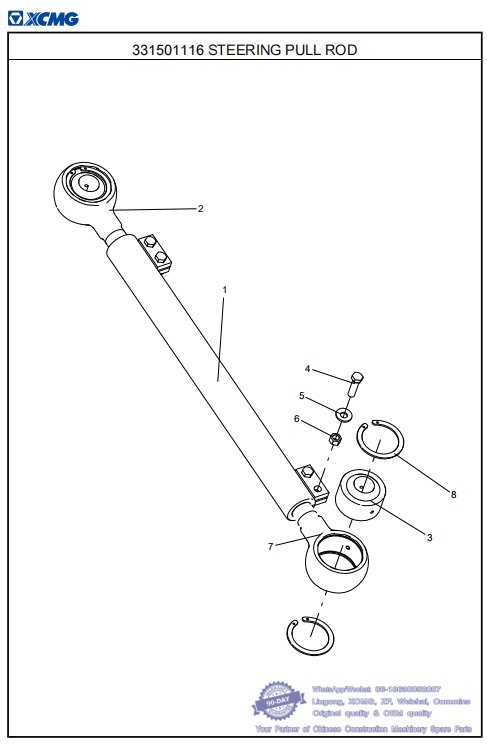

201 331501116 STEERING PULL ROD-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501093 STEERING ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331501125 1 TIE ROD
2 331501124 1 RIGHT PULL ROD HEAD whatsapp 86-18630852087
3 800554862 2 OSCILLATING BEARING GEK50XS-2GS/S
4 805004815 4 BOLT M16×60 GB/T5783-2000
5 805301377 4 WASHER 16 DIN6796
6 805238374 4 NUT M16 GB/T6170-2000
7 331501123 1 LEFT PULL ROD HEAD whatsapp 86-18630852087
8 805407890 4 ELASTIC COLLAR

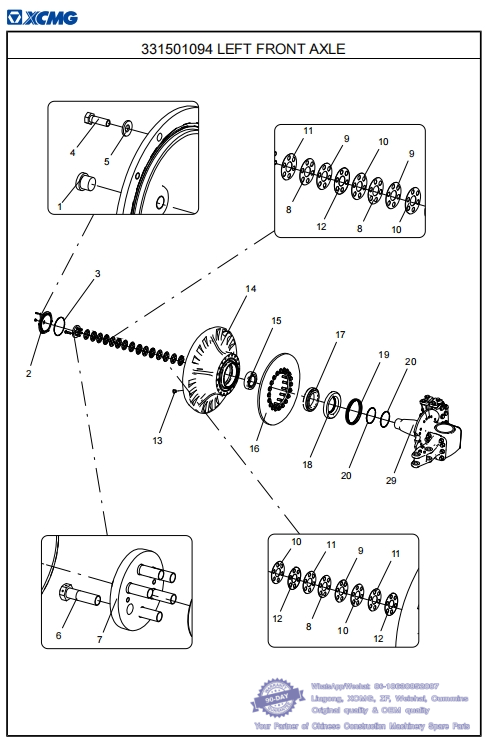

202 331501094 LEFT FRONT AXLE- XCMG Mining Dump Truck XDR100 Parts Catalog
331501086 FRONT AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 803195711 1 PLUG whatsapp 86-18630852087
2 331501100 1 COVER
3 803407030 1 ORING 246×4
4 805046416 6 BOLT M10×30 GB/T5783-2000
5 805301373 6 WASHER 10 DIN6796
6 805048834 6 BOLT M20×70 GB/T32.1-1988
7 331501101 1 BEARING PRESSING PLATE
8 331501103 3 CUSHION
9 331501104 3 CUSHION whatsapp 86-18630852087
10 331501106 3 CUSHION
11 331501105 3 CUSHION
12 331501102 3 CUSHION
13 803112285 1 PLUG
14 331501107 1 FRONT WHEEL HUB
15 800554860 1 BEARING 95525/95925
16 331501098 1 BRAKE DISC
17 800554861 1 BEARING 93825/93125
18 331501108 1 BEARING SPACER whatsapp 86-18630852087
19 803407029 1 FLOATING SEAL
20 803407028 2 ORING 209×5

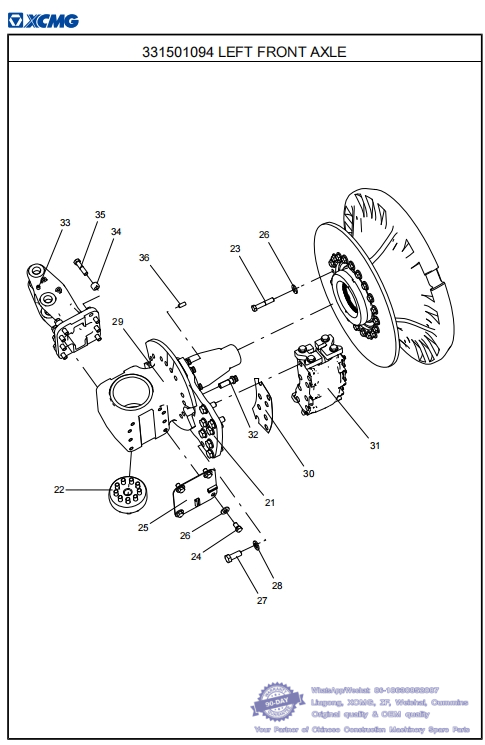

203 331501094 LEFT FRONT AXLE-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501086 FRONT AXLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
21 331501109 1 BRAKE STAND whatsapp 86-18630852087
22 331501097 1 FRONT SUSPENSION CYLINDER PRESSING PLATE
23 805006423 29 BOLT M24×130 GB/T5782-2000
24 805047884 4 BOLT M24×40 GB/T5783-2000
25 331502430 1 CLOSURE PLATE ASSEMBLY
26 805301380 24 WASHER 24 DIN6796
27 805047970 8 AMERICAN SCREW BOLT
28 330302741 8 WASHER
29 331501110 1 STEERING KNUCKLE whatsapp 86-18630852087
30 330100832 1 CUSHION
31 800357674 1 CALIPER DISC BRAKE 414
32 805051926 8 TWELVE-POINT FLANGE FACE BOLT M30×2×90 ASME B18.2.5M
33 331505328 1 LEFT STEERING KNUCKLE ARM
34 331501096 17 WASHER whatsapp 86-18630852087
35 805005958 8 BOLT M24×100 GB/T5782-2000
36 805639326 2 PIN 8×18 GB/T119.1-2000

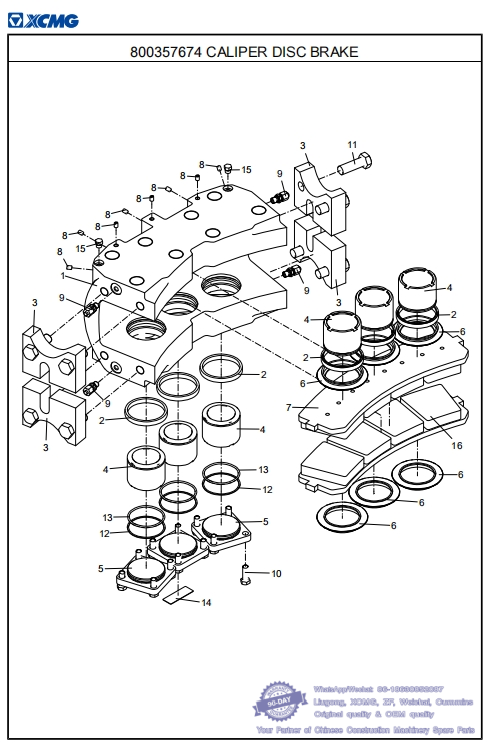

204 800357674 CALIPER DISC BRAKE-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501094 LEFT FRONT AXLE
No. PART NUMBER QTY NAME NOTE PAGE
1 800361564 1 BRAKE CALIPER
2 800361562 6 U-SHAPED SEAL whatsapp 86-18630852087
3 800361558 4 BRAKE PAD HOLDER
4 800361559 6 PISTON
5 800361561 3 CYLINDER HEAD
6 800361557 6 PISTON BELLOWS
7 800362666 2 BRAKE DISC whatsapp 86-18630852087
8 800361555 13 SEALING OIL PLUG
9 803103339 4 CONNECTOR
10 805001929 12 BOLT M12×35 GB/T5782-2000
11 805048220 8 BOLT
12 800361563 3 CLOSED TYPE LOOSE RIB
13 800361560 3 O-RING
14 330301963 1 SIGNAGE whatsapp 86-18630852087
15 800361556 2 SEALING OIL PLUG
16 800362665 6 SEALING ELEMENT SERVICE KIT

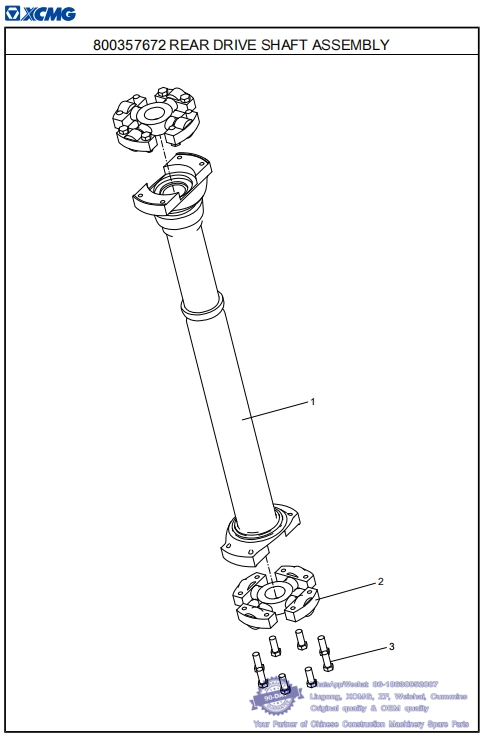

205 800357672 REAR DRIVE SHAFT ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331500145 DRIVE SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 800369505 1 DM91 REAR TRANSMISSION MAIN SHAFT whatsapp 86-18630852087
2 800369504 2 DM91 REAR TRANSMISSION CROSS SHAFT
3 805051861 16 3/4-16UNF DM91 REAR TRANSMISSION SHAFT BOLT whatsapp 86-18630852087
