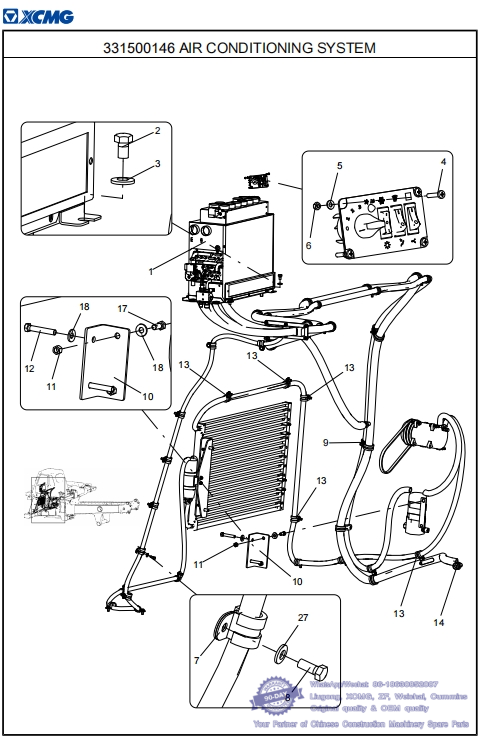

206 331500146 AIR CONDITIONING SYSTEM-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
1 803548678 1 AIR CONDITIONING ASSEMBLY 424
2 805046524 4 BOLT M10×16 GB/T5783-2000
3 805301373 4 WASHER 10 DIN6796
4 805140012 4 SCREW M4×20 GB/T818-2000 whatsapp 86-18630852087
5 805338225 4 WASHER 4 DIN6796
6 805238481 4 NUT M4 GB/T6170-2000
7 819908605 11 RUBBER SLEEVE HOOP
8 805046508 38 BOLT M8×20 GB/T5783-2000
9 330304664 2 MOUNTING SEAT
10 331500467 1 PLATE whatsapp 86-18630852087
11 805238372 2 NUT M12 GB/T6170-2000
12 805046557 2 BOLT M12×70 GB/T5783-2000
13 819908628 7 RUBBER SLEEVE HOOP
14 331500469 1 CONNECTOR

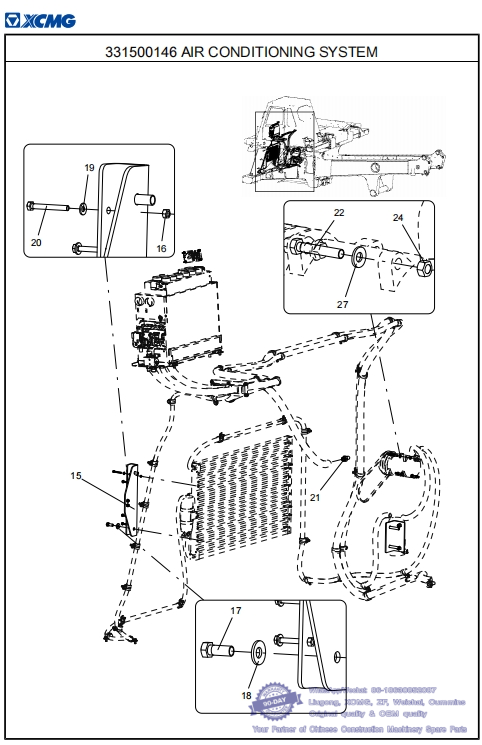

207 331500146 AIR CONDITIONING SYSTEM- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
15 331501888 1 WELDING BRACKET whatsapp 86-18630852087
16 805238370 4 NUT M6 GB/T6170-2000
17 805006412 4 BOLT M12×30 GB/T5783-2000
18 805301374 6 WASHER 12 DIN6796
19 805301383 8 WASHER 6 DIN6796 whatsapp 86-18630852087
20 805046531 8 BOLT M6×50 GB/T5783-2000
21 330102758 1 CONNECTOR
22 805046515 4 BOLT M8×45 GB/T5783-2000

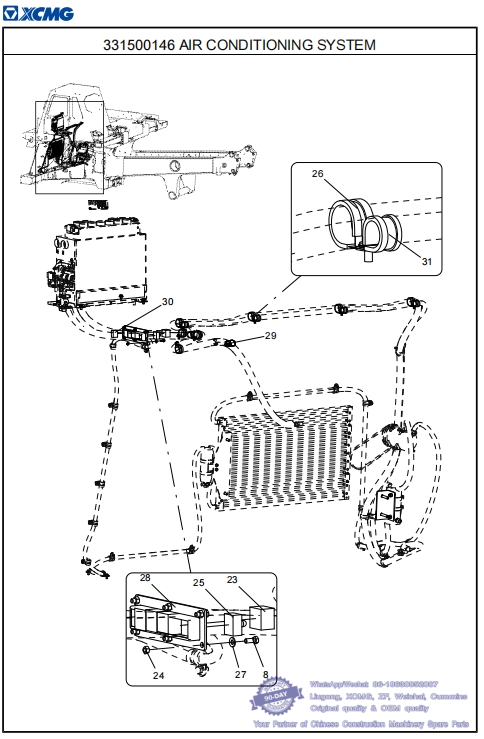

208 331500146 AIR CONDITIONING SYSTEM-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
23 803695922 4 OVERLINE MODULE CM40 10-32
24 805238378 10 NUT M8 GB/T6170-2000
25 803695924 1 COMPRESSING PIECE (WITH LUBRICATING GREASE)
26 801905468 11 RUBBER SLEEVE HOOP whatsapp 86-18630852087
27 805301384 42 WASHER 8 DIN6796
28 330106037 1 SEAL FRAME
29 925600965 10 PLASTIC SHEATH
30 803695923 1 OVERLINE MODULE CM20W40 whatsapp 86-18630852087
31 801905487 9 RUBBER SLEEVE HOOP

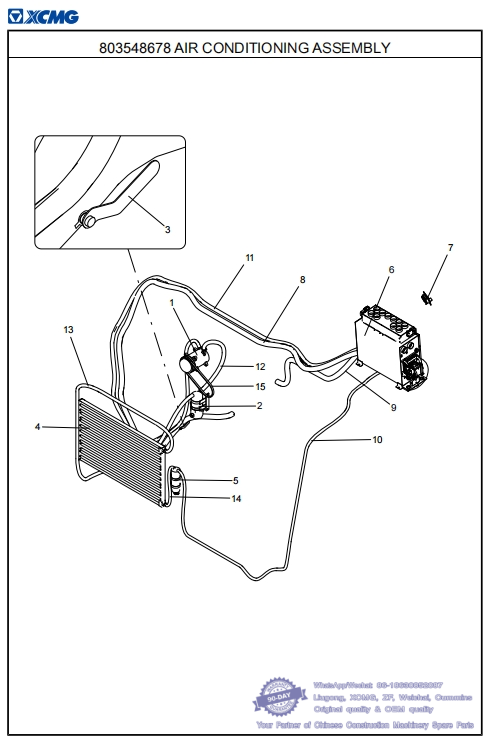

209 803548678 AIR CONDITIONING ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331500146 AIR CONDITIONING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803590205 1 COMPRESSOR
2 803590661 1 SEPARATOR ASSEMBLY 426 whatsapp 86-18630852087
3 803592732 2 MANUAL WATER VALVE
4 803590203 1 CONDENSER
5 803590660 1 DRYER ASSEMBLY 428
6 803594603 1 AIR CONDITIONING INDOOR UNIT 430
7 803590202 1 CONTROL PANEL
8 803588502 1 HOT WATER PIPE
9 803588502 1 HOT WATER PIPE whatsapp 86-18630852087
10 803593583 1 3/8"(DRY - STEAM) RUBBER HOSE
11 803593627 1 5/8" (DISTILLATION - FRACTIONATION) RUBBER HOSE
12 803593603 1 5/8"(DIVIDE - PRESS) RUBBER HOSE
13 803593586 1 1/2" (PRESS - COLD) RUBBER HOSE
14 803593584 1 3/8" (COLD - DRY) RUBBER HOSE
15 803588506 1 BELT 37 INCH whatsapp 86-18630852087

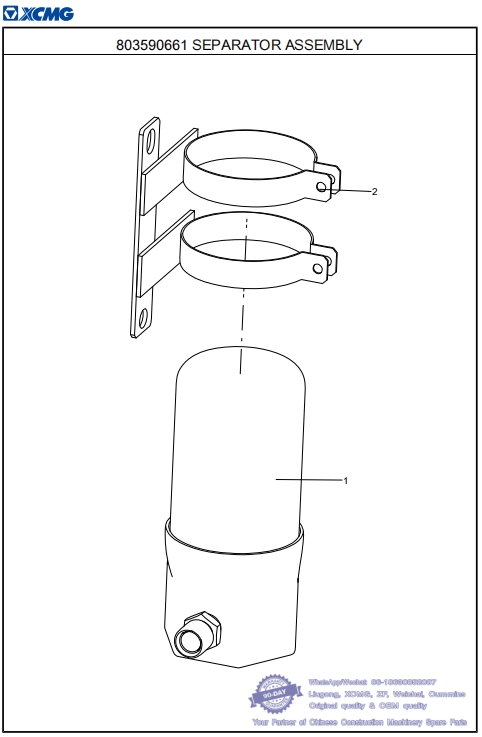

210 803590661 SEPARATOR ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
803548678 AIR CONDITIONING ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 803590204 1 GAS-LIQUID SEPARATOR
2 803590665 1 SEPARATOR BRACKET whatsapp 86-18630852087
