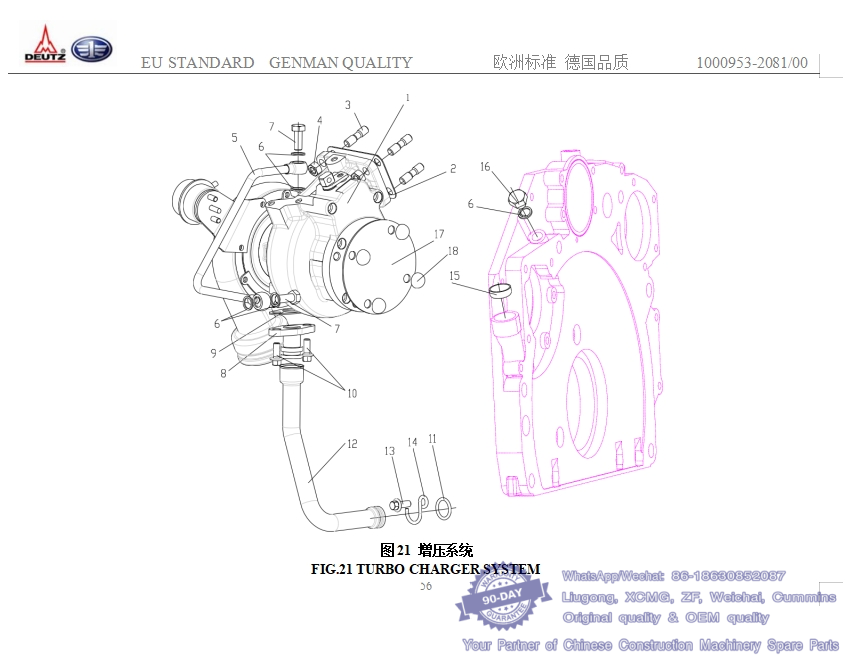

21、增压系统 TURBO CHARGER SYSTEM（1）-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1118010-2081/A 增压器总成 TURBO CHARGER 1
2 1118013A52D 增压器密封垫 GASKET 1
3 0114 3285 双 头 螺 柱 DIN939-M10X25-21 CRMOV57V-OELGESCHW STUD DIN939-M10X25-21 CRMOV57V-OELGESCHW 4
4 1118633-52D 六 角 螺 母 ISO4032-M10-21 CRMOV57-ZNAL-A HEXAGON NUT ISO4032-M10 -21 CRMOV57-ZNAL-A 4
5 1118060-437 增压器进油管总成 LUBRICATING PIPE FOR TURBO CHARGER 1
6 3509644-52D 密封垫 DIN 7603-A14X18-CU SEALING RING DIN 7603-A14X18-CU 4
7 3509642-52D 空心螺栓 H 3102-D10M-ST-ZNAL-A HOLLOW SCREW H 3102-D10M-ST-ZNAL-A 2
8 1118075-437 增压器回油管总成（上） UPPER OIL RETURN LINE 1 whatsapp 86-18630852087
9 1118083-52D 密封垫 GASKET 1
10 1009619-52D 六角头凸缘螺栓 EN 1662 -F-M8X20-LG2,5-10.9-ZNAL-A HEXAGON BOLT EN1662 -F-M8X20-LG2,5-10.9-ZNAL-A 2
11 1118684A52D 密封圈 H 2927-20,5 X 4-FPM-1-70 O-RING H 2927-20,5 X 4-FPM-1-70 2
12 1118081-52D 增压器回油管（下）LOWER OIL RETURN LINE 1 whatsapp 86-18630852087
13 3509646-52D 六角头凸缘螺栓 EN1662 -F-M8X16-10.9 HEXAGON BOLT EN1662 -F-M8X16-10.9 1
14 1118051-30D 增压器回油管定位钩 RETAINER 1
15 1118605-52D 碗形塞片 H2860-A28-ST-FE/ZNPHR CORE HOLE PLUG H2860-A28-ST-FE/ZNPHR 1
16 1118641-52D 螺塞 DIN910-M14X1,5-ST-ZNAL-ASCREW PLUG DIN910-M14X1,5-ST-ZNAL-A 1
17 1118006-52D 增压器防护盖 TURBO CHARGER PROTECTING COVER 1
18 1118629-52D 固定按钮 H 7502-A-20X3-6,5-PE-SW FIXED BUTTON 4

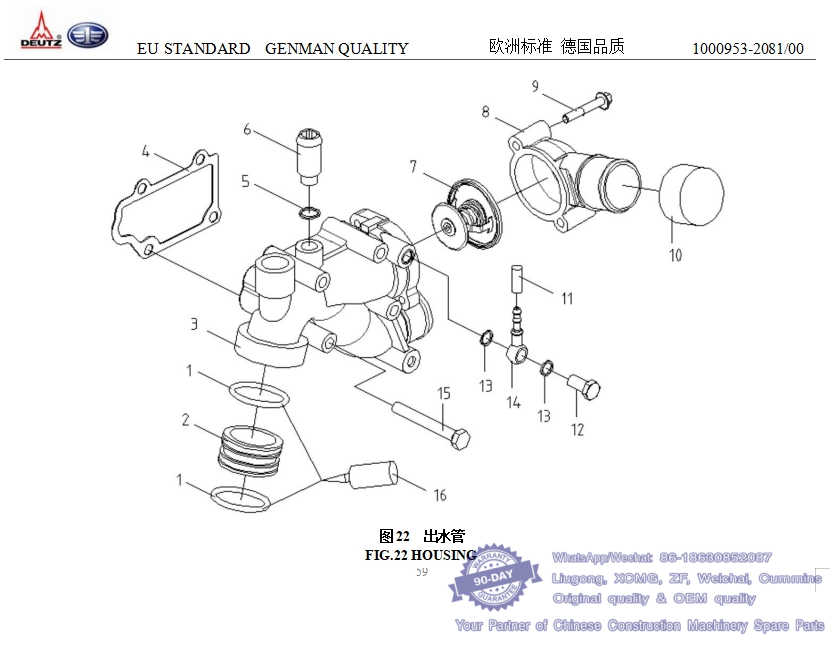

22、出水管 HOUSING（1）-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1303617-30D 密封圈 H 002927 -48X5-EPDM-6-70 O-RING H 002927 -48X5-EPDM-6-70 2
2 1303016-30D 连接管 CONNECTION PIPE 1
3 1303011-56D 进出水管 HOUSING 1 whatsapp 86-18630852087
4 1303018-56D 密封垫 SEALING RING 1
5 1307639-52D 密封垫 DIN 7603-A16X20-CU SEALING RING DIN 7603-A16X20-CU 1
6 1307041-52D 接头 JOINTS 1
7 1306010B52D 调温器总成 THERMOSTAT ASSEMBLY 1
1306015B52D调温器分总成 THERMOSTAT1
1306051-52D密封圈 O-RING1
8 1303023-56D 调温器盖 OUTLET/EXH.BRANCH 1 whatsapp 86-18630852087
9 1013616-52D 六角头凸缘螺栓 EN 1662 -F-M8X50-10.9-ZNAL-A HEXAGON BOLT EN 1662 -F-M8X50-10.9-ZNAL-A 2
10 1303643A52D 保护盖 H 2870-G50X3-LDPE-GE CAP H 2870-G50X3-LDPE-GE 2
11 1303612-56D 堵盖 H 2870-F1- 5 X25,4 -POS –NF CAP H 2870-F1- 5 X25,4 -POS –NF 1
12 1303614-56D 空心螺栓 DIN 7643- 8 HOLLOW SCREW DIN 7643- 8 1 whatsapp 86-18630852087
13 1104694-30D 密封垫 DIN 7603-A 12 X 15,5 –CU SEALING RING DIN 7603-A 12 X 15,5 –CU 2
14 1303031-56D 除气管接头 JOINTS 1
15 1303613-56D 六角螺栓 DIN 931 -M10 X 85 -10.9-ZNAL-A HEXAGON BOLT DIN 931- M10 X 85 -10.9-ZNAL-A 4
16 JA1118-52D-1 装配材料 SAFETY/LOCK.AGENT 1

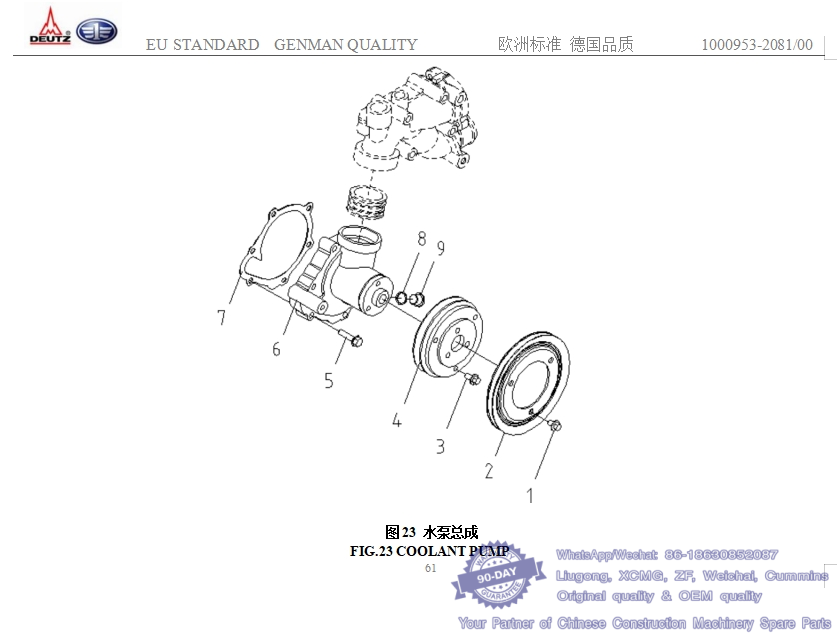

23、水泵总成 COOLANT PUMP-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 3724612-30D 六角螺栓 EN 1662-F-M8X12-LG 2,5-10.9-A4C HEXAGON BOLT EN 1662-F-M8X12-LG 2,5-10.9-A4C 3
2 1307042A56D 皮带轮 PULLEY 1
3 3509646-52D 六角头凸缘螺栓 EN 1662-F-M8X16-LG2,5-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M8X16-LG2,5-10.9-ZNAL-A 3
4 1307036-56D 水泵皮带轮 COOLANT PUMP PULLEY 1 whatsapp 86-18630852087
5 1009626-52D 六角头凸缘螺栓 EN 1662 -F-M8X35-10.9-A4C HEXAGON BOLT EN 1662 -F-M8X35-10.9-A4C 6
6 1307010A56D 水泵总成 COOLANT PUMP 1
7 1307014-56D 密封垫 GASKET 1 whatsapp 86-18630852087
8 1307639-52D 密封垫 DIN 7603-A16X20-CU SEALING RING DIN 7603-A16X20-CU 1
9 1307611-56D 螺塞 DIN 908-M16X1,5-ST-A4C SCREW PLUG DIN 908-M16X1,5-ST-A4C 1

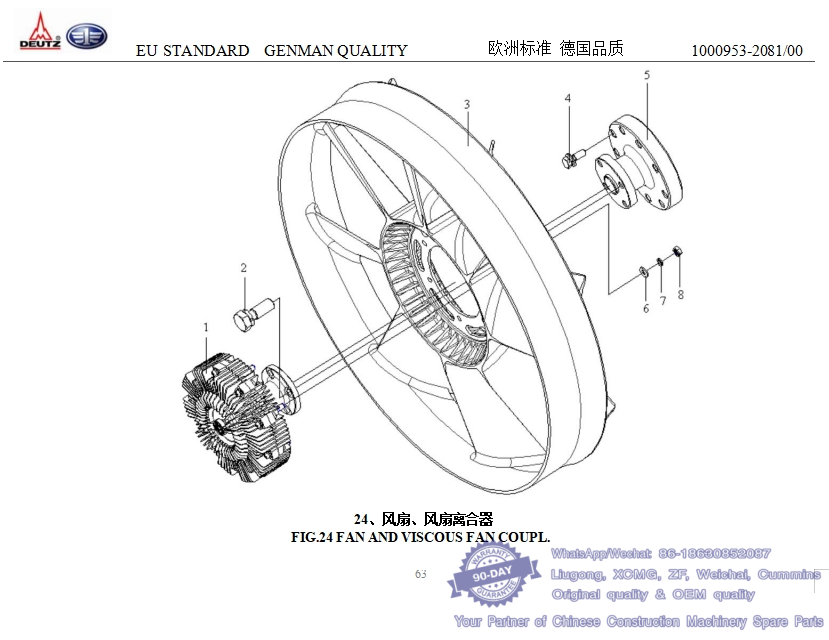

24、风扇、风扇离合器 FAN AND VISCOUS FAN COUPL.-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1313010A263 风扇离合器总成 VISCOUS FAN COUPL 1 whatsapp 86-18630852087
2 CQ1421025TF36 组合螺栓 HEXAGON BOLT WASHER ASSEMBLY 4
3 1308010-54D 风扇总成 FAN 1
4 1005639-56D 六角头凸缘螺栓 EN 1662 -F-M10X50-10.9-A4C HEXAGON BOLT EN 1662 -F-M10X50-10.9-A4C 9
5 1313063-437 风扇离合器过渡法兰 TRANSITION FLANGE 1 whatsapp 86-18630852087
6 Q40108 垫圈 PLAIN WASHER 6
7 Q40308 弹簧垫圈 COIL SPRING LOCK WASHER 6
8 CQ34008TF36 六角螺母 HEXAGON NUT 6

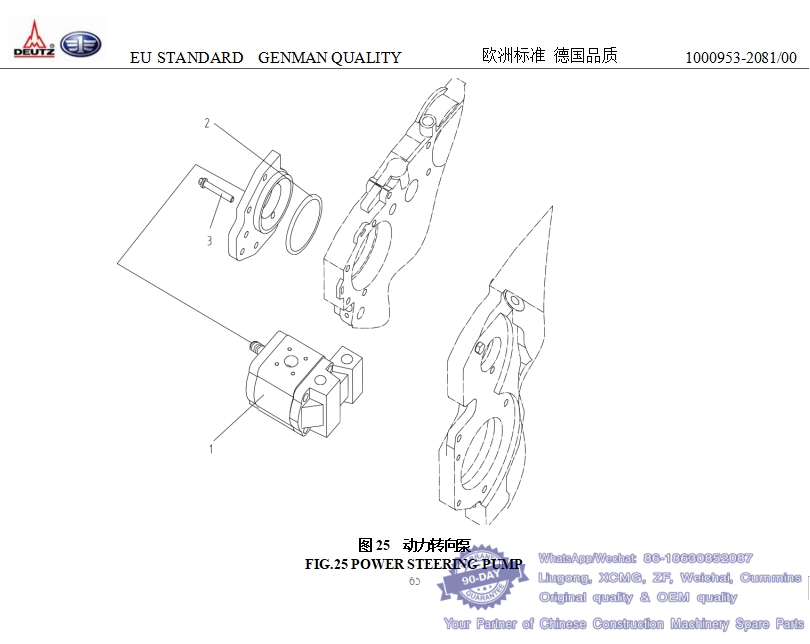

25、动力转向泵 POWER STEERING PUMP-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 3407010-52D 动力转向油泵附带齿轮总 POWER STEERING PUMP 1 whatsapp 86-18630852087
2 3407602-52D 密封圈 H 2927-82X4-NBR-1-70 O-SEAL H 2927-82X4-NBR-1-70 1
3 1112619-52D 六角梅花凸缘螺栓 H2032 -HBMBX50-10.9-ZNAL-A TORX-HEAD BOLT H2032 -HBMBX50-10.9-ZNAL-A 3
