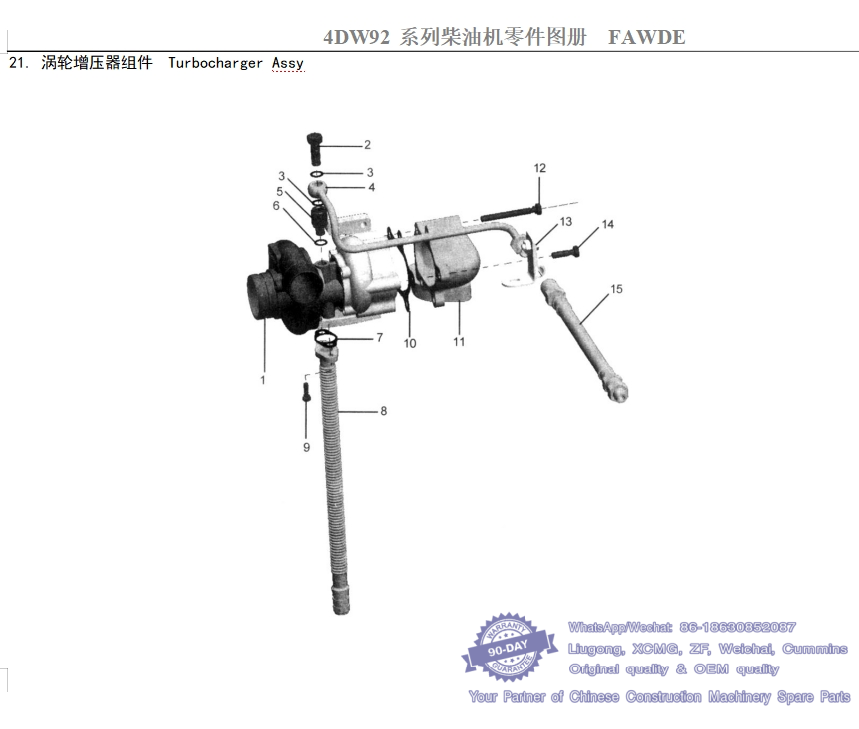

21.涡轮增压器组件 Turbocharger Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 1 | 1118100AB59-AS20 | 增压器总成 Turbocharger | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | Q/XC3451.1-2002(M14x1.5) | 铰接螺栓(M14x1.5) Hollow screw(M14x1．5) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q72314T3 | 密封垫圈 Seal washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 4 | 1118302AB42-CS3A | 增压器润滑油管总成 Lubricating pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| boby,turbocharger | |||||||||||
| 5 | 1118001AA02-0000 | 增压器润滑油管接座Lubricating pipe joint chair， | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 6 | Q/WC3403-1994 12 x18 | 铜垫圈12x18 Copper washer 12x18 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | 1118003AA02-0000 | 增压器回油管垫 Oil flow pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| washer,turbocharger | |||||||||||
| 8 | 1118500-B35-0000 | 增压器回油管总成 oil flow pipe assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| turbocharger | |||||||||||
| 9 | Q1420620 | 六角头螺栓和弹簧垫圈组合件 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Hexagon-headed bolt spring washer assy | |||||||||||
| 10 | 1118004-A02-0000 | 增压器垫片 Turbocharger gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 11 | 1008071AA45-HQ10 | 排气弯管 Exhaust elbow | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 12 | Q1420885 | 六角头螺栓和弹簧垫圈组合件 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Hexagon-headed bolt，spring washer assy | |||||||||||
| 13 | 1118200-B42-CS3A | 增压器润滑油管支架部件Lubricating pipe bracket turbocharger | l | l | l | l | l | l | l | l | l |
| 14 | Q1420830 | 六角头螺栓和弹簧垫圈组合件 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Hexagon-headed bolt spring washer assy | |||||||||||
| 15 | 1118400BB03-0000 | 增压器润滑油管总成2 Lubricating pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| assy,turbocharger | |||||||||||

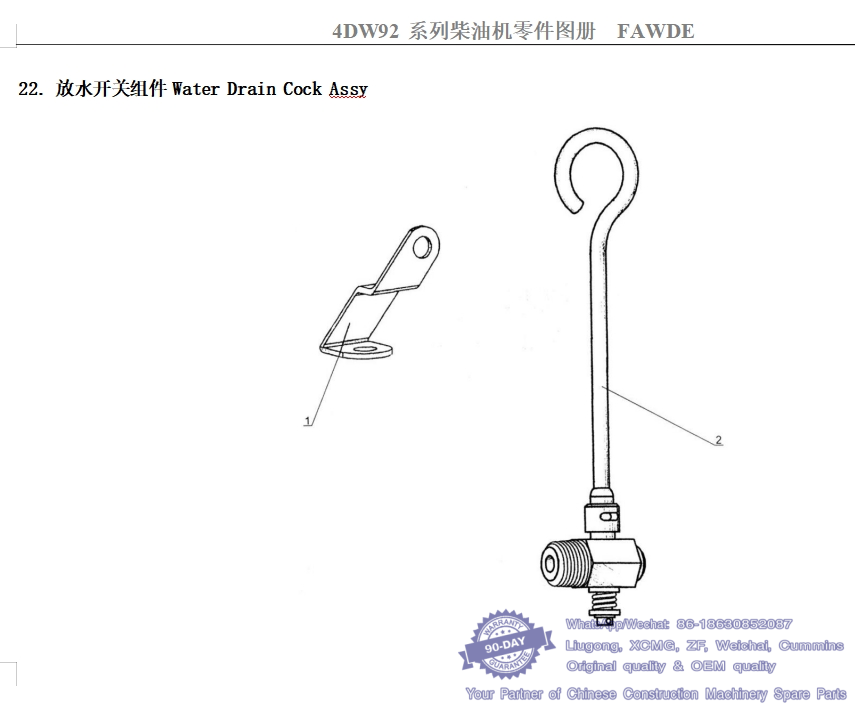

22. 放水开关组件 Water Drain Cock Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 hem | 零件件号 Part N0. | 零 件 名 称 DescriPdOn | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1305010BB42-CS3A | 放水开关总成 | Water drain cock assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1305012AB03-0000 | 支架—放水开关手柄 | Handle bracket-Water drain cock | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

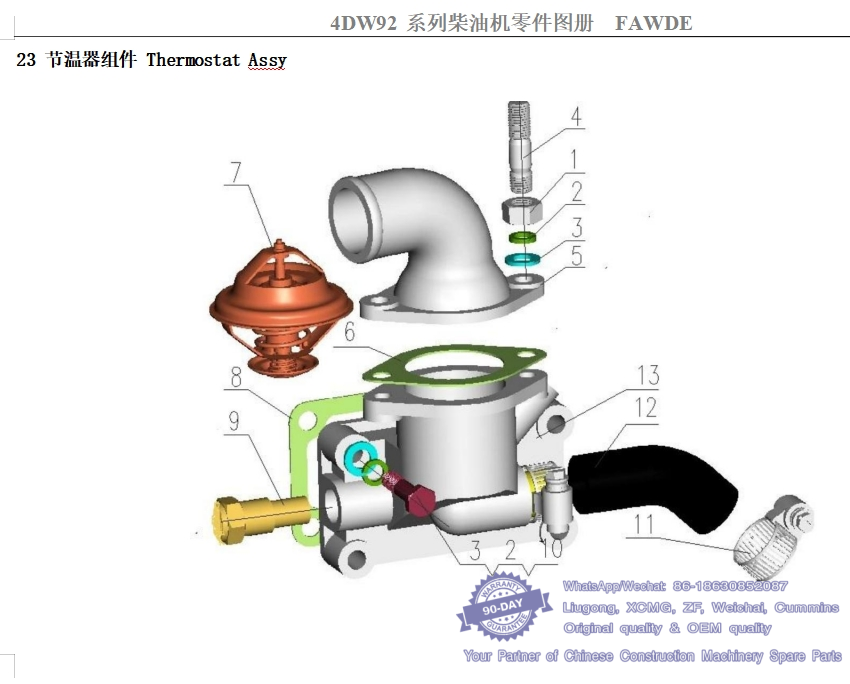

23. 节温器组件 Thermostat Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 1306000-B01-0000 | 节温器组件 Thermostat assy | ||||||||||
| 1 | Q340B08 | I 型六角螺母 Nut style I | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 2 | Q40308 | 弹簧垫圈 Spring washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| 3 | Q40108 | 平垫圈 Washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| 4 | Q1200820 | 双头螺柱 Stud | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 5 | 1306013AB41-KM10 | 节温器盖 Thermostat cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 1306013AB41-KM10C(选装) | 节温器盖 Thermostat cover | 1 | 1 | ||||||||
| 6 | 1303014-B01-0000 | 节温器盖垫片 Gasket of thermostat cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | 1306010-B01-0000 | 节温器(1052A 型) Thermostat,style 1052A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 1306010AB01-0000C（选装） | 节温器 Thermostat | 1 | 1 | ||||||||
| 8 | 1306012-B01-0000 | 节温器壳垫片 Gasket of thermostat shell | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Q618B03 | 六角头锥形螺塞 Hexagon-headed taper plug | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 2 | |
| 9 | 3818010A531-YFD10 | 水温传感器 Water temperature sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 10 | Q150B0835 | 六角头螺栓 Hexagon-headed bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 11 | Q67632 | B 型蜗杆传动式软管环箍 Worm drive type hose clamp，style B | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 12 | 1306019AB01-0000 | 小循环水管 Thermostat by-pass water pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 13 | 1306011EB01-0000 | 节温器壳 Thermostat shell | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

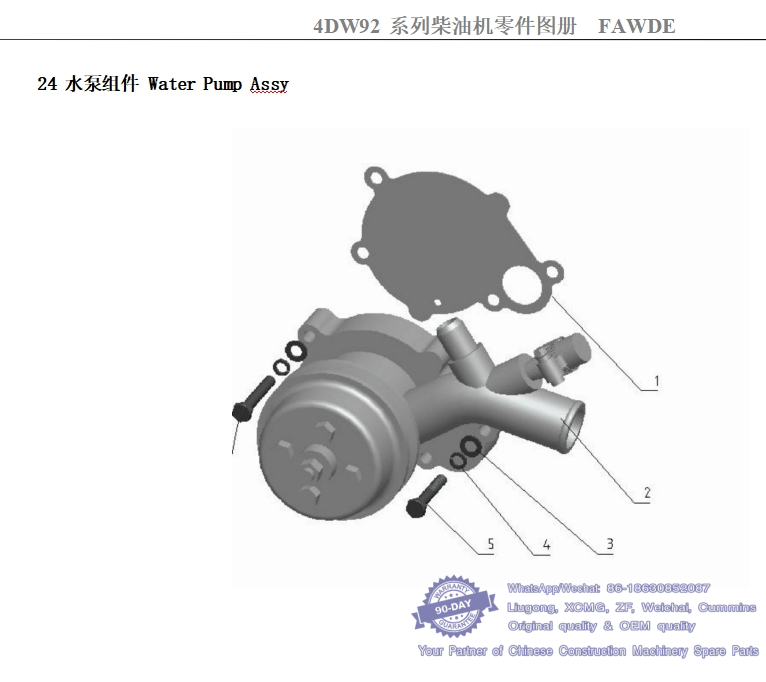

24 水泵组件 Water Pump Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1307012AB01-0000 | 垫片 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1307010AB59—AS10 | 水泵总成 | Water pump assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q40108 | 平垫圈 | Washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 4 | Q40308 | 弹簧垫圈 | Spring washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 5 | Q150B0845 | 六角头螺栓 | Hexagon-headed bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |

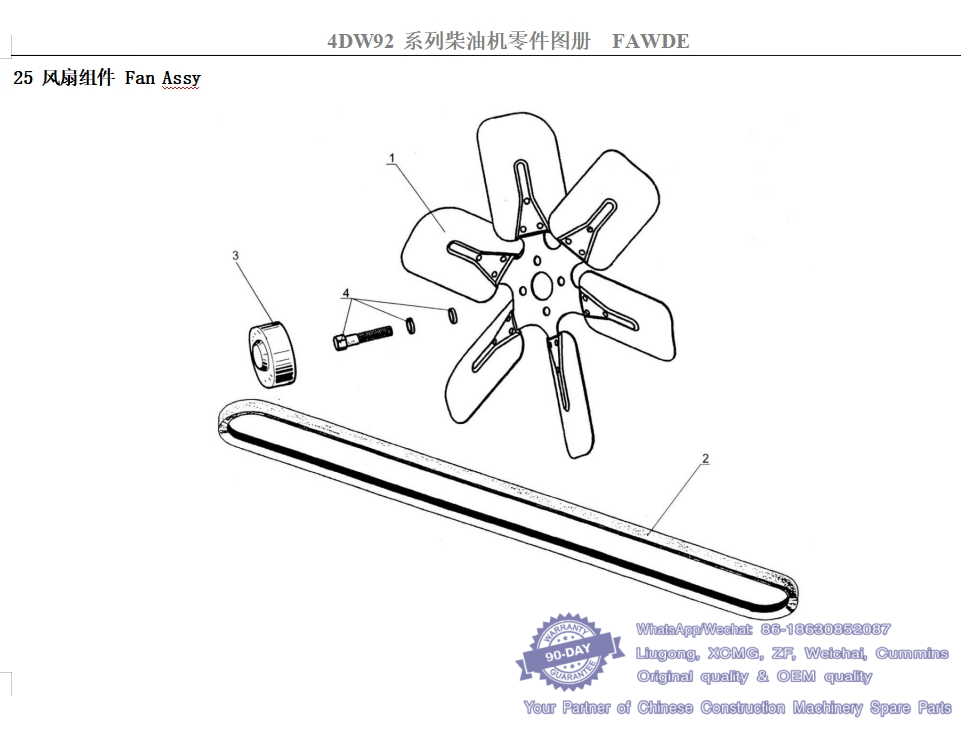

25 风扇组件 Fan Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | ||||||||||
| A | B | C | D | E | F | G | H | I | |||||
| 1308000-B59-YFD10 | 风扇组件 | Fan assy | |||||||||||
| 1 | 1308100-A0A-HL10 | 风扇总成 | Fan assy | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | ||
| 2 | 1308032-B45-KM10 | 风扇皮带 | Fan belt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 1308001AB41-XF20 | 风扇垫块 | Fan head block | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | Q1460875 | 六角头螺栓、弹簧垫 圈和平垫圈组合件 | Hexagon-headed bolt, | washer and | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| spring washer assy | |||||||||||||
