211 803590660 DRYER ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
803548678 AIR CONDITIONING ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE

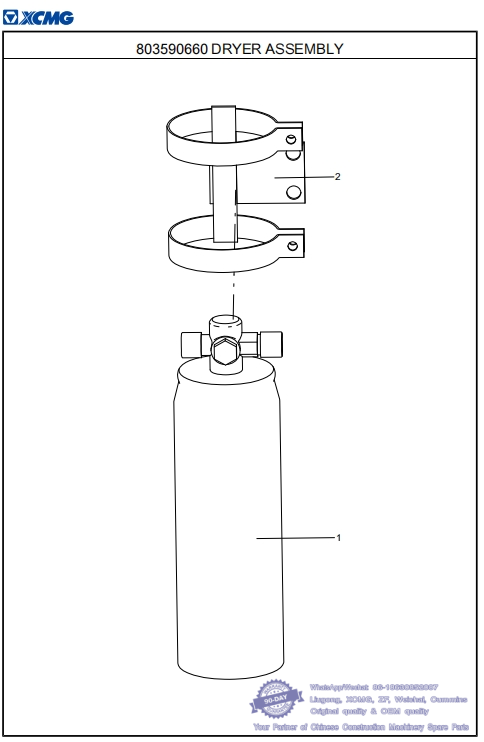

1 803588501 1 AIR DRY
2 803590651 1 DRYER SUPPORT whatsapp 86-18630852087
212 803594603 AIR CONDITIONING INDOOR UNIT-- XCMG Mining Dump Truck XDR100 Parts Catalog
803548678 AIR CONDITIONING ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE

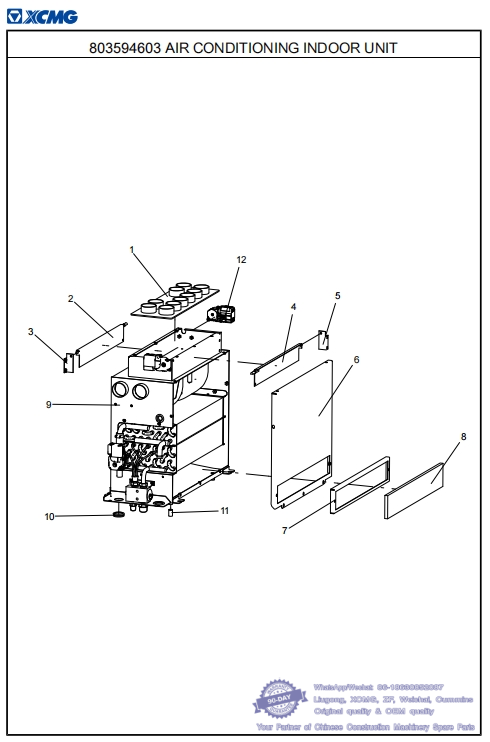

1 803594172 1 UPPER COVERING PLATE whatsapp 86-18630852087
2 803594163 1 FRESH AIR VENT
3 803594169 1 FRESH AIR COVER
4 803594158 1 DEFROSTING DAMPER
5 803594166 1 DEFROSTER DAMPER FIXED PLATE
6 803594170 1 FRONT COVERING PLATE
7 803594171 1 RETURN AIR NET COVER
8 803587998 1 RETURN AIR FILTER
9 803594173 1 GEARBOX BODY
10 803594160 2 WATER PIPE HOLE RING
11 803590210 2 WEEP PIPE
12 803590201 2 AIR DOOR DRIVER whatsapp 86-18630852087
213 803594603 AIR CONDITIONING INDOOR UNIT-- XCMG Mining Dump Truck XDR100 Parts Catalog
803548678 AIR CONDITIONING ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE

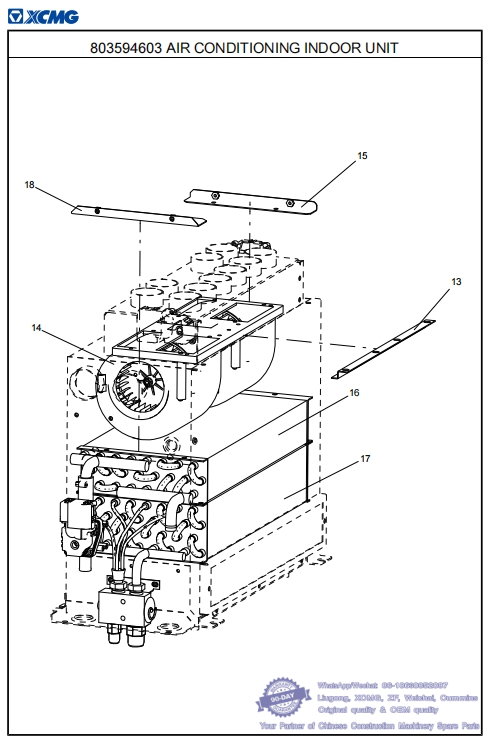

13 803594165 1 LONG DRAUGHT FAN SUPPORT PLATE whatsapp 86-18630852087
14 803588503 1 FAN
15 803594167 1 RIGHT CONNECTING PLATE OF THE HEAT EXCHANGER
16 803590198 1 HEAT EXCHANGER
17 803590197 1 EVAPORATOR whatsapp 86-18630852087
18 803594162 1 LEFT CONNECTING PLATE OF THE HEAT EXCHANGER
214 803594603 AIR CONDITIONING INDOOR UNIT-- XCMG Mining Dump Truck XDR100 Parts Catalog
803548678 AIR CONDITIONING ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE

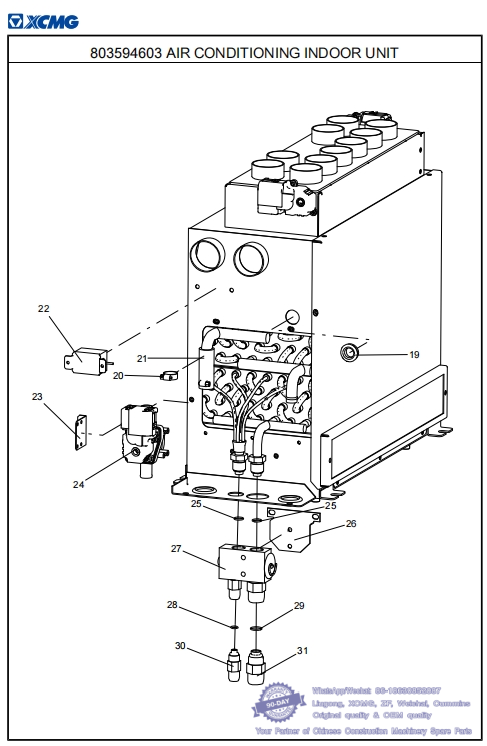

19 803594174 1 ROUND AIR VENT whatsapp 86-18630852087
20 800161740 2 STAINLESS STEEL CLAMP 16-25
21 803588502 1 HOT WATER PIPE
22 803590200 1 THERMOSTAT
23 803594164 1 WATER VALVE FIXED PLATE
24 803590761 1 ELECTRICAL WATER VALVE whatsapp 86-18630852087
25 803590654 2 1/2"SEAL RING
26 803594168 1 EXPANSION VALVE FIXED PLATE
27 803590199 1 EXPANSION VALVE
28 803590653 1 3/8"SEAL RING whatsapp 86-18630852087
29 803590655 1 5/8"SEAL RING
30 803592970 1 CROSS OVER SUB 5/8 CONVERTING TO M16
31 803592971 1 CROSS OVER SUB 7/8 CONVERTING TO M24
