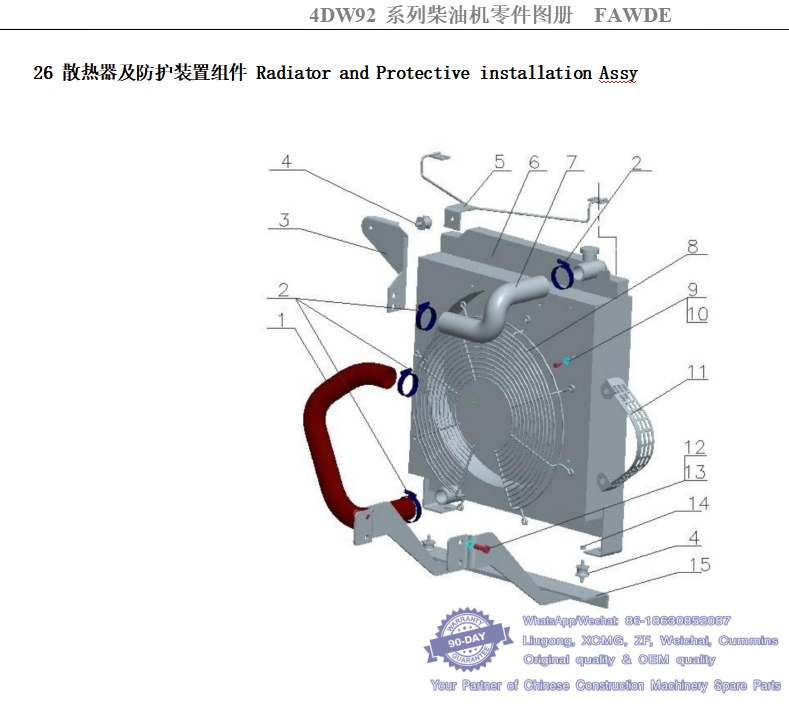

26 散热器及防护装置组件 Radiator and Protective installation Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | DHP-0029-15 | 进水管 | Water inlet | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 2 | 943477 | 卡箍Φ 38-Φ 51 | B-worm drive type hose clampΦ 38-Φ 51 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| 3 | Y4DW29D10-070002 | 水箱拉杆二 | Radiator pull rod 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 4 | Y4DX65D10-070004 | 水箱减震垫（减震） | Radiator bumper | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 5 | Y4DW29D10-070001 | 水箱拉杆一 | Radiator pull rod 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 6 | DHP-0029-13 | 水箱 | Radiator | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 7 | DHP-0029-16 | 出水管 | Water outlet | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 8 | DHP-0029-22 | 风扇保护罩 | Fan protective cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 9 | 960139 | 垫片 6.5×19×1.5 | Washer 6.5×19×1.5 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
| 10 | 960175 | 法兰螺栓 M6×12 | Hexagon-headed bolt M6×12 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
| 11 | DHP0035-15 | 发电机皮带保护罩 | Generator belt protective cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 12 | 946441 | 法兰螺栓 M10×20 | Hexagon-headed bolt M10×20 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| 13 | 960148 | 平垫片 10.5×22×2 | Washer 10.5×22×2 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| 14 | 945408 | 法兰螺母 M8 | Hexagon-headed bolt style M8 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| 15 | Y4DW35D10-070200 | 水箱支架总成 | Radiator support assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||

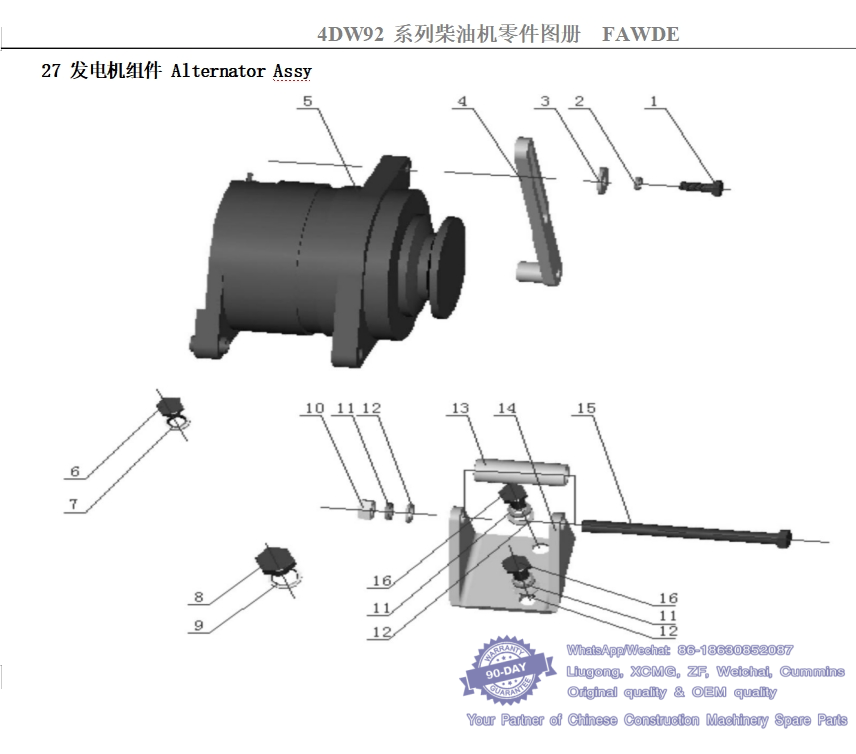

27.发电机组件 Alternator Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 3701000-B59-AS10 | 发电机组件 Alternator assy | ||||||||||
| 1 | Q150B0820 | 六角头螺栓 Hexagon-headed bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | Q40308 | 弹簧垫圈 Spring washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | 3701101AB01-0000 | 垫圈 Washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 4 | 3701025AB59-AS10 | 连接板总成 Connecting plate assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 5 | 3701010-B59-AS10 | 发电机总成 Alternator assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 6 | Q617B10 | 六角头螺塞 Hexagon-headed plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | Q/XC3455 10PB | 组合垫圈 washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 8 | Q617B16 | 六角头螺塞 Hexagon-headed plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 9 | Q/XC3455 16PB | 组合垫圈 washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 10 | Q340B10 | I 型六角螺母 Hexagon-headed bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 11 | Q40310 | 弹簧垫圈 Spring washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 12 | Q40110 | 垫圈 Washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 13 | 3701321AB01-0000 | 钢管 Steel pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 14 | 3701315-B59-AS10 | 发电机支架总成 Altemator bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 15 | Q150B10130 | 六角头螺栓 Hexagon-headed bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 16 | Q150B1020 | 六角头螺栓 Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |

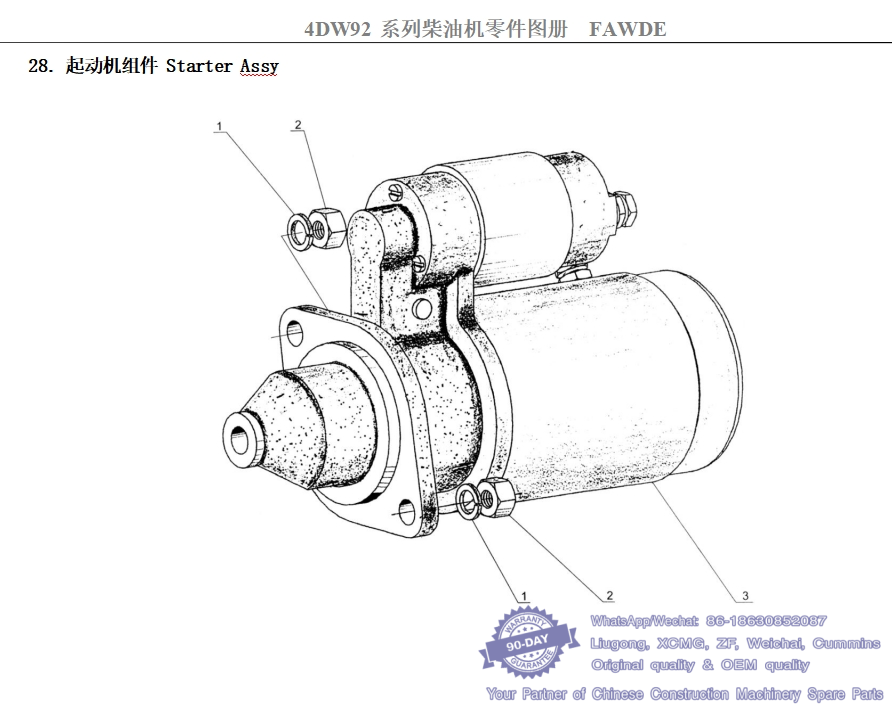

28. 起动机组件 Starter Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 3708010-B35-HT10M | 起动机总成 | Starter assy | 1 | 1 | |||||||
| 3708010-B11-YFD1SM | 起动机总成 | Starter assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 2 | Q40112 | 平垫圈 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 3 | Q40312 | 弹簧垫圈 | Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 4 | Q340B12 | I 型六角螺母 | Hexagon-headed bolt style I | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |

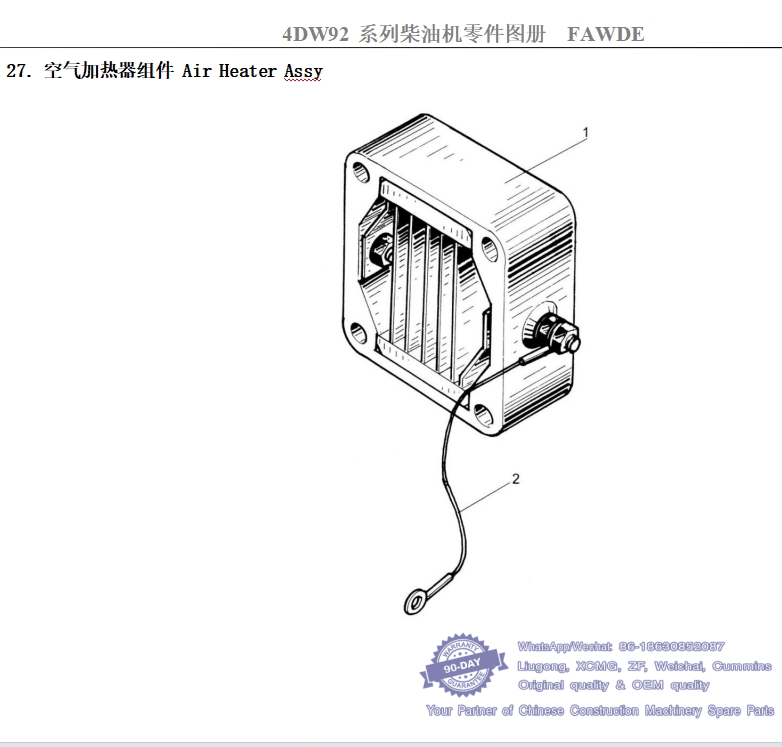

29. 空气加热器组件 Air Heater Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Irem | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 3750010AB01- KM30 | 空气加热器 | Air heater | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 1 | 3750010AB01- KM30W（选装） | 空气加热器 | Air heater | 1 | 1 | |||||||
| 3750011AB45-0000U | 空气加热器体 | Air heater block | 1 | 1 | ||||||||
| 2 | 3750020-B01-0000 | 接地线 | Connecting wire | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||

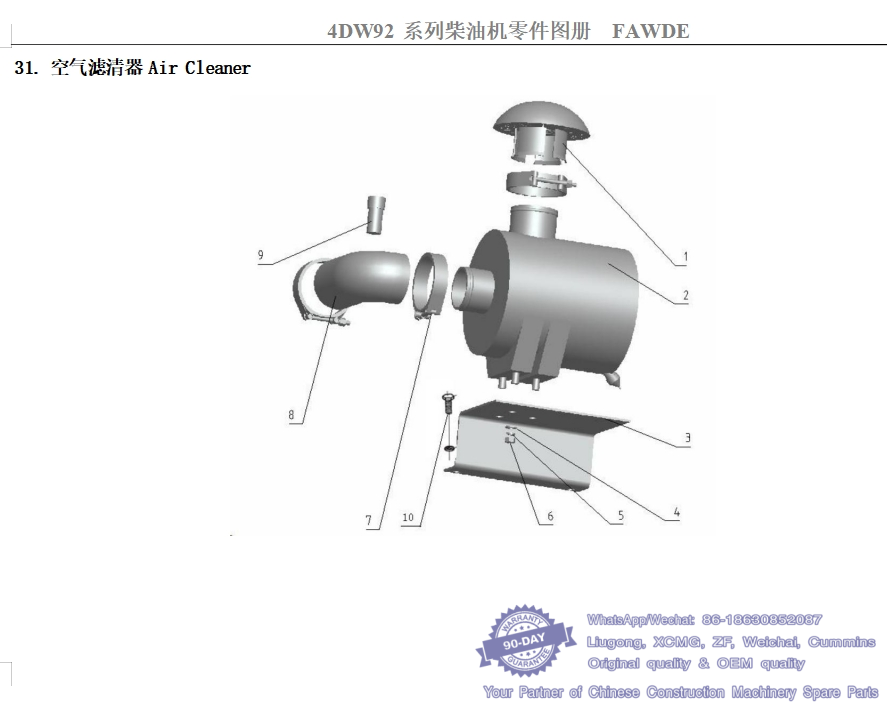

30.空气滤清器 Air Cleaner-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | DHP-0029-11 | 雨帽 | Intake tube | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 2 | DHP-0029-10 | 空气滤清器 | Air cleaner | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 3 | DHP-0035-09 | 空滤支架 | Air cleaner bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 4 | Q40108 | 平垫圈 | Washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 5 | Q40308 | 弹簧垫圈 | Spring washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 6 | Q340B08 | I 型六角螺母 | Hexagon-headed bolt style I | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 7 | 943480 | 卡箍￠58-￠76 | B-worm drive type hose clampΦ 58-Φ 76 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 8 | DHP-0035-10 | 空气管 | Air pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 9 | DHP-0029-03 | 国产空滤指示器 | Indicator light | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 10 | 946471 | 法兰螺栓 M10X16 | Hexagon headed bolt M10X16 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
4DW92 系 列 柴 油 机 零 件 图 册
PARTS CATALOGUE FOR 4DW92 DIESEL ENGINES
2013.04 Version
一汽解放汽车有限公司无锡柴油机厂
FAW JIEFANG AUTOMOTIVE COMPANY, LTD.
WUXI DIESEL ENGINE WORKS
