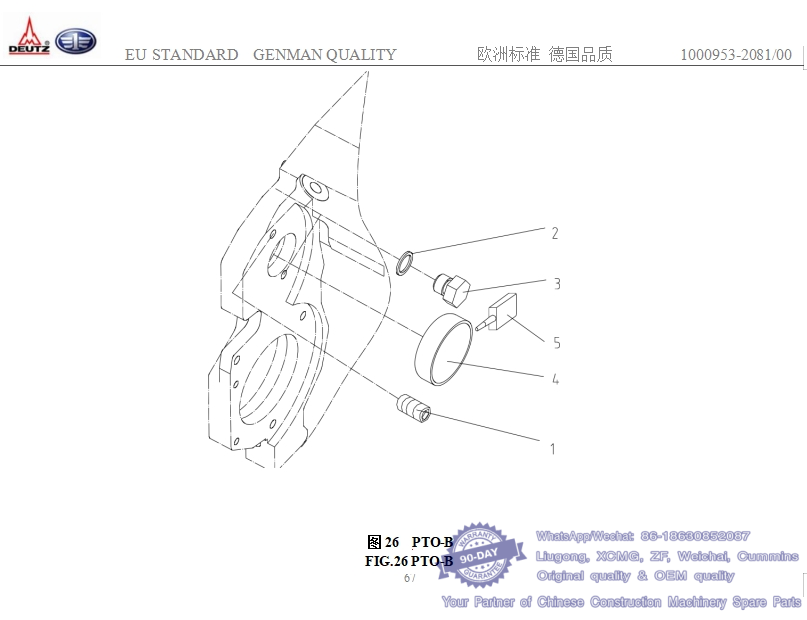

26、PTO-B-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 3407651-52D 碗形塞片 H 711 -B50 FE/ZN12C CORE HOLE PLUG H 711-B50 FE/ZN12C 1
2 3509643-52D 密封垫 DIN 7603 -A10X13,5-CU SEALING RING DIN 7603 -A10X13,5-CU 1
3 3407021-52D 螺堵 SCREW PLUG 1 whatsapp 86-18630852087
4 3407618-52D 紧定螺钉 GB77-M10X15-45 HDIN 913-M10X15-45H SET SCREW GB77-M10X15-45H DIN 913-M10X15-45H 1
5 JA1002-52D-2 密封材料 H 699 -DEUTZ DW 72-50ML SAFETY/LOCK.AGENT H 699 -DEUTZ DW 72-50ML 1

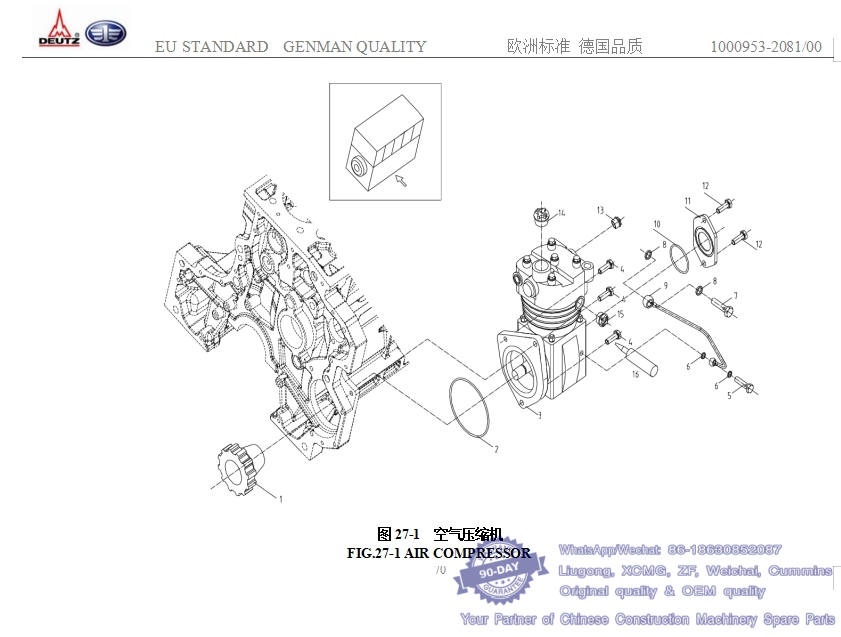

27、空气压缩机 AIR COMPRESSOR（1）-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1006050-52D 驱动齿轮附带定位套总成 COMPRESSOR DRIVING GEAR (WHIT BUSH) 1
2 3509622-52D O 型密封圈 H2927-120X3,15-MVQ-1-50 O-RING H 2927-120X 3,15-MVQ-1-50 1
3 3509001A52D 空气压缩机 AIR COMPRESSOR 1 whatsapp 86-18630852087
4 CQ1501030TF36 六角头导颈螺栓 DIN 933-M10X30-10.9-ZNAL-A HEXAGON BOLT DIN 933-M10X30-10.9-ZNAL-A 3
5 3509641-52D 空心螺栓 DIN 7643-6-4-A3L HOLLOW SCREW DIN 7643-6-4-ZNAL-A3L 1
6 3509643-52D 密封垫 DIN 7603-A10X13,5-CU SEALING RING DIN 7603-A10X13,5-CU 2
7 3509642-52D 空心螺栓 H 3102-D10M-ST-ZNAL-A HOLLOW SCREW H 3102-D10M-ST-ZNAL-A 1
8 3509644-56D 密封垫 DIN 7603-A14X18-CU SEALING RING DIN 7603-A14X18-CU 2
9 3509045-56D 润滑油管总成 LUBRICATION PIPE 1 whatsapp 86-18630852087
10 - 密封圈 H 2927- 55X3 -MVQ-1-50 O-RING H 2927-55X3,15-MVQ-1-50 1
11 - 端盖COVER 1
12 - 六角头导颈螺栓DIN 933-M10X16 - 8.8-ZNAL- A HEXAGON BOLT DIN 933-M10X16-8.8-ZNAL-A 2
13 3509686-52D 螺塞 H 2874-BM18X1.5-HDPE-SW SCREW PLUG H 2874-BM18X1.5-HDPE-SW 1

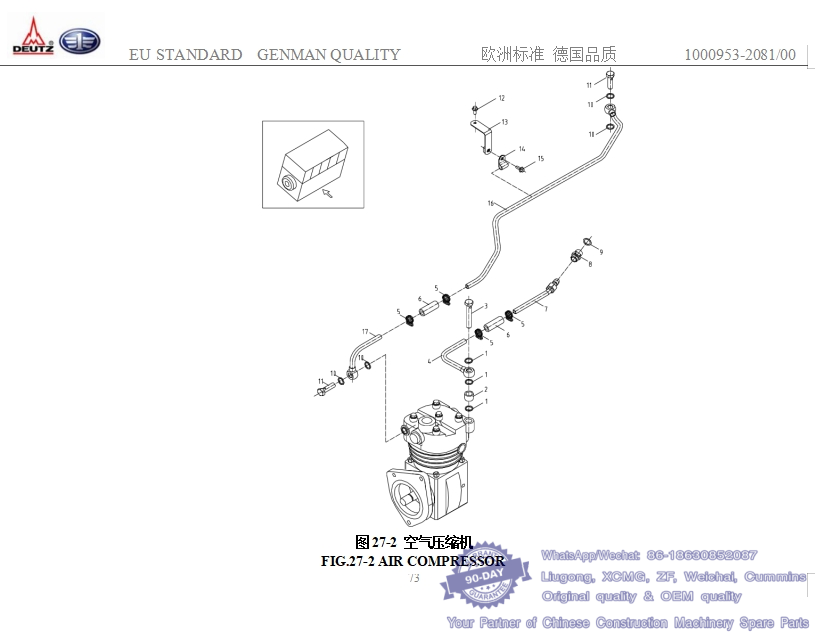

27、空气压缩机 AIR COMPRESSOR(3)-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 3509623-56D 密封垫 DIN7603-A16×22-Cu SEALING RING DIN 7603-A16X22-Cu 3
2 3509058-56D 套 BUSH 1 whatsapp 86-18630852087
3 3509628-56D 双空心螺栓 H 3103-A12M-A4C DOUBLE HOLLOW SCREW H 3103-A12M-A4C 1
4 3509055-56D 空压机后进水管总成 REAR COOLANT INLET LINE ASSEMBLY 1
5 CQ67625 软管管箍 DIN 3017-A-12-22X9-W1-2 HOSE CLAMP DIN 3017-A-12-22X9-W1-2 4
6 3509647-52D 橡胶管 H 3401-A12X19X50 RUBBER SLEEVE H 3401-A12X19X50 2
7 3509030-56D 空压机前进水管总 FRONT COOLANT INLET LINE ASSEMBLY 1
8 3509666-30D 直通管接头 DIN3901 -L 12A-M-ST-A4C JOINTS DIN3901-L 12A-M-ST-A4C 1
9 3509623-56D 密封垫 DIN7603-A16X22-Cu SEALING RING DIN7603 -A16X22-Cu 1
10 1013633-52D 密封垫 7603-A26X31-CU SEALING RING 7603-A26X31-CU 2
3509623-56D 密封垫 DIN7603-A16X22-Cu SEALING RING DIN7603 -A16X22-Cu 2 whatsapp 86-18630852087
11 3509637-52D 空心螺栓 H3102-D22M-ST-A4C HOLLOW SCREW H3102 -D22M-ST-A4C 1
3509659-52D 空心螺栓 H 3102-D12M-ST-A4C HOLLOW SCREW H3102 -D12M-ST-A4C 1
12 3509633-56D 六角头导颈螺栓 EN 1662-F-M 6 X 80- 10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M 6 X 80- 10.9-ZNAL-A 1
13 3509085-56D 角支架总成-空压机前回水管 BRACKET ASSEMBLY 1
14 3509679-52D 管夹 H3223-C12X20-ST/MVQ-1-70 CLAMP H3223-C12X20-ST/MVQ-1-70 1
15 3509646-52D 六角头凸缘螺栓 EN1662-F- M8X16-LG2,5-10.9-ZNAL-A HEXAGON BOLT EN1662-F- M8X16-LG2,5-10.9-ZNAL-A 1
16 3509035-56D 空压机前回水管总成 FRONT COOLANT RETURN LINE 1 whatsapp 86-18630852087
17 3509060-56D 空压机后回水管总成 REAR COOLANT RETURN LINE 1

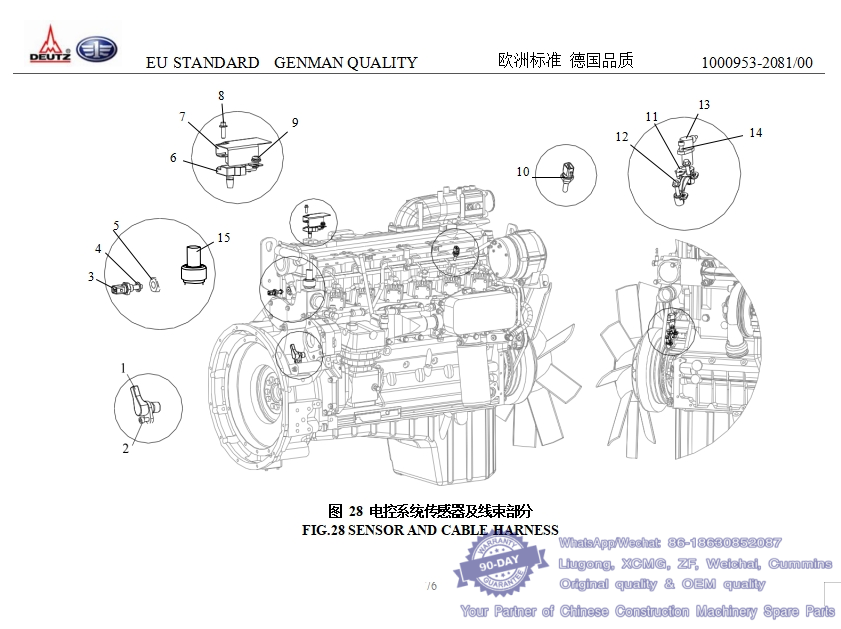

28、电控系统传感器及线束部分 SENSOR AND CABLE HARNESS WITH SYSTEM（1）-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 3602130B98D 凸轮轴位置传感器总成 TACHO-CAMSHAFT 1 whatsapp 86-18630852087
2 01180254 螺栓-涂密封材料 H2091-912 -M6X16-8.8-OELG-MK-1,5D-RT CHEESE HEAD SCREW H2091-912-M6X16-8.8-OELG-MK-1,5 D-RT 1
3 3602155A98D 温度传感器总成 TEMPER.TRANSMITTER 1
4 1013633-52D 密封垫 DIN 7603-A26X31-CU SEALING RING DIN 7603-A26X31-CU 1
5 3602116-30D 冷却液温度传感器过渡螺纹接口 TRANSITION ADAPTER 1
6 3602105A98D 进气压力温度传感器总成 TEMPERATURE/PRESSURE SENSOR 1
7 3602106-30D 进气压力温度传感器罩盖 GUARD PLATE 1
8 3602666-30D 六角头凸缘螺栓 EN 1662 -F-M6X20-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M6X20-10.9-ZNAL-A 1
9 3602107-30D 橡胶缓冲器 RUBBER STOP 1
10 3602155A98D 温度传感器总成 TEMPER.TRANSMITTER 1
11 3602121-56D 曲轴位置传感器总成支架 CRANKSHAFT TACHO BRACKET 1
12 3602601-56D 六角螺栓-H2091-1662 -F-M6X30-10.9-ZNAL-A-MK HEXAGON BOLT H2091-1662 -F-M6X30-10.9-ZNAL-A-MK 2
13 3602120A98D 曲轴位置传感器总成 CRANKSHAFT TACHO 1
14 01180254 螺栓-涂密封材料 H2091-912 -M6X16-8.8-OELG-MK-1,5D-RT CHEESE HEAD SCREW H2091-912-M6X16-8.8-OELG-MK-1,5 D RT 1
15 3724020-2081/B 发动机线束总成 CABLE HARNESS 1 whatsapp 86-18630852087

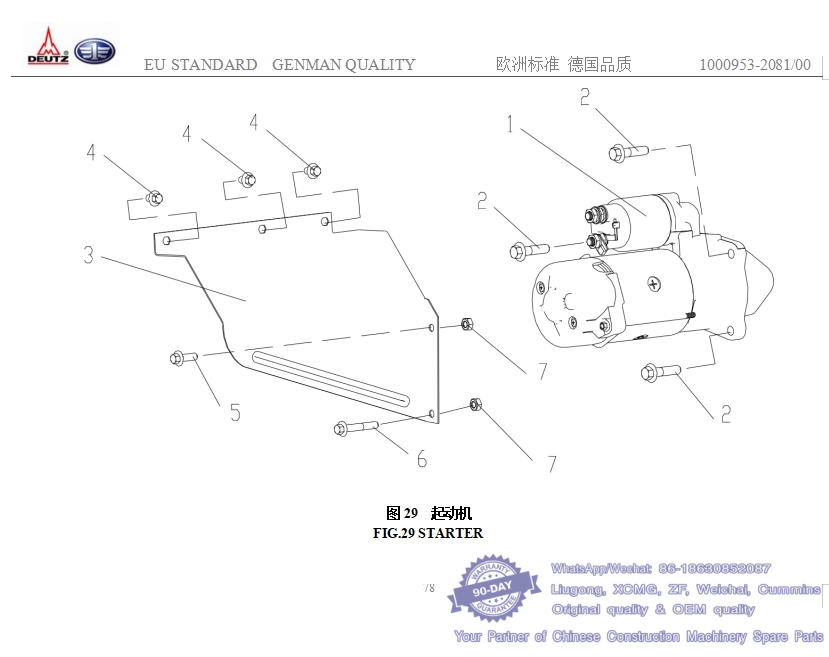

29、起动机 STARTER-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 3708010CD129 起动机总成 STARTER 1 whatsapp 86-18630852087
2 1308626-52D 六角头凸缘螺栓 EN 1662-F-M10X38-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M10X38-10.9 -ZNAL-A 3
3 3708025-602 起动机隔热罩 GUARD PLATE 1 whatsapp 86-18630852087
4 3724612-30D 六角头凸缘螺栓 EN 1662-F-M8X12-LG2,5-10.9-A4C HEXAGON BOLT EN 1662-F-M8X12-LG2,5-10.9-A4C 3
5 3754627-52D 六角头凸缘螺栓 EN 1662-F-M8X25-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M8X25-10.9-ZNAL-A 1
6 1013616-52D 六角头凸缘螺栓 EN 1662-F-M8X50-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M8X50-10.9-ZNAL-A 1
7 CQ34008TF36 六角螺母 ISO 4032-M8-8-A4C HEXAGON BOLT ISO 4032-M8-8-A4C 2

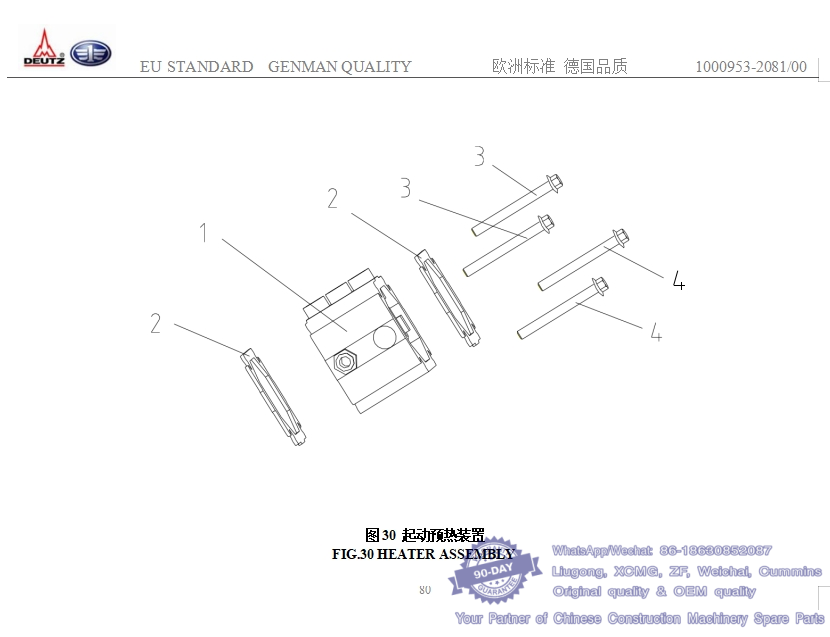

30、起动预热装置 HEATER ASSEMBLY-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 3750115A56D 预热器总成 HEATING FLANGE 1 whatsapp 86-18630852087
2 3750131-56D 预热器密封垫 GASKET 2
3 3750611-56D 六角头凸缘螺栓 EN 1662 -F-M 8 X100- 10.9-ZNAL-A HEXAGON BOLT EN 1662 -F-M 8 X100- 10.9-ZNAL-A 2
4 1008028-56D 六角头凸缘导径螺栓 HEXAGON BOLT 2

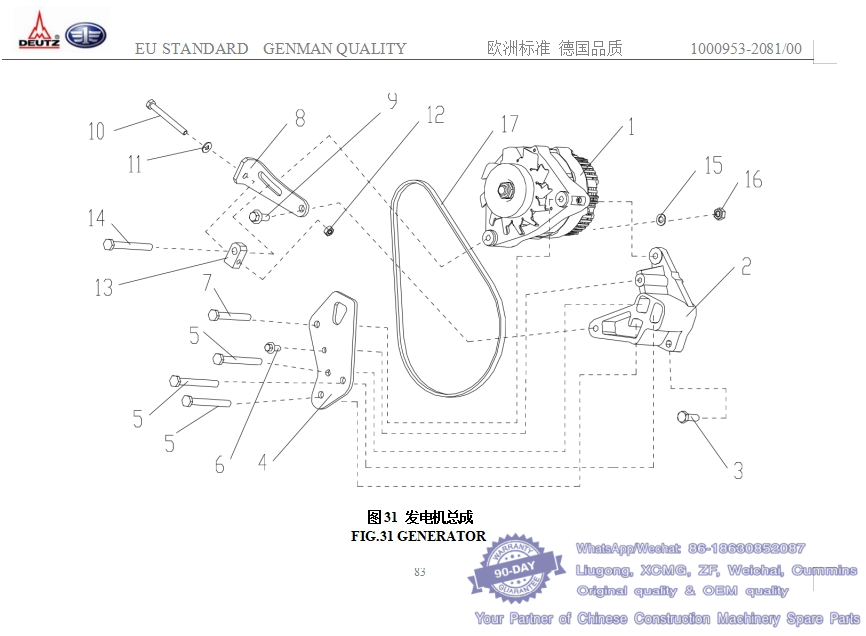

31、发电机总成 GENERATOR（1）
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 3701010-56D 发电机总成 GENERATOR 1
2 3701042-56D 发电机支架 GENERATOR BRACKET 1 whatsapp 86-18630852087
3 CQ1501030TF36 六角头导颈螺栓 DIN 933 -M10X30-10.9-ZNAL-A HEXAGON BOLT DIN 933 -M10X30-10.9-ZNAL-A 1
4 3701039-56D 发电机支撑板 SUSPENSE PLATE 1
5 3701614-56D 六角螺栓 DIN931 -M10X95-10.9-ZNAL-A HEXAGON BOLT DIN931 -M10X95-10.9-ZNAL-A 3
6 1009619-52D 六角头凸缘螺栓 EN1662-F- M8X20-LG2,5-10.9-ZNAL-A HEXAGON BOLT EN1662-F- M8X20-LG2,5-10.9-ZNAL-A 1
7 3701613-56D 六角螺栓 DIN931 -M10X80-10.9-ZNAL-A HEXAGON BOLT DIN931 -M10X80-10.9-ZNAL-A 1
8 3701038-56D 发电机调整臂 CLAMPING STRAP 1 whatsapp 86-18630852087
9 1005639-30D 六角头凸缘螺栓 EN 1662 -F-M10X20-10.9-A4C HEXAGON BOLT EN 1662 -F-M10X20-10.9-A4C 1
10 3701611-56D 六角螺栓 ISO 4017 -M 8 X 80 - 8.8-ZNAL-A * HEXAGON BOLT ISO 4017 -M 8 X 80 - 8.8-ZNAL-A * 1
11 3701607-30D 垫圈 DIN 6319 -C 8,4 WASHER DIN 6319 -C 8,4 1
12 CQ34008TF36 六角螺母 ISO 4032-M8-10-ZNAL-A HEXAGON NUT ISO 4032-M8-10-ZNAL-A 1
13 3701041-56D 定位块 THREADED-SUPPORT 1
14 3701612-56D 六角螺栓 DIN 931 - M10 X 90 - 10.9-A4C HEXAGON BOLT DIN 931 -M10 X 90 - 10.9-A4C 1
15 3701037-56D 垫圈 WASHER 1
16 CQ34010TF36 六角螺母 ISO 4032 -M10- 8 – OELGESCHW HEXAGON BOLT ISO 4032 -M10- 8 – OELGESCHW 1
17 3701617-56D 发电机皮带 H 3710 -AVX 11X 900LA-WAX* V-BELT H 3710-AVX11X900LA-WAX* 1

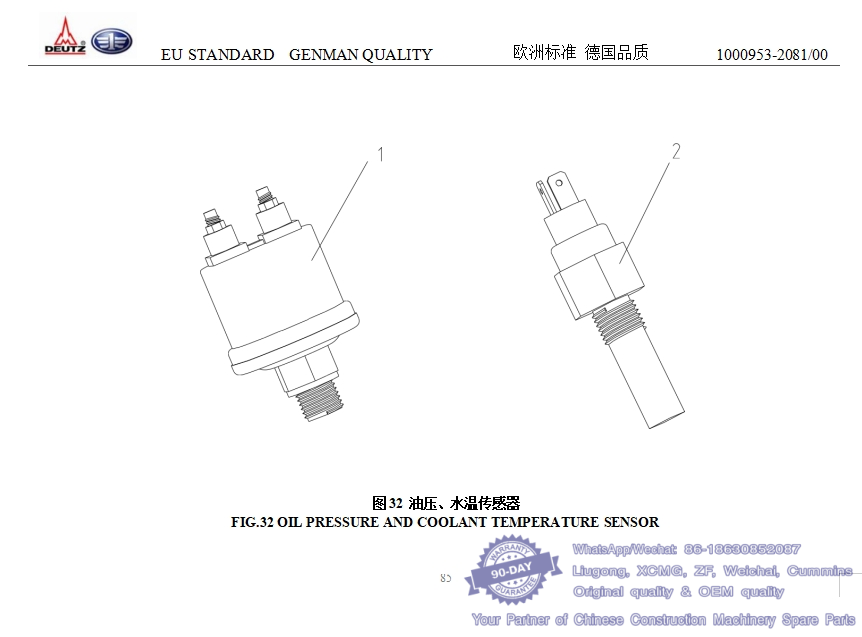

32、油压、水温传感器 OIL PRESSURE AND COOLANT TEMPERATURE SENSOR
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 3602185A48D 传感器-机油压力表 OIL PRESSURE SENSOR 1 whatsapp 86-18630852087
2 3808020-109 传感器-水温表 COOLANT TEMPERATURE SENSOR 1
