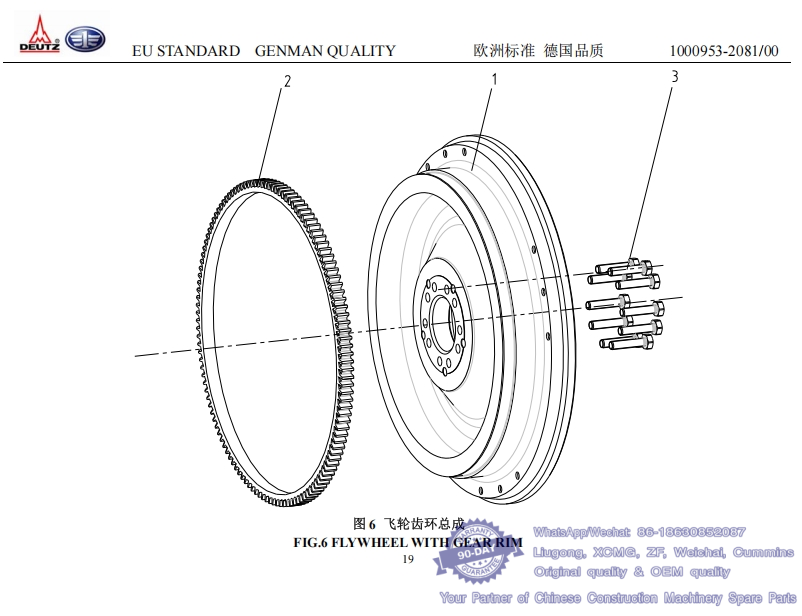

6、飞轮齿环总成 FLYWHEEL WITH GEAR RIM-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1005115A30D 飞轮齿环总成 FLYWHEEL (WITH GEAR RIM) whatsapp 86-18630852087
1005116A30D (包含在总成内 Included in)飞轮 FLYWHEEL 1
2 1005117-52D (包含在总成内 Included in)齿环-飞轮 GEAR RIM 1
3 1005121-30D 飞轮螺栓 HEXAGON BOLT 10 whatsapp 86-18630852087

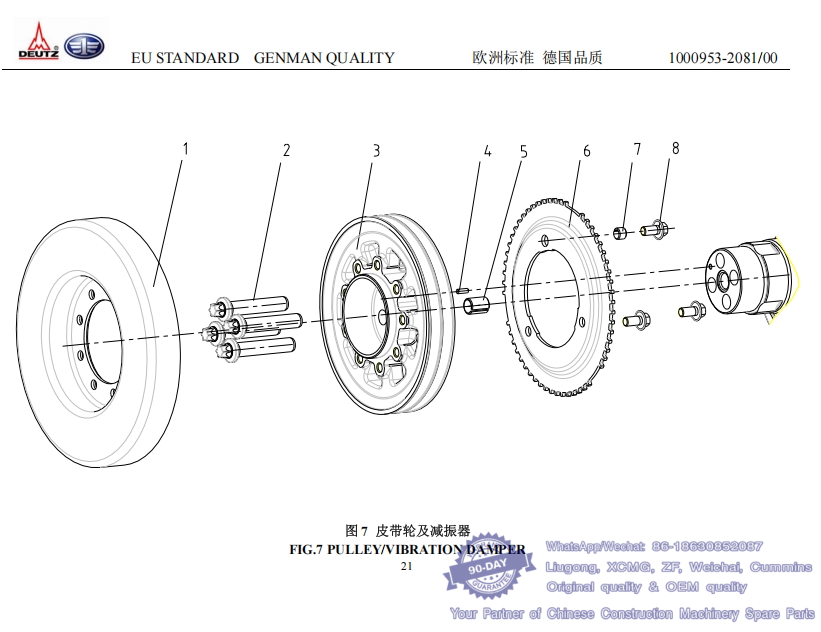

7、皮带轮及减振器 PULLEY/VIBRATION DAMPER-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1005040A56D 减振器总成 VIBRATION DAMPER 1 whatsapp 86-18630852087
2 1005037-52D 螺栓-皮带轮过渡法兰 TORX-HEAD BOLT 4
3 1005053-56D 皮带轮-曲轴 PULLEY 1 4 whatsapp 86-18630852087
0112 5637 定位销 ISO 8752 -5X14-ST STRAIGHT PIN ISO 8752 -5X14-ST 1
5 0118 1404 弹性圆柱销 H 2341 -B18X24-FE/ZN12C CLAMPING BUSH H 2341 -B18X24-FE/ZN12C 1
6 1005051-56D 靶轮-转速传感器 LOCK WASHER 1 whatsapp 86-18630852087
7 0117 4180 弹性圆柱销 H 2341 -B13X10 -FE/ZN12C CLAMPING BUSH H 2341 -B13X10-FE/ZN12C 1
8 1005639-30D 六角头凸缘螺栓 EN 1662 -F-M10X20-10.9-A4C HEXAGON BOLT EN 1662 -F-M10X20-10.9-A4C 3

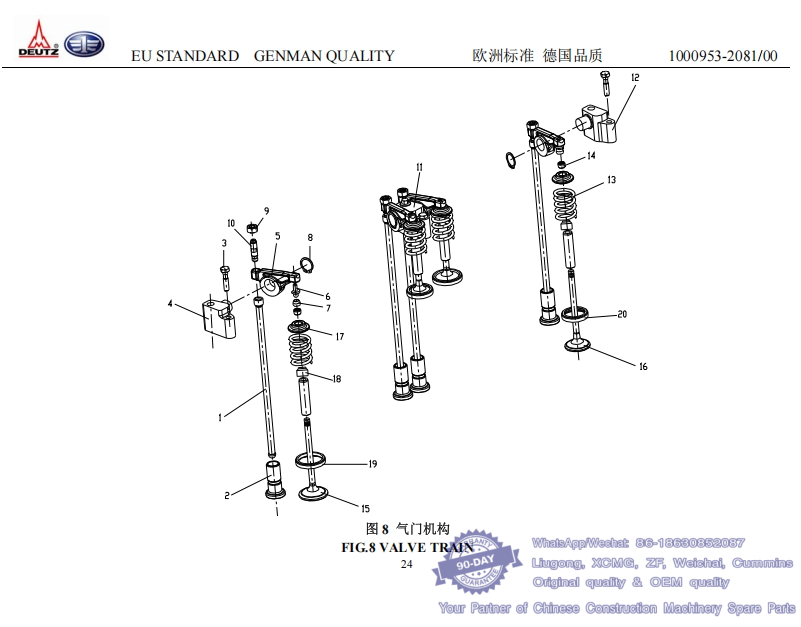

8、气门机构 VALVE TRAIN（1）-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1007050-56D 推杆总成 PUSH ROD 12 7 F04292209 弹簧卡环 SNAP RING 12
2 1007061-56D 挺柱 TAPPET 12
8 1007626-52D (摇臂总成包含Included in) 轴用弹性挡圈 DIN 471-21X1,2 CIRCLIP DIN 471-21X1,2 12
3 1007601-56D 六角头凸缘螺栓 H 2032-HBM 8X 45- 8.8- ZNAL-A HEXAGON BOLT H 2032-HBM 8X 45-8.8- ZNAL-A 7
9 1007143-52D (摇臂总成包含Included in) 六角螺母 HEXAGON NUT 12
4 F04285532 摇臂及摇臂支座(前)总成 ROCKER ARM BRACKET ASSEMBLY 1 10 F03365861 (摇臂总成包含Included in) 调整螺栓 ADJUSTING SCREW 12 whatsapp 86-18630852087
F04195928 (总成包含 Included in) 气门摇臂支座(前) ROCKER ARM BRACKET 1
11 F04285533 摇臂及摇臂支座(中)总成 ROCKER ARM BRACKET ASSEMBLY 5
5 F04289278 (总成包含 Included in) 气门摇臂 ROCKER ARM 12
12 F04285534 摇臂及摇臂支座(后)总成 ROCKER ARM BRACKET ASSEMBLY 1
6 F04290034 旋转垫 THRUST WASHER 12 13 1007021-56D 气门弹簧 COMPRESSION SPRING 12
14 02108102 气门锁块 VALVE COLLET 24
15 F04284042 进气门 INLET VALVE 6 whatsapp 86-18630852087
16 F04284043 排气门 OUTLET VALVE 6
17 F04290033 气门弹簧座 SPRING CAP 12
18 04153728 气门导管油封 VALVE GUIDE OIL SEAL 12 whatsapp 86-18630852087
19 1007081-56D( 缸盖总成包含Included in) 进气门座 INLET VALVE SEAT INSERT 6
20 1007082-56D( 缸盖总成包含Included in) 排气门座 OUTLET VALVE SEAT INSERT 6

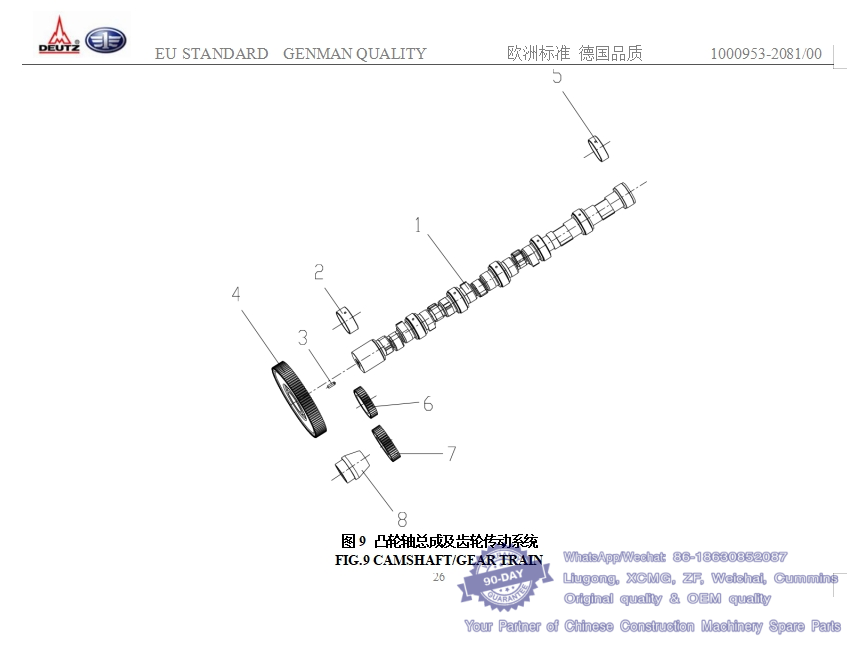

9、凸轮轴总成及齿轮传动系统 CAMSHAFT/GEAR TRAIN-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1006010-36E 凸轮轴总成 CAMSHAFT(WITH GEAR) 1
1006016-56D 凸轮轴 CAMSHAFT 1 whatsapp 86-18630852087
2 1004028A56D 凸轮轴衬套(飞轮端) BEARING BUSH 1
3 1006022-30D (包含在总成内 Included in)齿轮销 PARALLEL PIN 7
4 1006021-36E 齿轮-凸轮轴 CAMSHAFT GEAR 1
5 1004024A56D 凸轮轴衬套 BEARING BUSH 6
6 1006071-52D 齿轮-动力转向泵 POWER STEERING PUMP GEAR 1
7 1006051-52D 驱动齿轮定位套-空压机 BUSH 1
8 1006061-52D 驱动齿轮-空压机 AIR COMPRESSOR DRIVE GEAR 1 whatsapp 86-18630852087

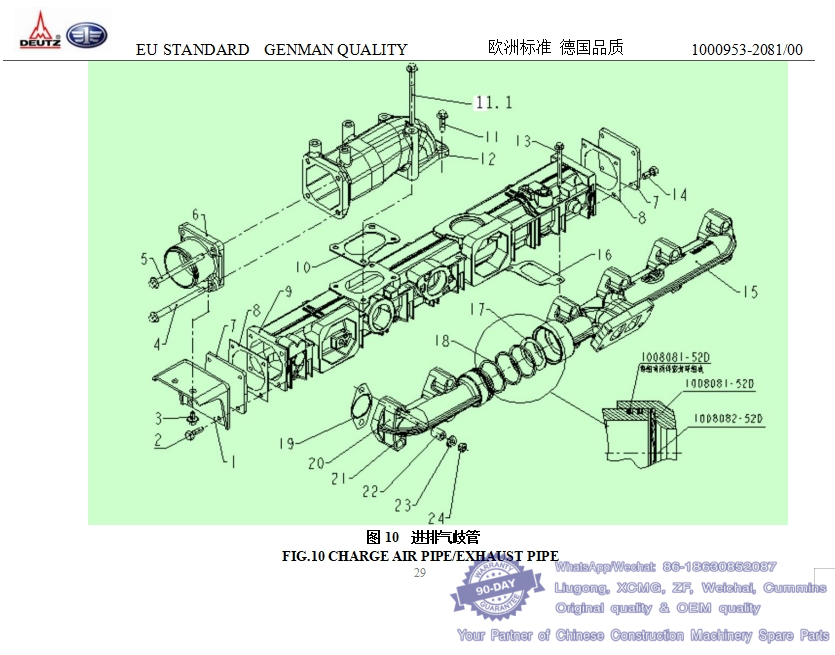

10、进排气歧管 CHARGE AIR PIPE/EXHAUST PIPE（1）-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1008027A56D 支架-过渡接管 BRACKET-CONNECTING PIPE 1 whatsapp 86-18630852087
2 CQ1420830TF36 组合螺栓 HEXAGON BOLT WASHER ASSEMBLY 4
3 CQ1460816TF36 组合螺栓 HEXAGON BOLT WASHER ASSEMBLY 2
4 1008028-56D 六角头凸缘螺栓 HEXAGON BOLT 2
5 1008603-56D 六角头凸缘螺栓 EN 1662-F-M 8 X100- 10.9-ZNAL-AHEXAGON BOLT EN 1662-F-M 8 X100- 10.9-ZNAL-A 2
6 1008024-56D 过渡接管 CONNECTING PIPE 1
7 1008038A56D 进气歧管盖板 CHARGE AIR PIPE COVER 2 whatsapp 86-18630852087
8 1008037-56D 密封垫－进气歧管盖板 CHARGE AIR PIPE GASKET 2
9 1008016-56D 进气歧管 CHARGE AIR PIPE 1
10 1008026-56D 密封垫－进气接管 ELBOW PIPE GASKET 1
11 3509639-52D 六角头凸缘螺栓EN 1662-F-M8X30-10.9-ZNAL-AHEXAGON BOLT EN 1662-F-M8X30-10.9-ZNAL-A 2
11.1 1008627-D198 六 角 头 凸 缘 螺 栓 EN 1662-F-M8X95-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M8X95-10.9-ZNAL-A 2
12 1008023-437 进气接管 ELBOW PIPE 1
13 1008602-56D 六角头凸缘螺栓 EN 1662-F-M 6 X 75- 10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M 6 X 75- 10.9-ZNAL-A 12
14 CQ1460825TF36 组合螺栓 HEXAGON BOLT WASHER ASSEMBLY 4
15 1008048-437 排气歧管后段 EXHAUST PIPE (REAR) 1
16 1008017-56D 垫密片－进气歧管 CHARGE AIR PIPE GASKET 6 whatsapp 86-18630852087
17 0118 2258 波形弹簧片 H 2974-WFD 57.1X48.4X6-1.4980WAVE SPRING RING H 2974-WFD 57.1X48.4X6-1.4980 1
18 0118 2257 片状密封环 H2974-1AD57.1X51.9X1.45-1.4980 FLAKE SEAL RING H2974-1AD57.1X51.9X1.45-1.4980 5
19 1008044-52D 密封垫－排气歧管 EXHAUST PIPE GASKET 6
20 1008047-56D 排气歧管前段 EXHAUST PIPE (FRONT) 1
21 04259760 排气歧管螺柱 STUD 12
22 1008073-52D 防松套 SPACER SLEEVE 12 whatsapp 86-18630852087
23 1008063A52D 平垫－排气歧管 PLAIN WASHER 12
24 1008046-52D 六角螺母-排气歧管 HEXAGON NUT 12
