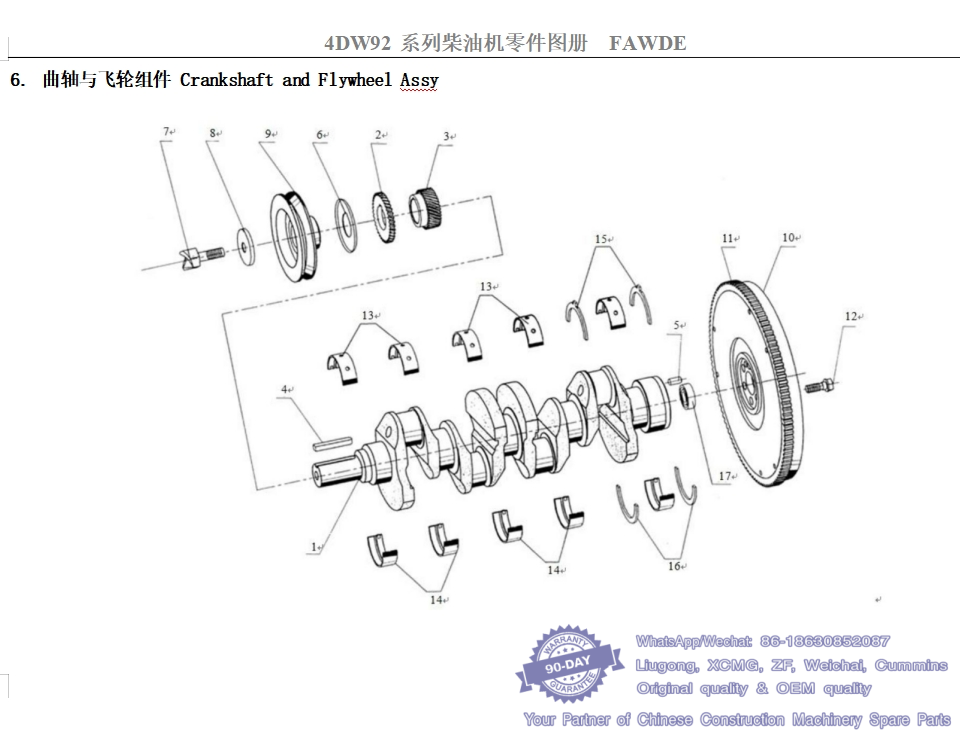

6. 曲轴与飞轮组件Crankshaft and Flywheel Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1005010-B43-0000 | 曲轴部件 | Crankshaft parts | ||||||||||
| 1 | 1005014AB43-0000X | 曲轴 | Crankshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 1005014BB43-0000（选装） | 曲轴 | Crankshaft | 1 | 1 | ||||||||
| 2 | 1005037-B01-0000 | 机油泵主动齿轮 | Gear-oil pump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | 05084-B01-0000 | 曲轴正时齿轮 | Timing gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 4 | GB/T1096 10X63 | 键 C10×63 | Key Cl0x63 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 5 | Q5221024 | 圆柱销 | Straight Pin | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 6 | 1005036AB01-0000 | 曲轴前挡油盘 | Front oil plate-crankshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | 1005044BB01-0000 | 起动螺栓 | Starter jaw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 8 | 1005045AB01-0000 | 起动爪垫圈 | Washer-starter jaw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 9 | 1005046-B59-AS10 | 皮带轮 | Pulley | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 1005120-B59-AS10 | 飞轮附带齿环总成 | Flywheel ring gear assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 1005121-B59-AS10 | 飞轮 | Flywheel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 1005121-B5A-HMS20W | 飞轮 | Flywheel | 1 | 1 | ||||||||
| 11 | 1005122-B01-0000 | 齿环—飞轮 | Ring gear-flywheel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 12 | 1005123-B01-0000 | 飞轮螺栓 | Bolt-flywheel | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| 13 | 1005171-B01-0000D | 上主轴瓦 | Main bearing shell, upper half | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 14 | 1005172-B01-0000D | 下主轴瓦 | Main beating shell, lower half | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 15 | 1005181-B01-0000 | 止推片(上) | Thrust plate,upper half | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 16 | 1005182-B01-0000 | 止推片(下) | Thrust plate,lower half | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 17 | GB/T276-1994 6203-2Z | 滚动轴承 6203-2Z | Rolling bearing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

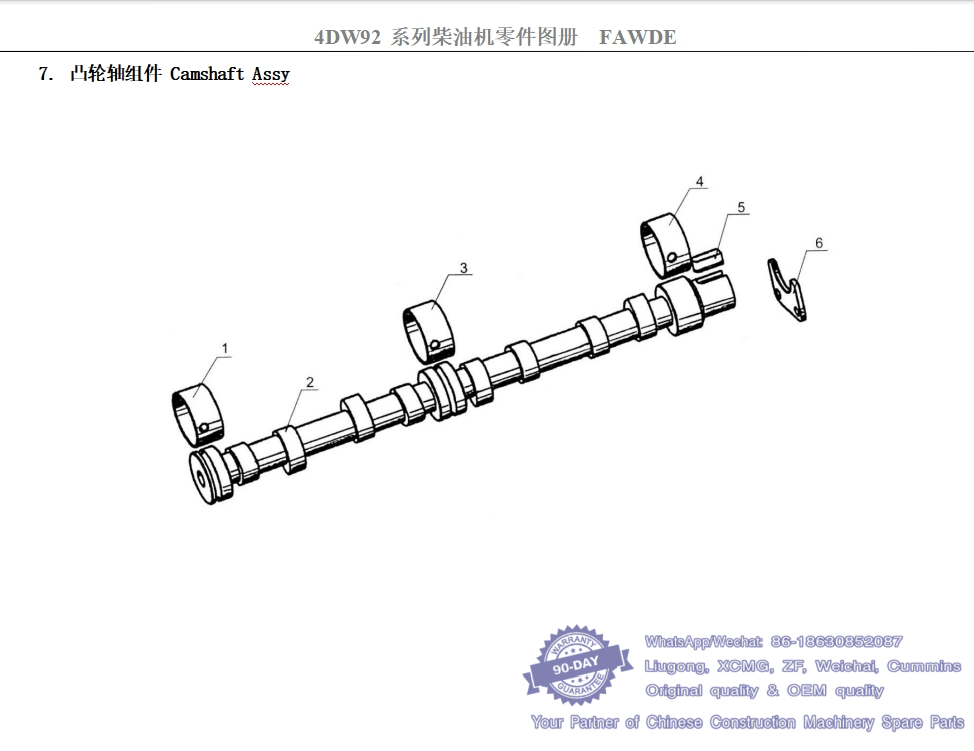

7. 凸轮轴组件 Camshaft Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1006028AB01-0000 | 凸轮轴后衬套 | Rear bush of camshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1006015-B01-0000 | 凸轮轴 | Camshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | 1006025AB01-0000 | 凸轮轴中间衬套 | Middle bush of camshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 4 | 1006024AB01-0000 | 凸轮轴前衬套 | Front bush of camshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 5 | GB1096 10×25 C 键 | 平键 | Woodruff key | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 6 | 1006018-B01-0000 | 凸轮轴压板 | Thrust plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

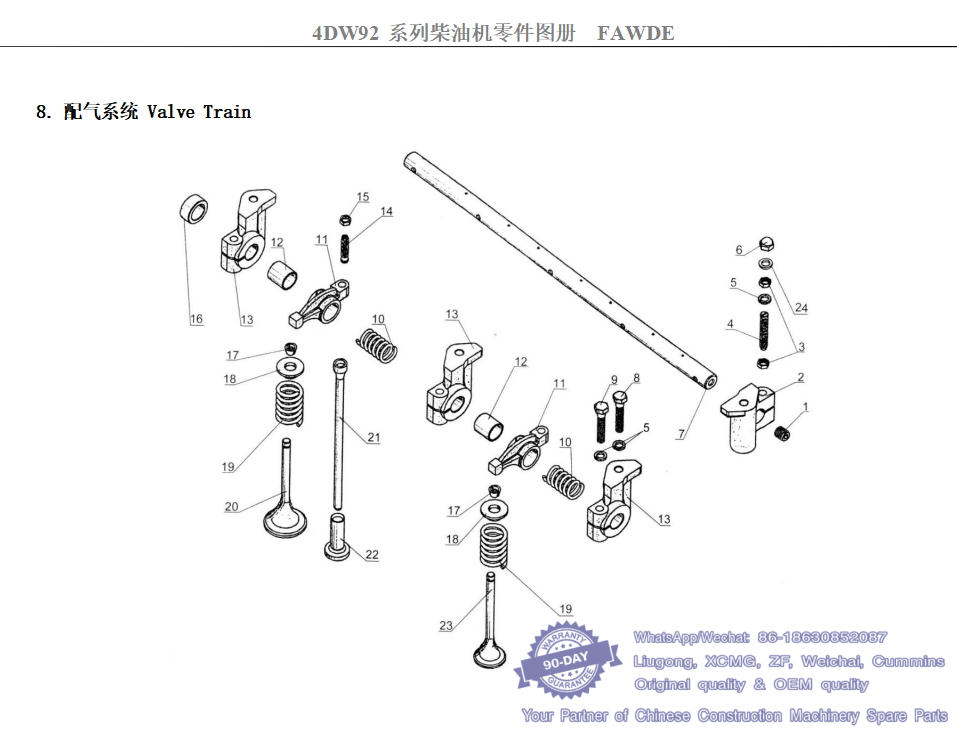

8. 配气系统 Valve Train-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | Q2821010 | 开槽平端紧定螺钉 | Iock nut | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 2 | 1007124-B03-0000 | 气门摇臂支座—I | Bracket of rocker arm shaft I | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q340B08 | I 型六角螺母 | Hexagon nut,style I | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 4 | 1007129-B01-0000 | 螺钉 | Screw | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 5 | Q40308 | 弹簧垫圈 | Spring washer | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| 6 | GB923-88M8 | 盖形螺母 | Nut | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 7 | 1007091-B01-0000 | 摇臂轴 | Rocker arm shaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 8 | Q150B0865 | 六角头螺栓 | Hexagon-headed bolt | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 9 | Q150B0845 | 六角头螺栓 | ltexagon-headed bolt | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 10 | 1007114-B01-0000 | 气门摇臂轴弹簧 | Spring of rocker arm shaft | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 1007100-B01-0000 | 气门摇臂总成 | Rocker arm parts | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 1007096-B01-0000 | 气门摇臂 | Rocker arm | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 12 | 1007094-B01-0000 | 气门摇臂衬套 | Rocker arm bush | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 13 | 1007126AB01-0000 | 气门摇臂轴支座—Ⅱ | Bracker of rocker arm shaft Ⅱ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| ]4 | 1007097-B01-0000 | 气门间隙调整螺钉 | Adjusting srew-valve clearance | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| ]5 | 1007098-B01-0000 | 气门间隙调整螺母 | Adjusting nut-valve clearance | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 16 | 1007093-B01-0000 | 轴套 | Bushofshaft | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 17 | 1007028-B01-0000 | 气门锁夹 | Valve split collet | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| 1007028AB01-0000Z（选装） | 气门锁夹 | Valve split collet | ||||||||||
| 18 | 1007024AB01-0000 | 气门弹簧座 | Valve spring retainer | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 19 | 1007021-B01-0000 | 气门弹簧 | Valve spring | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 DescripdOn | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 20 | 1007011-B03-0000 | 进气门 | Intake valve | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 21 | 1007051-B01-0000 | 推杆 | Push rod | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 22 | 1007061-B01-0000 | 挺柱 | Tappet | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 23 | 1007016-B03-0000 | 排气门 | Exhaust valve | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 24 | Q40108 | 平垫圈 | Flat Washer | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |

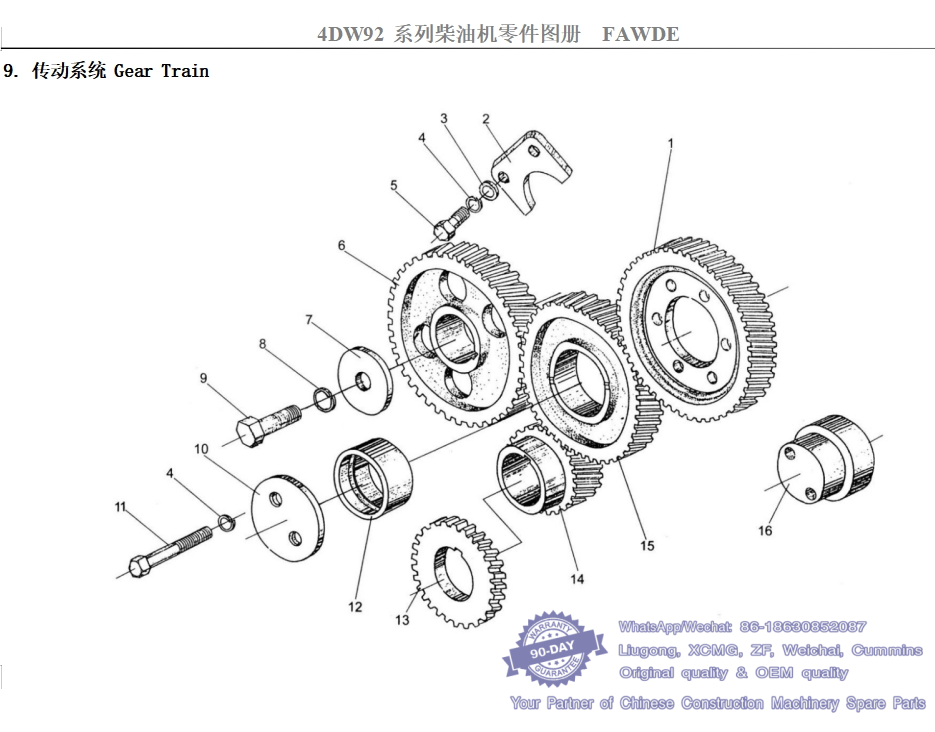

9. 传动系统Gear Train-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1111216-B01-0000 | 喷油泵传动齿轮 | Fuel injection pump drive gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1006018-B01-0000 | 凸轮轴压板 | Plate-camshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q40108 | 平垫圈 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 4 | Q40308 | 弹簧垫圈 | Spring washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 5 | Q150B0816 | 六角头螺栓 | Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 6 | 1006021-B01-0000 | 凸轮轴正时齿轮 | Timing gear-camshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | 1006022-B01-0000 | 凸轮轴正时齿轮压板 | Plate-timing gear-camshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 8 | Q40312 | 弹簧垫圈 | Spring washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 9 | Q150B1230 | 六角头螺栓 | Hexagon-headed bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 10 | 1006049-B01-0000 | 正时惰齿轮压板 | Plate-timing gear(middle) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 11 | Q150B0850 | 六角头螺栓 | Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 12 | 1006046-B01-0000J | 正时惰齿轮衬套 | Bush-timing gear(middle) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 13 | 1005037-B01-0000 | 机油泵主动齿轮 | Gear-oil pump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 14 | 1005084-B01-0000 | 曲轴正时齿轮 | Timing gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 15 | 1006043-B01-0000 | 正时惰齿轮 | Timing gear(middle) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 16 | 1006048-B01-0000 | 正时惰齿轮轴 | Timing gear(middle)shaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

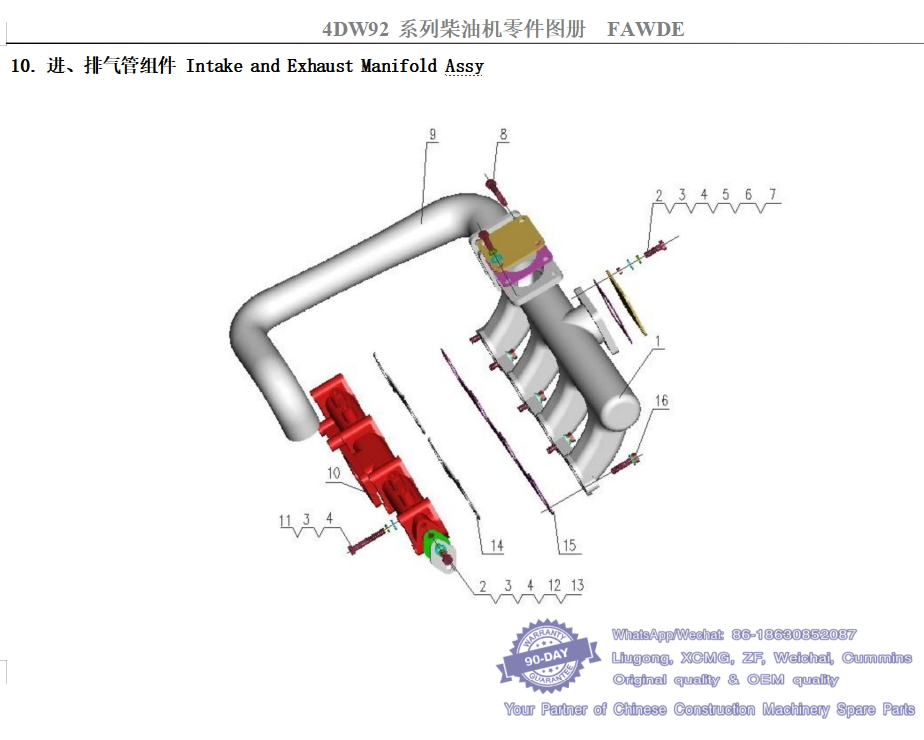

10. 进、排气管组件 Intake and Exhaust Manifold Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 1008000-B48-AS20 | 进排气管组件 Intake and exhaust manifold assy | 1 | |||||||||
| 1 | 1008016CB01-0000C | 进气歧管 Intake manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | Q150B0820 | 六角头螺栓 Hexagon-headed bolt | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| 3 | Q40308 | 弹簧垫片 Spring washer | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| 4 | Q40108 | 平垫片 Washer | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| 5 | Q32008 | 六角法兰面螺母 Hexagon nut | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| 6 | 1008021BB01-0000 | 盖板 Strap | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 7 | 1008019-B01-0000 | 垫片 Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 8 | Q150B0860 | 六角头螺栓 Hexagon-headed bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 9 | 1008018-B42-CS3A | 排气接管 Exhaust connecting pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 10 | 1008042BB61-BF1A | 排气歧管 Exhaust manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 11 | Q150B0865 | 六角头螺栓 Hexagon-headed bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 12 | 1008043AB03-HQ10 | 盖板-排气歧管 Strap- Exhaust manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 13 | 1008044-B03-HQ10 | 垫片-盖板 Gasket- Strap | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 14 | 1008045CB01-0000 | 排气管垫片 Gasket-exhaust manifold | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 15 | 1008017-B01-0000 | 进气管垫片 Gasket-intake manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 16 | Q150B0835 | 六角头螺栓 Hexagon-headed bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
4DW92 系 列 柴 油 机 零 件 图 册
PARTS CATALOGUE FOR 4DW92 DIESEL ENGINES
2013.04 Version
一汽解放汽车有限公司无锡柴油机厂
FAW JIEFANG AUTOMOTIVE COMPANY, LTD.
WUXI DIESEL ENGINE WORKS
