99 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

290 4657.201.144 油管 TUBO 1
300 0634.306.213 O 型圈 O-RING 1
310 0636.100.803 螺栓 CAP 2 Whatsapp: 86-18630852087
315 4657.301.044 油管 TUBO 1
320 0636.115.295 螺栓 CAP 1
340 0634.306.213 O 型圈 O-RING 2
350 4657.201.145 油管 TUBO 1 Whatsapp: 86-18630852087
351 0634.306.213 O 型圈 O-RING 1
352 0636.100.803 螺栓 CAP 2
360 4657.301.044 油管 TUBO 1
364 0636.115.295 螺栓 CAP 1
380 0634.306.213 O 型圈 O-RING 2 Whatsapp: 86-18630852087
390 4657.201.143 吸油管 TUBO 1
400 0636.100.803 螺栓 CAP 1

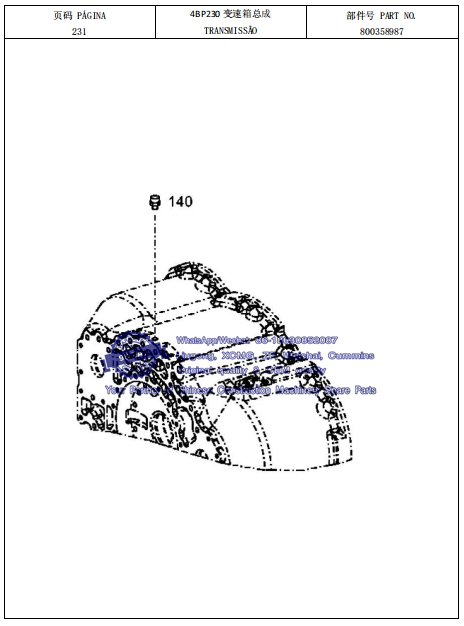

100 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

140 0750.131.027 呼吸器 RESPIRO 1 Whatsapp: 86-18630852087

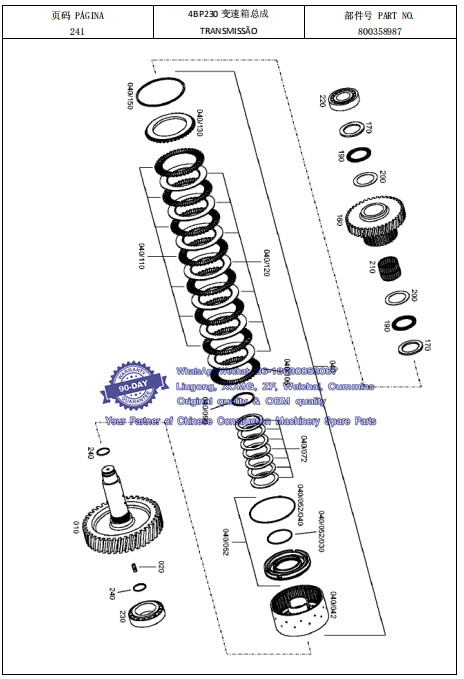

101 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

010 4657.371.043 齿轮轴 EIXO Z=53 1
020 0636.607.039 双头螺柱 PRISIONEIRO 1 Whatsapp: 86-18630852087
040 4657.271.009 离合器包 ACOPLAMENTO 1
/042 4657.371.034 离合器盘包 DISCOO DE EMBREAGEM Z=34*Z=46 1
/052 4657.271.008 柱塞 PISTÃO 1
//030 0634.313.643 O 型圈 O-RING 1
//040 0634.313.796 O 型圈 O-RING 1
/072 0501.316.541 弹性板 MOLA 7
/090 0501.324.228 L 型密封圈 ANEL 1
/106 0501.212.371 摩擦片 DISCOO DE FRICÇÃO 1
/110 0501.212.370 摩擦片 DISCOO DE FRICÇÃO 9
/120 0501.316.592 摩擦片 DICO DE EMBREAGEM INTERNO 9
/130 4657.371.045 调整垫片 CALÇO Z=34 1
/150 --- 卡环 RETENTOR 1
--- 0730.513.701 卡环 RETENTOR h=2,1 1 Whatsapp: 86-18630852087
--- 0730.513.702 卡环 RETENTOR h=2,25 1
--- 0730.513.703 卡环 RETENTOR h=2,4 1
--- 0730.513.704 卡环 RETENTOR h=2,55 1
--- 0730.513.705 卡环 RETENTOR h=2,7 1
--- 0730.513.706 卡环 RETENTOR h=2,85 1
--- 0730.513.707 卡环 RETENTOR h=3,0 1
--- 0730.513.708 卡环 RETENTOR h=3,15 1
--- 0730.513.709 卡环 RETENTOR h=3,30 1
--- 0730.513.710 卡环 RETENTOR h=3,45 1
--- 0730.513.711 卡环 RETENTOR h=3,60 1
--- 0730.513.712 卡环 RETENTOR h=3,75 1
--- 0730.513.713 卡环 RETENTOR h=3,90 1
--- 0730.513.714 卡环 RETENTOR h=4,05 1
--- 0730.513.715 卡环 RETENTOR h=4,20 1
160 4657.371.021 惰轮 RODA GUIA Z=23 1
170 0635.290.114 垫片 JUNTA 2
190 0735.368.076 轴向定位板 PLACA DE POSICIONAMENTO AXIAL 2
200 0501.334.358 轴向垫圈 ARRUELA 2
210 0735.321.509 定位套 ROLAMENTO DE AGULHAS 1
220 0501.316.378 防松垫片 RETENTOR 1 Whatsapp: 86-18630852087
230 0735.300.547 圆锥滚子轴承 ROLAMENTO 1
240 0735.300.548 圆锥滚子轴承 ROLAMENTO 1
250 0734.401.267 密封环 ANEL 2

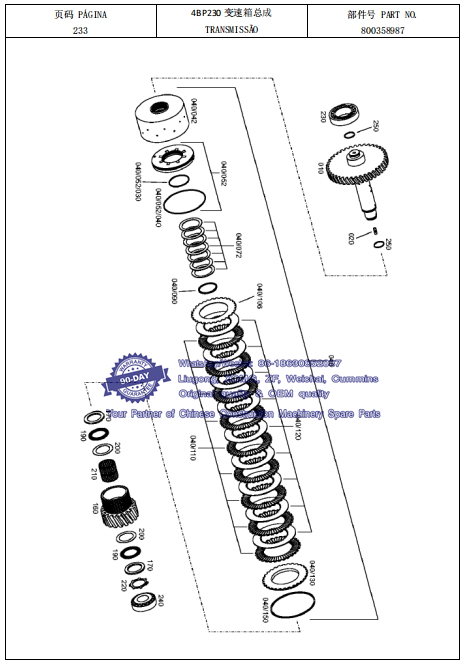

102 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

010 4657.372.022 齿轮轴 EIXO 1
020 0636.607.039 双头螺柱 PRISIONEIRO 1 Whatsapp: 86-18630852087
040 4657.272.005 离合器包 ACOPLAMENTO 1
/042 4657.372.020 离合器盘包 PACOTE DE DISCOO DE EMBREAGEM 1
/052 4657.275.006 柱塞 PISTÃO 1
//030 0634.313.643 O 型圈 O-RING 1
//040 0634.313.719 O 型圈 O-RING 1
/072 0501.316.541 弹性板 MOLA 7
/090 0501.324.228 L 型密封圈 ANEL 1
/106 0501.212.373 离合器摩擦片 EMBREAGEM EXTERNO 1
/110 0501.212.372 离合器摩擦片 DISCOO h=2.5 7
/120 0501.316.591 离合器摩擦片 DISCOO DE EMBREAGEM INTERNO 7
/130 0501.316.594 调整垫片 CALÇO 1 Whatsapp: 86-18630852087
/150 --- 卡环 RETENTOR 1
--- 0730.513.684 卡环 RETENTOR h=2,10 1
--- 0730.513.685 卡环 RETENTOR h=2,25 1
--- 0730.513.686 卡环 RETENTOR h=2,40 1
--- 0730.513.687 卡环 RETENTOR h=2,55 1
--- 0730.513.688 卡环 RETENTOR h=2,70 1
--- 0730.513.698 卡环 RETENTOR h=2.85 1
--- 0730.513.689 卡环 RETENTOR h=3,00 1
--- 0730.513.690 卡环 RETENTOR h=3,15 1
--- 0730.513.691 卡环 RETENTOR h=3,30 1
--- 0730.513.692 卡环 RETENTOR h=3,45 1
--- 0730.513.693 卡环 RETENTOR h=3,60 1
--- 0730.513.694 卡环 RETENTOR h=3,75 1
--- 0730.513.695 卡环 RETENTOR h=3,90 1
--- 0730.513.696 卡环 RETENTOR h=4,05 1
--- 0730.513.697 卡环 RETENTOR h=4,20 1
160 4657.372.011 惰轮 RODA GUIA Z=23 1
170 0635.290.114 垫片 DISCO 2
190 0735.368.076 定位套 PLACA DE POSICIONAMENTO AXIAL 2
200 0501.334.358 轴向垫圈 ARRUELA 2 Whatsapp: 86-18630852087
210 0735.321.508 定位套 ROLAMENTO DE AGULHAS 1
220 0501.316.378 防松垫片 RETENTOR 1
230 0735.300.548 圆锥滚子轴承 ROLAMENTO 1
240 0735.300.548 圆锥滚子轴承 ROLAMENTO 1
250 0734.401.267 密封环 ANEL 2

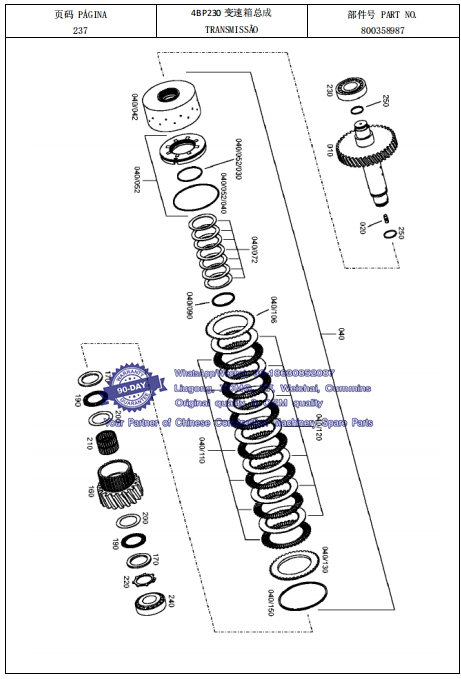

103 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

010 4657.373.018 齿轮轴 EIXO 1
020 0636.607.039 双头螺柱 PRISIONEIRO 1
040 4657.273.006 离合器包 ACOPLAMENTO 1
/042 4657.372.020 离合器盘包 PACOTE DE DISCOO DE EMBREAGEM 1
/052 4657.275.006 柱塞 PISTÃO 1
//030 0634.313.643 O 型圈 O-RING 1 Whatsapp: 86-18630852087
//040 0634.313.719 O 型圈 O-RING 1
/072 0501.316.541 弹性板 MOLA 7
/090 0501.324.228 L 型密封圈 ANEL 1
/106 0501.212.373 离合器摩擦片 DISCO DE EMBREAGEM EXTERNO 1
/110 0501.212.372 离合器摩擦片 DISCO h=2.5 7
/120 0501.316.591 离合器摩擦片 DISCO DE EMBREAGEM INTERNO 7
/130 0501.316.594 调整垫片 CALÇO 1
/150 --- 卡环 RETENTOR 1
--- 0730.513.684 h=2,10 卡环 RETENTOR h=2,10 1
--- 0730.513.685 h=2,25 卡环 RETENTOR h=2,25 1
--- 0730.513.686 h=2,40 卡环 RETENTOR h=2,40 1
--- 0730.513.687 h=2,55 卡环 RETENTOR h=2,55 1
--- 0730.513.688 h=2,70 卡环 RETENTOR h=2,70 1
--- 0730.513.698 h=2.85 卡环 RETENTOR h=2.85 1
--- 0730.513.689 h=3,00 卡环 RETENTOR h=3,00 1
--- 0730.513.690 h=3,15 卡环 RETENTOR h=3,15 1
--- 0730.513.691 h=3,30 卡环 RETENTOR h=3,30 1
--- 0730.513.692 卡环 RETENTOR h=3,45 1
--- 0730.513.693 卡环 RETENTOR h=3,60 1
--- 0730.513.694 卡环 RETENTOR h=3,75 1
--- 0730.513.695 卡环 RETENTOR h=3,90 1
--- 0730.513.696 卡环 RETENTOR h=4,05 1
--- 0730.513.697 卡环 RETENTOR h=4,20 1
160 4657.373.004 惰轮 RODA GUIA Z=55 1
170 0635.290.114 垫片 DISCO 2
190 0735.368.076 定位套 PLACA DE POSICIONAMENTO AXIAL 2
200 0501.334.358 轴向垫圈 AXIAL ARRUELA 2
210 0735.321.508 定位套 ROLAMENTO DE AGULHAS 1
220 0735.300.548 圆锥滚子轴承 ROLAMENTO 1 Whatsapp: 86-18630852087
230 0735.300.547 圆锥滚子轴承 ROLAMENTO 1
240 0734.401.267 密封环 ANEL 2

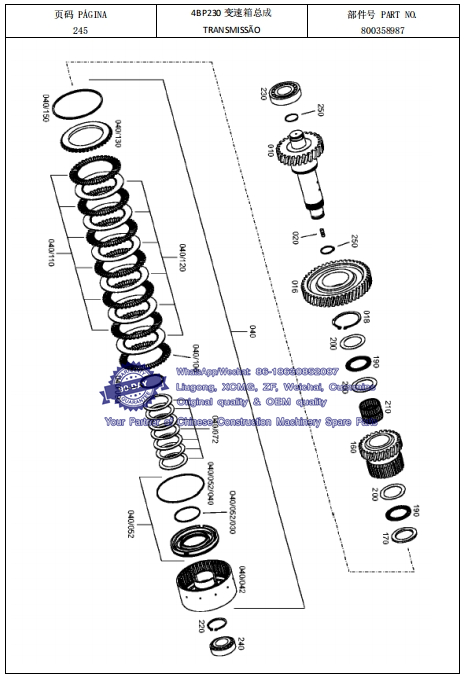

104 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

010 4657.374.044 齿轮轴 EIXO Z=30 1
016 4657.374.008 齿轮 GEAR 1
018 0630.501.050 弹性挡圈 RETENTOR 1
020 0636.607.039 双头螺柱 PRISIONEIRO 1 Whatsapp: 86-18630852087
040 4657.274.016 离合器包 EMBREAGEM 1
/042 4657.374.037 离合器盘包 PACOTE DE DISCOO DE EMBREAGEM 1
/052 4657.275.006 柱塞 PISTÃO 1
//030 0634.313.643 O 型圈 O-RING 1
//040 0634.313.719 O 型圈 O-RING 1
/072 0501.316.541 弹性板 MOLA 7
/090 0501.324.228 L 型密封圈 ANEL 1
/106 0501.212.373 离合器摩擦片 DISCO DE EMBREAGEM EXTERNO 1
/110 0501.212.372 离合器摩擦片 DISCO 6
/120 0501.316.591 离合器摩擦片 INNER EMBREAGEM DISK 6
/130 0501.316.594 调整垫片 CALÇO 1 Whatsapp: 86-18630852087
/150 --- 卡环 RETENTOR 1
--- 0730.513.684 卡环 RETENTOR h=2,10 1
--- 0730.513.685 卡环 RETENTOR h=2,25 1
--- 0730.513.686 卡环 RETENTOR h=2,40 1
--- 0730.513.687 卡环 RETENTOR h=2,55 1
--- 0730.513.688 卡环 RETENTOR h=2,70 1
--- 0730.513.698 卡环 RETENTOR h=2.85 1
--- 0730.513.689 卡环 RETENTOR h=3,00 1

105 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

--- 0730.513.690 卡环 RETENTOR h=3,15 1
--- 0730.513.691 卡环 RETENTOR h=3,30 1
--- 0730.513.692 卡环 RETENTOR h=3,45 1
--- 0730.513.693 卡环 RETENTOR h=3,60 1
--- 0730.513.694 卡环 RETENTOR h=3,75 1 Whatsapp: 86-18630852087
--- 0730.513.695 卡环 RETENTOR h=3,90 1
--- 0730.513.696 卡环 RETENTOR h=4,05 1
--- 0730.513.697 卡环 RETENTOR h=4,20 1
160 4657.374.007 惰轮 RODA GUIA Z=36 1
170 0635.290.114 垫片 DISCO 1
190 0735.368.076 定位套 PLACA DE POSICIONAMENTO AXIAL 2
200 0501.334.358 轴向垫圈 AXIAL ARRUELA 3 Whatsapp: 86-18630852087
210 0735.321.508 定位套 ROLAMENTO DE AGULHAS 1
220 0630.501.038 弹性挡圈 RETENTOR 1
230 0735.300.548 圆锥滚子轴承 ROLAMENTO 1
240 0735.300.550 圆锥滚子轴承 ROLAMENTO 1
250 0734.401.267 密封环 ANEL 2

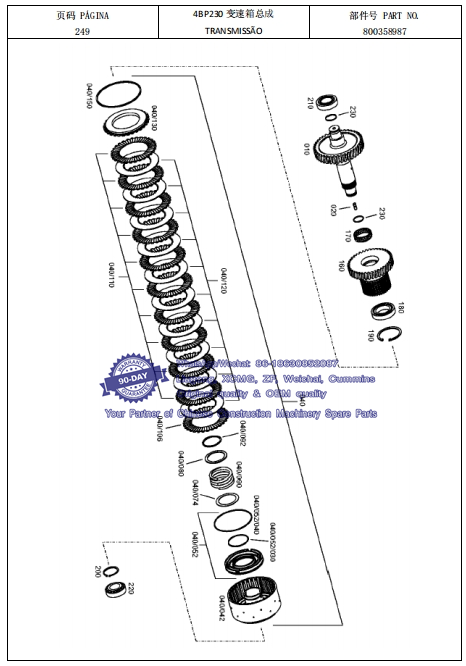

106 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

010 4657.375.020 齿轮轴 EIXO 1
020 0636.607.039 双头螺柱 PRISIONEIRO 1
040 4657.275.010 离合器包 EMBREAGEM 1
/042 4657.375.019 离合器盘包 DISCO 1
/052 4657.275.006 密封环 PISTÃO 1
//030 0634.313.643 O 型圈 O-RING 1
//040 0634.313.719 O 型圈 O-RING 1 Whatsapp: 86-18630852087
/074 0730.110.373 垫片 ARRUELA 1
/080 0730.011.028 垫片 SUPPORTING 1
/090 0732.042.711 压缩弹簧 COMPRESSION 1
/092 0501.324.228 L 型密封圈 ANEL 1
/106 0501.212.371 摩擦片 ANEL 1 Whatsapp: 86-18630852087
/110 0501.212.370 摩擦片 DISCO 10
/120 0501.316.592 摩擦片 DISCO 10
/130 4657.371.045 调整垫片 CALÇO Z=34 1
/150 --- 卡环 RETENTOR 1
--- 0730.513.701 卡环 RETENTOR h=2,1 1
--- 0730.513.702 卡环 RETENTOR h=2,25 1
--- 0730.513.703 卡环 RETENTOR h=2,4 1
--- 0730.513.704 卡环 RETENTOR h=2,55 1
--- 0730.513.705 卡环 RETENTOR h=2,7 1
--- 0730.513.706 卡环 RETENTOR h=2,85 1
--- 0730.513.707 卡环 RETENTOR h=3,0 1

107 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

--- 0730.513.708 卡环 RETENTOR h=3,15 1
--- 0730.513.709 卡环 RETENTOR h=3,30 1
--- 0730.513.710 卡环 RETENTOR h=3,45 1
--- 0730.513.711 卡环 RETENTOR h=3,60 1
--- 0730.513.712 卡环 RETENTOR h=3,75 1
--- 0730.513.713 卡环 RETENTOR h=3,90 1 Whatsapp: 86-18630852087
--- 0730.513.714 卡环 RETENTOR h=4,05 1
--- 0730.513.715 卡环 RETENTOR h=4,20 1
160 4657.375.003 惰轮 RODA GUIA Z=52 1
170 0735.321.408 定位套 ROLAMENTO DE AGULHAS 1
180 0735.301.814 轴承 ROLAMENTO 1
190 0630.502.042 弹性挡圈 RETENTOR 1
200 0630.501.038 弹性挡圈 RETENTOR 1 Whatsapp: 86-18630852087
210 0735.300.550 圆锥滚子轴承 ROLAMENTO 1
220 0735.300.550 圆锥滚子轴承 ROLAMENTO 1
230 0734.401.267 密封环 ANEL 2

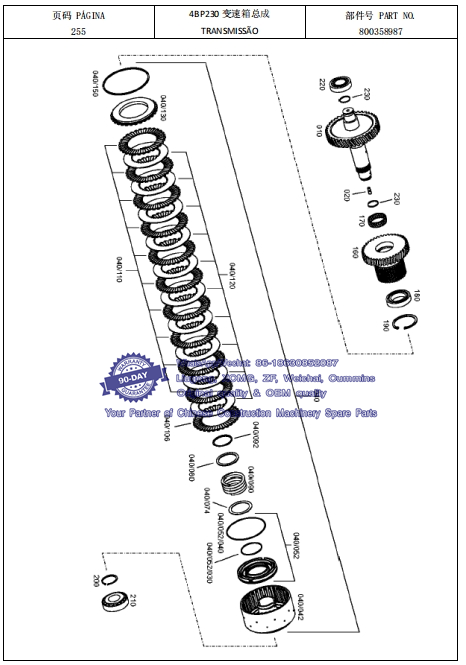

108 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

010 4657.376.010 齿轮轴 EIXO 1
020 0636.607.039 双头螺柱 PRISIONEIRO 1
040 4657.275.010 离合器包 EMBREAGEM 1
/042 4657.375.019 离合器盘包 PACOTE DE DISCOO DE EMBREAGEM 1
/052 4657.275.006 柱塞 PISTÃO 1
//030 0634.313.643 O 型圈 O-RING 1
//040 0634.313.719 O 型圈 O-RING 1
/074 0730.110.373 垫片 ARRUELA 1
/080 0730.011.028 垫片 ARRUELA 1 Whatsapp: 86-18630852087
/090 0732.042.711 压缩弹簧 MOLA 1
/092 0501.324.228 L 型密封圈 ANEL 1
/106 0501.212.371 摩擦片 DISCO 1
/110 0501.212.370 摩擦片 DISCO 10
/120 0501.316.592 离合器摩擦片 DISCO INTERNO DA EMBREAGEM 10
/130 4657.371.045 调整垫片 CALÇO Z=34 1
/150 --- 卡环 RETENTOR 1 Whatsapp: 86-18630852087
--- 0730.513.701 卡环 RETENTOR h=2,1 1
--- 0730.513.702 卡环 RETENTOR h=2,25 1
--- 0730.513.703 卡环 RETENTOR h=2,4 1
--- 0730.513.704 卡环 RETENTOR h=2,55 1
0730.513.705 卡环 RETENTOR h=2,7 1
--- 0730.513.706 卡环 RETENTOR h=2,85 1
--- 0730.513.707 卡环 RETENTOR h=3,0 1

109 4BP230 变速箱总成TRANSMISSÃO

件号 部件号 零件名称 数量 备注
ITEM PART NO. DESCRIÇÃO Q'TY OBSERVAÇÃO

--- 0730.513.708 卡环 RETENTOR h=3,15 1
--- 0730.513.709 卡环 RETENTOR h=3,30 1
--- 0730.513.710 卡环 RETENTOR h=3,45 1 Whatsapp: 86-18630852087
--- 0730.513.711 卡环 RETENTOR h=3,60 1
--- 0730.513.712 卡环 RETENTOR h=3,75 1
--- 0730.513.713 卡环 RETENTOR h=3,90 1
--- 0730.513.714 卡环 RETENTOR h=4,05 1
--- 0730.513.715 卡环 RETENTOR h=4,20 1
160 4657.375.003 惰轮 RODA GUIA Z=52
170 0735.321.408 定位套 ROLAMENTO DE AGULHAS 1
180 0735.301.814 轴承 ROLAMENTO 1
190 0630.502.042 弹性挡圈 RETENTOR 1 Whatsapp: 86-18630852087
200 0630.501.038 弹性挡圈 RETENTOR 1
210 0735.300.548 圆锥滚子轴承 ROLAMENTO 1
220 0735.300.550 圆锥滚子轴承 ROLAMENTO 1
230 0734.401.267 密封环 ANEL 2
