Cummins 6CTA8.3-C215 SO20620 Parts Catalogue
| 组件号 | 组件名称 | 备件序号 | 备件号 | 备件名称 | 数量 | 备注 |
| OPTION NUMBER | OPTION NAME | PART NO | PART NUMBER | PART NAME | QTY | REMARKS |

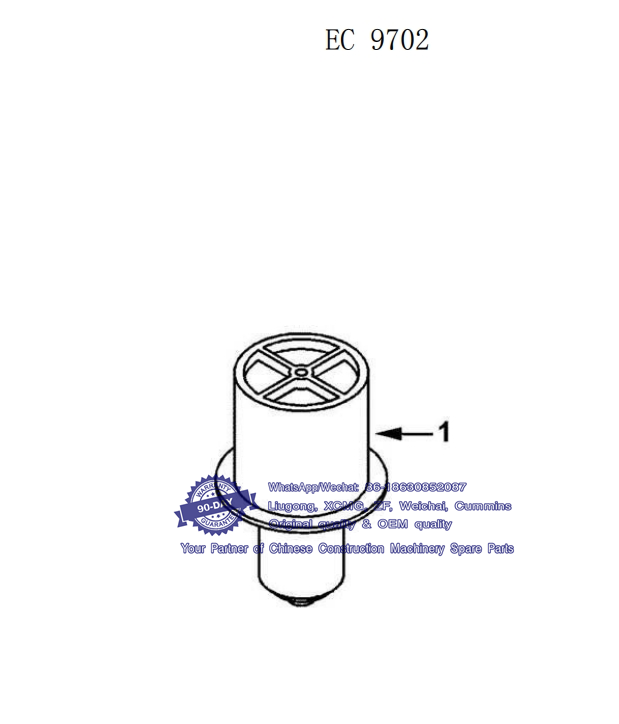

| EC 9702 | THERMOSTAT | 1 | 3940632 | THERMOSTAT | 1 | |
| 节温器组 | 节温器 | |||||

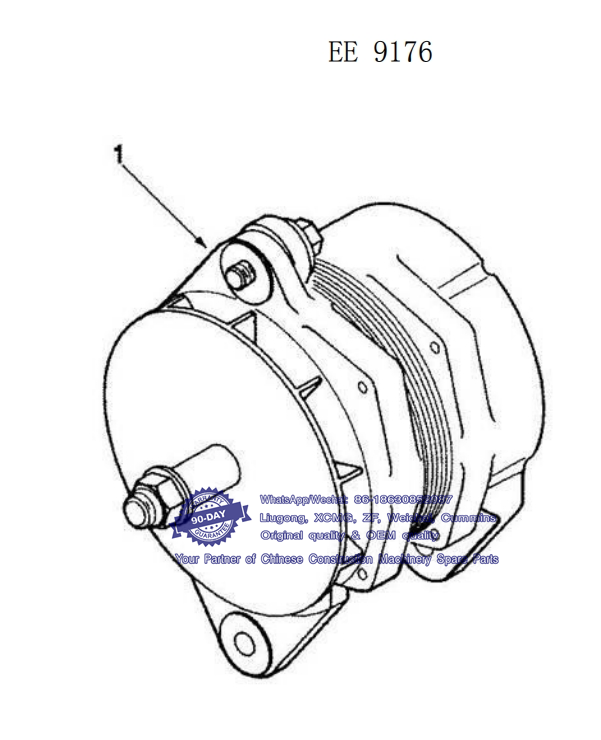

| EE 9176 | ALTERNATOR | 1 | 3935530 | ALTERNATOR | 1 | |
| 发电机组 | 发电机 | |||||

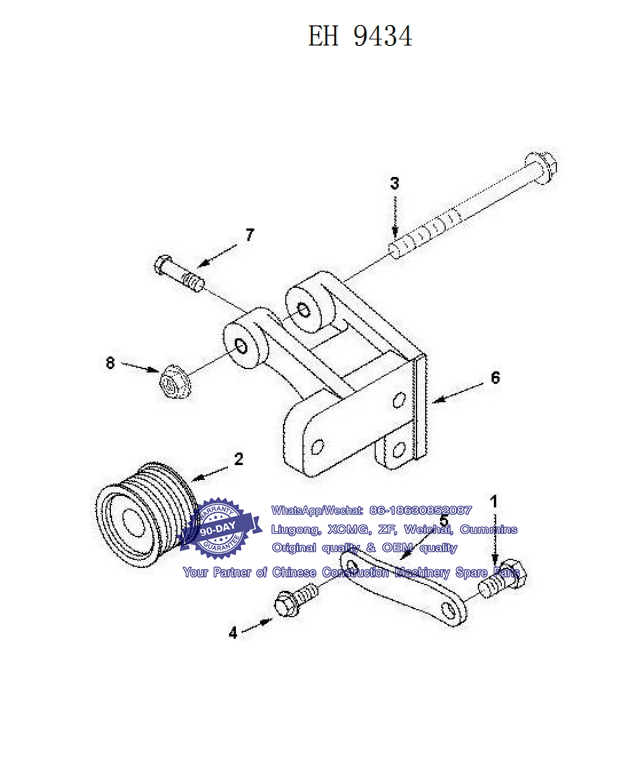

| EH 9434 | 1 | 3052061 | SCREW,HEXAGON HEAD CAP | 1 | ||
| 六角头螺栓 | ||||||
| 2 | 3965146 | PULLEY,ALTERNATOR | 1 | |||
| 发电机皮带轮 | ||||||
| 3 | A3903105 | SCREW,HEX FRANGE HEAD CA | 1 | |||
| 六角法兰面螺栓 | ||||||
| 4 | C3902460 | SCREW，HEX FLANGE HEAD | 1 | |||
| MOUNTINT,ALTERNATOR | 六角法兰面螺栓 | |||||
| 发电机安装件组 | 5 | C3944312 | BRACER，ALTERNATOR | 1 | ||
| 发电机支撑 | ||||||
| 6 | C3968112 | SUPPORT,ALTERNATOR | 1 | |||
| 发电机支架 | ||||||
| 7 | Q1841030 | SCREW,HEX FLANGE HEAD CA | 3 | |||
| 六角法兰面螺栓 | ||||||
| 8 | Q32012 | NUT,HEXAGON FLANGE | 1 | |||
| 六角法兰面螺母 | ||||||

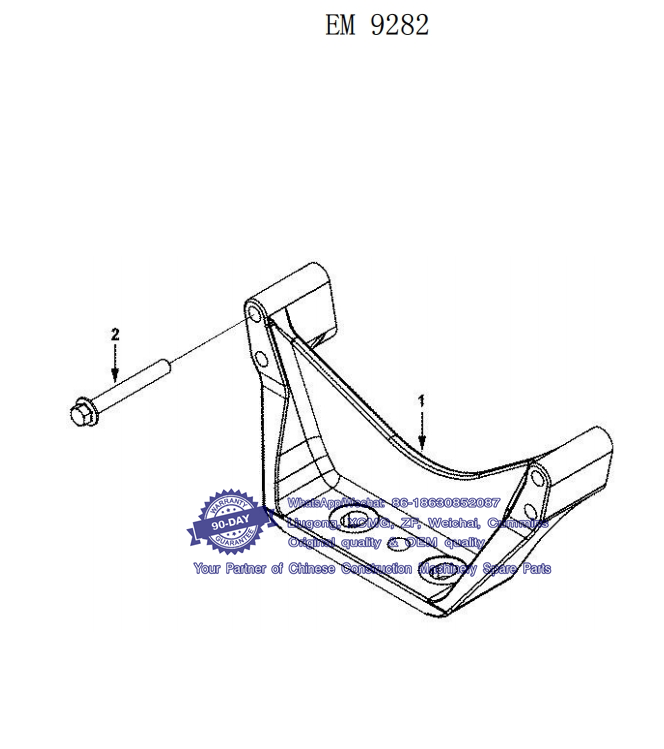

| EM 9282 | 1 | C4939783 | SUPPORT,FRONT ENGINE | 1 | ||
| SUPPORT,FRONT ENGINE | 发动机前悬置支架 | |||||
| 发动机前悬置支架组 | 2 | Q1841290-0H1 | SCREW,HEX FLANGE HEAD | 4 | ||
| 六角法兰面螺栓 | ||||||

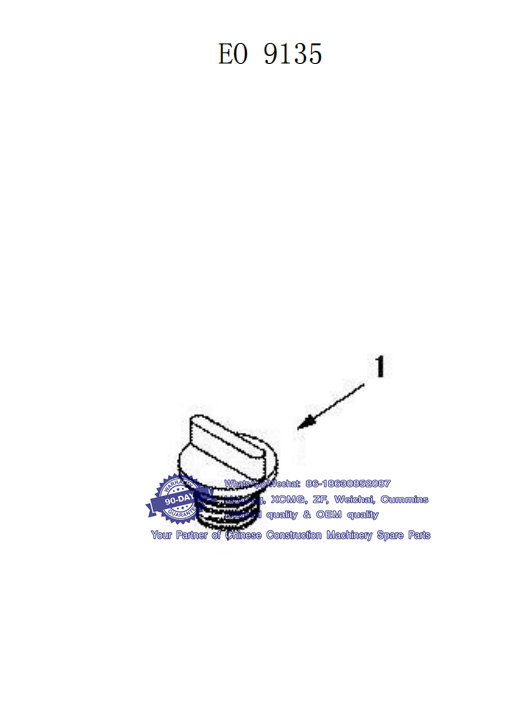

| EO 9135 | DEVICE,SIGNAL GENERATING | 1 | C3415478 | PLUG，PLASTIC | 1 | |
| 传感器组 | 塑料堵头 | |||||

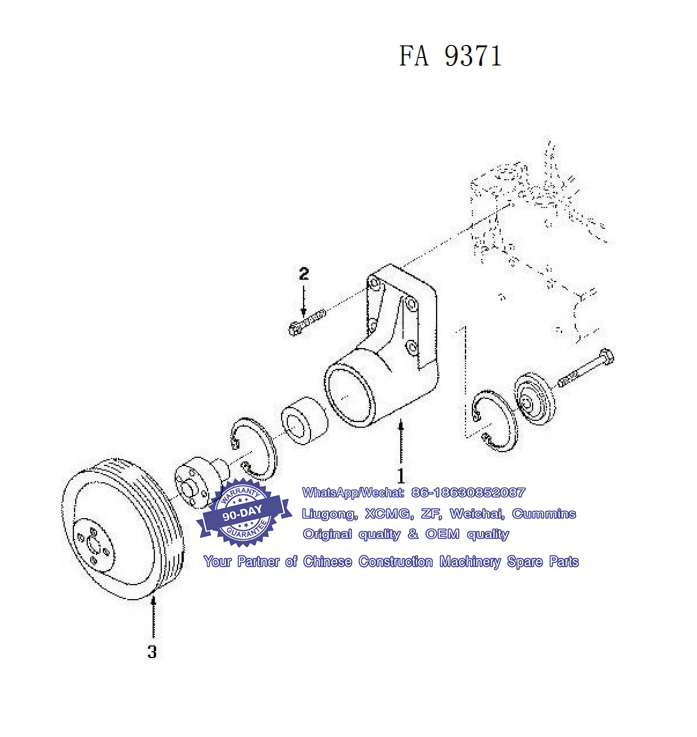

| FA 9371 | 1 | C3415603 | SUPPORT，FAN | 1 | ||
| 风扇支架 | ||||||
| DRIVE,FAN | 2 | C3900633 | SCREW,HEX FLANGE HEAD | 4 | ||
| 风扇驱动件组 | 六角法兰面螺栓 | |||||
| 3 | C3926854 | PULLEY，FAN | 1 | |||
| 风扇皮带轮 | ||||||

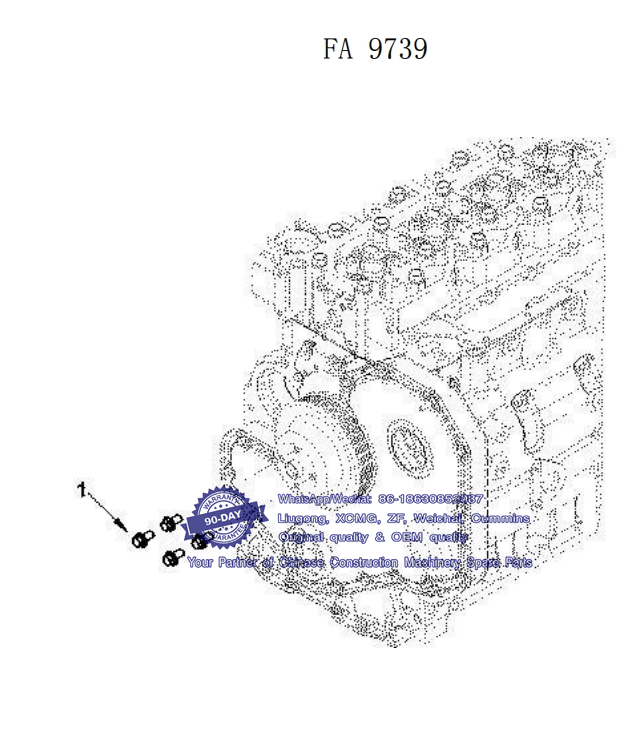

| FA 9739 | DRIVE,FAN | 1 | C3903990 | SCREW,HEX FLANGE HEAD | 4 | |
| 风扇驱动件组 | 六角法兰面螺栓 | |||||

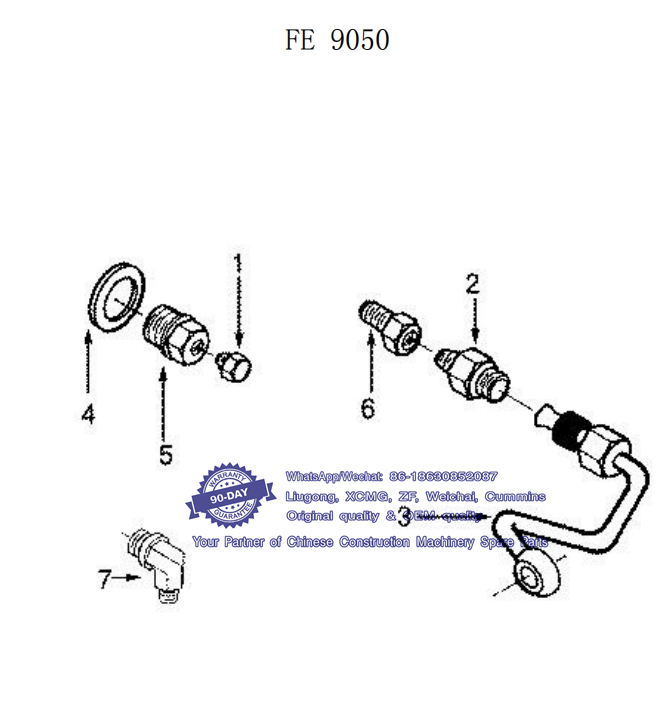

| FE 9050 | 1 | C3008465 | PLUG, PIPE | 2 | ||
| 内六角锥型螺塞 | ||||||
| 2 | C3415336 | CONNECTOR,MALE | 1 | |||
| 直通接头体 | ||||||
| 3 | C3415457 | TUBE，AIR FUEL CONTR | 1 | |||
| 增压补偿器联结管 | ||||||
| PLUMBING,AIR FUEL CONTR | 4 | C3902425 | SEALING WASHER | 2 | ||
| 增压补偿器连接管组 | 密封垫圈 | |||||
| 5 | C3908110 | PLUG,THREADED | 2 | |||
| 螺塞 | ||||||
| 6 | C3909557 | BUSHING，REDUCING PIPE | 1 | |||
| 异径管套 | ||||||
| 7 | C3975392 | ELBOW,MALE ADAPTER | 1 | |||
| 直角接头体 | ||||||
| FF 9340 | 1 | c3906694 | SEAL，RECTANGLE | 1 | ||
| 矩形密封圈 | ||||||
| 2 | C3906695 | SEAL，RECTANGLE | 1 | |||
| 矩形密封圈 | ||||||
| 3 | C3925955 | ADAPTER,FILTER HEAD | 1 | |||
| 滤清器座接头 | ||||||
| FILTER，FUEL | 4 | C3930942 | FILTER,FUEL | 1 | ||
| 燃油滤清器组 | 油水分离器 | |||||
| 5 | C3931063 | FILTER,FUEL | 1 | |||
| 燃油滤清器 | ||||||
| 6 | C3936315 | HEAD,FUEL FILLER | 1 | |||
| 燃油滤清器座总成 | ||||||
| 7 | Q351B16-3H1 | NUT,HEXAGON | 1 | |||
| 六角螺母 | ||||||

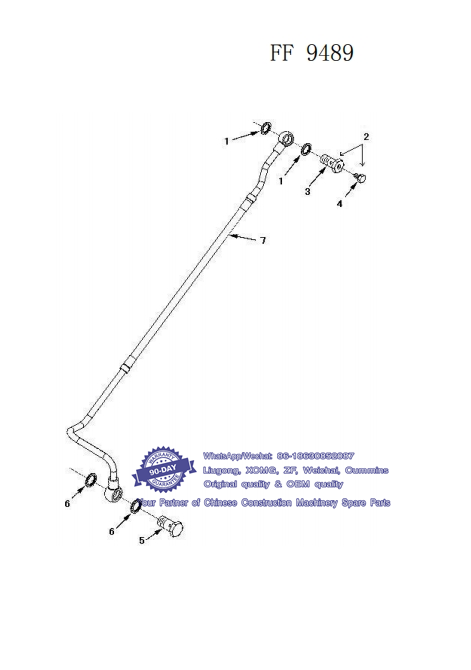

| FF 9489 | 1 | C3863988 | WASHER，SEALING | 2 | ||
| 密封垫圈 | ||||||
| 2 | C3905860 | SCREW,BANJO CONNECTOR | 1 | |||
| 琶形接头螺栓 | ||||||
| 3 | C3911446 | SCREW,BANJO CONNECTOR | 1 | |||
| 琶形接头螺栓 | ||||||
| PLUMBING，FUEL FILTER | 4 | C3939570 | Screw,Captive washer cap | 1 | ||
| 燃油滤清器连接管路组 | 带密封圈螺栓 | |||||
| 5 | C3924725 | SCREW,BANJO CONNECTOR | 1 | |||
| 琶形接头螺栓 | ||||||
| 6 | C3935171 | WASHER，SEALING | 2 | |||
| 密封垫圈 | ||||||
| 7 | C3937342 | TUBE，FUEL SUPPLY | 1 | |||
| 燃油输油管 |
