Cummins 6CTA8.3-C215 SO20620 Parts Catalogue
| 组件号 | 组件名称 | 备件序号 | 备件号 | 备件名称 | 数量 | 备注 |
| OPTION NUMBER | OPTION NAME | PART NO | PART NUMBER | PART NAME | QTY | REMARKS |

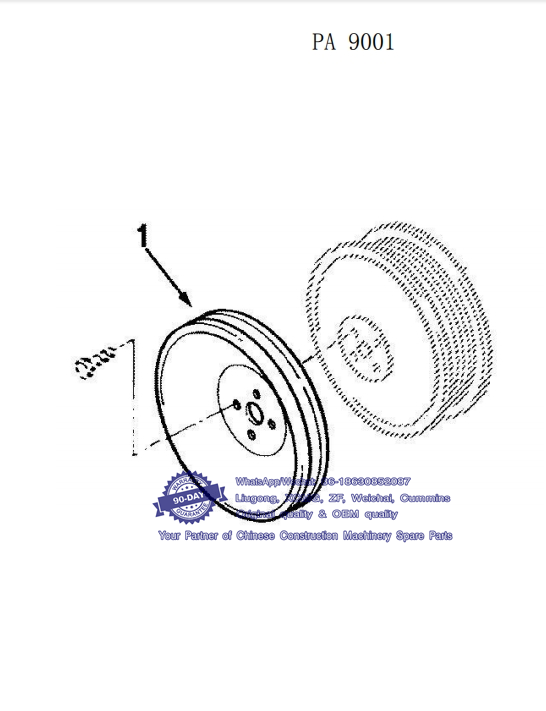

| PA 9001 | PULLEY,ACCESSORY | 1 | C3919624 | PULLEY,ACCESSORY DRIVE | 1 | |
| 附件驱动皮带轮组 | 附件驱动皮带轮 | |||||

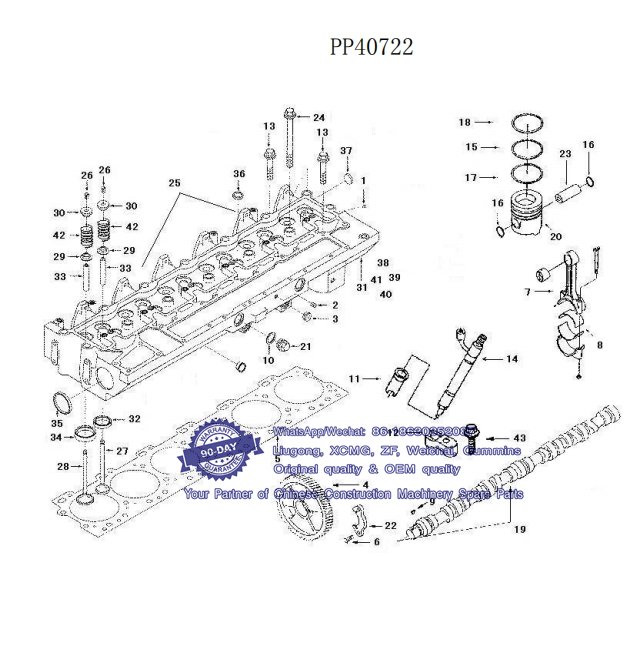

| PP40722 | 1 | C3008464 | PLUG,PIPE | 1 | ||
| 内六角锥形螺塞 | ||||||
| 2 | C3008466 | PLUG ，PIPE | 1 | |||
| 内六角锥形螺塞 | ||||||
| 3 | C3008468 | PLUG,PIPE | 1 | |||
| 内六角锥形螺塞 | ||||||
| 4 | C3415430 | GEAR，CAMSHAFT | 1 | |||
| 凸轮轴齿轮 | ||||||
| 5 | C3415501 | GASKET，CYLINDER HEAD | 1 | |||
| 气缸盖密封垫 | ||||||
| 6 | C3900227 | SCREW,HEXGON HEAD CAP | 2 | |||
| 六角头螺栓 | ||||||
| 7 | C3901383 | ROD，ENGINE CONNECTING | 6 | |||
| 连杆 | ||||||
| 8 | C3901430 | BEARING,CONNECTION ROD | 12 | |||
| 连杆瓦 | ||||||
| 9 | C3902332 | KEY,PLAIN WOODRUFF | 1 | |||
| 半圆键 | ||||||
| 10 | C3902425 | SEALING WASHER | 2 | |||
| 密封垫圈 | ||||||
| 11 | C3909886 | SEAL，INJECTOR | 6 | |||
| 喷油器密封套 | ||||||
| 12 | C3910279 | CLAMP,INJECTOR | 6 | |||
| 喷油器压板 | ||||||
| 13 | C3917729 | SCREW，HEX FLANGE HEAD | 12 | |||
| 六角法兰面螺栓 | ||||||
| 14 | C3919602 | INJECTOR,FUEL | 6 | |||
| 喷油器 | ||||||
| 15 | C3919918 | RING,COMPRESSION PISTO | 6 | |||
| 中压缩环 | ||||||
| 16 | C3920692 | RING,RETAINING | 12 | |||
| 挡圈 | ||||||
| 17 | C3921919 | RING,OIL PISTON | 6 | |||
| 油环 | ||||||
| 18 | C3922686 | RING,COMPRESSION PISTO | 6 | |||
| 上压缩环 | ||||||
| 19 | C3923478 | CAMSHAFT | 1 | |||
| 凸轮轴 | ||||||
| 20 | C3923537 | PISTON，ENGINE | 6 | |||
| 活塞 | ||||||
| 21 | C3924148 | PLUG，THREADED | 2 | |||
| 螺塞 | ||||||
| PERFORMANCE,PARTS | 22 | C3927155 | SUPPORT,CAMSHAFT THRUST | 1 | ||
| 性能件组 | 凸轮轴止推片 | |||||
| 23 | C3934046 | PIN,PISTON | 6 | |||
| 活塞销 | ||||||
| 24 | C3960043 | SCREW,HEX FLANGE HEAD | 14 | |||
| 六角法兰面螺栓 | ||||||
| 25 | C3991152 | HEAD，CYLINDER | 1 | |||
| 气缸盖总成 | ||||||
| 26 | 3901177 | COLLET,VALVE | 24 | |||
| 气阀锁块 | ||||||
| 27 | 3921444 | VALVE,EXHAUST | 6 | |||
| 排气阀 | ||||||
| 28 | 3924492 | VALVE,INTAKE | 6 | |||
| 进气阀 | ||||||
| 29 | 3927642 | SEAL，VALVE STEM | 12 | |||
| 气阀杆油封 | ||||||
| 30 | C3912976 | RETAINER，VALVE SPRING | 12 | |||
| 气阀弹簧座 | ||||||
| 31 | C3936180 | HEAD,CYLINDER | 1 | |||
| 气缸盖带碗形塞总成 | ||||||
| 32 | 3908830 | INSERT,VALVE | 6 | |||
| 气阀座 | ||||||
| 33 | 3925863 | GUIDE,VALVE STEM | 12 | |||
| 气阀导管 | ||||||
| 34 | 3928174 | INSERT,VALVE | 6 | |||
| 气阀座 | ||||||
| 35 | C3900965 | PLUG,EXPANSION | 2 | |||
| 碗形塞 | ||||||
| 36 | C3914035 | PLUG,EXPANSION | 5 | |||
| 碗形塞 | ||||||
| 37 | C3920443 | PLUG,EXPANSION | 1 | |||
| 碗形塞 | ||||||
| 38 | C3936154 | HEAD,CYLINDER | 1 | |||
| 气缸盖 | ||||||
| 39 | C3968118 | HEAD,CYLINDER | 1 | |||
| 气缸盖(半成品) | ||||||
| 40 | C3968118A | HEAD,CYLINDER | 1 | |||
| 气缸盖 | ||||||
| 41 | 3936152 | HEAD，CYLINDER | 1 | |||
| 气缸盖 | ||||||
| 42 | c3991085 | SPRING，VALVE | 12 | |||
| 进气阀弹簧 | ||||||
| 43 | Q1840880 | SCREW,HEX FLANGE HEAD | 6 | |||
| 六角法兰面螺栓 | ||||||

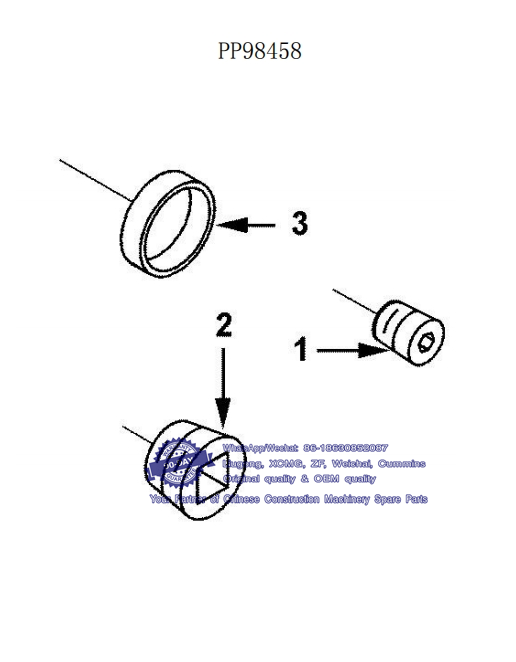

| PP98458 | 1 | C3008464 | PLUG,PIPE | 1 | ||
| 内六角锥形螺塞 | ||||||
| PLUMBING,CYHEAD COOLANT | 2 | C3008468 | PLUG,PIPE | 1 | ||
| 缸盖冷却管路组 | 内六角锥形螺塞 | |||||
| 3 | C3912900 | PLUG ,EXPANSION | 1 | |||
| 碗形塞 | ||||||

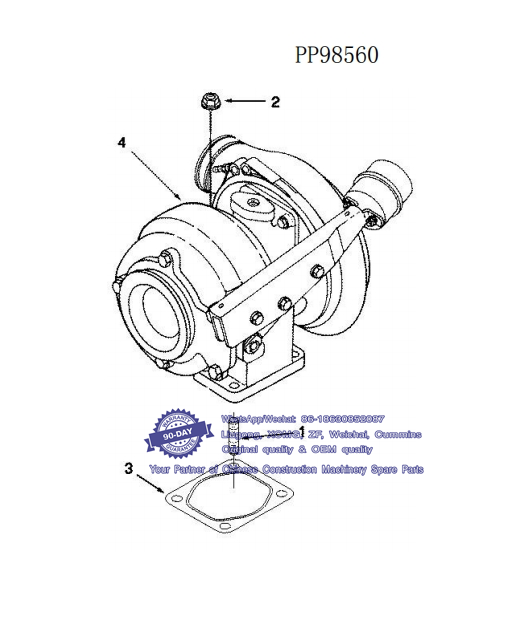

| PP98560 | 1 | C3818823 | STUD | 4 | ||
| 双头螺栓 | ||||||
| 2 | C3818824 | NUT,HEXAGON FLANGE | 4 | |||
| TURBOCHARGER | 六角法兰面螺母 | |||||
| 增压器组 | 3 | C3911941 | GASKET,TURBOCHARGER | 1 | ||
| 增压器密封垫 | ||||||
| 4 | C4029184 | TURBOCHARGER | 1 | |||
| 增压器 | ||||||

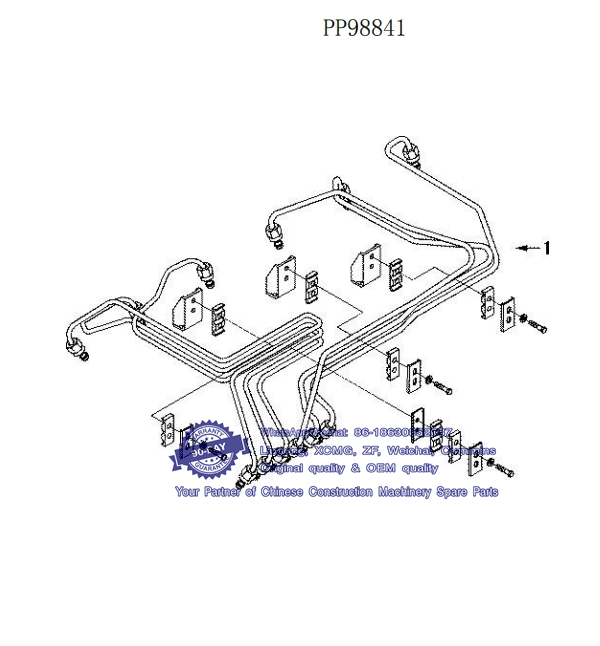

| PP98841 | PLUMBING,INJECTOR | 1 | C3973458 | TUBE,INJECTOR | 1 | |
| 喷油器连接件组 | 高压油管 | |||||

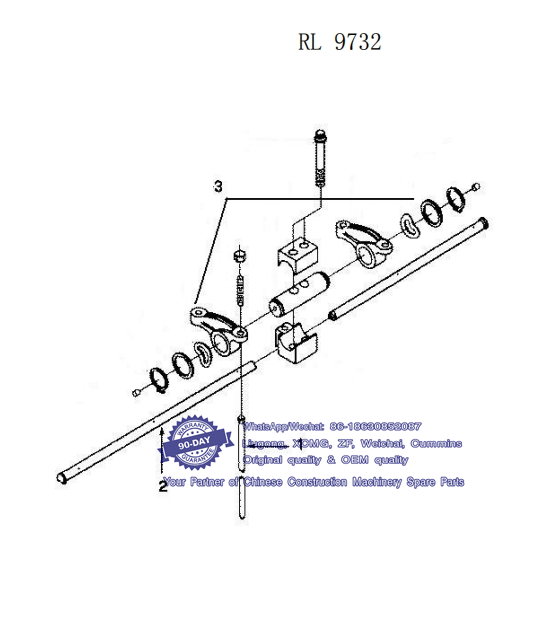

| RL 9732 | 1 | C3905194 | ROD，PUSH | 12 | ||
| 推杆 | ||||||
| LEVER，ROCKER | 2 | C3919677 | MANIFOLD，OIL | 1 | ||
| 摇臂组 | 输油歧管 | |||||
| 3 | C3934921 | LEVER,ROCKER | 6 | |||
| 摇臂总成 | ||||||

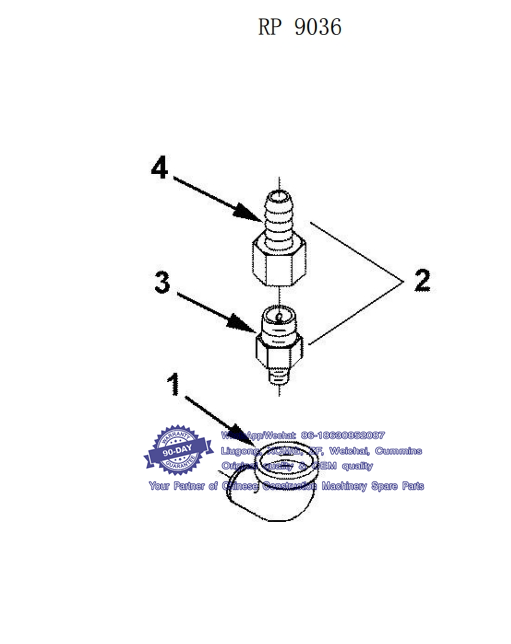

| RP 9036 | 1 | C3629097 | ELBOW,MALE APAPTER | 1 | ||
| 弯管接头体 | ||||||
| 2 | C3974262 | VALVE,CHECK | 1 | |||
| VENT，ENGINE COOLANT | 检查阀 | |||||
| 发动机冷却液出气管组 | 3 | C3911901 | VALVE,CHECK | 1 | ||
| 检查阀 | ||||||
| 4 | C3911925 | COUPLING，PLAIN HOSE | 1 | |||
| 直软管接头 | ||||||

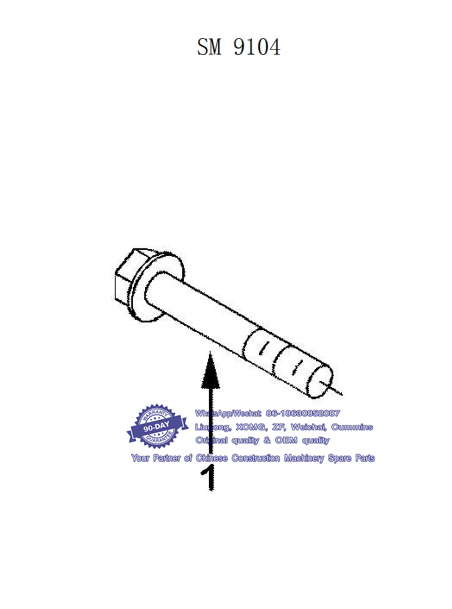

| SM 9104 | MOUNTING,STARTING MOTOR | 1 | C3908321 | SCREW，TWELVE POINT HE | 3 | |
| 起动机安装件组 | 十二角头螺栓 | |||||

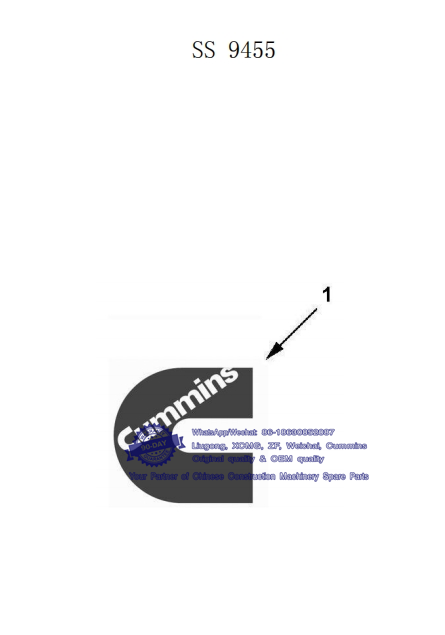

| SS 9455 | PAINT | 1 | C3911314 | DATAPLATE | 1 | |
| 油漆组 | 标示牌 | |||||

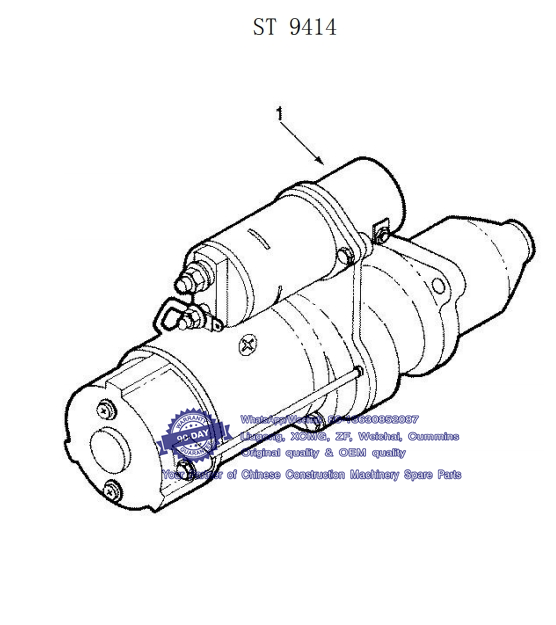

| ST 9414 | MOTOR,STARTING | 1 | C3976618 | MOTOR,STARTING | 1 | |
| 起动机组 | 起动机 | |||||

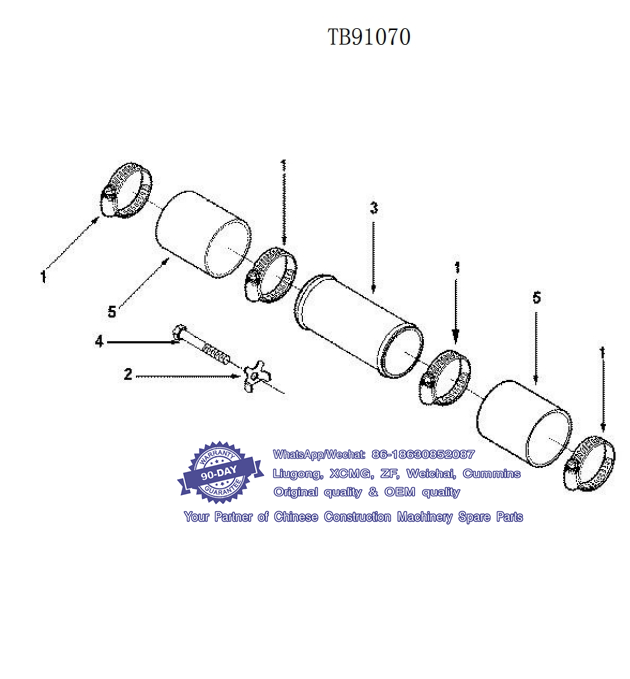

| TB91070 | 1 | C3415544 | CLAMP,T BOLT | 4 | ||
| T形螺栓卡箍 | ||||||
| 2 | C3914708 | LOCKPLATE | 12 | |||
| 防松片 | ||||||
| ARRANGEMENT,TURBOCHARGER | 3 | C3914942 | TUBE，AIR | 1 | ||
| 增压器布置组 | 空气过渡管 | |||||
| 4 | C3929537 | SCREW,HEX HEAD CAP | 12 | |||
| 六角头螺栓 | ||||||
| 5 | C3970407 | HOSE,PLAIN | 2 | |||
| 直软管 | ||||||

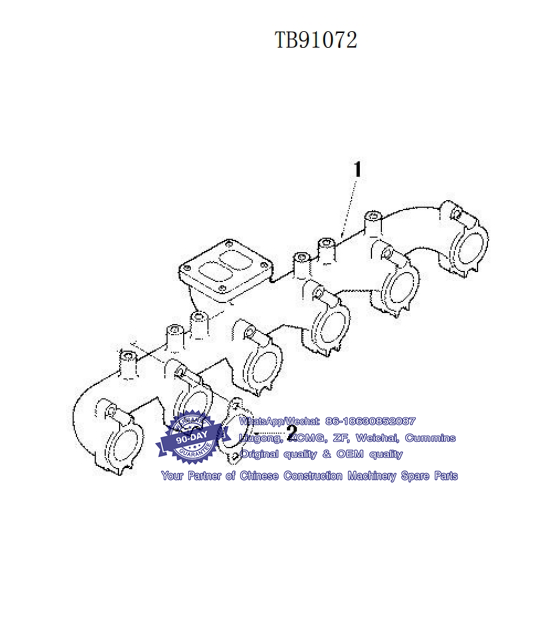

| TB91072 | 1 | 3906741 | MANIFOLD，EXHAUST | 1 | ||
| MANIFOLD,EXHAUST | 排气歧管 | |||||
| 排气歧管组 | 2 | C3929012 | GASKET,EXHAUST MANIFOL | 6 | ||
| 排气管垫 | ||||||

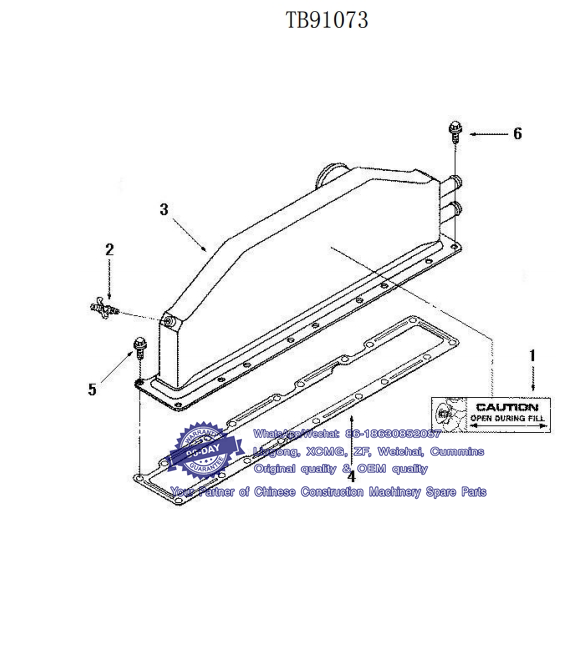

| TB91073 | 1 | C3415334 | DECAL | 1 | ||
| 放气阀标牌 | ||||||
| 2 | C3415552 | DRAINCOCK | 1 | |||
| 放气阀 | ||||||
| 3 | C3924731 | AFTERCOOLER | 1 | |||
| AFTERCOOLER | 中冷器 | |||||
| 中冷器组 | 4 | D3936993 | GASKET,INT MANIFOLD | 1 | ||
| 进气管盖密封垫 | ||||||
| 5 | Q1840825-J0 | SCRAW, HEX FLA HEAD CAP | 16 | |||
| 六角法兰面螺栓 | ||||||
| 6 | Q1840835-J0 | SCREW，HEX FLANGE HEAD | 2 | |||
| 六角法兰面螺栓 |
