Cummins 6CTA8.3-C215 SO20620 Parts Catalogue
| 组件号 | 组件名称 | 备件序号 | 备件号 | 备件名称 | 数量 | 备注 |
| OPTION NUMBER | OPTION NAME | PART NO | PART NUMBER | PART NAME | QTY | REMARKS |

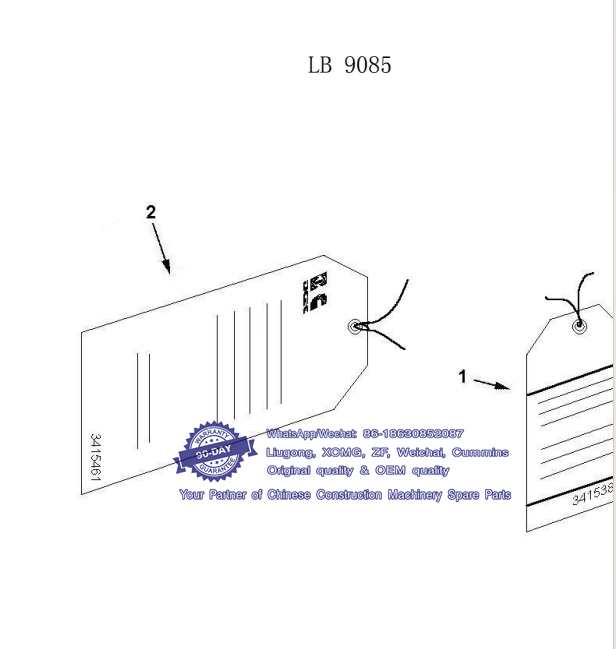

| LB 9085 | 1 | C3415381 | DECAL | 1 | ||
| LABELING，ENGINE | 标签 | |||||
| 标签组 | 2 | C3415461 | DECAL | 1 | ||
| 标签 | ||||||
| LB 9094 | LABEL | 1 | C3415403 | TAG,INSTRUCTION | 1 | |
| 标签组 | 标签-润滑油使用要求 | |||||

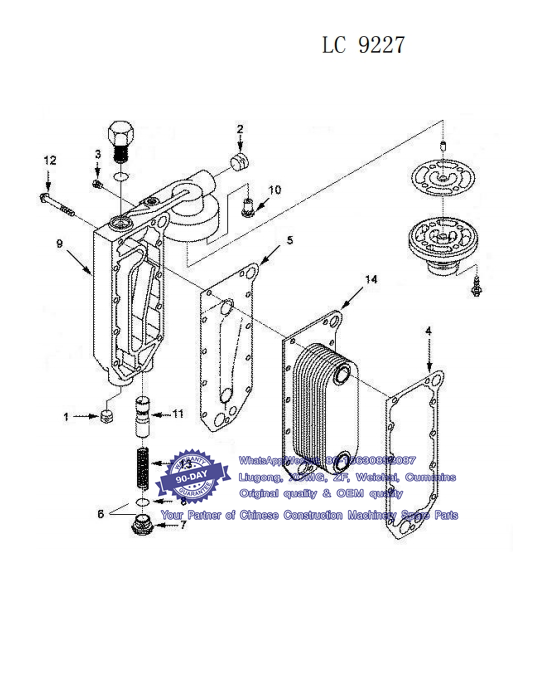

| LC 9227 | 1 | C3008468 | PLUG,PIPE | 1 | ||
| 内六角锥形螺塞 | ||||||
| 2 | C3008469 | PLUG,PIPE | 1 | |||
| 内六角锥形螺塞 | ||||||
| 3 | C3906619 | PLUG, PIPE | 2 | |||
| 六角头锥形螺塞 | ||||||
| 4 | C3918174 | GASKET,OIL COOLER CORE | 1 | |||
| 机油冷却器芯密封垫 | ||||||
| 5 | C3929011 | GASKET,LUB OIL CLR COV | 1 | |||
| 机油冷却器座密封垫 | ||||||
| 6 | C3931084 | PLUG，THREADED | 1 | |||
| 螺塞总成 | ||||||
| 7 | C3930910 | PLUG，PIPE | 1 | |||
| COOLER，ENGINE OIL | 螺塞 | |||||
| 机油冷却器组 | 8 | C3930911 | SEAL，O RING | 1 | ||
| O形密封圈 | ||||||
| 9 | C3934159 | HEAD，LUB OIL FILTER | 1 | |||
| 机油滤清器座总成 | ||||||
| 10 | C3934410 | VALVE，BYPASS | 1 | |||
| 机油旁通阀 | ||||||
| 11 | C3945967 | PLUNGER，PRS REGULATOR | 1 | |||
| 机油调压阀柱塞 | ||||||
| 12 | C3966976 | SCREW,HEX FLANGE HEAD | 11 | |||
| 六角法兰面螺栓 | ||||||
| 13 | C3970655 | SPRING,COMPRESSION | 1 | |||
| 压缩弹簧 | ||||||
| 14 | C3974815 | CORE,COOLER | 1 | |||
| 机油冷却器芯 | ||||||
| LF 9130 | FILTERMLUBRICATING OIL | 1 | 3401544 | ELEMENT,LUB OIL FILTER | 1 | |
| 机油滤清器组 | 机油滤清器 | |||||

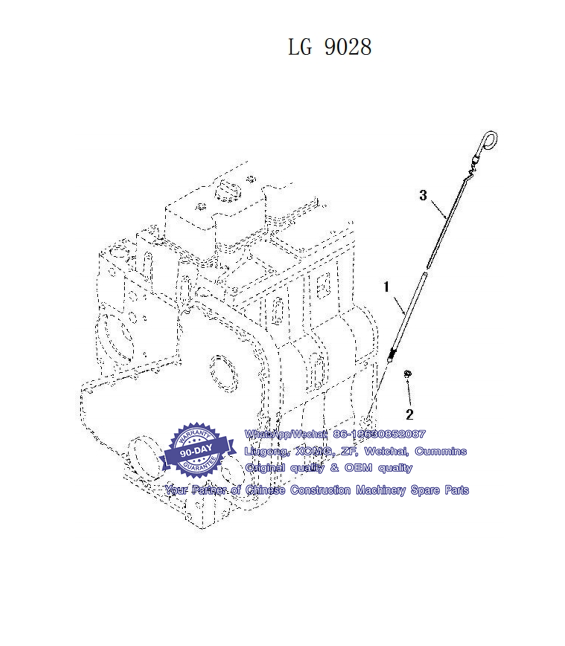

| LG 9028 | 1 | C3279104 | TUBE,OIL GAUGE | 1 | ||
| 机油标尺管 | ||||||
| GAUGE，OIL LEVER | 2 | C3900955 | PLUG,EXPANSION | 1 | ||
| 机油标尺组 | 碗形塞 | |||||
| 3 | C3908772 | DIPSTICK | 1 | |||
| 机油标尺 | ||||||

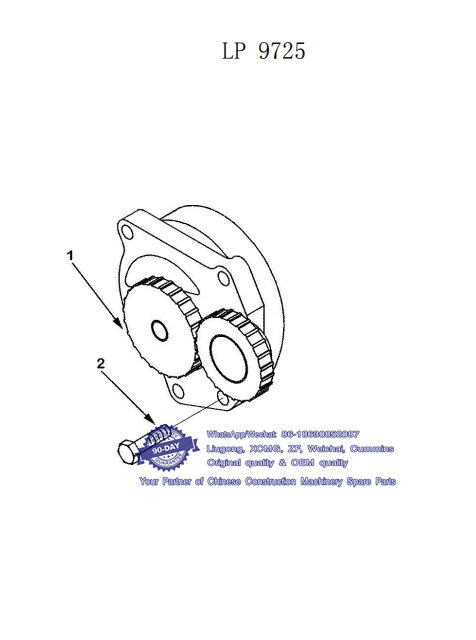

| LP 9725 | 1 | C3966840 | PUMP，LUBRICATING OIL | 1 | ||
| PUMP，LUBRICATING OIL | 机油泵 | |||||
| 机油泵组 | 2 | Q150B0830 | SCREW,HEXAGON HEAD CAP | 4 | ||
| 六角头螺栓 | ||||||
| LT 9182 | MANUAL | 1 | C3666343 | MANUAL | 1 | 随机件 |
| 操作保养手册 | 操作与维修手册（C） | |||||

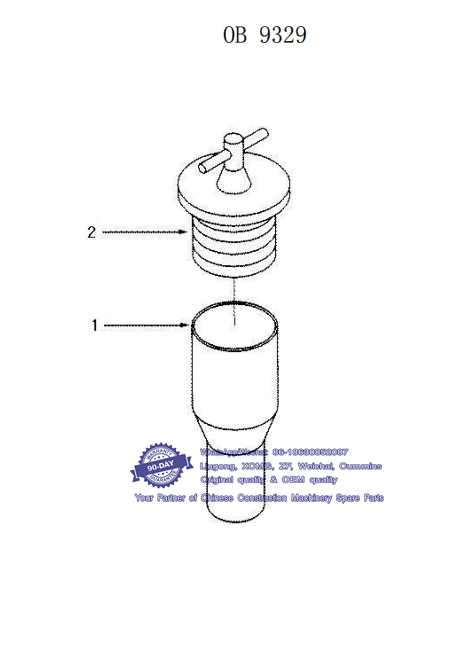

| OB 9329 | 1 | 3905408 | TUBE，OIL FILL | 1 | ||
| ARRANGEMENT,OIL FILL | 加机油管 | |||||
| 加机油装置 | 2 | C101322 | CAP,FILLER | 1 | ||
| 侧面加机油口盖 | ||||||

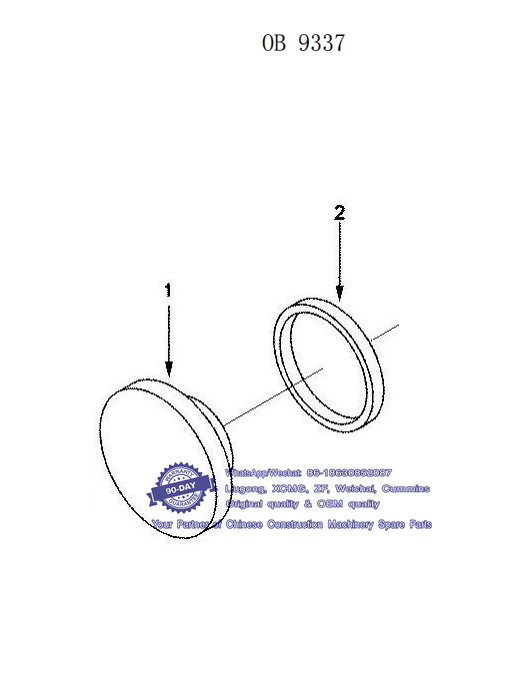

| OB 9337 | 1 | C3903463 | COVER，ACCESS HOLE | 1 | ||
| COVER,HAND HOLE | 燃油泵齿轮驱动孔盖 | |||||
| 缸体加油附件组 | 2 | C3903475 | SEAL，RECTANGLE | 1 | ||
| 矩形密封圈 | ||||||

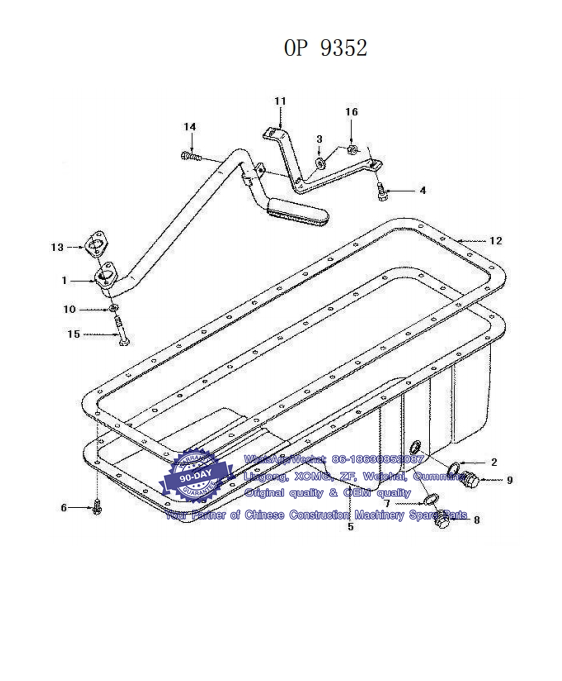

| OP 9352 | 1 | 3910787 | CONNECTION，OIL SUCTIO | 1 | ||
| 机油吸油管 | ||||||
| 2 | C3902425 | SEALING WASHER | 1 | |||
| 密封垫圈 | ||||||
| 3 | C3910960 | PLAIN WASHER | 1 | |||
| 平垫圈 | ||||||
| 4 | C3913638 | SCREW,HEX FLANGE HEAD CA | 2 | |||
| 六角法兰面螺栓 | ||||||
| 5 | C3914013 | PAN,OIL | 1 | |||
| 油底壳 | ||||||
| 6 | C3920400 | SCREW,HEX HEAD CAP | 32 | |||
| 六角法兰面螺栓 | ||||||
| 7 | C3920773 | WASHER,SEALING | 1 | |||
| 密封垫圈 | ||||||
| 8 | C3924147 | PLUG，THREADED | 1 | |||
| PAN，OIL | 油底壳螺塞 | |||||
| 油底壳组 | 9 | C3924148 | PLUG，THREADED | 1 | ||
| 螺塞 | ||||||
| 10 | C3926865 | SPACER,MOUNTING | 2 | |||
| 隔块 | ||||||
| 11 | C3927611 | BRACE,TUBE | 1 | |||
| 管路支架 | ||||||
| 12 | C3938160 | GASKET，OIL PAN | 1 | |||
| 油底壳密封垫 | ||||||
| 13 | C3939352 | GASKET,OIL SUC CONNECT | 1 | |||
| 机油吸油管密封垫 | ||||||
| 14 | Q1840620 | SCREW,HEX FLANGE HEAD | 1 | |||
| 六角法兰面螺栓 | ||||||
| 15 | Q1840630 | SCREW,HEX FLANGE HEAD | 2 | |||
| 六角法兰面螺栓 | ||||||
| 16 | Q32006 | NUT,HEXAGON FLANGE | 1 | |||
| 六角法兰面螺母 |
