Cummins 6CTA8.3-C215 SO20620 Parts Catalogue
| 组件号 | 组件名称 | 备件序号 | 备件号 | 备件名称 | 数量 | 备注 |
| OPTION NUMBER | OPTION NAME | PART NO | PART NUMBER | PART NAME | QTY | REMARKS |

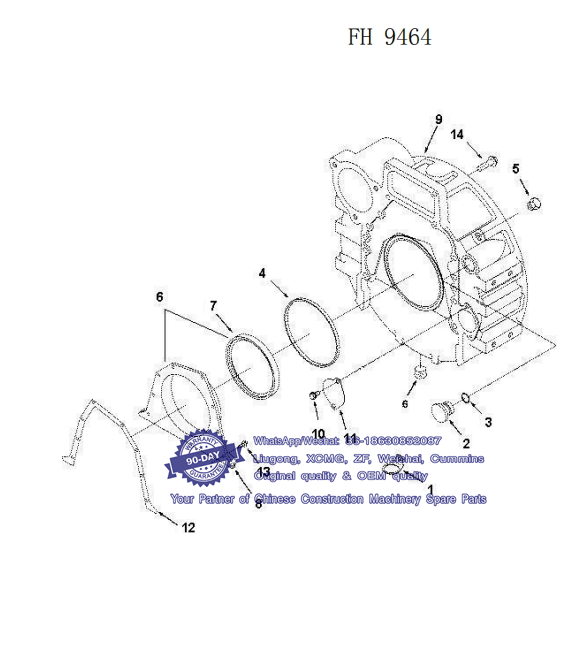

| FH 9464 | 1 | A3909670 | CLIP | 1 | ||
| 夹子 | ||||||
| 2 | A3910248 | PLUG,O RING | 1 | |||
| 塑性堵塞 | ||||||
| 3 | A3910260 | SEAL,O RING | 1 | |||
| O 形密封圈 | ||||||
| 4 | A3912473 | SEAL,RECTANGULAR RING | 1 | |||
| 矩形密封圈 | ||||||
| 5 | C3008469 | PLUG,PIPE | 1 | |||
| 内六角锥形螺塞 | ||||||
| 6 | C3357700 | COVER,REAR | 1 | |||
| 后油封座 | ||||||
| 7 | 3970548 | SEAL,OIL | 1 | |||
| HOUSING,FLYWHEEL | 曲轴后油封 | |||||
| 飞轮壳组 | 8 | C3933384 | COVER,REAR | 1 | ||
| 后油封座 | ||||||
| 9 | C3415320 | HOUSING,FLYWHEEL | 1 | |||
| 飞轮壳 | ||||||
| 10 | C3900630 | Screw,Hex flange headcap | 2 | |||
| 六角法兰面螺栓 | ||||||
| 11 | C3908095 | Plate,Cover | 1 | |||
| 盖板 | ||||||
| 12 | C3939353 | GASKET,CARRIER | 1 | |||
| 后油封座密封垫 | ||||||
| 13 | C3991306 | SCREW HEX FLANGE HEAD | 8 | |||
| 六角法兰面螺栓 | ||||||
| 14 | Q1841240-0H1 | SCREW,HEX HEAD CAP | 12 | |||
| 六角法兰面螺栓 | ||||||

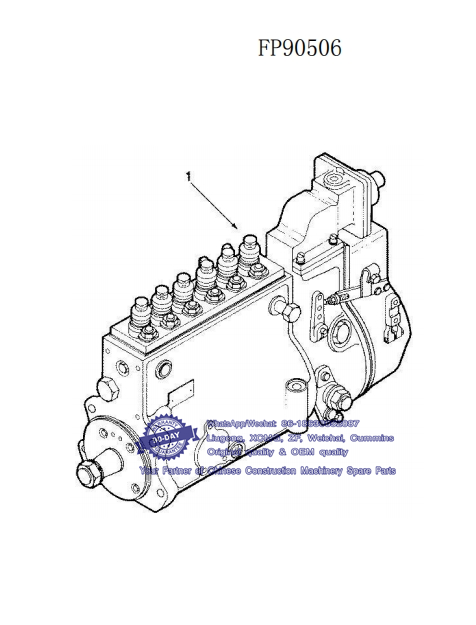

| FP90506 | PUMP,FUEL | 1 | C3973900 | PUMP,FUEL INJECTION | 1 | |
| 基本燃油泵组 | 燃油喷射泵 | |||||

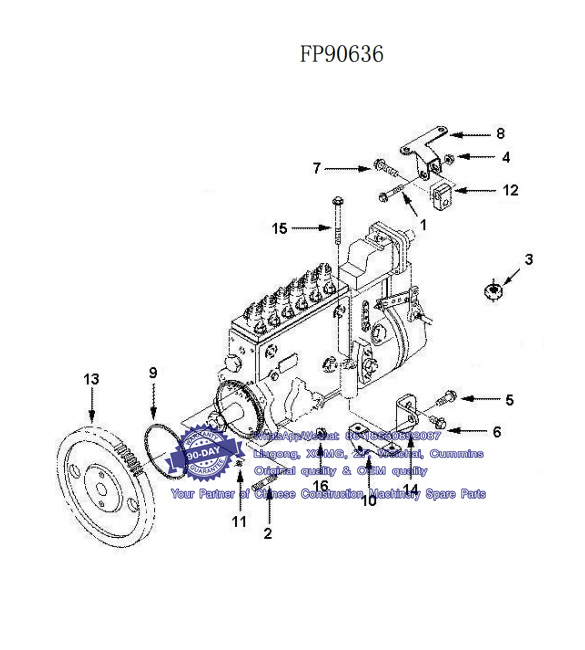

| FP90636 | 1 | C3093926 | SCREW,HEX FLANGE HEAD | 1 | ||
| 六角法兰面螺栓 | ||||||
| 2 | C3282372 | STUD | 4 | |||
| 双头螺栓 | ||||||
| 3 | C3415598 | SPACER | 2 | |||
| 垫块 | ||||||
| 4 | C3900589 | NUT，HEXAGON FLANGE | 1 | |||
| 六角法兰面螺母 | ||||||
| 5 | C3903464 | SCREW，HEX FLANGE HEAD | 1 | |||
| 六角法兰面螺栓 | ||||||
| 6 | C3903990 | SCREW,HEX FLANGE HEAD | 2 | |||
| 六角法兰面螺栓 | ||||||
| 7 | C3920622 | SCREW，HEX FLANGE HEAD | 1 | |||
| 六角法兰面螺栓 | ||||||
| 8 | C3921357 | BRACE，FUEL PUMP | 1 | |||
| MOUNTING,FUEL PUMP | 燃油泵支撑 | |||||
| 燃油泵连接件组 | 9 | C3924605 | SEAL RECTANGULAR RING | 1 | ||
| 矩形密封圈 | ||||||
| 10 | C3926273 | SUPPORT，FUEL PUMP | 1 | |||
| 燃油泵支架 | ||||||
| 11 | C3926722 | SEAL，RECTANGULAR RING | 1 | |||
| 矩形密封圈 | ||||||
| 12 | C3926781 | SUPPORT,FUEL PUMP | 1 | |||
| 燃油泵支架 | ||||||
| 13 | C3931380 | GEAR,FUEL PUMP | 1 | |||
| 燃油泵齿轮 | ||||||
| 14 | C3938091 | SUPPORT，FUEL PUMP | 1 | |||
| 燃油泵支架 | ||||||
| 15 | Q1840890-0H1 | SCREW,HEX FRANGE HEAD CA | 2 | |||
| 六角法兰面螺栓 | ||||||
| 16 | Q32010 | NUT,HEXAGON FRANGE | 4 | |||
| 六角法兰面螺母 | ||||||

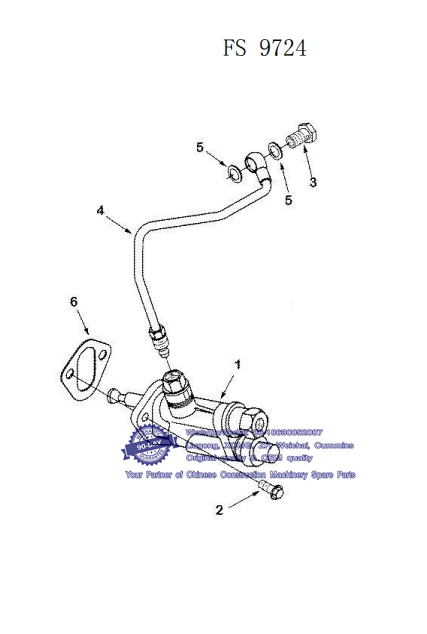

| FS 9724 | 1 | C3415661 | PUMP,FUEL TRANSFER | 1 | ||
| 输油泵 | ||||||
| 2 | C3909310 | SCREW，HEX FLANGE HEAD | 2 | |||
| 六角法兰面螺栓 | ||||||
| 3 | C3916361 | SCREW,BANJO CONNECTOR | 1 | |||
| ACCESSORIES，FUEL SUPP | 琶形接头螺栓 | |||||
| 供油系附件组 | 4 | C3918539 | TUBE，FUEL SUPPLY | 1 | ||
| 燃油输油管 | ||||||
| 5 | C3935171 | WASHER，SEALING | 2 | |||
| 密封垫圈 | ||||||
| 6 | C3939258 | GASKET，COVER PLATE | 1 | |||
| 盖板密封垫 | ||||||

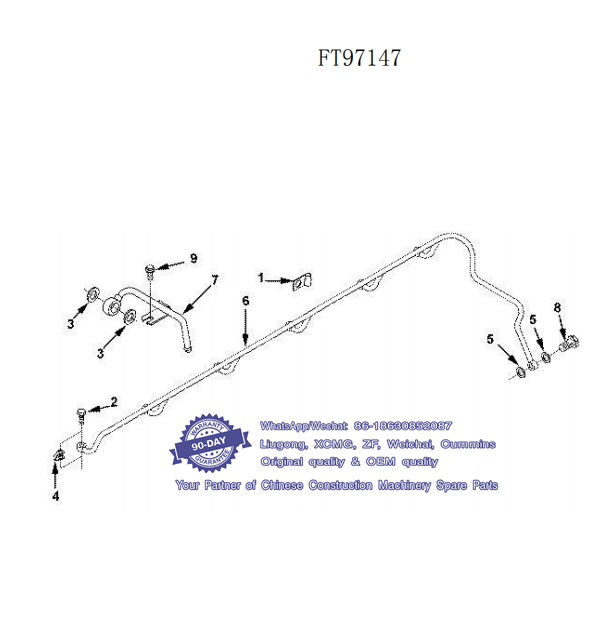

| FT97147 | 1 | C3282059 | CLIP | 1 | ||
| 夹子 | ||||||
| 2 | C3282141 | SCREW,BANJO CONNECTOR | 6 | |||
| 琶形接头螺栓 | ||||||
| 3 | C3863988 | WASHER，SEALING | 2 | |||
| 密封垫圈 | ||||||
| 4 | C3903380 | SEAL,BANJO CONNECTOR | 6 | |||
| 琶形接头垫片 | ||||||
| PLUMBING,FUEL | 5 | C3918188 | WASHER，SEALING | 2 | ||
| 燃油管路组 | 密封垫圈 | |||||
| 6 | C3920595 | MANIFOLD,FUEL | 1 | |||
| 燃油回油歧管 | ||||||
| 7 | C3921652 | TUBE，FUEL DRAIN | 1 | |||
| 燃油回油管总成 | ||||||
| 8 | C3924726 | VALVE，CHECK | 1 | |||
| 检查阀 | ||||||
| 9 | Q1840612-0H1 | SCREW，HEX FLANGE HEAD | 1 | |||
| 六角法兰面螺栓 | ||||||

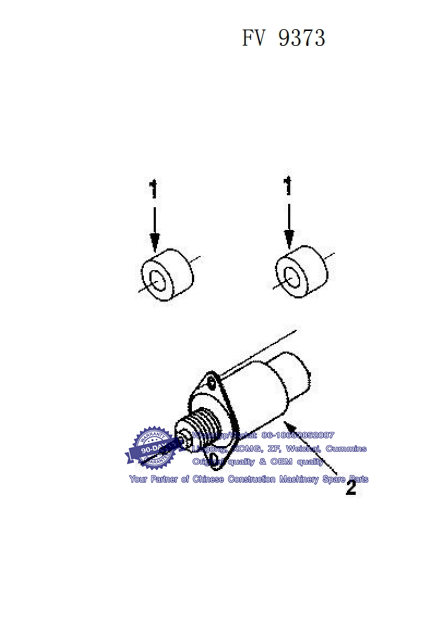

| FV 9373 | 1 | C3974945 | SPACER,MOUNTING | 2 | ||
| VALVE,FUEL SHUTOFF | 衬套 | |||||
| 断油电磁阀 | 2 | C3974947 | SOLENOID,FUEL PUMP | 1 | ||
| 断油电磁阀 | ||||||

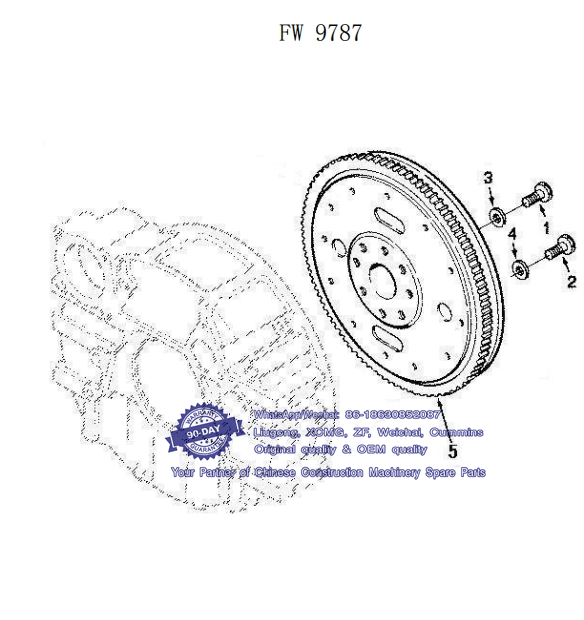

| FW 9787 | 1 | C3415323 | SCREW,HEX HEAD CAP | 4 | ||
| 飞轮螺栓 | ||||||
| 2 | C3415323 | SCREW,HEX HEAD CAP | 4 | |||
| 飞轮螺栓 | ||||||
| FLYWHEELL | 3 | C3900269 | Washer,Plain | 4 | ||
| 飞轮组 | 平垫圈 | |||||
| 4 | C3900269 | Washer,Plain | 4 | |||
| 平垫圈 | ||||||
| 5 | C3968132 | FLYWHEEL | 1 | |||
| 飞轮总成 | ||||||

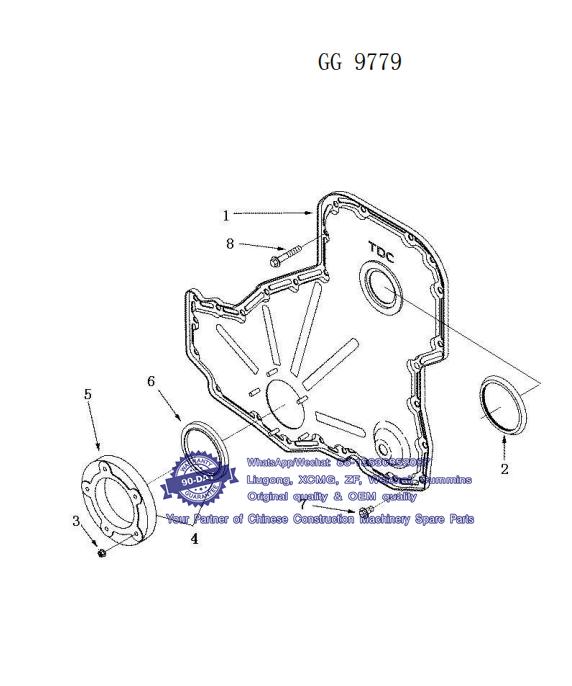

| GG 9779 | 1 | 3948044 | COVER，GEAR | 1 | ||
| 齿轮室盖 | ||||||
| 2 | C3918113 | SHIELD，DUST | 1 | |||
| 防尘罩 | ||||||
| 3 | C3938077 | NUT，LOCK | 5 | |||
| 锁紧螺母 | ||||||
| 4 | C3942535 | SEAL，OIL | 1 | |||
| COVER,FRONT GEAR | 前油封总成 | |||||
| 齿轮室盖组 | 5 | C3941786 | CARRIER，SEAL | 1 | ||
| 前油封座 | ||||||
| 6 | C3968562 | SEAL,OIL | 1 | |||
| 曲轴前油封 | ||||||
| 7 | Q1840816-0H1 | SCREW,HEX FLANGE HEAD | 12 | |||
| 六角法兰面螺栓 | ||||||
| 8 | Q1840850-0H1-J1 | SCREW,HEX HEAD CAP | 12 | |||
| 六角法兰面螺栓 | ||||||

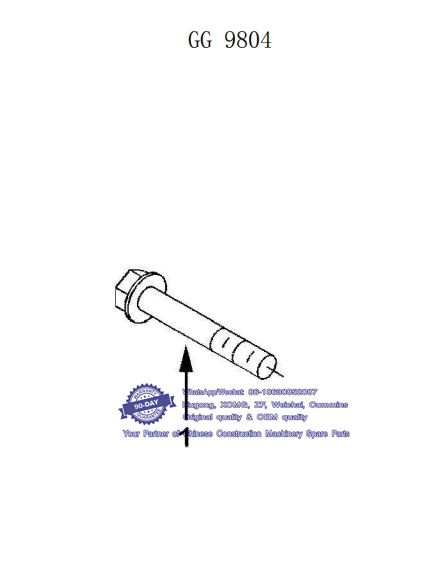

| GG 9804 | MOUNTING，GEAR COVER | 1 | Q1840816-0H1 | SCREW,HEX FLANGE HEAD | 2 | |
| 齿轮室盖安装件组 | 六角法兰面螺栓 | |||||

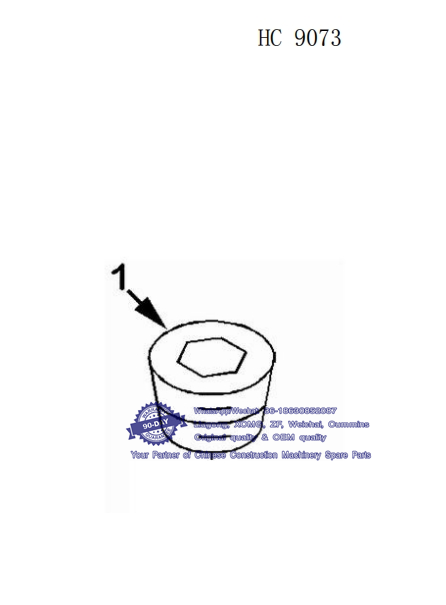

| HC 9073 | PLUMBING,CABIN HEATER | 1 | C3008469 | PLUG,PIPE | 2 | |
| 暖风安装件组 | 内六角锥形螺塞 | |||||

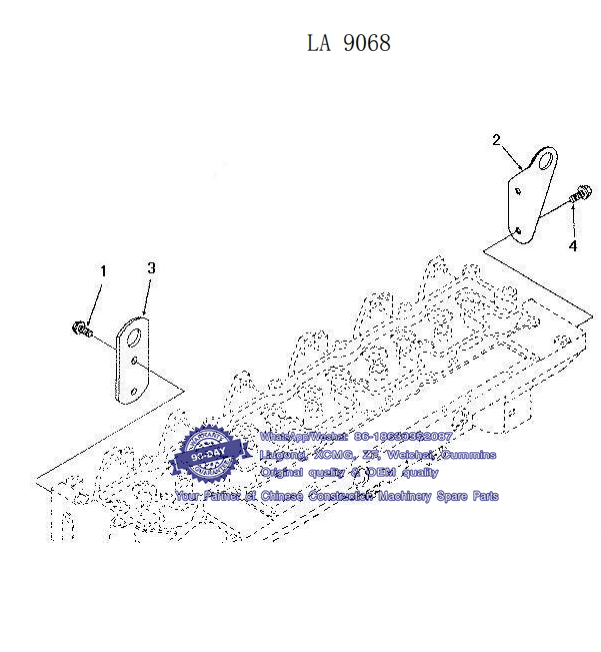

| LA 9068 | 1 | C3901249 | SCREW,HEX FLANGE HEAD | 2 | ||
| 六角法兰面螺栓 | ||||||
| 2 | C3906440 | BRACKET,LIFTING | 1 | |||
| BRACKET，LIFTING | 发动机吊耳 | |||||
| 发动机吊耳组 | 3 | C3907861 | BRACKET,LIFTING | 1 | ||
| 吊耳 | ||||||
| 4 | Q150B1225 | SCREW,HEXAGON HEAD CAP | 2 | |||
| 六角头螺栓 |
