Cummins 6CTA8.3-C215 SO20620 Parts Catalogue
| 组件号 | 组件名称 | 备件序号 | 备件号 | 备件名称 | 数量 | 备注 |
| OPTION NUMBER | OPTION NAME | PART NO | PART NUMBER | PART NAME | QTY | REMARKS |

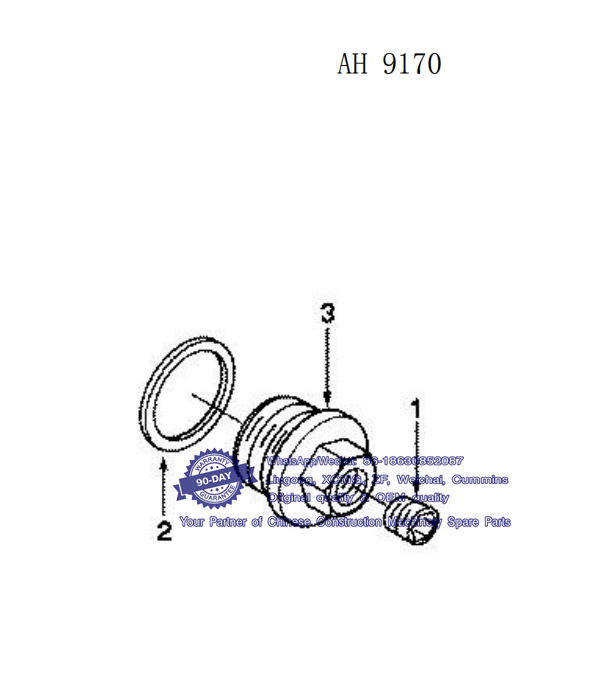

| AH 9170 | 1 | C3008465 | PLUG, PIPE | 1 | ||
| 内六角锥型螺塞 | ||||||
| AID,AIR HEATER STARTING | 2 | C3902425 | SEALING WASHER | 1 | ||
| 进气预热组 | 密封垫圈 | |||||
| 3 | C3908110 | PLUG,THREADED | 1 | |||
| 螺塞 | ||||||

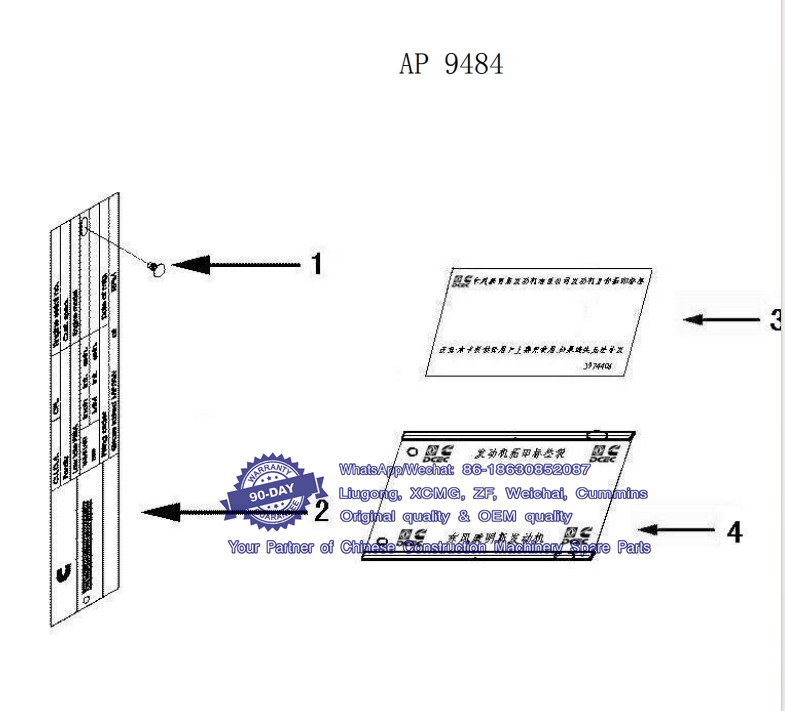

| AP 9484 | 1 | C3415394 | SCREW,DRIVE | 2 | ||
| 自攻螺钉 | ||||||
| 2 | C3415519 | DATAPLATE | 1 | |||
| DATAPLATE | 参数牌 | |||||
| 参数牌组 | 3 | C3974406 | Decal | 1 | ||
| 标签 | ||||||
| 4 | C3975443 | Decal | 1 | |||
| 标签袋 | ||||||

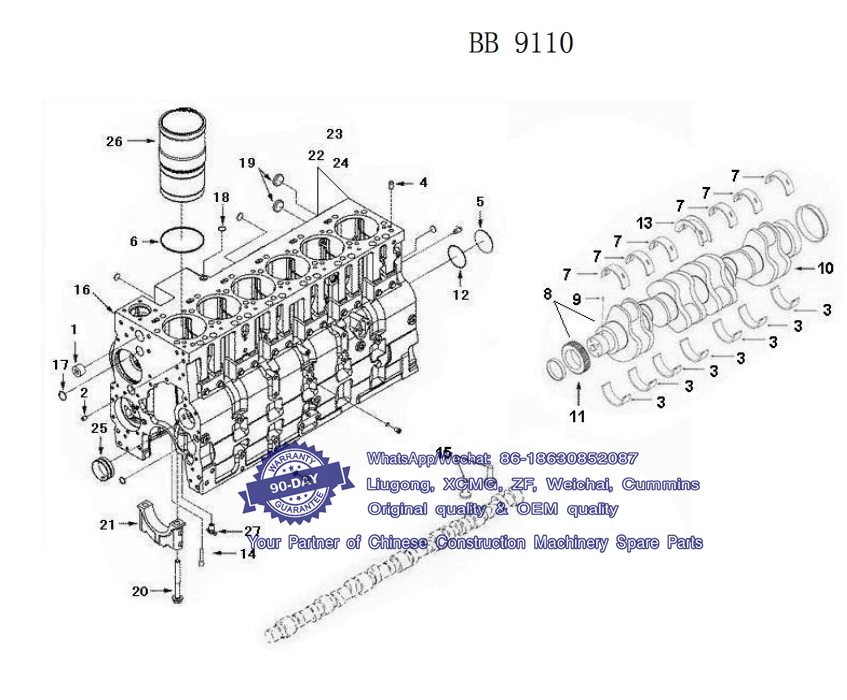

| BB 9110 | 1 | C3008470 | PLUG,PIPE | 1 | ||
| 内六角锥形螺塞 | ||||||
| 2 | C3900257 | DOWEL, PIN | 2 | |||
| 定位销 | ||||||
| 3 | C3901590 | BEARING，MAIN | 7 | |||
| 曲轴瓦下瓦 | ||||||
| 4 | C3901846 | DOWEL,PIN | 4 | |||
| 定位销 | ||||||
| 5 | C3901969 | PLUG，EXPANSION | 1 | |||
| 碗形塞 | ||||||
| 6 | C3907177 | SEAL，RECTANGULAR | 6 | |||
| 矩形密封圈 | ||||||
| 7 | C3916840 | BEARING,MAIN | 6 | |||
| 曲轴瓦上瓦 | ||||||
| 8 | C3918986 | CRANKSHAFT,ASSEMBLY TL | 1 | |||
| 曲轴总成 | ||||||
| 9 | C3904483 | DOWEL, PIN | 1 | |||
| 定位销 | ||||||
| 10 | C3917320 | CRANKSHAFT，ENGINE | 1 | |||
| 曲轴 | ||||||
| 11 | C3918776 | GEAR，CRANKSHAFT | 1 | |||
| 曲轴齿轮 | ||||||
| 12 | C3926048 | SEAL，O RING | 1 | |||
| O形密封圈 | ||||||
| 13 | C3926798 | BEARING，CRANKSHAFT | 1 | |||
| 曲轴止推瓦 | ||||||
| BLOCK,ENGINE | 14 | C3928031 | NOZZLE，PISTON COOLING | 12 | ||
| 缸体组 | 活塞冷却喷嘴 | |||||
| 15 | C3931623 | TAPPET,VALVE | 12 | |||
| 挺杆体 | ||||||
| 16 | C3939313 | BLOCK,CYLINDER | 1 | |||
| 气缸体总成 | ||||||
| 17 | C143066 | PLUG，EXPANSION | 2 | |||
| 碗形塞 | ||||||
| 18 | C3004258 | PLUG，EXPANSION | 4 | |||
| 碗形塞 | ||||||
| 19 | C3905401 | PLUG,EXPANSION | 4 | |||
| 碗形塞 | ||||||
| 20 | C3916369 | SCREW，HEX FLANGE HEAD | 14 | |||
| 六角法兰面螺栓 | ||||||
| 21 | C3936058 | CAP，MAIN BEARING | 7 | |||
| 主轴承盖 | ||||||
| 22 | C3939311 | BLOCK，CYLINDER | 1 | |||
| 气缸体总成 | ||||||
| 23 | C3939311A | BLOCK,ENGINE CYLINDER | 1 | |||
| 缸体 | ||||||
| 24 | C3938058 | CASTING，CYLINDER BLOC | 1 | |||
| 气缸体毛坯 | ||||||
| 25 | C3943199 | BUSHING | 7 | |||
| 凸轮轴衬套 | ||||||
| 26 | C3948095 | LINER，CYLINDER | 6 | |||
| 气缸套 | ||||||
| 27 | CS 923 E | DRAINCOCK | 1 | |||
| 放水阀 | ||||||

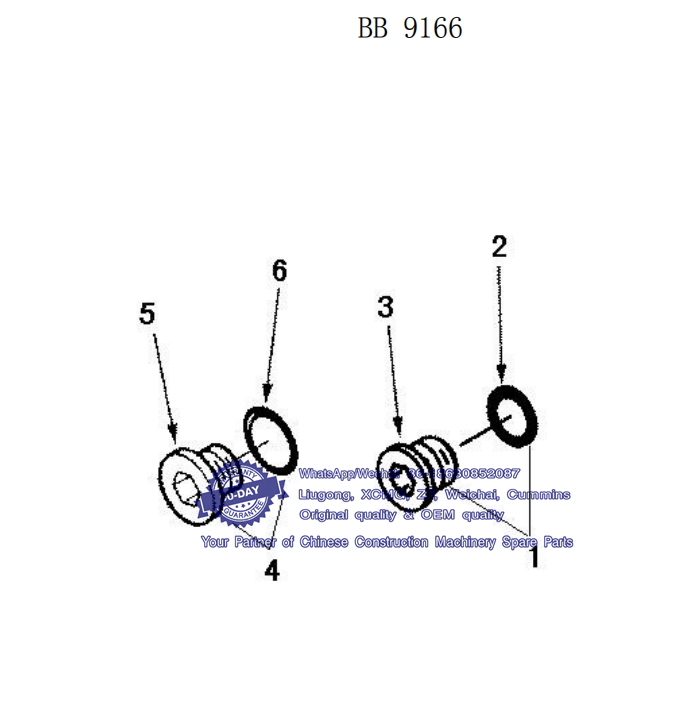

| BB 9166 | 1 | C3678921 | PLUG，THREADED | 1 | ||
| 螺塞总成 | ||||||
| 2 | C3678912 | SEAL，O RING | 1 | |||
| O形密封圈 | ||||||
| 3 | C3678922 | PLUG，THREADED | 1 | |||
| PLUMBING,CYL BLK LBC | 内六角螺塞 | |||||
| 缸体管路连接件组 | 4 | C3678923 | PLUG，THREADED | 6 | ||
| 螺塞 | ||||||
| 5 | C3678924 | PLUG，THREADED | 1 | |||
| 内六角锥形螺塞 | ||||||
| 6 | C3678925 | SEAL，O RING | 1 | |||
| O形密封圈 | ||||||

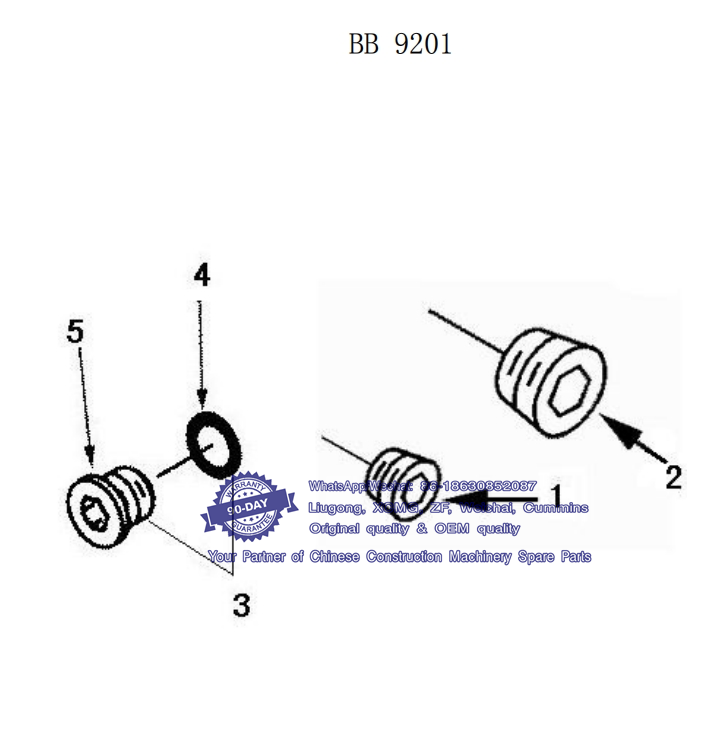

| BB 9201 | 1 | C3008468 | PLUG,PIPE | 1 | ||
| 内六角锥形螺塞 | ||||||
| 2 | C3008469 | PLUG,PIPE | 2 | |||
| 内六角锥形螺塞 | ||||||
| PLUMBING,CYL BLK COOLANT | 3 | C3678921 | PLUG，THREADED | 1 | ||
| 缸体冷却管路组 | 螺塞总成 | |||||
| 4 | C3678912 | SEAL，O RING | 1 | |||
| O形密封圈 | ||||||
| 5 | C3678922 | PLUG，THREADED | 1 | |||
| 内六角螺塞 | ||||||

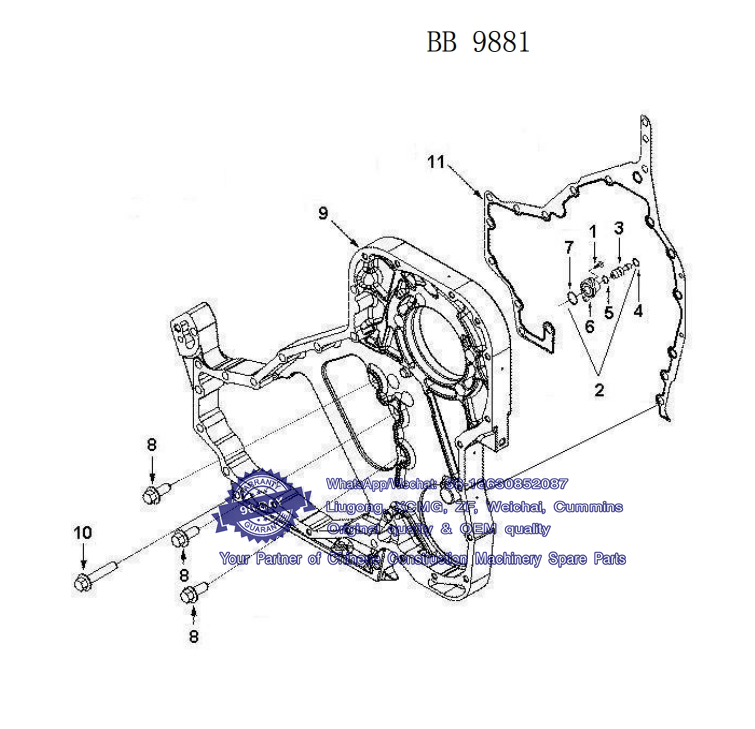

| BB 9881 | 1 | C3907998 | SCREW, ROUND HEAD CAP | 2 | ||
| 圆头螺钉 | ||||||
| 2 | C3913995 | HOUSING,TIMING PIN | 1 | |||
| 正时肖座总成 | ||||||
| 3 | C3903924 | PIN,TIMING | 1 | |||
| 正时肖 | ||||||
| 4 | C3904849 | RING,RETAINING | 1 | |||
| 挡圈 | ||||||
| 5 | C3913994 | SEAL，O RING | 1 | |||
| O形密封圈 | ||||||
| HOUSING，FRONT GEAR | 6 | C3919683 | HOUSING,TIMING PIN | 1 | ||
| 齿轮室组 | 正时肖座 | |||||
| 7 | C3915772 | SEAL，RECTANGLE | 1 | |||
| 矩形密封圈 | ||||||
| 8 | C3926846 | SCREW,HEX FLANGE HEAD CA | 3 | |||
| 六角法兰面螺栓 | ||||||
| 9 | C3938086 | HOUSING，GEAR | 1 | |||
| 齿轮室 | ||||||
| 10 | C3943885 | SCREW，HEX FLANGE HEAD | 3 | |||
| 六角法兰面螺栓 | ||||||
| 11 | C3944293 | GASKET,GEAR HOUSING | 1 | |||
| 齿轮室密封垫 | ||||||

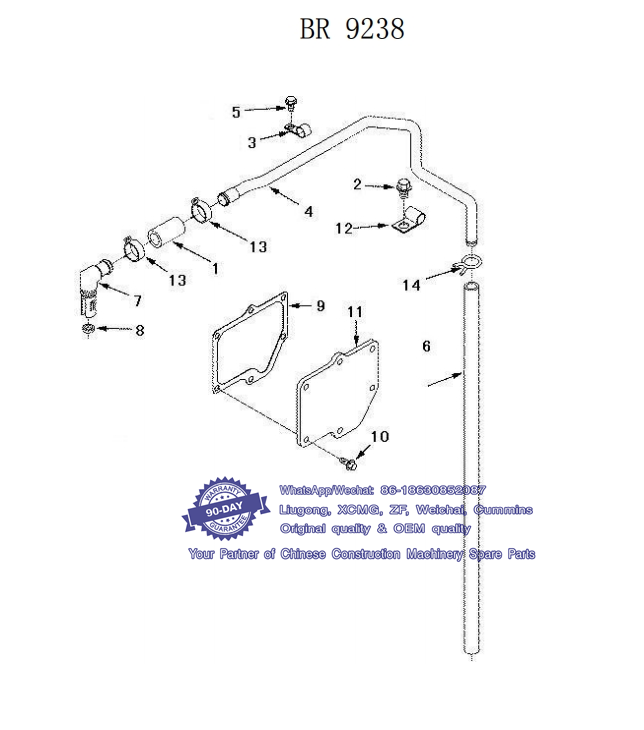

| BR 9238 | 1 | C3355406 | HOSE,PLAIN | 1 | ||
| 直软管 | ||||||
| 2 | C3901249 | SCREW,HEX FLANGE HEAD | 1 | |||
| 六角法兰面螺栓 | ||||||
| 3 | C3907741 | CLIP | 1 | |||
| 管夹 | ||||||
| 4 | C3909669 | TUBE,BREATHER | 1 | |||
| 曲轴箱通风管 | ||||||
| 5 | C3912072 | SCREW,SELF TAPPING MET | 1 | |||
| 自攻螺栓 | ||||||
| 6 | C3930827 | HOSE，PLAIN | 1 | |||
| 直软管 | ||||||
| 7 | C3935113 | CONNECTION,VENT | 1 | |||
| BREATHER,CRANKCASE | 通风管接头 | |||||
| 曲轴箱通风管组 | 8 | C3936331 | SEAL，RECTANGULAR RING | 1 | ||
| 矩形密封圈 | ||||||
| 9 | C3970886 | GASKET,BREATHER | 1 | |||
| 曲轴箱通风垫圈 | ||||||
| 10 | C3991306 | SCREW HEX FLANGE HEAD | 6 | |||
| 六角法兰面螺栓 | ||||||
| 11 | C4940384 | PLATE,COVER | 1 | |||
| 盖板 | ||||||
| 12 | C70622 | CLIP | 1 | |||
| 管夹 | ||||||
| 13 | D3937613 | CLAMP,HOSE | 2 | |||
| 管夹 | ||||||
| 14 | Q67226 | CLAMP,SPRING HOST | 1 | |||
| 钢丝型弹性环箍 | ||||||

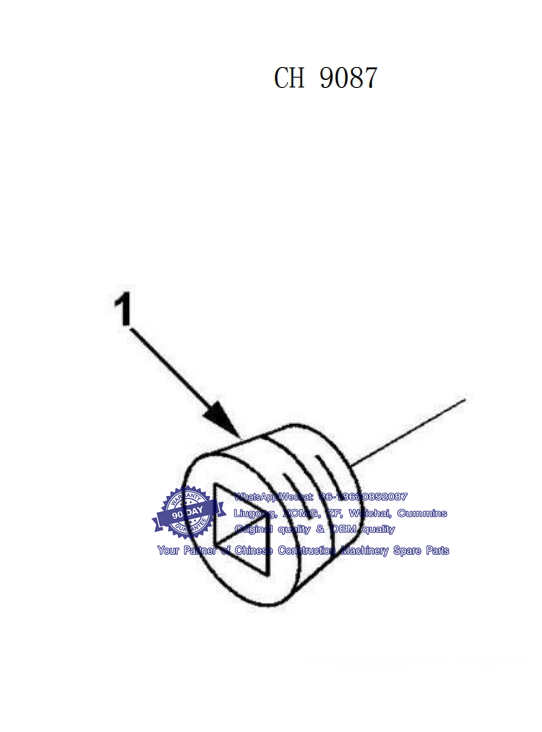

| CH 9087 | PLUMBING,COO HTR STG AID | 1 | C3008469 | PLUG,PIPE | 1 | |
| 冷却液辅助连接管组 | 内六角锥形螺塞 | |||||

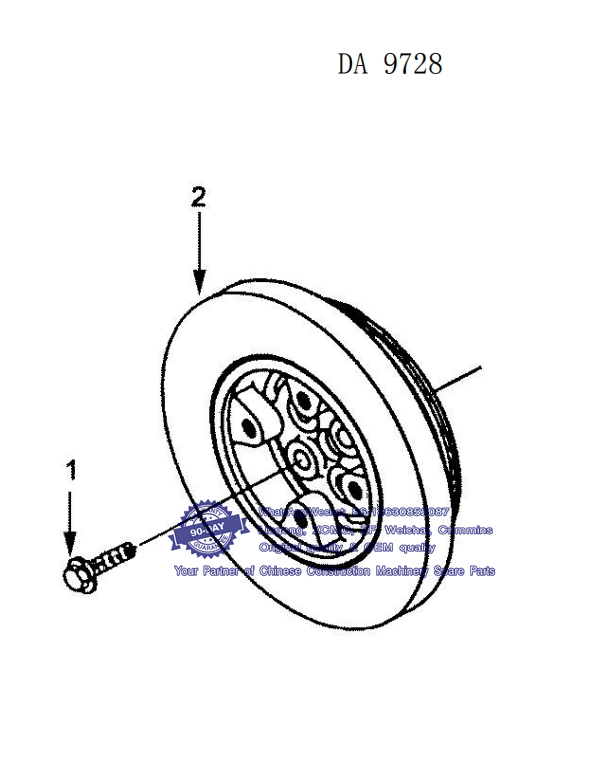

| DA 9728 | 1 | C3906733 | SCREW,HEX FLANGE HEAD | 4 | ||
| DAMPER,VIBRATION | 六角法兰面螺栓 | |||||
| 扭振减振器组 | 2 | C3925567 | DAMPER，VIBRATION | 1 | ||
| 扭振减振器 | ||||||

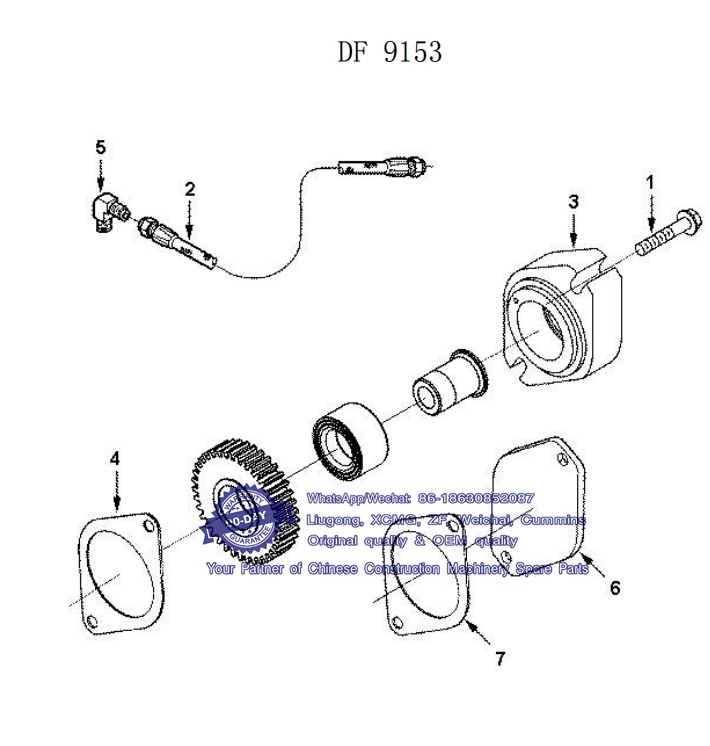

| DF 9153 | 1 | 3902115 | SCREW，HEX FLANGE HEAD | 2 | ||
| 六角法兰面螺栓 | ||||||
| 2 | 3916051 | HOSE，FLEXIBLE | 1 | |||
| 组合软管 | ||||||
| 3 | 3936231 | DRIVE,HYDRAULIC PUMP | 1 | |||
| 液力转向泵驱动 | ||||||
| MOUNTING,FRO GER TRA ACC | 4 | 3940245 | GASKET，HYDRAULIC PUMP | 1 | ||
| 前端齿轮系附件安装件组 | 液压泵密封垫 | |||||
| 5 | 3945212 | ELBOW，PLAIN UNION | 1 | |||
| 弯管接头 | ||||||
| 6 | C3914868 | Plate,Cover | 1 | |||
| 盖板 | ||||||
| 7 | C3938655 | GASKET,ACC DRIVE COVE | 1 | |||
| 附件驱动盖板密封垫 |
