Cummins 6CTA8.3-C215 SO20620 Parts Catalogue
| 组件号 | 组件名称 | 备件序号 | 备件号 | 备件名称 | 数量 | 备注 |
| OPTION NUMBER | OPTION NAME | PART NO | PART NUMBER | PART NAME | QTY | REMARKS |

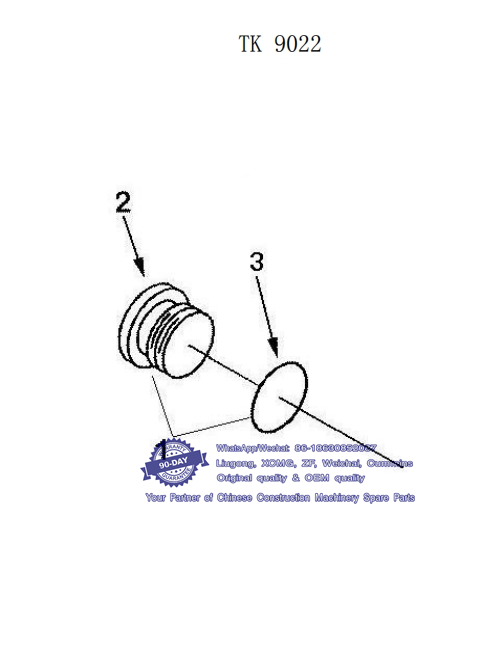

| TK 9022 | 1 | C3089238 | PLUG，THREADED | 2 | ||
| 螺塞 | ||||||
| COOLER，TOR CONVERTER | 2 | C3089239 | PLUG，THREADED | 1 | ||
| 扭矩转换器冷却组 | 内六角锥形螺塞 | |||||
| 3 | C3089240 | SEAL ，O RING | 1 | |||
| O形密封圈 | ||||||

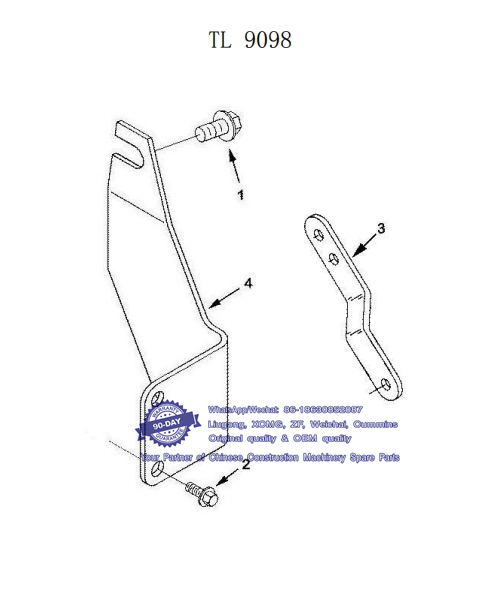

| TL 9098 | 1 | C3903990 | SCREW,HEX FLANGE HEAD | 2 | ||
| 六角法兰面螺栓 | ||||||
| 2 | C3913638 | SCREW,HEX FLANGE HEAD CA | 2 | |||
| LEVEL,THROTTLE | 六角法兰面螺栓 | |||||
| 加速操纵线调整固定板 | 3 | C3976674 | LEVEL,THROTTLE | 1 | ||
| 油门手柄 | ||||||
| 4 | C3976675 | BRACKET,THROTTLE CONTROL | 1 | |||
| 加速操纵线调整固定板 | ||||||

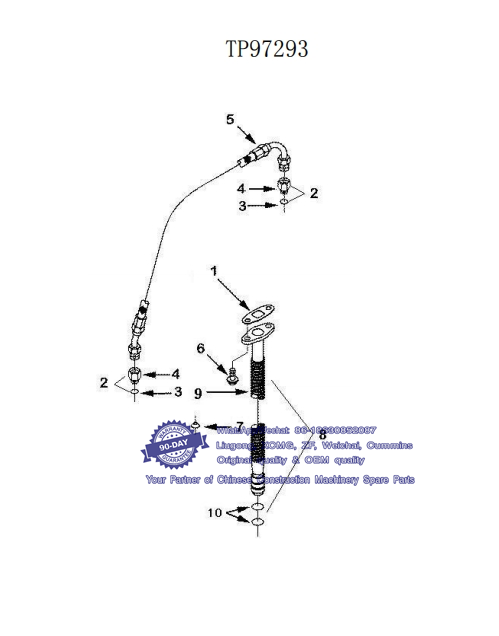

| TP97293 | 1 | C3285747 | GASKET，OIL DRAIN | 1 | ||
| 增压器回油管密封垫 | ||||||
| 2 | C3415347 | CONNECTOR,FEMALE | 2 | |||
| 内螺纹接头总成 | ||||||
| 3 | C3037236 | SEAL，O RING | 1 | |||
| O形密封圈 | ||||||
| 4 | C3415328 | CONNECTOR,FEMALE | 1 | |||
| 内螺纹接头 | ||||||
| 5 | C3415471 | HOSE，FLEXIBLE | 1 | |||
| PLUMBING,TURBOCHARGER | 组合软管 | |||||
| 增压器管路组 | 6 | C3900630 | Screw,Hex flange headcap | 2 | ||
| 六角法兰面螺栓 | ||||||
| 7 | C3924389 | WASHER，SEALING | 2 | |||
| 密封垫圈 | ||||||
| 8 | C3928629 | CONNECTION，TUR OIL | 1 | |||
| 增压器回油管 | ||||||
| 9 | C3926842 | CONNECTION，TUBE OIL | 1 | |||
| 增压器回油管 | ||||||
| 10 | C3928624 | SEAL，O RING | 2 | |||
| O形密封圈 | ||||||

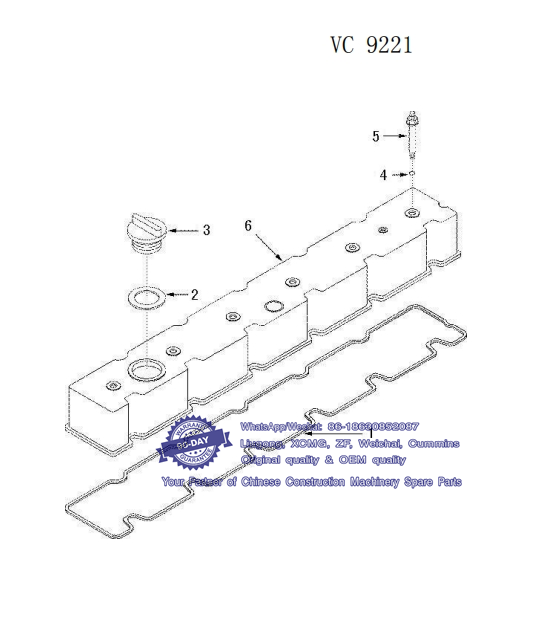

| VC 9221 | 1 | 3905449 | SEAL,ROCKER LEVER COVE | 1 | ||
| 气阀室盖密封垫 | ||||||
| 2 | C3902466 | SEAL，RECTANGLE | 1 | |||
| 矩形密封圈 | ||||||
| 3 | c3902468 | CAP，FILLER | 1 | |||
| COVER，VALVE | 加机油口盖 | |||||
| 气阀室罩组 | 4 | C3910824 | SEAL,O RING | 6 | ||
| O形密封圈 | ||||||
| 5 | C3922639 | SCREW,HEX HEAD CAP | 6 | |||
| 六角法兰面螺栓 | ||||||
| 6 | C3930903 | COVER，VALVE | 1 | |||
| 气阀室罩盖 | ||||||
| WA 9754 | 1 | C145530 | SEAL，O RING | 2 | ||
| O型密封圈 | ||||||
| 2 | C3906436 | TUBE,WATER INLET | 1 | |||
| 中冷器进水管 | ||||||
| 3 | C3906439 | PLATE，CLAMPING | 1 | |||
| 夹紧板 | ||||||
| 4 | C3908402 | TUBE,WATER OUTLET | 1 | |||
| PLUMBING，AFTERCOOLER | 中冷器出水管 | |||||
| 中冷器管路组 | 5 | C3917394 | CONNECTION,WATER | 2 | ||
| 输水连接管 | ||||||
| 6 | C3918611 | HOSE，PLAIN | 4 | |||
| 直软管 | ||||||
| 7 | D3937613 | CLAMP,HOSE | 8 | |||
| 管夹 | ||||||
| 8 | Q1840816-0H1 | SCREW,HEX FLANGE HEAD | 1 | |||
| 六角法兰面螺栓 | ||||||
| WF 9094 | 1 | 4058964 | RESISTOR,CORROTION | 1 | ||
| 防锈器 | ||||||
| 2 | C179901 | VALVE，SHUTOFF | 2 | |||
| 开关阀 | ||||||
| 3 | C179903 | COUPLING，ELBOW HOSE | 2 | |||
| 弯管接头 | ||||||
| 4 | C3008469 | PLUG,PIPE | 2 | |||
| 内六角锥形螺塞 | ||||||
| 5 | C3415608 | BUSHING，REDUCING PIPE | 2 | |||
| 异径管套 | ||||||
| 6 | C3415680 | SUPPORT,RESISTOR | 1 | |||
| RESISTOR，CORROSION | 防锈器座 | |||||
| 水滤清器组 | 7 | C3910509 | CLAMP，HOSE | 4 | ||
| 软管卡箍 | ||||||
| 8 | C3966481 | SUPPORT，FILTER | 1 | |||
| 防锈器支架 | ||||||
| 9 | C3973898 | DECAL | 1 | |||
| 水滤开关警示牌 | ||||||
| 10 | C3975596 | HOSE,PLAIN | 1 | |||
| 直软管 | ||||||
| 11 | C3975597 | HOSE,PLAIN | 1 | |||
| 直软管 | ||||||
| 12 | Q1841030 | SCREW,HEX FLANGE HEAD CA | 4 | |||
| 六角法兰面螺栓 | ||||||

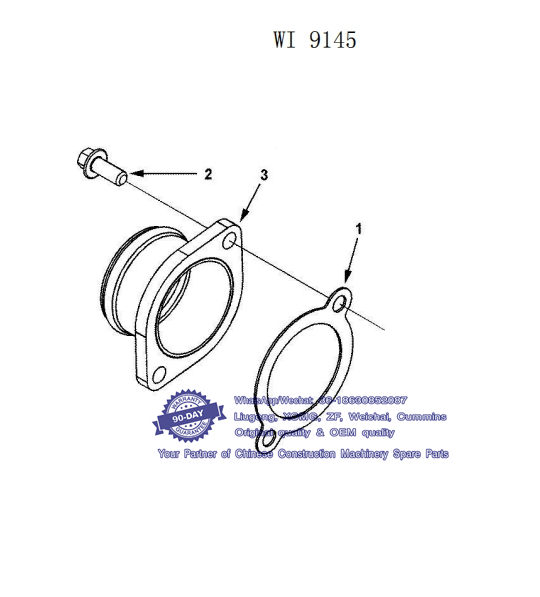

| WI 9145 | 1 | C3415658 | GASKET,CONNECTION | 1 | ||
| 密封垫 | ||||||
| CONNECTION，WATER INLE | 2 | C3900630 | Screw,Hex flange headcap | 2 | ||
| 进水连接管组 | 六角法兰面螺栓 | |||||
| 3 | C3944720 | CONNECTOR，WATER INLET | 1 | |||
| 进水连接管 | ||||||

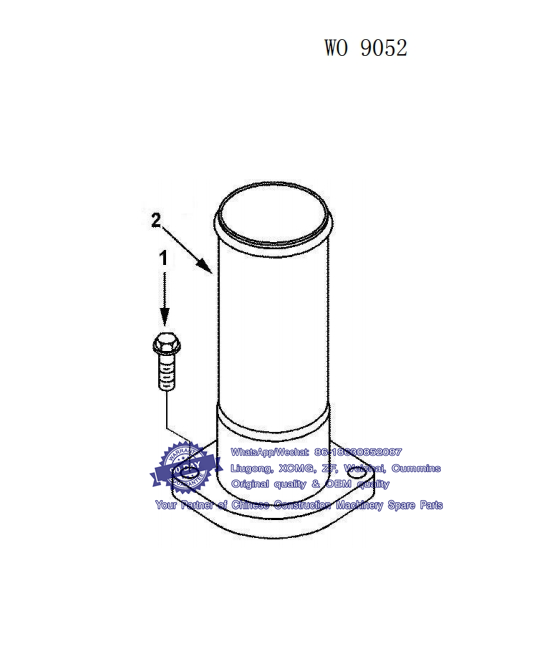

| WO 9052 | 1 | C3900631 | SCREW,HEX FLANGE HEAD | 2 | ||
| CONNECTION，WATER OUTL | 六角法兰面螺栓 | |||||
| 出水连接管组 | 2 | C3944429 | CONNECTOR，WATER OUTLE | 1 | ||
| 出水连接管 | ||||||

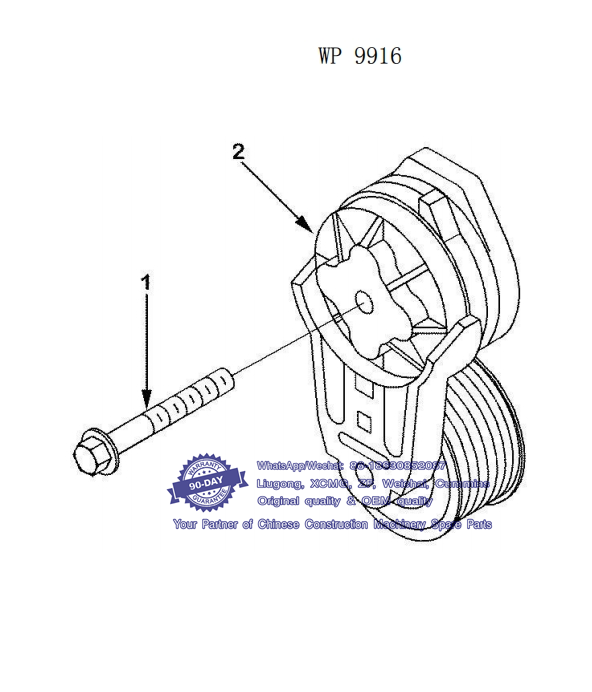

| WP 9916 | 1 | C3282433 | SCREW，HEX FLANGE HEAD | 1 | ||
| TENSIONER，BELT | 六角法兰面螺栓 | |||||
| 皮带张紧轮组 | 2 | C3936213 | TENSIONER,BELT | 1 | ||
| 皮带张紧轮 | ||||||
| WP 9918 | 1 | C3093730 | SCREW，HEX FLANGE HEAD | 3 | ||
| 六角法兰面螺栓 | ||||||
| PUMP，WATER | 2 | C3940386 | SEAL，O RING | 1 | ||
| 水泵组 | O形密封圈 | |||||
| 3 | C3966841 | PUMP,WATER | 1 | |||
| 水泵 | ||||||

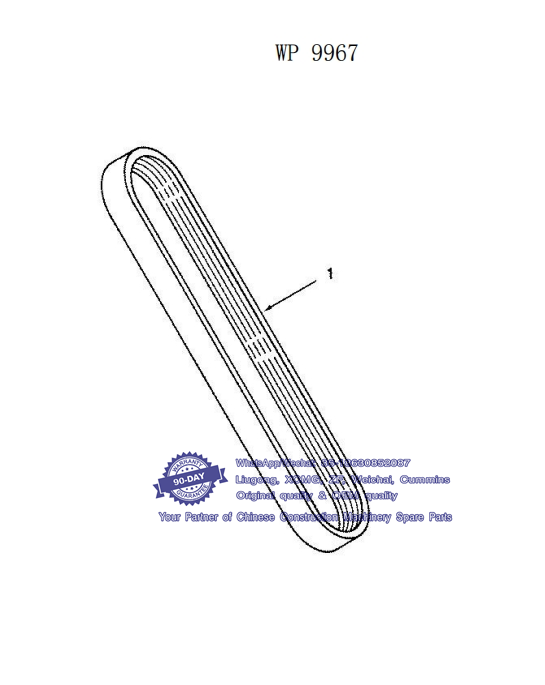

| WP 9967 | DRIVE,WATER PUMP | 1 | 3289648 | BELT,V RIBBED | 1 | |
| 水泵驱动件组 | 多楔带 | |||||

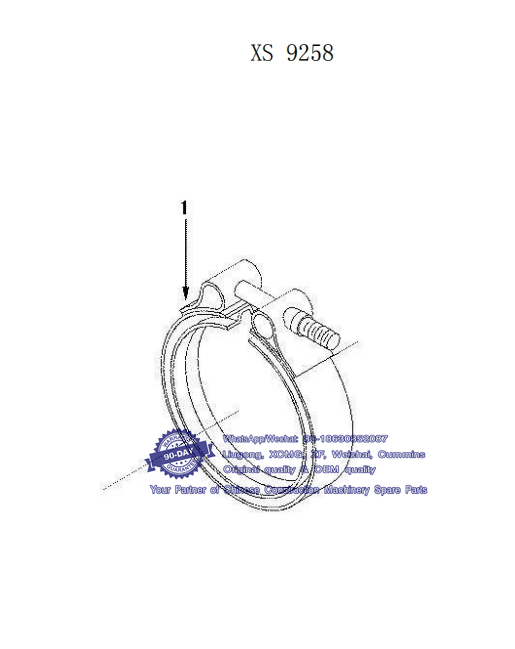

| XS 9258 | CONNECTOR，TURBOCHARGE | 1 | C3415546 | CLAMP，V BOLT | 1 | 随机件 |
| 增压器排气连接件组 | V形卡箍 |
