Spare Parts Catalog
MS-E 3050
Material number: 4472.097.005
Current date: 17.02.2022

Combinations with standardized parts

The parts list shows the components included in the combination of standardized parts

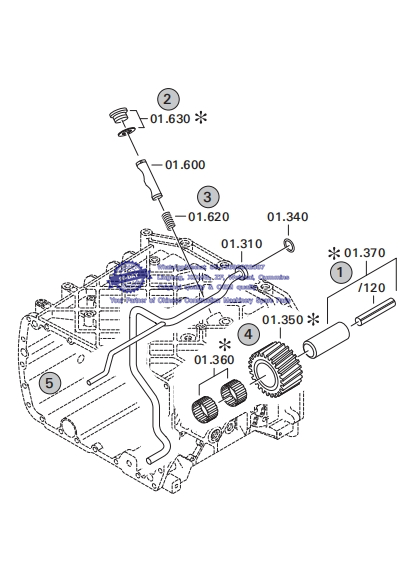

Depiction of position/item number on the figure and in the parts list

01.620  - on the figure               01 relates to the assembly in which the position is included. Due to program-related reasons, it is shown on the figure.

0620     - in the parts list

-Positions

Positions marked with an  are optional i.e. inclusion in the parts list is not mandatory. The following note is shown on the figure

Parts, dotted display

Parts with dotted display on the figure are only used for orientation of other parts

Spare Parts Catalog
MS-E 3050
Material number: 4472.097.005
Current date: 17.02.2022

Technical Cover

Material number: 4472.097.005

Pos. Information Amendment number
CUSTOMER:EDC
IDENT-NR:237-4510
APPROVAL: .............
QUESTIONNAIRE:
WITHOUT
PROJEKT-NR.:39944
VEHICLE DATA:
M 313D
MOTOR: HYDROMATIK A6VM 107
GETRIEBE: 2 HL-250
DUAL TIRES: DOUBLE
TIRES: 10.00-20
R.DYN. 0,507 M
RIM PITCH CIRCLE DIA: 335 MM
ENDGESCHWINDIGK.: 8,0 / 32,0 KM/H
PRODUCT DESCRIPTION:
MOUNTING POSITION:FRONT AXLE
UEBERSETZUNG GES:I= 18,67 Whatsapp: 86-18630852087
PLANETENTRIEB: I= 6,40 P3-189-45
BEVELGEAR SET: I=2,92 Z=35/12
BEFESTIGUNG: FEDERSPUR L=805/1035/1265
FLANSCHMASS: L=1920
BRAKE:
LAM.BR.: HYDR: 140X208
LINING: NO./8 PART
ARBEITSZYLINDER: INTEGRIERT/ D=90X50/ 180 BAR
DIFF.CARRIER:
TYPE:
SENS OF ROTATION:CLOCKWISE
RING GEAR: SPIRAL DIRECTION LEFT
POSITION OF RING GEAR: LEFT
FLANGE CONN: AD=120 *LZ=8 * D=10,1
DIFFERENTIAL:
TYPE: D=500
BEVEL SIDE GEAR SPLINE: N 35X1,25
SCHNITT: 4472 097 002(0)
EINBAU: 4472 697 005 Whatsapp: 86-18630852087
PRUEFANWEISUNG: 4472 760 021
ASSEMBLY INSTRUCTION:
LENKEINSCHLAG 35 GRAD - 1 GRAD
VORSPUR: +/- 1MM BEI 330MM MESSSCHENKELLAENGE
RADBOLZEN MIT SCHUTZHUELSE VOR FARBE SCHUETZEN
KOLBENHUB 0,7 - 1,3 MM
AUXILIARY UNIT
OIL CAPACITY:
AXLE: (APPRX). CA. 9,00L
PLANETENTRIEB/JE:CA. 2,40L
GESAMT: CA. 13,80L Whatsapp: 86-18630852087
OIL FILLING: YES
OIL SPECIFICATION: TE ML 05
BRAKE CONTROL: ATF-OIL/MOTOROIL 10 W
GESAMT-TROCKENMASSE: 539 KG
COLOUR: 5 BLACK RAL 9005
MISCELLANEOUS/REMARKS:
SWINGING AXLE SUSPENSION

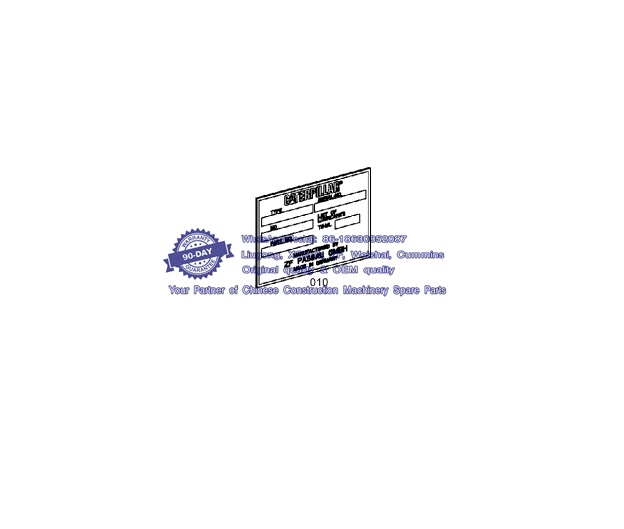

TYPE/ SERIAL NUMBER/ PART LIST NUMBER AND
OIL SPECIFICATION IN NAME PLATE Whatsapp: 86-18630852087

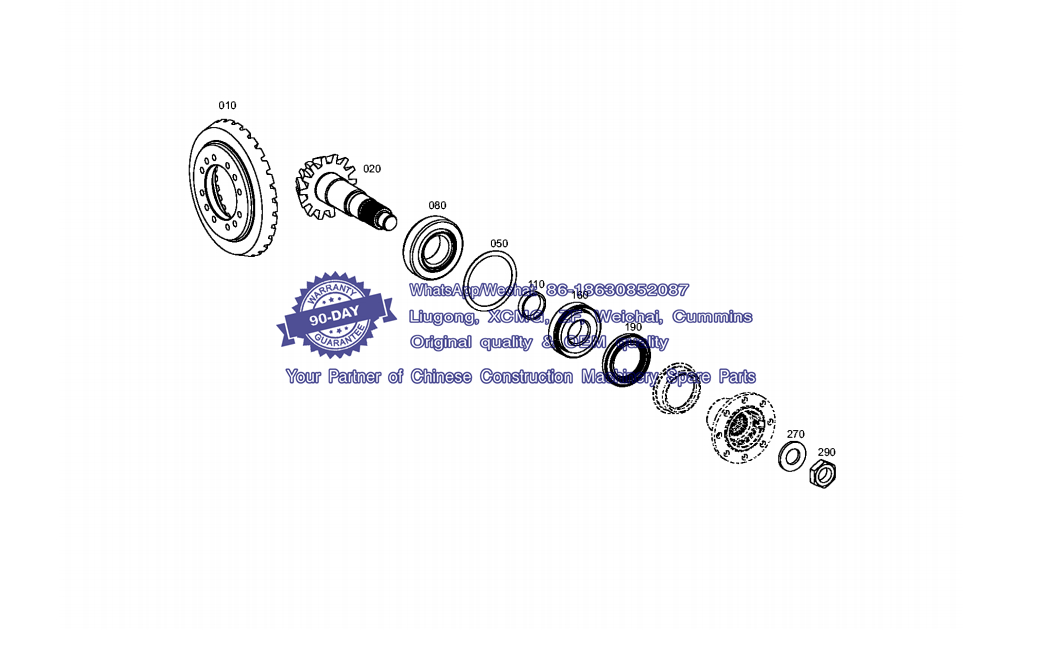

Parts list 001——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 447212500800
Material-assembly-group-no: 4472.125.008

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material
10 4472.398.012 CROWN WHEEL 1 Z=35*i=2.92
20 4472.348.047 PINION 1 K00844/0510 Z=12
50 --- WASHER 1
--- 0730.106.717 WASHER 1 S=0,7
--- 0730.106.718 WASHER 1 S=0,75
--- 0730.106.719 WASHER 1 S=0,8
--- 0730.106.720 WASHER 1 S=0,85
--- 0730.105.001 WASHER 1 S=0,9 Whatsapp: 86-18630852087
--- 0730.105.002 WASHER 1 S=0,95
--- 0730.105.003 WASHER 1 S=1,0
--- 0730.105.004 WASHER 1 S=1,05
--- 0730.105.005 WASHER 1 S=1,1
--- 0730.105.006 WASHER 1 S=1,15
--- 0730.104.990 WASHER 1 S=1,2
--- 0730.105.007 WASHER 1 S=1,25
--- 0730.105.008 WASHER 1 S=1,3
--- 0730.105.009 WASHER 1 S=1,5
80 0750.117.355 TAPERED ROLLER BEARING 1 50,000X105,000X32,000
110 --- RING 1
--- 0730.161.974 RING 1 DI=40,9/DA=46,6/h=11,66
--- 0730.162.117 RING 1 S=10,94
--- 0730.162.118 RING 1 S=10,97
--- 0730.162.119 RING 1 S=11,00
--- 0730.162.120 RING 1 S=11,03
--- 0730.162.121 RING 1 S=11,06
--- 0730.162.122 RING 1 S=11,09
--- 0730.162.123 RING 1 S=11,12
--- 0730.162.124 RING 1 S=11,15
--- 0730.162.125 RING 1 S=11,18 Whatsapp: 86-18630852087
--- 0730.162.126 RING 1 S=11,21
--- 0730.162.127 RING 1 S=11,24
--- 0730.162.128 RING 1 S=11,27
--- 0730.161.962 RING 1 S=11,30
--- 0730.161.963 RING 1 S=11,33
--- 0730.161.964 RING 1 S=11,36
--- 0730.161.965 RING 1 S=11,39
--- 0730.161.966 RING 1 S=11,42
--- 0730.161.967 RING 1 S=11,45
--- 0730.161.968 RING 1 S=11,48
--- 0730.161.969 RING 1 S=11,51
--- 0730.161.970 RING 1 S=11,54
--- 0730.161.971 RING 1 S=11,57
--- 0730.161.972 RING 1 S=11,60
--- 0730.161.973 RING 1 S=11,63
--- 0730.161.975 RING 1 S=11,69
--- 0730.161.976 RING 1 S=11,72
--- 0730.161.977 RING 1 S=11,75
--- 0730.161.978 RING 1 S=11,78
--- 0730.161.979 RING 1 S=11,81
--- 0730.161.980 RING 1 S=11,84
--- 0730.161.981 RING 1 S=11,87
--- 0730.161.982 RING 1 S=11,90
--- 0730.161.983 RING 1 S=11,93
--- 0730.161.984 RING 1 S=11,96 Whatsapp: 86-18630852087
--- 0730.161.985 RING 1 S=11,99
--- 0730.161.986 RING 1 S=12,02
--- 0730.161.987 RING 1 S=12,05
--- 0730.161.988 RING 1 S=12,08
--- 0730.161.989 RING 1 S=12,11
--- 0730.161.990 RING 1 S=12,14
--- 0730.161.991 RING 1 S=12,17
--- 0730.161.992 RING 1 S=12,20
--- 0730.161.993 RING 1 S=12,23
--- 0730.161.994 RING 1 S=12,26
--- 0730.161.995 RING 1 S=12,29
--- 0730.161.996 RING 1 S=12,32
--- 0730.161.997 RING 1 S=12,35
--- 0730.161.998 RING 1 S=12,38
160 0750.117.088 TAPER ROLLER BEARING 1 40,000X90,000X25,250
190 0734.319.709 SHAFT SEAL 1 60,0X90,0X10,0/14,5
270 0730.160.726 WASHER 1
290 0737.006.118 HEXAGON NUT 1 K00375/0510 M27X1,5

Plant 002——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 447212540000

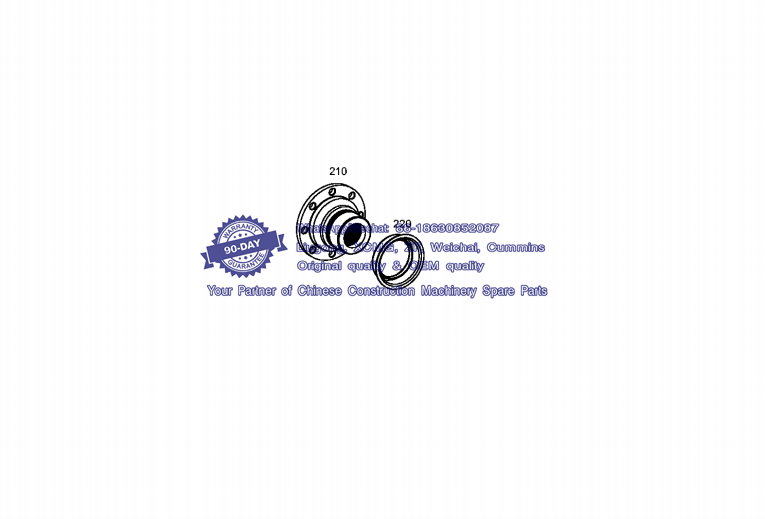

MS-E 3050 /INPUT
Material-assembly-group-no: 4472.125.400

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material
210 4460.355.254 INPUT FLANGE 1 DIN120_N38X1,25
220 4472.398.007 SCREEN SHEET 1

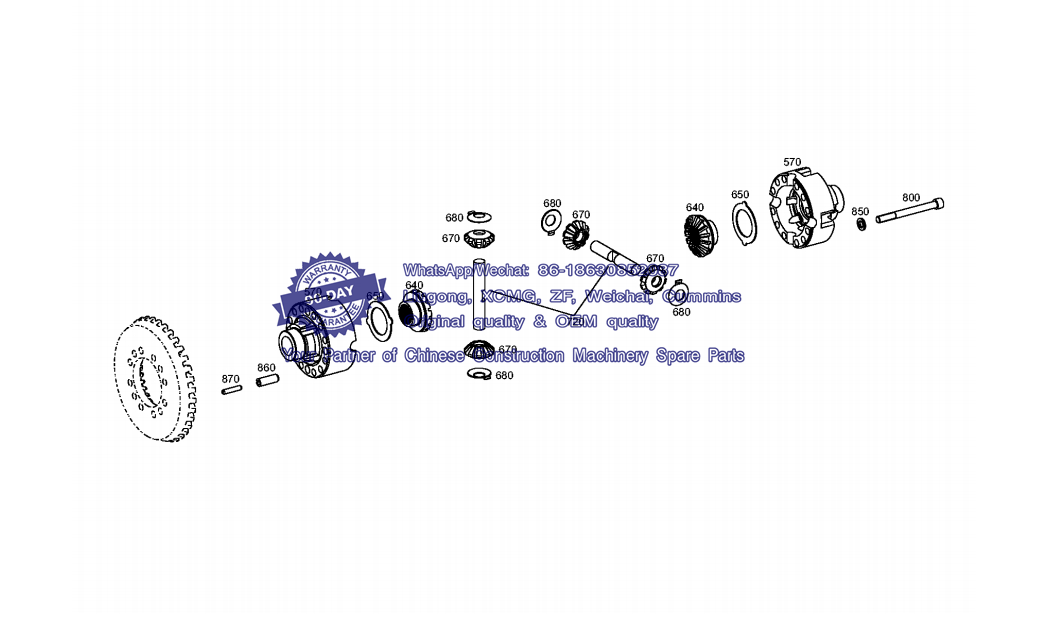

Parts list 003——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 446117304750
MS-E 3050 /
Material-assembly-group-no: 4461.173.047 Whatsapp: 86-18630852087

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material
570 4461.273.523 DIFF.CASE 1
640 4461.371.062 AXLE BEVEL GEAR 2 Z=16
650 0730.104.893 THRUST WASHER 2
670 4481.333.081 DIFFERENTIAL BEVEL GEAR 4 K02427/9410 Z=11
680 0730.106.007 THRUST WASHER 4 20,3 X 44X1,5
720 4461.371.067 DIFFERENTIAL AXLE 2 K01611/0210 Whatsapp: 86-18630852087
800 0636.101.745 CAP SCREW 12 M12X1,5X125
850 0730.103.246 WASHER 12 ENTHALT.IN 0730 105 412(2)
860 0631.328.599 SLOTTED PIN 4 14X40
870 0631.328.619 SLOTTED PIN 4 8X40

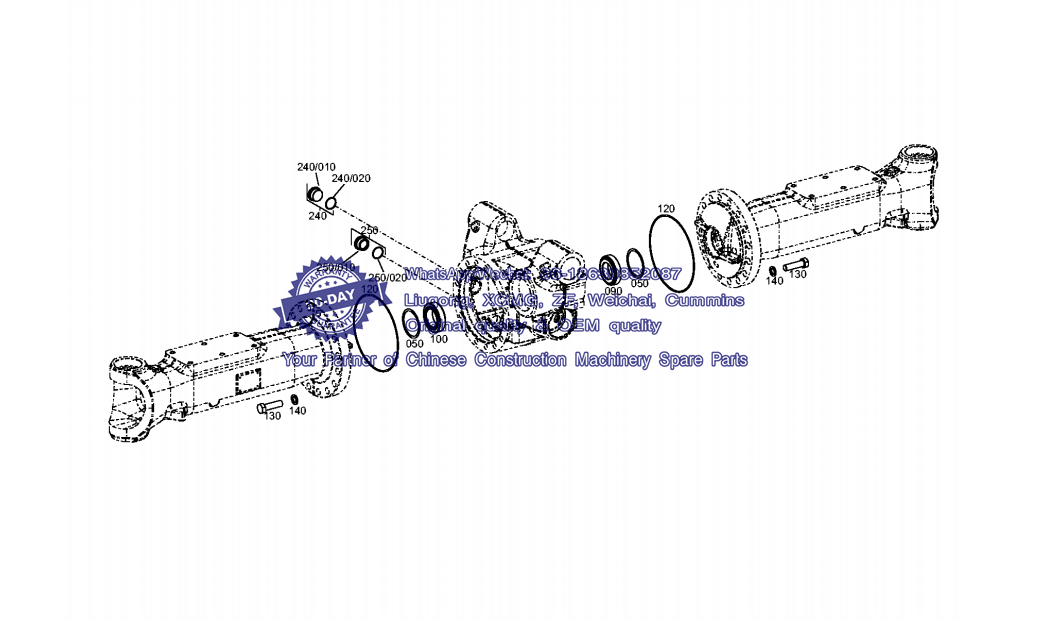

Parts list 004——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 447212600200
MS-E 3050 /
Material-assembly-group-no: 4472.126.002

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material
50 --- SHIM 2
--- 0730.001.012 SHIM 1 78X89,8X0,4
--- 0730.001.011 SHIM 1 78X89,8X0,6
--- 0730.000.127 SHIM 1 A=0,10 IN 0730 005 413(2)
--- 0730.006.510 SHIM 1 A=0,15
--- 0730.000.126 SHIM 1 A=0,20 IN 0730 005 413(2)
--- 0730.006.511 SHIM 1 A=0,25
--- 0730.002.280 SHIM 1 A=0,30 IN 0730 005 413(2)
--- 0730.006.512 SHIM 1 A=0,35
--- 0730.005.708 SHIM 1 A=0,45 Whatsapp: 86-18630852087
--- 0730.000.125 SHIM 1 A=0,50 IN 0730 005 413(2)
--- 0730.005.709 SHIM 1 A=0,55
--- 0730.006.513 SHIM 1 A=0,65
--- 0730.006.514 SHIM 1 A=0,70
--- 0730.006.515 SHIM 1 A=0,75
--- 0730.000.124 SHIM 1 A=0,80 IN 0730 005 413(2)
--- 0730.006.516 SHIM 1 A=0,85
--- 0730.006.517 SHIM 1 A=0,90
--- 0730.006.518 SHIM 1 A=0,95
--- 0730.000.123 SHIM 1 A=1,00 IN 0730 005 413(2)
--- 0730.006.519 SHIM 1 A=1,05
--- 0730.006.520 SHIM 1 A=1,10
--- 0730.006.521 SHIM 1 A=1,15
--- 0730.002.277 SHIM 1 A=1,20 IN 0730 005 413(2)
--- 0730.006.522 SHIM 1 A=1,25
--- 0730.006.523 SHIM 1 A=1,30
--- 0730.006.524 SHIM 1 A=1,35
--- 0730.001.010 SHIM 1 A=1,40 IN 0730 005 413(2)
--- 0730.006.525 SHIM 1 A=1,45
--- 0730.008.836 SHIM 1 A=1,47
--- 0730.006.526 SHIM 1 A=1,50
--- 0730.006.527 SHIM 1 A=1,55
--- 0730.006.528 SHIM 1 A=1,60
--- 0730.008.837 SHIM 1 A=1,63 Whatsapp: 86-18630852087
--- 0730.006.529 SHIM 1 A=1,65
--- 0730.008.051 SHIM 1 A=1,70 IN 0730 005 413(2)
--- 0730.005.816 SHIM 1 A=1,75 IN 0730 005 413(2)
--- 0730.008.052 SHIM 1 A=1,80 IN 0730 005 413(2)
--- 0730.005.817 SHIM 1 A=1,85 IN 0730 005 413(2)
--- 0730.008.053 SHIM 1 A=1,90 IN 0730 005 413(2)
--- 0730.008.154 SHIM 1 A=1,95 IN 0730 005 413(2)
--- 0730.001.009 SHIM 1 A=2,00 IN 0730 005 413(2)
90 0750.117.802 TAPERED ROLLER BEARING 1 50,000X90,000X21,750
100 0750.117.785 TAPER ROLLER BEARING 1 55,000X90,000X23,000
120 0634.304.243 O-RING 2 224X3
130 0636.011.459 HEXAGON SCREW 32 M18X65
140 0730.101.840 WASHER 32 19X30X3
240 4475.280.161 SCREW PLUG 1 M36X1,5 MIT O-RING
/20 0634.304.654 O-RING 1 33X2,2
250 4475.280.162 SCREW PLUG 1 M36X1,5/DIN908/MAGNET/MIT ORING
/20 0634.304.654 O-RING 1 33X2,2

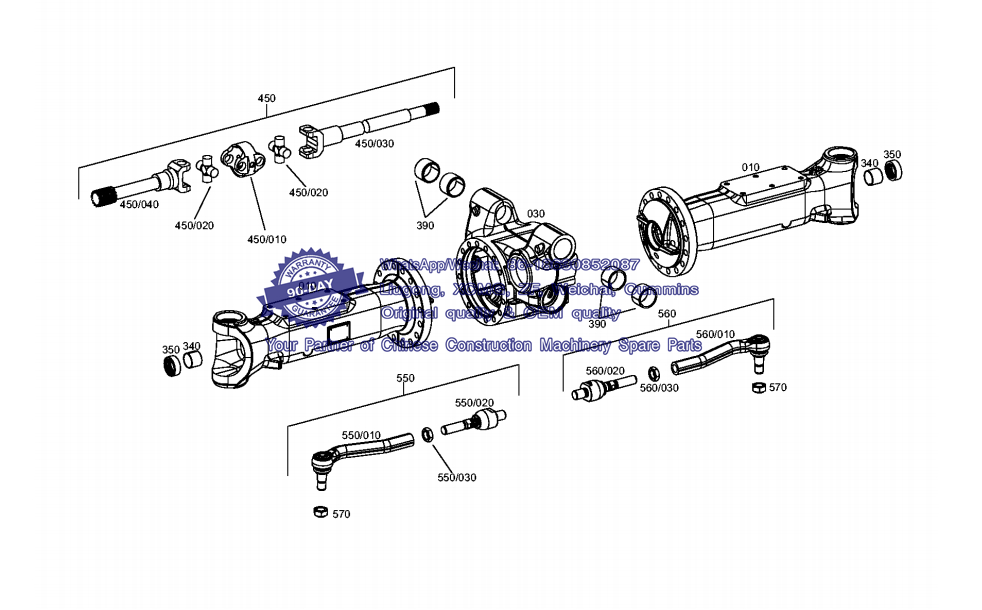

Parts list 005——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 447212642300
MS-E 3050 /
Material-assembly-group-no: 4472.126.423

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material
10 4472.397.020 AXLE CASING 2
30 4472.398.018 AXLE DRIVE HOUSING 1
340 0730.260.633 BUSH 2 46,000X50,000X40,000
350 0734.300.610 SHAFT SEAL 2 Z00029534310 46,0X65,0X21,0
390 0730.161.802 CLAMPING BUSH 4
450 0501.007.724 UNIVERSAL SHAFT 2 Kpl. z=15
/10 0501.214.101 CENTRAL PIECE 1 Whatsapp: 86-18630852087
/20 0501.214.103 JOINT CROSS 2
/30 0501.321.589 JOINT FORK 1
/40 0501.321.588 JOINT FORK 1
550 0501.007.756 TIE ROD 1
/10 0501.214.795 BALL JOINT 1 ZF-Z / 040160836000
/20 0501.214.183 AXIAL JOINT 1
/30 0501.320.732 HEXAGON NUT 1
560 0501.007.757 TIE ROD 1
/10 0501.214.796 BALL JOINT 1 ZF-F / 040160837000
/20 0501.214.183 AXIAL JOINT 1
/30 0501.320.732 HEXAGON NUT 1
570 0501.316.474 LOCKING NUT 2 M27X1,5 Whatsapp: 86-18630852087

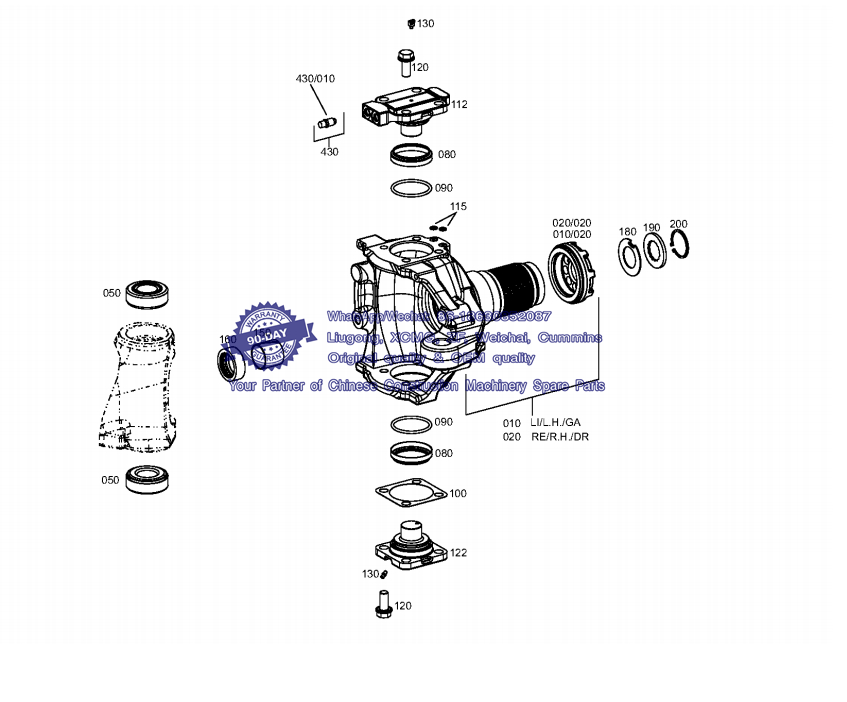

Parts list 006——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 447212801000
MS-E 3050 /
Material-assembly-group-no: 4472.128.010

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material
10 4472.228.027 JOINT HOUSING Z=46 4472.239.188
/20 4472.347.002 SLOTTED NUT 1
10 4472.239.188 JOINT HOUSING 1
20 4472.228.028 JOINT HOUSING Z=46 4472.239.189
/20 4472.347.002 SLOTTED NUT 1 Whatsapp: 86-18630852087
20 4472.239.189 JOINT HOUSING 1
50 0750.117.357 TAPER ROLLER BEARING 4 40,483X82,550X29,370
80 4472.397.007 SEALING CAP 4
90 0634.303.610 O-RING 4 70X5
100 --- SHIM 2
--- 4472.373.230 SHIM 1 A=0,6
--- 4472.373.231 SHIM 1 A=0,8
--- 4472.373.232 SHIM 1 A=1,0
--- 4472.373.233 SHIM 1 A=1,2
--- 4472.373.234 SHIM 1 A=1,4
--- 4472.373.235 SHIM 1 A=1,6
--- 4472.373.236 SHIM 1 A=1,8
--- 4472.373.237 SHIM 1 A=2,0
112 4472.397.012 BEARING PIN 2 K00431/0510
115 0634.313.527 O-RING 4 10,5X2
120 0636.031.186 LOCKING SCREW 16 M16X35
122 4472.397.013 BEARING PIN 2 K00431/0510
130 0632.100.135 LUBRICATING NIPPLE 4 M10X1
150 0730.260.633 BUSH 2 46,000X50,000X40,000
160 0734.300.610 SHAFT SEAL 2 Z00029534310 46,0X65,0X21,0
180 4472.397.010 THRUST WASHER 2 S=2,0
190 4472.397.006 THRUST WASHER 2
200 0630.531.052 RETAINING RING 2 42X2,5
430 0501.202.519 VENT VALVE 2 Whatsapp: 86-18630852087

Parts list 007——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 447212840000
MS-E 3050 /
Material-assembly-group-no: 4472.128.400

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material

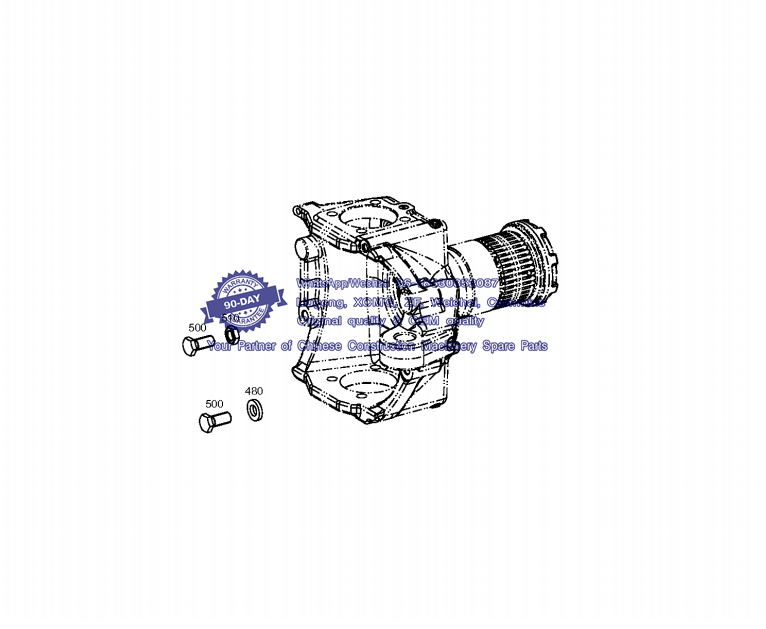

480 --- STOP WASHER 2
--- 0730.162.140 STOP WASHER 1 A=1,0
--- 0730.162.139 STOP WASHER 1 A=1,2
--- 0730.162.385 STOP WASHER 1 A=1,3 Whatsapp: 86-18630852087
--- 0730.162.386 STOP WASHER 1 A=1,5
--- 0730.161.034 STOP WASHER 1 A=10,0
--- 0730.161.083 STOP WASHER 1 A=10,5
--- 0730.161.084 STOP WASHER 1 A=11,0
--- 0730.162.456 STOP WASHER 1 A=11,5
--- 0730.162.457 STOP WASHER 1 A=12,0
--- 0730.162.458 STOP WASHER 1 A=12,5
--- 0730.162.459 STOP WASHER 1 A=13,0
--- 0730.162.460 STOP WASHER 1 A=13,5
--- 0730.162.461 STOP WASHER 1 A=14,0
--- 0730.162.135 STOP WASHER 1 A=2,00
--- 0730.162.134 STOP WASHER 1 A=3,0
--- 0730.162.133 STOP WASHER 1 A=4,00 IN 0730 162 131(2) A=4,0
--- 0730.162.132 STOP WASHER 1 A=5,0
--- 0730.161.077 STOP WASHER 1 A=6,0
--- 0730.161.078 STOP WASHER 1 A=6,5
--- 0730.161.079 STOP WASHER 1 A=7,0
--- 0730.161.080 STOP WASHER 1 A=7,5
--- 0730.161.036 STOP WASHER 1 A=8,0
--- 0730.161.081 STOP WASHER 1 A=8,5
--- 0730.161.035 STOP WASHER 1 A=9,0
--- 0730.161.082 STOP WASHER 1 A=9,5 Whatsapp: 86-18630852087
500 0736.010.047 STOP SCREW 4 M18X40
510 0637.009.163 HEXAGON NUT 2 M18

Parts list 008——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 447213400200 Whatsapp: 86-18630852087
MS-E 3050 /
Material-assembly-group-no: 4472.134.002

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material

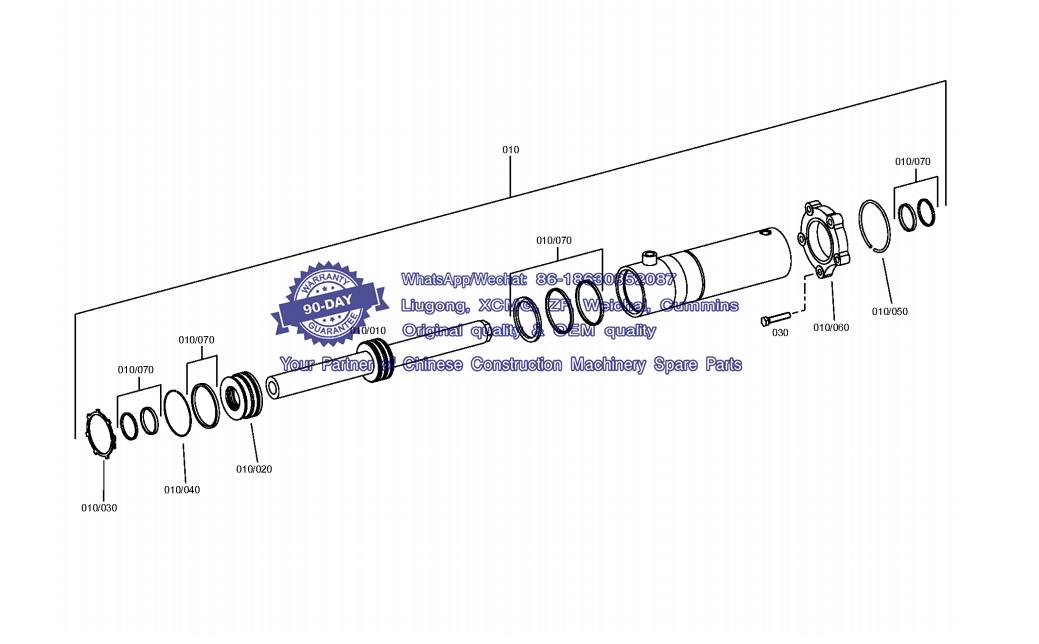

10 0501.218.235 STEERING CYLINDER 1 Z00009684310 KPL.
/10 0501.321.260 PISTON ROD 1
/20 0501.328.420 BRAKE HEAD 1
/30 0501.318.996 SNAP RING 1
/40 0501.321.255 RETAINING RING 1
/50 0501.321.253 RETAINING RING 1
/60 0501.321.252 FLANGE 1 Whatsapp: 86-18630852087
/70 0501.298.586 SEAL KIT 1
30 0636.011.030 HEXAGON SCREW 5 M12X60

Parts list 009——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 447213301000
MS-E 3050 /
Material-assembly-group-no: 4472.133.010

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material

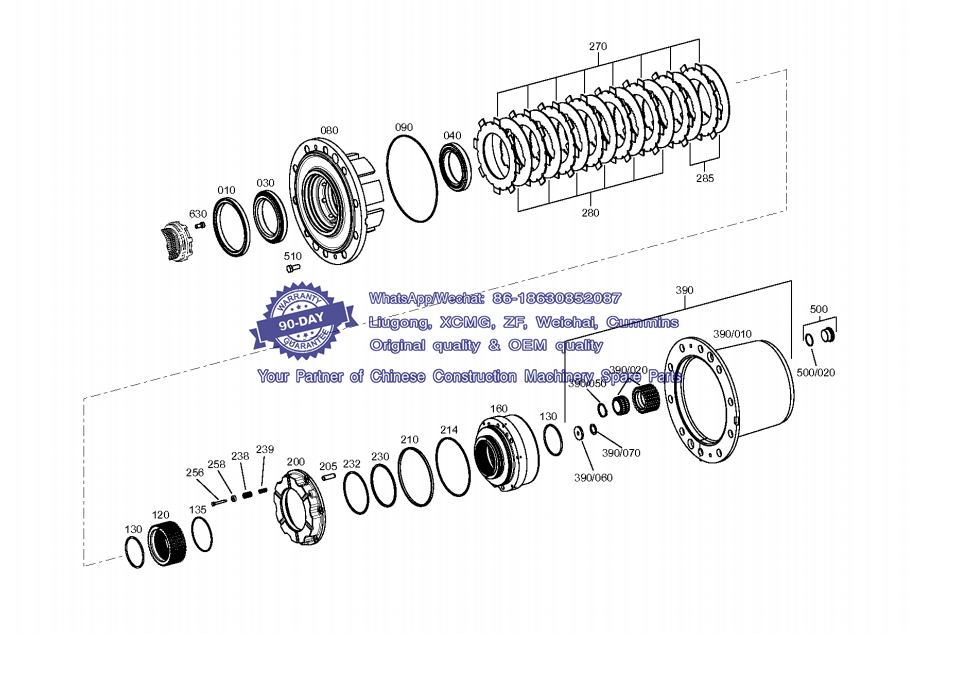

10 0734.309.423 CASSETTE RING 2 K01267/0410 150,15-178-13/16
30 0750.117.652 TAPER ROLLER BEARING 2 109,538X158,750X23,020
40 0750.117.869 TAPERED ROLLER BEARING 2 100,000X145,000X24,000
80 4472.347.056 HUB 2 Z00035420510
90 0634.303.427 O-RING 2 260X3 Whatsapp: 86-18630852087
120 4472.347.036 DISC CARRIER 2 Z02001218710 Z=40
130 0634.303.886 O-RING 4 K00703/0510 88X4
135 0634.100.543 O-RING 2 101,27X2,62
160 4472.347.048 RING GEAR 2 Z00027266010 D188,73_B44_Z81_mn2,333_15
200 4472.347.030 PISTON 2 K05171/0710
205 4472.347.050 CYLINDRICAL PIN 6
210 0734.317.169 GROOVED RING 2 167-159,6-4
214 0501.335.263 SUPPORT RING 2 Z00034704110 180,000X172,600X2,000
230 0734.317.382 GROOVED RING 2 130,0-122,0-4,5
232 0501.335.264 SUPPORT RING 2 Z00035426810 130,000X122,000X2,000
238 0632.041.095 COMPRESSION SPRING 12
239 0732.042.895 COMPRESSION SPRING 12
256 0736.004.055 HEXAGON SCREW 12 K01092/0610 M6X45
258 4472.320.071 SPRING SLEEVE 12
270 0501.323.005 OUTER CLUTCH DISK 16 K00656/0510 A=4,5/DI=140/DA=208/N670-5
280 4472.347.018 INNER CLUTCH DISK 12 A=2,5/DI=109/DA=208/ST
285 --- INNER CLUTCH DISK 4 A=2,0-3,0/DI=119/DA=208/ST
--- 4472.347.017 INNER CLUTCH DISK 1 A=2,00*Z=40
--- 4472.347.018 INNER CLUTCH DISK 1 A=2,5/DI=109/DA=208/ST
--- 4472.347.019 INNER CLUTCH DISK 1 A=3/DI=109/DA=208/ST
390 4472.231.018 PLANET CARRIER 2 Z00015235211
/10 4472.347.038 PLANET CARRIER 1
/20 4472.239.224 PLANETARY GEAR 3 Whatsapp: 86-18630852087
/20 4472.347.039 PLANETARY GEAR Z=31 4472.239.224
/50 0630.501.030 RETAINING RING 3 38X1,75
/60 4475.319.254 THRUST WASHER 1 Whatsapp: 86-18630852087
/70 0730.001.502 SPACER WASHER 1 22,1X32X1,00
500 4475.280.161 SCREW PLUG 2 M36X1,5 MIT O-RING
/20 0634.304.654 O-RING 1 33X2,2
510 0636.016.012 HEXAGON SCREW 4 M12X30 Whatsapp: 86-18630852087
630 0636.102.041 CAP SCREW 2 M10X20

Parts list 010——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 447213340400
MS-E 3050 /
Material-assembly-group-no: 4472.133.404

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material

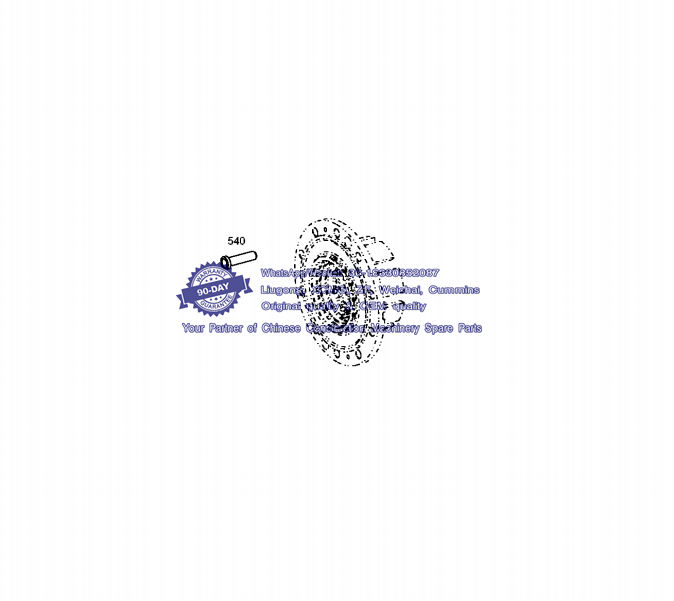

540 4472.336.286 WHEEL STUD 20 M22X1,5X87

Parts list 011——ZF Axle MSE 3050 MS-E 3050 Spare Parts

Material number: 4472.097.005
Plant: 414313900200
MS-E 3050 /
Material-assembly-group-no: 4143.139.002

Pos. Material number Customer material Name Quantity ME Amend. no. Techn. Info. Rep kit Alternative material
10 0730.365.159 TYPE PLATE 1 CAT/Passau Whatsapp: 86-18630852087
