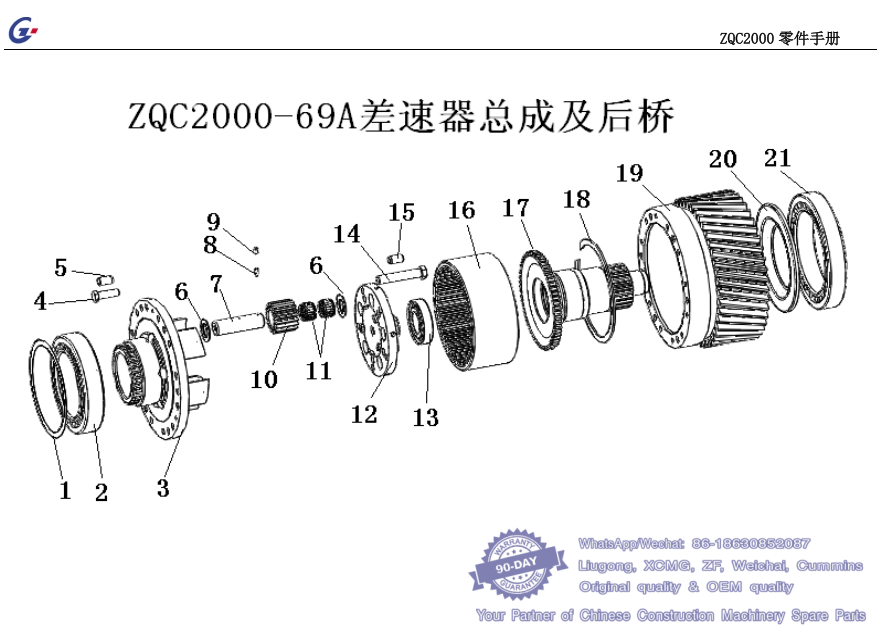

007 ZQC2000 差速器总成及后桥零件明细表
ZQC2000 Differential Assembly & Rear Axle Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量
1 L903063100-L903063300 调整垫圈组 Adjusting Washer Units whatsapp 86-18630852087
11 Z0K2531200 滚针轴承 Needle Bearing 10
12 L9030285A0行星架盖 Planetary Carrier Cover 1
2 Z02007124E 圆锥滚子轴承 Tapered Roller Bearing 1
13 Z00042208E 滚柱轴承 Roller Bearing 1
3 L9030283A0 行星架 Planetary Carrier 1
14 S51B14080D 六角头螺栓 Hex Screw 5
4 S51C12040D 六角头螺栓 M12X40 Hex Screw M12X40 12
15 L913503500 定位销 Location Pin 5 whatsapp 86-18630852087
5 L913503500 定位销 Location Pin 6
16 L9030311A0 内齿圈 Inner Gear Ring 1
6 L903030500 止推垫圈 Thrust Wahser
10 17 L9030309A0 后输出轴 Rear Output Shaft 1
7 L903030100 行星轮轴 Planetary Wheel 5 whatsapp 86-18630852087
18 Q340180000 孔用压扁钢丝挡圈Flat Steel Silk Block Ring 1
8 L903030700 压缩弹簧 5
19 L903028100 从动轮 Driven Wheel 1
9 X210060100 A 型圆柱销 5
20 L903031500 挡油圈 Oil Deflector 1 whatsapp 86-18630852087
10 L9030303A0 行星轮 5
21 Z02007930E 圆锥滚子轴Tapered Roller Shaft 1

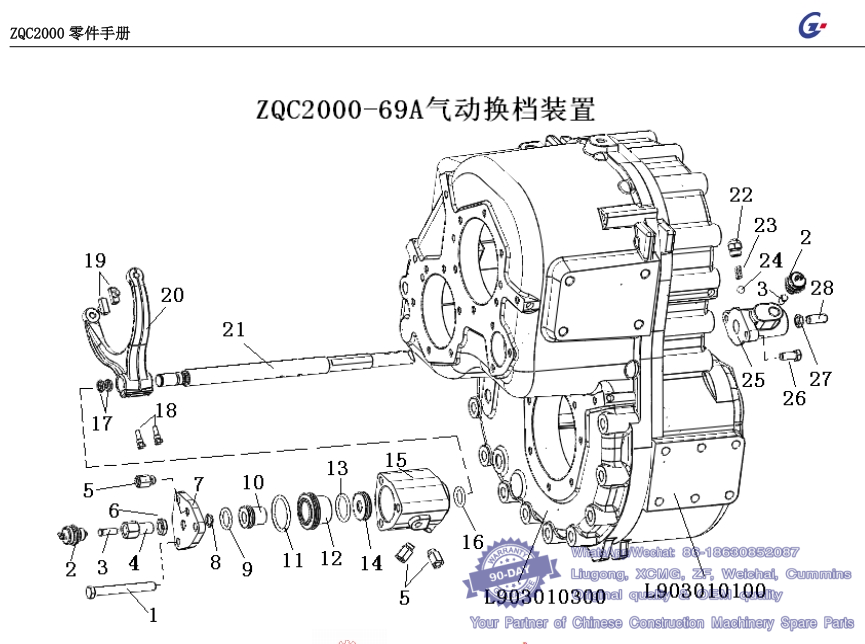

008 ZQC2000 气动换档装置零件明细表
ZQC2000 Pneumatic Shift Device Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量
1 S50B121100 六角头螺栓 M12X110 Hex Screw M12X110 3 whatsapp 86-18630852087
2 B913302700 压力开关Pressure Switch 2
3 L9130403K0 销钉 Pin 2
4 L903030700 开关接头 Switch Joint 1
5 L913020400 气管接头 Gas-type Fitting 3
6 M51B016000 六角薄螺母 Hex Thin Nut 1
7 L9030011K0 盖 Cover 1
8 Q310018012 轴用弹性挡圈 External Circlips 1
9 F34B290260 O 型密封圈 O Ring 1 whatsapp 86-18630852087
10 L9030703K0 活塞 Piston 1
11 F34B530260 O 型密封圈 O Ring 1
12 L9030705K0 大活塞 Big Piston 1
13 F34B390260 O 型密封圈 O Ring 1
14 L9030701K0 活塞 Piston 1
15 L9030160K0 换档气缸 Engaging Cylinder 1
16 F34B250260 O 型密封圈 O Ring 1
17 L913001900 密封圈 Sealing Ring 2
18 L913606400 锥形螺钉 Taper Screw 2
19 L913607700 拔叉块 Fork Block 2
20 L903040100 换档拔叉 Engaging Fork Block 1
21 L9030404K0 换档叉轴 Engaging Fork Shift 1
22 L913604900 锁止球头 Locking Ball 1
23 L913402300 锁簧 Locking Spring 1
24 Y18G100C00 钢球 10 Steel Ball 10 1 whatsapp 86-18630852087
25 L9030408K0 气缸尾盖 Cylinder Cover 1
26 S50B100250 六角头螺栓 Hex Screw 2
27 M51C01200C 六角薄螺母 Hex Thin Nut 1
28 L913040200 螺钉 M12 Bolt M12 1 whatsapp 86-18630852087

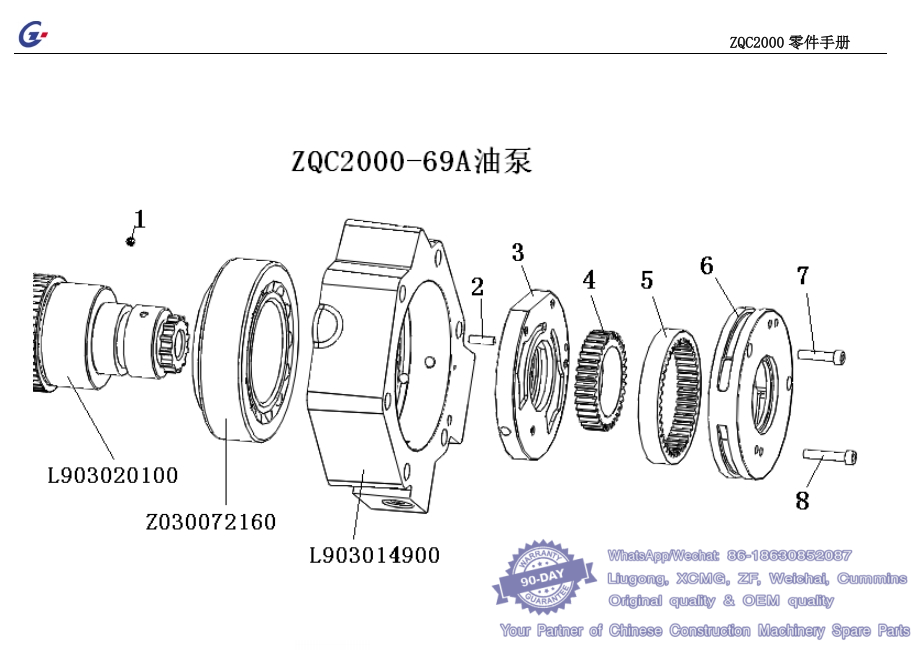

009 ZQC2000 油泵零件明细表
ZQC2000 Oil Pump Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量
1 Y18G100F00 驱动钢球 6.0 Drive Steel Ball 6.0 1
2 Q280060200 弹性圆柱销 Spring Roller Pin 1
3 L903050300 油泵盖Oil Pump Cover 1 whatsapp 86-18630852087
4 L913310000 油泵齿轮 Oil Pump Gear 1
5 L913310100 油泵齿圈 Oil Pump Gear Ring 1
6 L903050100 油泵壳体 Oil Pump Housing 1
7 D18B060300 内六角螺钉 M6X30 Inner Hex Bolt M6X30 2
8 D18B060350 内六角螺钉 M6X35 Inner Hex Bolt M6X35 2 whatsapp 86-18630852087

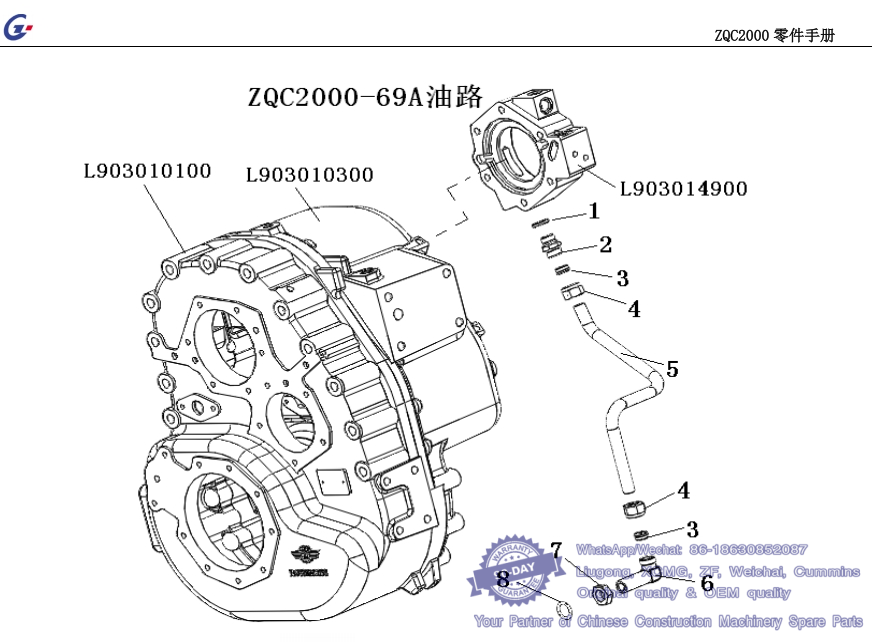

010 ZQC2000 油路零件明细表
ZQC2000 Oil Way Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量
1 G190022000 卡套式管接头用垫圈 Pipe Joint Washer 1
2 G040018000 卡套式端直通接头体 Straight Thread Jointor 1
3 G000180000 卡套 Sleeve 2
4 G010018000 卡套式管接头用螺母 Pipe Joint Nut 2 whatsapp 86-18630852087
5 L903050700 油管 Oil Pipe 1
6 L903050900 直角接头体 Right Angle Jointor 1
7 G020022000 六角薄螺母 Hex Thin Nut 1
8 G190022000 卡套式管接头用垫圈 Pipe Joint Washer 1 whatsapp 86-18630852087

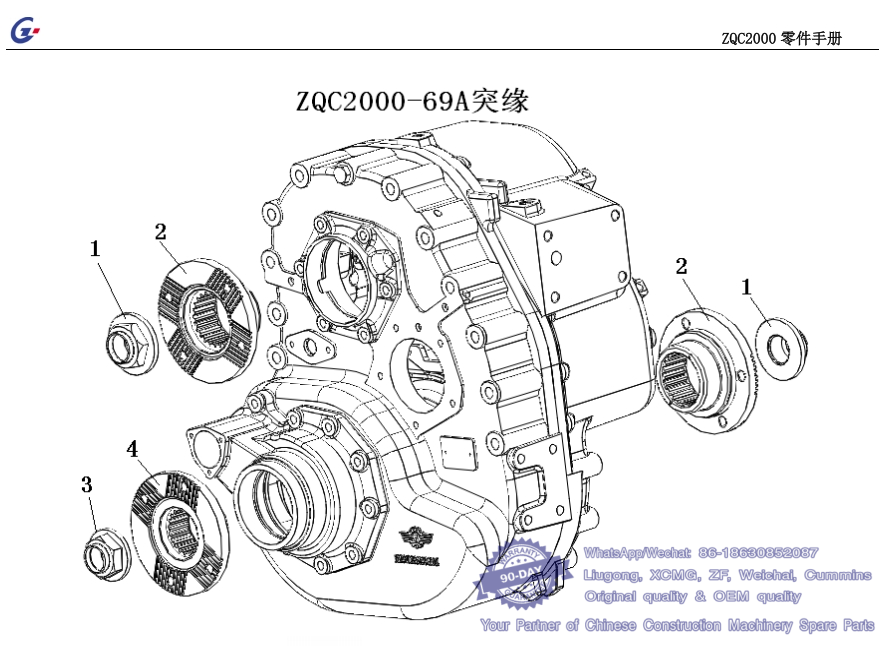

011 ZQC2000 联接突缘明细表-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量
1 L903033300 六角突缘螺母 Hex Flange Nut 2 whatsapp 86-18630852087
2 L9030331A0 突缘∮180 Flange∮180 2
3 L913800400 六角突缘螺母 Hex Flange Nut 1
4 L9030337A0 前桥输出突缘 Front Axle Output Flange 1 whatsapp 86-18630852087
