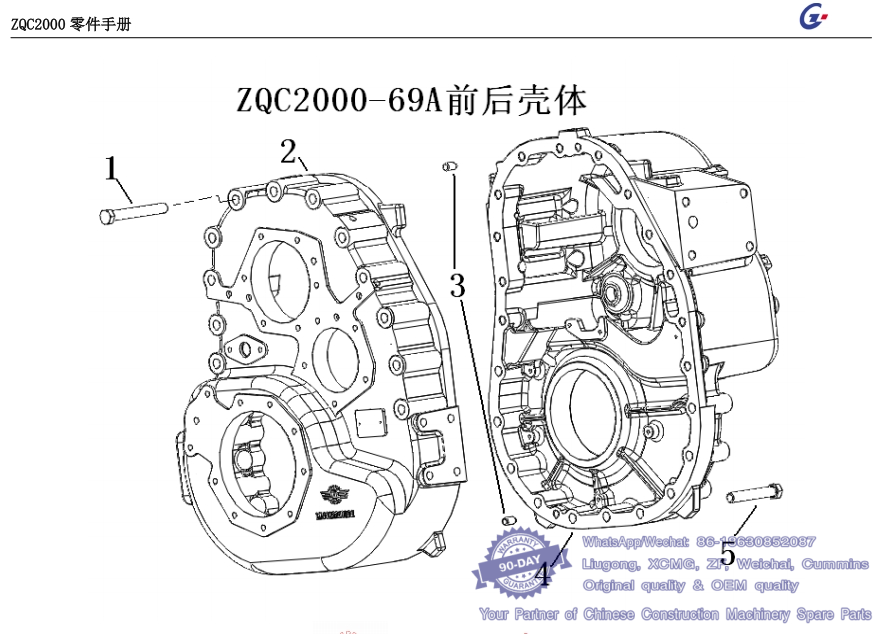

001 ZQC2000 前后壳体零件明细表
ZQC2000 Front and Rear Housing Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量Qty.
1 S50B161300 六角头螺栓 M16X130 Hexagon Bolt M16X130 12 whatsapp 86-18630852087
2 L903010100 分动箱前壳体Transfer Case Front Housing 1
3 X220120220 B 型圆柱销∮12X22 Type B Round Pin∮12X22 2
4 L903010300 分动箱后壳体 Transfer Case Rear Housing 1
5 S50B161000 六角头螺栓 M16X100 Hexagon Bolt M16X100 10 whatsapp 86-18630852087

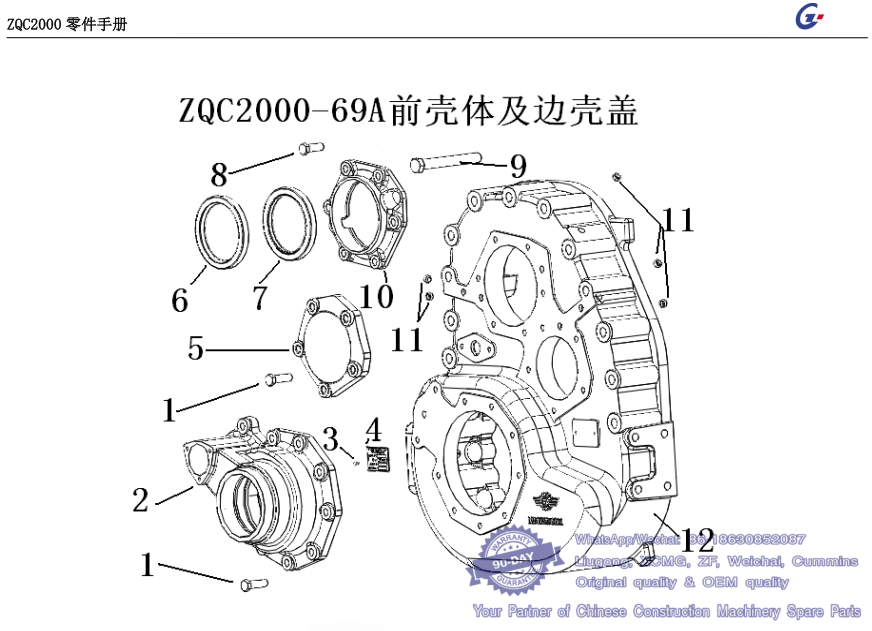

002 ZQC2000 前壳体及边壳盖零件明细表
ZQC2000 Front Housing & Housing Side Cover Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量Qty.
1 S50B120400 六头螺栓 M12X40 Hexagon Bolt M12X40 15 whatsapp 86-18630852087
2 L903011300 前输出轴承盖 Front Output Bearing Cover 1
3 D410030060 标牌铆钉 3X6 Index Plate Rivet 3X6 2
4 L913118500 铭牌 Name Plate 1
5 L903011100 中间轴前盖 Counter Shaft Front Cover 1
6 FR10012512 骨架油封 Skeleton Oil Seal 1
7 F010012512 骨架油封 Skeleton Oil Sea 1
8 S50B120350 六角头螺栓 M12X35 Hexagon Bolt M12X35 6 whatsapp 86-18630852087
9 S50B161300 六角头螺栓 M16X130 Hexagon Bolt M16X130 12
10 L903010900 输入前轴承盖 Front Input Bearing Cover 1
11 F210012000 堵塞 Plug 5
12 L903010100 前壳体 Front Housing 1 whatsapp 86-18630852087

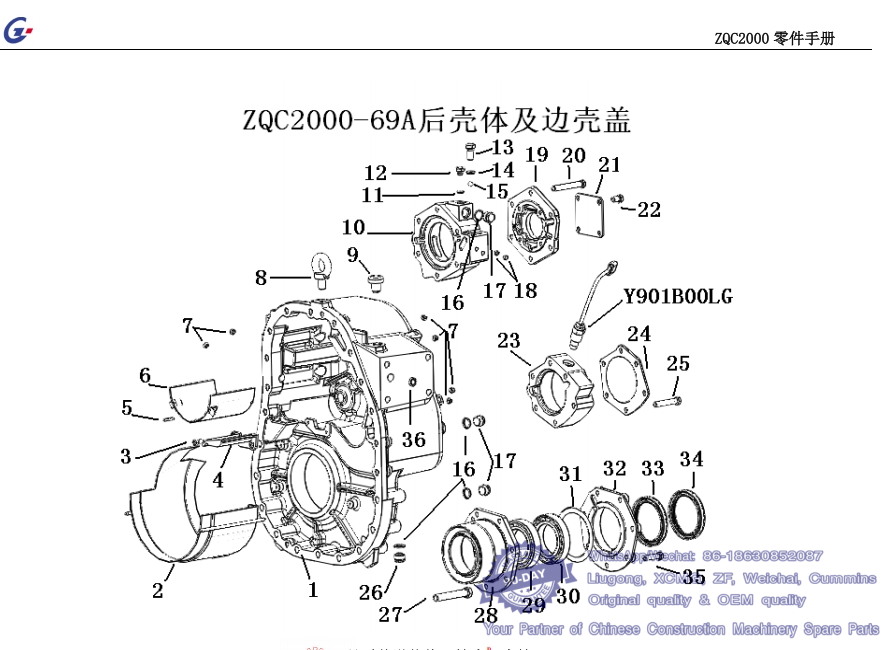

003 ZQC2000 后壳体及边壳盖零件明细表
ZQC2000 Rear Housing & Housing Side Cover Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Descrition 数量
1 L903010300 后壳体 Rear Housing 1 whatsapp 86-18630852087
2 B903012000 散 热 板 合 件 Radiator Panel Unit 1
3 D18B080180 内六角螺钉 M8X18 Inner Hexagon Screw 2
4 L903015500 集油盘 Oil collecting Tray 1
5 Q5280530 弹性销 Spring Pin 1
6 B903013000 上散热 板合件 Upper Radiator Panel Unit 1
7 F210012000 塞片（堵塞）Tabular Plug 6
8 D000016000 B 型吊环螺钉 M16Type B Lifting BoltM16 1
9 B913312000 通气口总成Ventage Assembly 1
10 L903014900 输入轴后轴承盖 Input Shaft Rear Bearing Cover 1
11 F230012000 密封垫圈∮12 Sealing Washer∮12 1 whatsapp 86-18630852087
12 K17B012000 六角头螺塞 M12 Inner Hexagon Screw 1
13 L903050500 空心螺钉 Hollow Screw 1
14 F230016000 密封垫圈∮16 Sealing Washer∮16 1
15 Y18G100C00 钢球 Steel Ball 1
16 F230022000 密封垫圈∮22 Sealing Washer ∮22 4
17 K17B022000 螺塞 M22 Plug Screw M22 3
18 F220010000 碗形塞片 Calathiform Tabular Plug 2
19 L903015300 输入轴后端盖 Input Shaft Rear Cover 1
20 S50B120900 六角头螺栓 Hexagon Screw 6
21 L913800200 盖板 Cover 1
22 S50B120180 六角头螺栓 M12X18 Hexagon Bolt M12X18 4
23 L9030141K0 里程表盖 Odometer Cover 1
24 L903014300 端盖 Cover 1
25 S50B12075D 六角头螺栓 M12X75 Hexagon Screw 6
26 L903010500 轻型六角磁性螺塞 Light Hex Magnetic Screw 1
27 S50B161000 六角头螺栓 M16X100 Hexagon Screw 10
28 L903031700 轴承座 Bearing Block 1
29 Z001761160 四点角接触球轴承 Four Angle Touch Ball Bearing 1
30 Z000321160 滚柱轴承 Roller Bearing 1
31L903061100-L903061300 调 整 垫 圈 组 Adjusting Washer Unit
32 L903014700 后 输 出 轴 承 盖 Rear Output Bearing Cover 1
33 FS10012512 骨架油封 Skeleton Oil Seal 1
34 FL10012512 骨架油封 Skeleton Oil Seal 1
35 S50B120450 六角头螺栓 M12X45 Hexagon Screw 7 whatsapp 86-18630852087
36 F220020000 闷堵 Plug 1

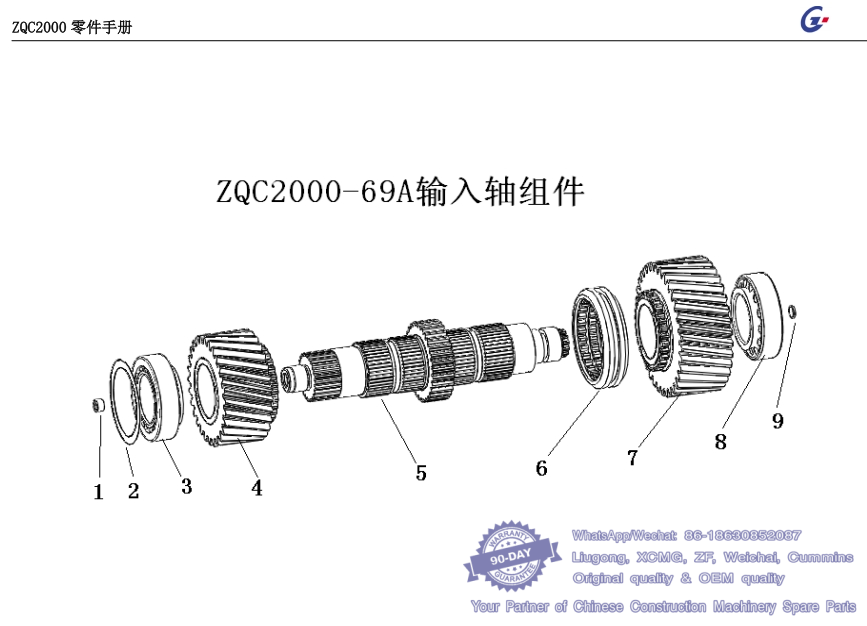

004 ZQC2000 输入轴组件零件明细表
ZQC2000 Input Shaft Unit Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量
1 K190004000 内六角锥形螺塞 Inner Hexagon Tapered Screw 1 whatsapp 86-18630852087
2 L903061100-L903061300调整垫圈组 Adjusting Washer Unit 1
3 Z030072160 圆锥滚子轴承 Tapered Roller Bearing 1
4 L903020700 低速齿轮 Low Speed Gear 1
5 L903020100 输入轴 Input Shaft 1
6 L903020500 滑动齿套 Sliding Gear Set 1 whatsapp 86-18630852087
7 L903020900 高档齿轮 High Shift Gear 1
8 Z030072160 圆锥滚子轴承 Tapered Roller Bearing 1
9 L903020300 挡圈 Stop Ring 1 whatsapp 86-18630852087

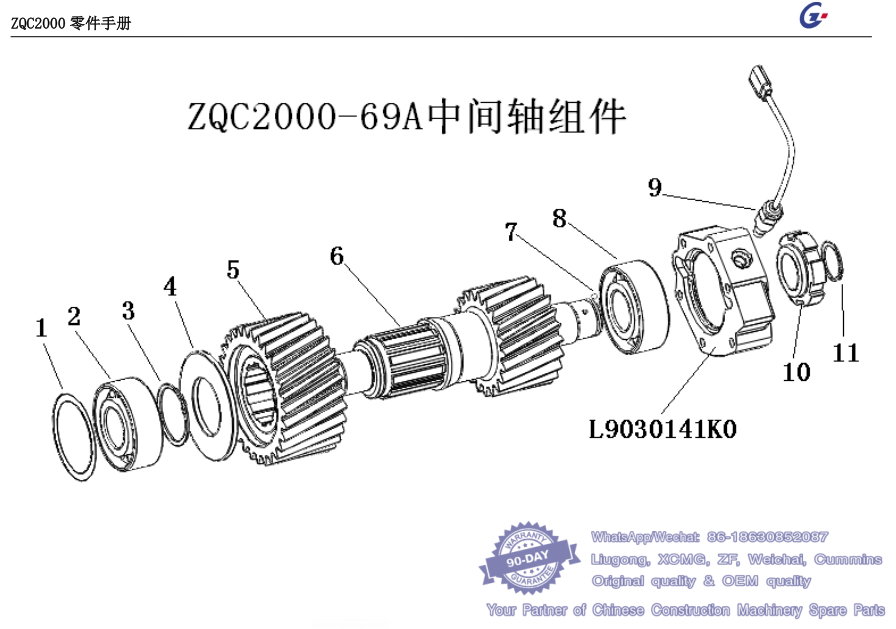

005 ZQC2000 中间轴组件零件明细表
ZQC2000 Counter Shaft Unit Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量
1 L903062100-L903062300调整垫圈组 Adjusting Washer Unit whatsapp 86-18630852087
2 Z000426110 滚柱轴承Roller Bearing 1
3 Q310080000 轴用弹性挡圈 External Circlips 1
4 L903023800 分动器平垫圈 Transfer Flat Gasket 1
5 L903024000 中间齿轮 Count Gear 1
6 L903023900 中间轴 Count Shaft 1
7 Y18G100F00 钢球 6.0 Steel Ball 1 whatsapp 86-18630852087
8 Z000426110 滚柱轴承 Roller Bearing 1
9 Y901B00LG0 里程表传感器 Odometer Sensor 1
10 L9030241K0 里程表齿轮 Odometer Gear 1
11 Q310050000 轴用弹性挡圈 External Circlips 1 whatsapp 86-18630852087

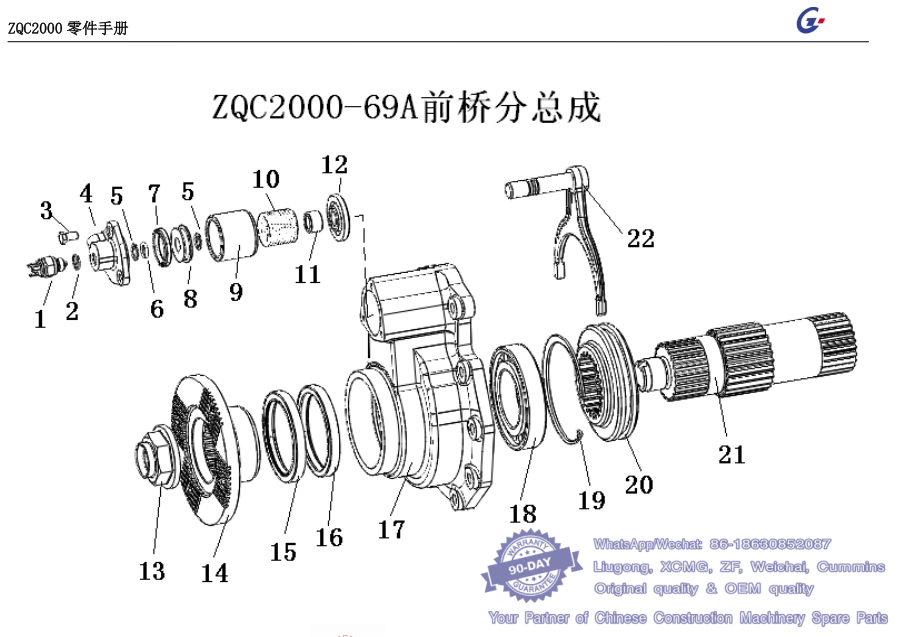

006 ZQC2000 前桥分总成零件明细表
ZQC2000 Front Axle Sub Assembly Parts List-- Zhuzhou Gear Transmission ZQC2000 Transfer Case Parts Catalog
序号 产品代码 Code 名称规格 Description 数量
1 B913302700压力开关 Pressure Switch 1 whatsapp 86-18630852087
2 F23001400F密封垫圈 Sealing Washer 1
3 S50B080180 六角头螺栓 M8X18 Hex Screw M8X18 3
4 L913213600 端盖 Cover 1
5 Q310018012 轴用弹性挡圈 External Circlips 2
6 F306010019 O 型密封圈 O ring 1
7 L913702100 密封皮碗 Sealing Robber cup 1
8 L913212400 活塞 Piston 1
9 L913212200 气缸套 Cylinder Liner 1
10 L913700300 压力弹簧 Pressure Spring 1 whatsapp 86-18630852087
11 L913700700 间隔套 Spacer Sleeve 1
12 L913212600 气缸端垫圈 Cylinder End Gasket 1
13 L9138004K0 突缘螺母 M387X1.5 Flange Nut 1
14 L9030337K0 前输出突缘 Front Output Flange 1
15 FDR9011012 骨架油封 Skeleton Oil Seal 1
16 FSR9011012 骨架油封 Skeleton Oil Seal 1
17 L903113K0 前输出轴承盖 Front Output Bearing Cover 1
18 Z00092214E 滚柱轴承 Roller Bearing 1
19 Q300125000 孔用弹性挡圈 Internal Circlips 1 whatsapp 86-18630852087
20 L903025700 滑动齿套 Sliding Gear 1
21 L9030255K0 前输出轴 Front Output Shaft 1
22 B903045000 拔叉合件 Fork plate Units 1 whatsapp 86-18630852087
