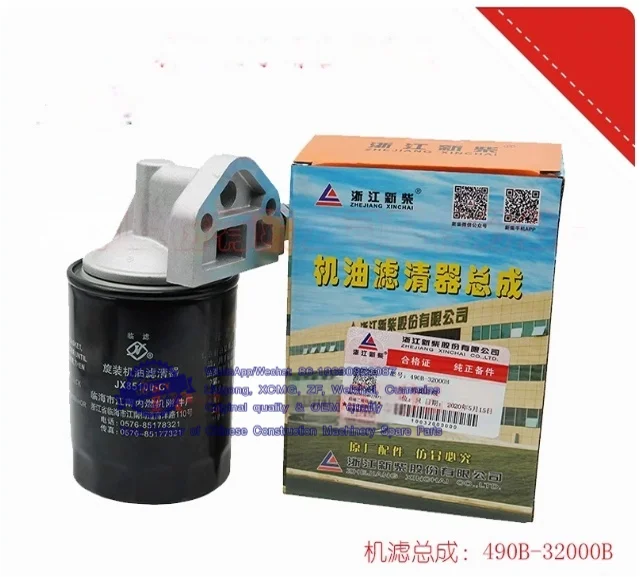

490B-32000B Oil Filter Assembly For Xinchai
机油滤清器、起动电机及充电发电机总成 Oil filter 、starting motor and charging generator assembly
序号No. 代 号Part No. 名 称Name 数量Q'ty 备注Remark
1 490B-32000B 机油滤清器 Oil filter 1
2 490B-53001-4 发电机撑架 Adjusting lever for generator 1
3 GB/T97 ·1-2002 平垫圈8 Washer 8 l
4 GB/T93-1987 弹簧垫圈8 Spring washer 8 l
5 GB/T5783-2000 六角头螺栓M8×25 Bolt M8×25 1
6 490B-51000 起动电机 Starting motor 1
7 GB/T5782-2000 六角头螺栓M10×80 Bolt M10×80 1
8 490B-52000 交流充电发电机 Charging generator 1
9 GB/T97 ·1-2002 平垫圈10 Washer 10 1
10 GB/T93-1987 弹簧垫圈10 Spring washer 10 l
11 GB/T6170-2000 六角螺母10 Nut 10 l
90系列柴油机易损件明细表List of wearing parts for 90 series diesel engines |
||||
| No. | 零 件 名 称 | Part Name | OE | Quantity per unit |
| 1 | 气门外弹簧 | Valve outer spring | 490B-03004 | 8 |
| 2 | 气门内弹簧 | Valve inner spring | 490B-03005 | 8 |
| 3 | 进气门/排气门 | Intake/exhaust valve | 490B-03014、490B-03015 | 4 |
| 4 | 气门夹锁 | Valve clamp lock | 490B-03006 | 16 |
| 5 | 上主轴瓦/下主轴瓦 | Upper/lower main bearing | 490B-01033/490B-01034 | 5 |
| 6 | 气缸盖垫片 | Cylinder head gasket | 490B-01004 | 1 |
| 7 | 油封王100×125×12 | Oil seal 100×125×12 | 1 | |
| 8 | 第一气环 | First air ring | 490B-04002 | 1 |
| 9 | 第二气环 | Second air ring | 490B-04003 | 1 |
10 |
组 合 油 环 总 成 | Combined oil ring assembly | 490B-04100 | 1 |
| 11 | 连 杆 轴 瓦 | Connecting rod bearing | 490B-04005 | 4 |
| 12 | 风 扇 皮 带 | Fan belt | 490B一4J001 | 1 |
| 13 | 机油滤清器部件 | Oil filter assembly | 490B-32000B | 1 |
| 14 | 柴油滤清器部件 | Diesel filter assembly | 490B-24000A | 1 |
| 5 | 喷油器 | Fuel injector | 菏泽PF68S07427、鑫亚PF68S125C、康达KD PF75S01427 | 4 |
| 6 | 气缸套 | Cylinder liner | 490B-01005 | 4 |
| 7 | 活塞 | Piston | 490B-04001 | 4 |
