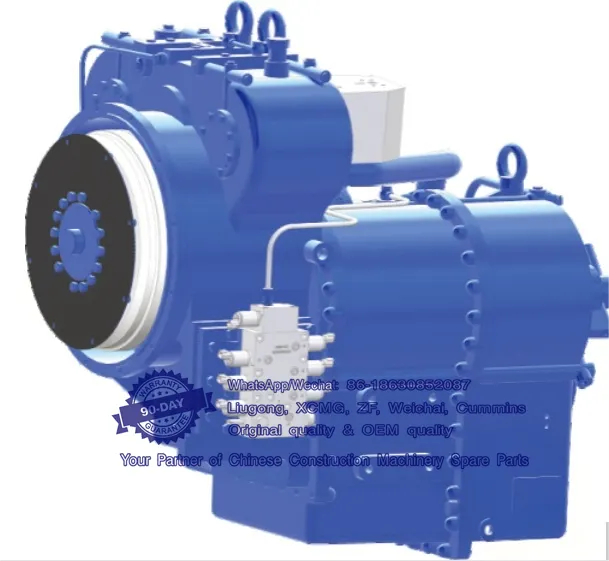

AYB300 Hydraulic Transmission
Product Introduction
The AYB300 hydraulic transmission is a fixed shaft multi-speed hydraulic transmission with dual variations, controlled by electro-hydraulic proportional control, achieving six forward and three reverse gear functions, with automatic shifting capabilities.
Main Technical Parameters
● Maximum engine power: 300kW
● Maximum engine speed: 2100r/min
● Maximum torque of the turbine: 2900N.m, with lock-up function
● Gears: 6 forward and 3 reverse, 4 forward and 3 reverse, 3 forward and 3 reverse
● Shifting method: Electro-hydraulic control
● Control method: Electro-hydraulic proportional control
● Output type: Flange, single output
● Torque converter: 375 torque converter
● Power take-off, PTO1 power take-off ratio -1, PTO2 power take-off ratio -1
Product Application
The AYB300 hydraulic transmission is used in engineering vehicles such as reach stacker and heavy forklifts.
