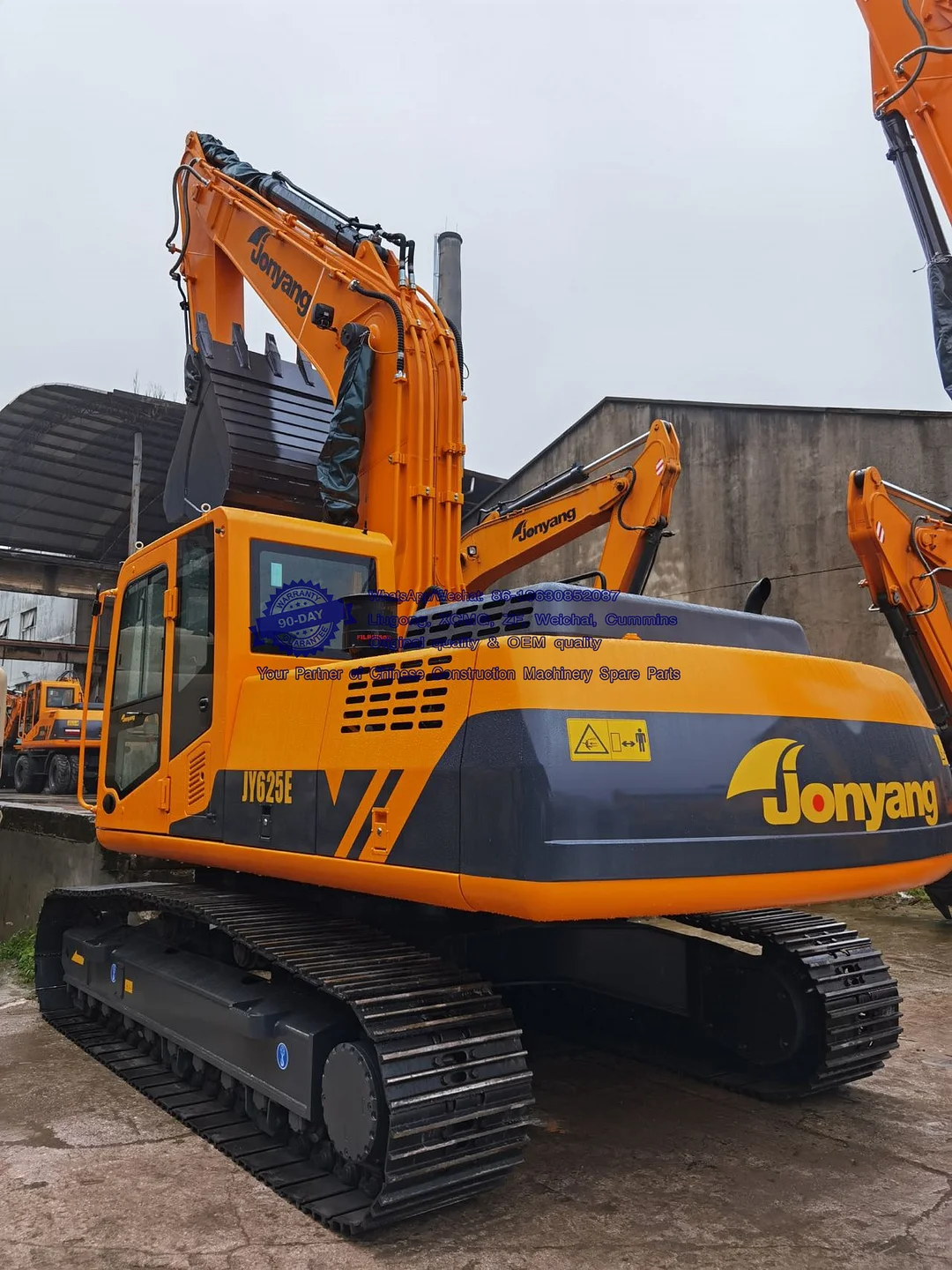

Brand New Jonyang 25 ton Excavator JY625E
| 主要技术参数 MAIN SPECIFICATIONS | ||
| 作业重量 Operating Weight(t) | 24.1 | 液压流量Hydraulic Flow Rate (Limin)2x224 |
| 标准斗容 Standard Bucket Capacity(m²) | 1.2 | 工作压力Hydraulic Pressure(Mpa)32 |
| 发动机厂商Diesel Engine Manufacturer | Cummins | 行走速度Travelling Sped(kmh) 2.6～4.6 |
| 发动机型号Engine Model | B5.9-0 | 爬坡能力Grade Clirbing Capacity (%)65 |
| 发动机功率Engine Power(kW) | 133 | 回转速度Slewing Speed (r/min) 13 |
| 铲斗挖掘力Bucket Digging Force(N)150 | ||
| 斗杆挖掘力Stick Digging Forca(KN)118 | ||
| 工作范围 OPERATING SCOPE | |
| 斗杆长度 Stick Length(mm) | 3000 |
| A 最大挖掘高度Maximum Cutting Height(mm) | 9600 |
| B 最大卸载高度Maximum Dumping Height(mm) | 6720 |
| c 最大挖掘深度Maximum Digging Depth(mm) | 6890 |
| D 最大挖掘半径Maximum Reach(mm) | 10130 |
| 外型尺寸 DIMENSIONS | ||
| A 总 长Overall Length(mm) | 9845 | |
| B 总 宽Overall Width(mm) | 3000 | |
| C 动臂高度Overall Height of Boom(mm) | 3300 | |
| D 司机室顶高度OverallHeight of Cab(mm) | 2930 | |
| E 机罩高Engine Cover Height(mm) | 2350 | |
| F 配重离地高度Counterweight Clearance(mm)1 | 1090 | |
| G 车底间隙Ground Clearance(mm) | 465 | |
| H 上车体宽度Upperstructure Widith(mm) | 2710 | |
| I 尾部旋转半径Rear-End Length/Swing Radius(mm) | 2990 | |
| J 履带长度OverallTrack Length(mm) | 4530 | |
| K 履带接地长度Track Length on ground(mm) | 3740 | |
| L 轨 距Gauge Width(mm) | 2400 | |
| M 履带板宽Track Width(mm) | 600 | |
| N 接地比压Ground Pressure(Mpa) | 0.049 | |
