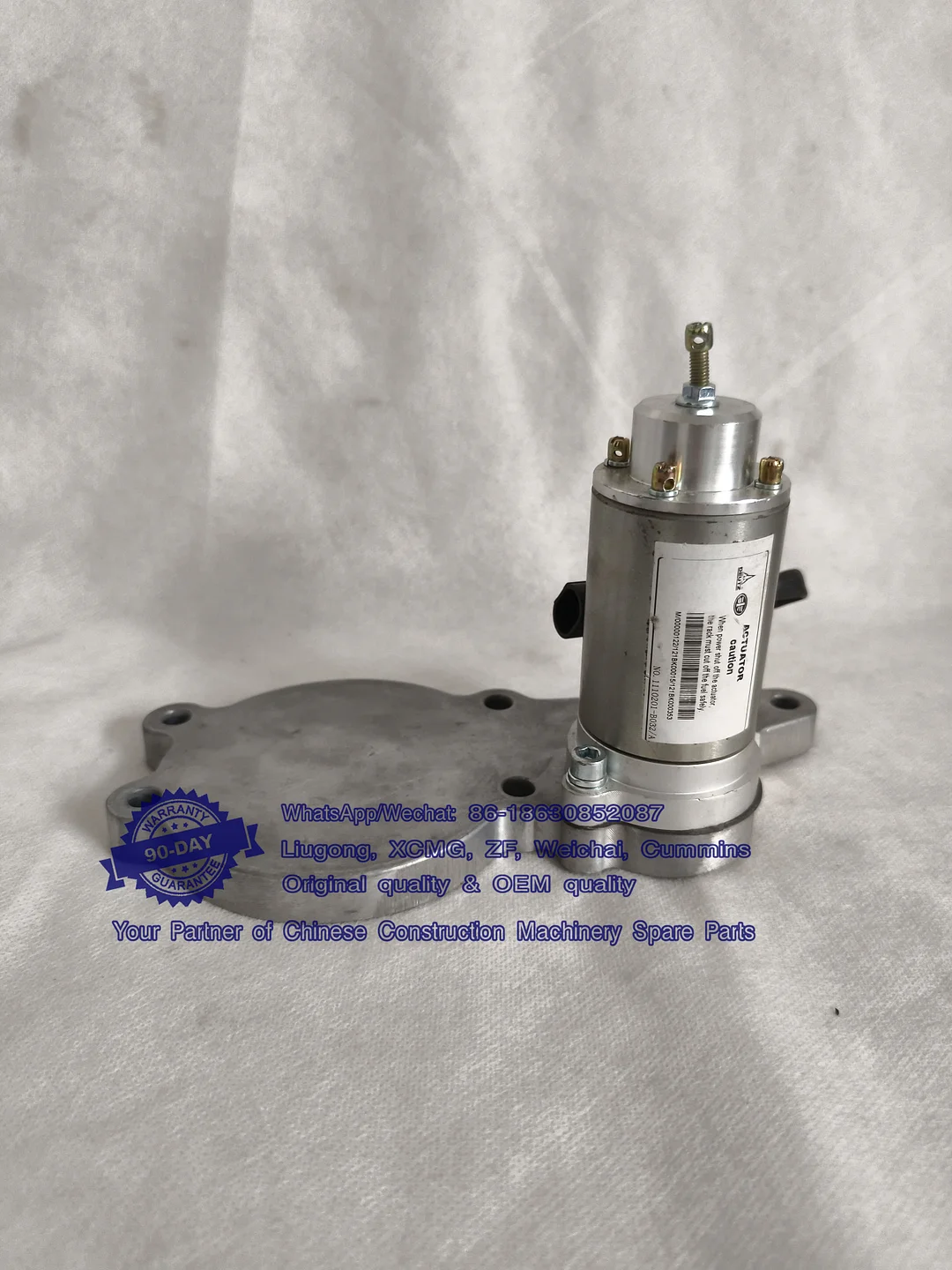

Dachai Deutz Engine Spare parts, Dalian Deutz Controller 11110201-B032/A
Product Specification:
Part Name: Dachai Deutz Engine Spare parts, Dalian Deutz Controller 11110201-B032/A
Part Number: 11110201-B032/A
Application Model: For Dachai Deutz Diesel engine
Shipping Weight: 2.0 KG
Condition: New
Country/Region of Manufacture: China
Number of Pieces: 1
Warranty: 3 Month
Fast Shipping: Dalian Deutz Controller 11110201-B032/A will be shipped out in 1-3 days by DHL/FEDEX/UPS and arrive in 6-8 working days
Fit for Dachai Deutz Diesel engine :
BF4M1013ECG1
BF4M1013ECG2
BF6M1013ECG2
BF4M2012CG2
Related Parts:
BF6M1013ECG2
Crankcase
| 05070165 | Oil filler neck 侧加机油口 |
1 | 1009619-52D | Hexagon bolt 六角头凸缘螺栓EN 1662 -F-M8X20-LG2,5- 10.9-ZNAL-A |
2 | ||
| 2 | B01178421 | Gasket 垫圈 |
1 | ||||
| 3 | 1003050-X2 | Filler cap 加机油口盖总成 |
1 | ||||
| 4 | 3407005-D392 | Oil filler neck 加机油管 |
1 | ||||
| 05070361 | Fastenings 紧固件 |
3 | 1011011-52D | Gasket 密封垫 |
1 | ||
| 4 | 1009626-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8*35-10.9- ZNAL-A |
14 | ||||
| 5 | D01181406 | Clamping bush 弹性圆柱销H 0234- B11*8-FE/ZN12C |
1 | ||||
| 05070470 | Piston cool.nozzle 活塞冷却喷嘴 |
1 | D04207521 | Piston cool.nozzle 活塞冷却喷嘴 |
6 | ||
| 05070491 | Guide tube 导管 |
1 | 1009061-52D | Guide tube 导管 |
1 | ||
| 05071054 | Pressurestat 调压阀 |
1 | 1011090-52D | Pressurestat 调压阀总成 |
1 | Incluce 2-5 | |
| 2 | 1011094-52D | Compression spring 调压阀弹簧 |
1 | ||||
| 3 | 1011091-52D | Valve plunger 柱塞 |
1 | ||||
| 4 | 1011093-52D | Sleeve 阀体 |
1 | ||||
| 5 | 1011092-52D | Ring 止推环 |
1 | ||||
| 05071275 | Crankcase breather 曲轴箱呼吸器 |
1 | F04255055 | Pressure regulator 油气分离器总成 |
1 | ||
| 2 | 1014621-52D | Gasket 垫圈 ISO 7092-6- 140HV-A4C |
1 | ||||
| 3 | CQ2180620TF32 | Hexagon bolt 内六角圆柱头螺钉 |
2 | ||||
| 4 | 1014016-52D | Rubber sleeve 橡胶软管（回油） |
1 | ||||
| 05072772 | Breather line 呼吸器支架 |
1 | CQ67635B | Spring band clamp 软管夹箍 |
3 | ||
| 5 | CQ34008TF36 | Hexagon nut 六角螺母 |
1 | ||||
| 6 | 1014622-30D | Pipe clamp 管夹 H 3223-C22X20- ST/MVQ -1-70 |
1 | ||||
| 7 | F04255414 | Bracket 支架 |
1 | ||||
| 8 | F04285555 | Pipe elbow 通风管 |
1 | ||||
| 9 | F04198572 | Bleeding tube 通风软管 |
1 | ||||
| 10 | 1009619-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X20-LG2,5- 10.9-ZNAL-A |
2 | Incluce 2 | |||
| 05074731 | Dipstick 机油标尺 |
1 | B01181382 | Dipstick 机油标尺 H 3535-AV - 247- 214X 18- 38 |
1 | ||
| 2 | O-seal 密封圈 |
1 | |||||
| 05078215 | Crankcase | 1 | 1002030-52D | Crankcase 气缸体总成 |
1 | ||
| 2 | 1002023-52D | Hexagon bolt 主轴承螺栓 |
14 | ||||
| 3 | 1002024-52D | Bush 主轴承盖定位套 |
14 | ||||
| 4 | 1002626-52D | Screw plug 螺塞DIN 908- M14X1,5-ST-ZNPHRF |
2 | ||||
| 5 | 1104617-52D | Sealing ring 密封垫DIN 7603- A14X20-CU |
4 | ||||
| 6 | B01180890 | Screw plug 螺塞H 2812-906- M30X1,5-ST-A3C- LOCTITE 5061 |
1 | ||||
| 7 | Screw plug 螺塞H 2812-906- M22X1,5-ST-A3C- LOCTITE 5061 |
1 | |||||
| 8 | D01182031 | Screw plug 螺塞H 2812-906- M14X1,5-ST-A3C- LOCTITE 5061 |
2 | ||||
| 曲轴箱 | 10 | 1006024A52D | Bearing bush 凸轮轴衬套 |
6 | |||
| 11 | 1006028A52D | Bearing bush 凸轮轴衬套（飞轮端） |
1 | ||||
| 12 | 1002623-52D | Core hole plug 碗形塞片H2860-A45- ST-FE/ZNPHR |
10 | ||||
| 14 | 1002622-52D | Screw plug 螺塞DIN 7604- AM14X1,5-ST-A4C |
2 | ||||
| 15 | 1110076-52D | Guide sleeve 导套 |
1 | ||||
| 17 | 1110078-52D | Guide sleeve 导套 |
1 | ||||
| 18 | 3808611-52D | Screw plug 螺塞DIN 7604- AM26*1.5-ST-ZNAL-A 螺旋塞 |
1 | ||||
| 19 | 1002016B52D | Cylinder liner 气缸套总成 |
6 | ||||
| 20 | D01181178 | O-seal O型橡胶密封圈-气缸套 H 2927-112X3,0-FPM- |
12 | ||||
| 05111146 | Front cover 机壳前盖 |
1 | 1011015A52D | Front cover 前盖总成 |
1 | ||
| 2 | 1005090-52D | Rot.shaft lip seal 前油封 |
1 | ||||
| 05074579 | Oil pan 油底壳 |
1 | D04256245 | Oil pan 油底壳 |
1 | ||
| 2 | 1009613-30D | Screw plug 螺塞DIN 910 - M18X1,5-ST-A4C |
2 | ||||
| 3 | 1009612-30D | Sealing ring 密封垫DIN 7603 - A18X24-CU |
2 | ||||
| 4 | 3509646-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X16-LG2,5- |
34 | ||||
| 5 | Gasket 垫片 |
1 | |||||
Crankshaft
| Flywheel | 1 | F04206794 | Flywheel 飞轮齿环总成 |
1 | |||
| 飞轮 | 2 | 1005117-52D | Gear rim 齿环—飞轮 |
1 | |||
| 05072759 | Plug 堵盖 |
1 | 1005666-52D | Plug 堵盖SH H 2873-1- A 10.8X8X17-SW-PE WEICH-SW |
5 | ||
| 05074458 | Vibration damper 减振器 |
1 | 1005040-52D | Vibration damper 减振器 |
1 | ||
| 05074499 | V-belt pulley assy 曲轴皮带轮 |
1 | 1005046-D392 | V-grooved pulley 皮带轮 |
1 | ||
| 2 | 1005037-52D | Torx-head bolt 螺栓—皮带轮过渡法兰 |
4 | ||||
| 3 | D01181404 | Clamping bush 定位套 H 2341- B18X24-FE/ZN12C* |
1 | ||||
| 05074521 | Fastenings 紧固件 |
1 | 1005121-30D | Hexagon bolt 飞轮螺栓 |
10 | ||
| 05076058 | Hexagon bolt 螺栓 |
1 | 1005639-30D | Hexagon bolt 六角头凸缘螺栓M10× |
9 | ||
| 05111138 | Crankshaft 曲轴 |
1 | 1005020-52D/P | Crankshaft 曲轴 |
1 | ||
| 2 | 1005081-52D | Main bearing 主轴瓦 |
7 | ||||
| 3 | 1005086-52D up 1005087-52D down |
Thrust washer 止推瓦 |
2 | ||||
Connecting rod
| 05070354 | Connecting rod 连杆 |
1 | 1004901-52D | Connecting rod 连杆总成 |
6 | Incluce 2-3 | |
| 2 | D04200024 | Big end bush 连杆小头衬套 |
6 | ||||
| 3 | D04200468 | Big end bolt 连杆螺栓 |
12 | ||||
| 5 | 1004058-52D up 1004059-52D down |
Big end bearing 上/下连杆轴瓦 |
6 | ||||
| 05074760 | Piston 活塞 |
1 | 1004902A52D | Piston 活塞 |
6 | ||
| 2 | 1004021-52D | Piston pin 活塞销 |
6 | ||||
| 3 | 1004628-52D | Circlip 孔用弹性挡圈DIN 472- 42X1.75 |
12 | ||||
| 4 | 1004025C52D | Set of pist. Rings 活塞环组 |
6 | ||||
Cylinder head
| 05070356 | Fastenings 紧固件 |
1 | 1003036-52D | Cylinder head bolt 气缸盖螺栓 |
26 | ||
| 2 | 1003090C52D | Cylind.head gasket 气缸垫总成 |
1 | ||||
| 3 | 1003090A52D | Cylind.head gasket 气缸垫总成 |
1 | ||||
| 4 | 1003090B52D | Cylind.head gasket 气缸垫总成 |
1 | ||||
| 5 | D01181403 | Clamping bush 弹性圆柱销H 2341- B18X18-FE/ZN12C |
2 | ||||
| 05071271 | Valve mechan.cover 气缸盖罩盖 |
1 | 1003045-52D | Valve mechan.cover 气缸盖罩盖总成 |
1 | ||
| 2 | 1003042A52D | Gasket 密封垫—气缸盖罩盖 |
1 | ||||
| 3 | 1003050-52D | Filler cap 加机油口盖总成 |
1 | ||||
| 4 | 1003631-52D | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M6X95-10.9- |
13 | ||||
| 05072660 | Engine mounting 前吊耳 |
1 | F04256309 | Base plate 前吊耳 |
1 | ||
| 2 | 1023614-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M10X25-10.9- |
3 | ||||
| 05074490 | Blanking parts 密封件 |
4 | 1013633-52D | Sealing ring 密封垫7603-A26*31-CU |
1 | ||
| 5 | 3808611-52D | Screw plug 螺塞DIN 7604- AM26X1,5-ST- A4C |
1 | ||||
0507 7031 |
Cylinder head 气缸盖 |
1 | 1003020A52D/P | Cylinder head 气缸盖分总成－带气门 导管 |
1 | ||
| 2 | 1002620-52D | Core hole plug 碗形塞片H2860-A36- ST-FE/ZNPHR |
5 | ||||
| 5 | 1003621-52D | Core hole plug 碗形塞片H711-820 |
5 | ||||
| 6 | D12164698 | Valve collet 气门锁块 |
24 | ||||
| 7 | 1007022-52D | Valv.spring retain 气门弹簧座 |
12 | ||||
| 8 | 1007021-52D | Compression spring 气门弹簧 |
12 | ||||
| 9 | D01153857 | O-seal 密封圈-气门杆H2927- 9*1.5-FPM-1-82 |
12 | ||||
| 10 | 1007032-52D | Valve guide 气门导管 |
12 | ||||
| 11 | 1007081-52D | Valve seat insert 进气门座 |
6 | ||||
| 12 | 1007011A52D | Inlet valve 进气门 |
6 | ||||
| 13 | 1007012A52D | Exhaust valve 排气门 |
6 | ||||
| 14 | 1007082A52D | Valve seat insert 排气门座 |
6 | ||||
Timing chest
| 05113110 | Gearcase 齿轮室 |
1 | 1002050-D142 | Gearcase 齿轮室罩盖及后油封总 |
1 | ||
| 2 | 1009626-52D | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M8X35-10.9- |
12 | ||||
| 3 | 1010627-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X55-10.9- ZNAL-A |
1 | ||||
| 4 | 1005105-52D | Rot.shaft lip seal 曲轴后油封总成 |
1 | ||||
| 5 | CQ1501660TF36 | Hexagon bolt 六角头导颈螺栓ISO 4017-M16X60-10.9- ZNAL-A |
2 | ||||
| 6 | 1002649-52D | Plain washer 垫圈GB 97.1-16-200HV |
2 | ||||
| 11 | 1002653-52D | Set screw 内六角平端紧定螺钉 GB77-M6x10-45H |
1 | ||||
Camshaft
| 05111153 | Camshaft 凸轮轴 |
1 | 1006010-52D/P | Camshaft 凸轮轴 |
1 | 1006010- 52D/P |
|
Timing gears
| 05072977 | Valve drive 气门驱动 |
1 | 1007050-52D | Pushrod 推杆总成 |
12 | ||
| 2 | 1007061-52D | Tappet 挺柱 |
12 | ||||
| 2 | 1007120-52D | Rocker arm bracket 摇臂座 |
5 | Incluce 4-8 | |||
| 4 | Rocker arm 摇臂 |
||||||
| 6 | Circlip 卡簧 |
||||||
0511 1819 |
Rocker arm bracket 摇臂总成 |
7 | Adjusting screw 调整螺柱 |
||||
| 8 | Hexagon nut 六角螺母 |
||||||
| 9 | 1307629-52D | Hexagon bolt 六角凸缘螺栓EN 1662- F-M8X75-10.9-ZNAL-A |
10 | ||||
| 05111820 | Rocker arm bracket 摇臂总成 |
1 | 1007110-52D | Rocker arm bracket 摇臂座 |
1 | Incluce |
| 4 | Rocker arm 摇臂 |
|||||
| 6 | Circlip 卡簧 |
|||||
| 7 | Adjusting screw 调整螺柱 |
|||||
| 8 | Hexagon nut 六角螺母 |
|||||
| 9 | 1307629-52D | Hexagon bolt 六角凸缘螺栓EN 1662- F-M8X75-10.9-ZNAL-A |
2 |
| 05111821 | Rocker arm bracket 摇臂总成 |
3 | 1007130-52D | Rocker arm bracket 摇臂座 |
1 | Incluce |
| 4 | Rocker arm 摇臂 |
1 | ||||
| 6 | Circlip 卡簧 |
1 | ||||
| 7 | Adjusting screw 调整螺柱 |
1 | ||||
| 8 | Hexagon nut 六角螺母 |
1 | ||||
| 9 | 1307629-52D | Hexagon bolt 六角凸缘螺栓EN 1662- F-M8X75-10.9-ZNAL-A |
2 |
Lube oil/-cooler
| 05070072 | Blanking parts 密封件 |
1 | 1013617-52D | Screw plug 螺塞H 2812-908- M18X1.5-ST-A4C-PRE80 |
1 | ||
| 2 | 1013621-52D | Sealing ring 密封垫DIN 7603- A18X22-CU |
1 | ||||
0507 2108 |
Fastenings 紧固件 |
1 | 1013619-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8*35-10.9- ZNAL-A |
10 | ||
| 2 | 1013013A52D | Gasket 密封垫—机油冷却器盖 板 |
1 | ||||
| 3 | 1013616-52D | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M8X50-10.9- |
3 | ||||
| 05111122 | Spin-on filter 机油滤清器总成 |
1 | 1012010-D349 | Spin-on oil filter 机油滤清器总成 |
1 | ||
| 05077038 | Oil cooler box 机油冷却器总成 |
1 | 1013015A52D | Oil cooler box 机油冷却器壳体总成 |
1 | Incluce 2- 17 |
|
| 2 | 1013025A52D | Collar screw 螺塞 |
2 | ||||
| 3 | 1013627-52D | Screw plug 螺塞DIN 908-M33X2- ST-A4C |
2 | ||||
| 4 | 1013628-52D | O-seal 密封圈H 2927- 32 X 2,5 -FPM-1-60 |
2 | ||||
| 5 | 1013043A52D | Screwed bush 螺 纹套（滤清器接头） |
1 | ||||
| 8 | 1013629-52D | Sealing ring 密封圈H 2914- CM26X1,5-PTFE- |
2 | ||||
| 13 | 1013035A52D | Oil cooler 机油冷却器总成 |
1 | ||||
| 17 | 1013632A52D | Screw plug 螺塞DIN 908-M26X1,5- ST-A4C |
1 | ||||
| 18 | 3509634-52D | Sealing ring 密封垫DIN7603- |
2 | ||||
| 20 | 1013633-52D | Sealing ring 密封垫DIN 7603- A26X31-CU |
2 | ||||
Oil pipes
| 05076289 | Oil suction pipe 机油收集器总成 |
1 | F04256591 | Oil suction pipe 机油收集器总成 |
1 | ||
| 2 | Q1840825TF36 | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M8X25-10.9- |
2 | ||||
| 3 | 3509646-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X16-LG2,5- |
2 | ||||
| 4 | 1010018-52D | Gasket 密封垫-机油收集器 |
1 | ||||
Injection pump
| 05070528 | Roller tappet 单体泵挺柱 |
1 | 1111020-52D | Roller tappet 单体泵挺柱总成 |
6 | ||
| 1 | 1111012A52D | Flange 喷油泵固定法兰 |
6 | ||||
0507 4763 |
Fastenings 紧固件 |
2 | D01181763 | Collar screw 喷油泵固定螺栓 |
12 | ||
| 3 | 1111051-52D | Shim 调整垫—喷油泵 |
1 | ||||
| 05076222 | Fuel inject. Pump 单体泵 |
1 | 1111010A52D | Fuel inject. Pump 单体泵总成 |
6 | Incluce 10- 15 |
|
| 10 | O-ring 密封圈 |
3 | |||||
| 15 | Shim 调整垫—喷油泵 |
2 | |||||
Injector
| 05070352 | Fastenings 紧固件 |
1 | 1112014-52D | Claw 喷油器压板 |
12 | ||
| 2 | 1112619-52D | Torx-head bolt 六角梅花凸缘螺栓H 2032-HBM8*50-10.9- |
6 | ||||
| 3 | 1112012-52D | Sealing ring 喷油器垫 |
6 | ||||
| 05077217 | Fuel injector 喷油器 |
1 | D02112957 | Fuel injector 喷油器总成 |
6 | Incluce 6 | |
| 6 | Nozzle element 喷油嘴 |
6 | |||||
| Fuel filter | |||||||
| 05071031 | Fastenings 紧固件 |
1 | 1009619-52D | Hexagon bolt 六角头导颈螺栓ISO 4017-M8*20-8.8-ZNAL- |
2 | ||
| 2 | 1106609-52D | Plain washer 平垫圈ISO |
1 | ||||
| 05071218 | Fuel supply pump 燃油输油泵 |
1 | F02113812 | Fuel pump 燃油输油泵总成（带皮 带轮） |
1 | ||
| 2 | 1106252-30D | Clamping strap 连接板—燃油输油泵 |
1 | ||||
| 3 | Q1840825TF36 | Cheese head screw 六角头凸缘螺栓EN 1662-F-M8*35-10.9- ZNAL-A |
2 | ||||
| 05072976 | Supply pump 手油泵总成 |
1 | F02111961 | Supply pump 手油泵总成 |
1 | ||
| 2 | 1117042-D727 | Hose connector 接头-手油泵 |
1 | ||||
| 3 | 1013621-52D | Sealing ring 密封圈 |
1 | ||||
| 1 | D02113159 | Fuel filter 燃油滤清器总成 |
1 | ||||
| 05078200 | Fuel prefilter 燃油粗滤 |
2 | B01148898 | Sealing ring 密封垫 DIN 7603-D 16 X 20 -CU-VERZINNT |
1 | ||
| 3 | B01180329 | Hose connector 输油泵进油接头H 3452-E12/M16X1,5 |
3 | ||||
| 4 | 01340130 | Filter insert 滤芯 |
1 | ||||
| 05111121 | Fuel filter 燃油滤清器 |
1 | 1117050-D220 | Spin-on fuel filt 燃油滤清器滤芯总成 |
1 | ||
| Fuel pipes/fuel tank | |||||||
| 05071985 | Fuel line 燃油管 |
1 | 1104030-D392 | Hose 输油泵出油软管总成 |
1 | ||
| 2 | CQ67616 | Hose clip B14H+管箍15X9 |
3 | ||||
| 3 | 3509644-52D | Sealing ring 密封垫DIN 7603- A14*18-CU |
3 | ||||
| 4 | B02111345 | Hose nipple 燃油管接头 H 3452- G10/M14X1,5 |
2 | ||||
| 5 | F04282148 | Fuel line 燃油滤出油管总成 |
1 | ||||
| 6 | 1104647-52D | Hollow screw 空心螺栓H 3102-E10M- ST-A4C |
1 | ||||
| 7 | 1104048-52D | Sealing ring 密封垫-缸体进油接头 |
1 | ||||
| 8 | 1307639-52D | Sealing ring B14H+密封垫DIN 7603- A16X20-CU |
1 | ||||
| 9 | Hose sleeve | 1 | |||||
| 10 | 3701641-52D | Hexagon nut 六角薄螺 母,GB6173M16x1.5 |
1 | ||||
| 11 | D02111675 | Hose retainer 管夹 |
1 | ||||
| 12 | 1104043-D392 | Corrugated tube 保护套管 |
1 | ||||
| 05072637 | High pressure pipe 高压油管 |
1 | 1129010-52D | High pressure pipe 高压油管总成 |
6 | ||
| 1 | 1104617-52D | Sealing ring 密封垫DIN 7603- A14*20-CU |
2 | ||||
| 5 | 1104065-52D | Pressurestat 回油阀 |
1 | ||||
0507 7029 |
Back leak.connect 回油接头 |
6 | 1104656-30D | Hose fitting B14Q+软管环行件 |
1 | ||
| 8 | 1129016-52D | Rubber seal 密封橡胶套 |
6 | ||||
| 9 | 1003613-56D | Plug 堵盖 H 2873-A 8,3X 6 X16 -PE WEICH-SW |
6 | ||||
| Suction pipe/air cleaner | |||||||
| 05068290 | Maint indicator 压差指示器 |
1 | 1109370-D392 | Maint indicator 压差指示器 |
1 | ||
| 05070495 | Cover 进气歧管盖板 |
1 | 1008038-30D | Cover 进气歧管盖板 |
1 | ||
| 2 | 3509646-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X16-LG2,5- 10.9 |
4 | ||||
| 3 | 1008037-52D | Gasket 密封垫—进气歧管盖板 |
1 | ||||
| 05070599 | Air elbow 进气接管 |
1 | 1008026A52D | Gasket 密封垫—进气接管 |
1 | ||
| 2 | 1008627-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M6*25-10.9- ZNAL-A |
2 | ||||
| 3 | 1008023-52D | Air elbow 进气接管 |
1 | ||||
| 4 | 1003631-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M6*95-10.9- ZNAL-A |
2 | ||||
0507 1004 |
Fastenings 紧固件 |
3 | 1008016-52D | Gasket 密封片—进气歧管 |
3 | ||
| 4 | 1003631-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M6*95-10.9- ZNAL-A |
12 | ||||
| 5 | 1008037-52D | Gasket 密封垫—进气歧管盖板 |
1 | ||||
| 6 | 1008639-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M6*30-10.9- ZNAL-A |
4 | ||||
| 7 | 1002626-52D | Screw plug 螺塞DIN 908-M14X1,5- ST-ZNPHRF |
1 | ||||
| 8 | 3509644-52D | Sealing ring 密封垫DIN 7603- A14*18-CU |
1 | ||||
| 9 | 1118611-52D | Screw plug 螺塞DIN 910-M10*1- ST-ZNAL-A |
1 | ||||
| 10 | 3509643-52D | Sealing ring 密封垫DIN 7603- A10*13.5-CU |
1 | ||||
| 05071854 | Plug 连接管 |
1 | F04207659 | Plug 连接管 |
1 | ||
| 2 | 1118696-52D | O-seal 密封圈 50×6 |
2 | ||||
| 05072654 | Bracket 滤清器支架总成 |
1 | X1109215-1013 | Bracket 滤清器支架总成 |
1 | ||
| 2 | 1023614-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M10X25-10.9- |
3 | ||||
| 05072667 | Air filter 空气滤清器总成 |
1 | X01181335 | Air cleaner 空气滤清器总成 |
1 | ||
| 3 | Q1840835TF36 | Hexagon bolt 1+六角头凸缘螺栓 |
2 | ||||
| 4 | 1106609-52D | Plain washer B14Q+平垫圈,ISO 7349-8.4-ST-A4C |
2 | ||||
| 5 | CQ34008TF36 | Hexagon nut 六角螺母M8 |
2 | ||||
| 6 | X01181003 | Filter insert 滤芯 |
1 | ||||
| 05072669 | Cooling air baffle 隔热罩 |
1 | F04255504 | Cooling air baffle 隔热罩 |
1 | ||
| 2 | Q1840825TF36 | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M8X25-10.9- |
3 | ||||
| 05078185 | Intake pipe/manif. 增压器进气管总成 |
1 | D04284166 | Intake pipe/manif. 增压器进气管总成 |
1 | ||
| 4 | CQ676100B | Hose clip B14K+ 软管管箍100X13 |
1 | ||||
| 5 | CQ676130B | Hose clip B14K+ 软管管箍130X13 |
1 | ||||
| 05078445 | Charge air pipe 进气歧管 |
1 | 1008019-52D | Charge air pipe 进气歧管后段 |
1 | ||
| 05078446 | Charge air pipe 进气歧管 |
1 | 1008018-30D | Charge air pipe 进气歧管前段 |
1 | ||
| Speed control | |||||||
| 05070040 | Fastenings 紧固件 |
1 | 1110616-52D | Torx-head bolt 六角梅花凸缘螺栓DIN 34800-HBM8*150-10.9- ZNAL-A |
4 | ||
| 2 | 1110614-52D | Torx-head bolt 六角梅花凸缘螺栓DIN 34800-HBM8*55-10.9- ZNAL-A |
1 | ||||
| 4 | D02112402 | Locking screw 固定螺栓 |
1 | ||||
| 05071422 | Controller 调速器 |
1 | 11110201-B032/A | Controller 调速器 |
1 | 24V | |
| 2 | 1110100-B032/A | Governor 控制器 |
1 | ||||
| 05071941 | Blanking parts 密封件 |
1 | 1118611-52D | Screw plug 螺塞DIN 910-M10*1- ST-ZNAL-A |
1 | ||
| 2 | 3509643-52D | Sealing ring 密封垫DIN 7603- A10*13.5-CU |
1 | ||||
| 05072394 | Fastenings 紧固件 |
1 | D02112401 | Locking screw 固定螺栓 |
4 | ||
| 05072401 | Control rod 喷油泵尺条 |
1 | D02112512 | Control rod 喷油泵尺条合件 |
1 | ||
| 6 | 1110658-52D | Hexagon bolt 六角头凸缘螺栓H 2091-1662-F-M8*20- LG2.5-10,.9 |
1 | ||||
| 05074540 | Idler gear 中间齿轮 |
1 | 1006045-52D | Toothed gear 中间齿轮总成 |
1 | ||
| 2 | CQ1500835TF36Q | Hexagon bolt 六角头导颈螺栓ISO 4017-M8*35-10.9- ZNAL-A |
1 | ||||
| 3 | 1006042-52D | Journal 中间齿轮轴 |
1 | ||||
| Water cooler | |||||||
| 2 | D04284911 | Cooling system 水箱中冷器总成 |
1 | Incluce 4- 43 |
|||
| 4 | Fan cowling 导风罩 |
1 | |||||
| 5 | Charge air cooler 中冷器 |
1 | |||||
| 41 | Cover 水箱盖 |
1 | |||||
| 42 | Screw plug 螺塞 |
1 | |||||
| 05072773 | Cooling system 冷却系统 |
43 | Sealing ring 密封垫DIN 7603- A14X20-CU |
1 | |||
| 7 | F04256308 | Base plate 支架 |
1 | ||||
| 8 | F04253659 | Radiator brace 水箱支架 |
1 | ||||
| 10 | CQ1501230TF36 | Hexagon bolt 六角头导颈螺栓 |
4 | ||||
| 13 | 1023614-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M10X25-10.9- ZNAL |
2 | ||||
| 14 | CQ34010TF36 | Hexagon nut 六角螺母 |
6 | ||||
| 15 | CQ1501016TF36 | Hexagon bolt 六角头螺栓 |
2 | ||||
| 16 | F04253674 | Bracket 水箱托架总成 |
1 | ||||
| 17 | B01180985 | Mount 软垫 H 7179-A 50X 20-M10 -DEUTZ NR 55* |
3 | ||||
| 18 | CQ34010TF36 | Hexagon nut 六角螺母 |
3 | ||||
| 21 | 3509646-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X16-LG2,5- 10.9 |
15 | ||||
| 22 | Q40110 | Plain washer 垫圈 DIN 125- 10,5- 140HV-A4C |
2 | ||||
| 23 | Q40110 | Plain washer 垫圈 H 2301-A 10,5X25X2,5-140HV- |
6 | ||||
| 31 | F04253597 | Fuse-element 软垫固定支架 |
3 | ||||
| 05111322 | Grille/grid 防护罩 |
1 | D04298239 | Grille/grid 防护罩 |
1 | ||
| 2 | D04253658 | Grille/grid 防护罩 |
1 | ||||
| 3 | D04253657 | Grille/grid 防护罩 |
1 | ||||
| Cooling water pump | |||||||
| 2 | 1303016-30D | Plug 连接管 |
1 | ||||
| 05071078 | Fastenings 紧固件 |
3 | 1303617-30D | O-seal 密封圈H2927 -48X5.3- EPDM-6-70 |
2 | ||
| 4 | 1009626-52D | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M8X35-10.9- |
9 | ||||
| 5 | B01180060 | O-seal 密封圈 H 2927- 80 X 3 -EPDM-6-70 |
1 | ||||
| 6 | 1307014-30D | Flat gasket 密封垫-水泵 |
1 | ||||
| 05072972 | Narrow v-belt 齿形三角带 |
1 | D01182054 | Narrow v-belt 齿形三角带H 3710-AVX 13X1200LA |
1 | ||
| 05078493 | Coolant pump 水泵 |
1 | F04283173 | Coolant pump 水泵 |
1 | ||
| 05111172 | V-grooved pulley 水泵皮带轮 |
1 | D04208470 | V-grooved pulley v形皮带轮 |
1 | ||
| Water pipes | |||||||
| 05070459 | Thermostat 调温器 |
1 | 1303020-D392 | Thermostat 调温器及座总成 |
1 | Incluce 2 | |
| 2 | Insert/element | 1 | |||||
| 05070462 | Vent plug 放气螺栓 |
1 | 1307016-52D | Vent plug 放气螺栓 |
1 | ||
| 2 | 3509643-52D | Sealing ring 密封垫DIN 7603- A10X13.5-CU |
1 | ||||
| 05071073 | Connection 连接件 |
1 | 1307041-52D | Hose connector 接头 |
1 | ||
| 2 | 1307639-52D | Sealing ring 密封垫DIN 7603- A16*20-W |
1 | ||||
| 05071252 | Breather line 除气管 |
1 | 1303050-D003 | Breather line 除气管总成 |
1 | ||
| 4 | 1303631-30D | Pipe clamp 管夹 |
3 | ||||
| 5 | 3724617-30D | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M6X12 |
3 | ||||
| 11 | 3509641-52D | Hollow screw 空心螺栓DIN 7643-6- 4-A4C |
1 | ||||
| 12 | 3509643-52D | Sealing ring 密封垫DIN 7603- A10X13.5-CU |
2 | ||||
| Coolant pipe | 1 | F04208870 | Coolant pipe 水箱进水管 |
1 | |||
| 水箱进水管 | 3 | CQ67670B | Hose clip B14H+蜗杆传动式软管 |
2 | |||
| 05072259 | Coolant pipe 水箱出水管 |
1 | F04209215 | Coolant pipe 水箱出水管 |
1 | ||
| 3 | CQ67670B | Hose clip B14H+蜗杆传动式软管 |
2 | ||||
| 05072260 | Balancing line 膨胀水箱出水管 |
1 | F04209214 | Balancing line 膨胀水箱出水管 |
1 | ||
| 3 | CQ67635B | Spring band clamp B14K+弹簧箍29X15 |
2 | ||||
| 05072739 | Breather line 除气软管 |
1 | CQ67625 | Hose clip B14K+ 软管管箍22X9 |
2 | ||
| 3 | B01404902 | Hose 除气管 DIN 73411- A- 10X3,5X 880 |
1 | ||||
| 05074487 | Fastenings 紧固件 |
2 | 1013616-52D | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M8X50-10.9- |
3 | ||
| 4 | 1303018-52D | Gasket 密封垫-出水管 |
1 | ||||
| 05074496 | Manifold 出水管 |
1 | F04256147 | Water collect.pipe 出水管 |
1 | ||
| Cooling air blower | |||||||
| 05072221 | Fan drive 风扇驱动 |
1 | 1308012-D301 | Adapter 连接盘－风扇 |
1 | ||
| 2 | 3509639-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X30-10.9- ZNAL-A |
4 | ||||
| 3 | Q1840840TF36 | Hexagon bolt 六角头螺栓 |
4 | ||||
| 4 | 1308013-D392 | Extension 垫块-风扇总成 |
1 | ||||
| 05072360 | Fan 风扇 |
1 | D04209191 | Forced-draft fan 风扇总成 |
1 | ||
| Exhaust manifold | |||||||
| 05070507 | Companion flange 排气法兰 |
1 | F04204571 | Flange 排气法兰 |
1 | ||
| 2 | 1118043-D392 | Gasket 垫片-排气总管 |
1 | ||||
| 3 | F04285660 | Hexagon bolt 螺栓 |
4 | ||||
| 1 | 1008073-52D | Spacer sleeve 防松套 |
12 | ||||
| 2 | 1008044A52D | Gasket 密封垫－排气歧管 |
1 | ||||
| 05800028 | Exhaust pipe 排气歧管 |
3 | D02143324 | Stud 双头螺柱 |
12 | ||
| 4 | 1008046-52D | Hexagon nut 六角螺母-排气歧管 |
12 | ||||
| 5 | 1008063A52D | Plain washer 平垫－排气歧管 |
12 | ||||
| 6 | 1118013A52D | Gasket 增压器密封垫 |
1 | ||||
| 7 | D01143285 | Stud 双头螺柱DIN 939- M10X25-21CRMOV57V- |
4 | ||||
| 8 | 1118633-52D | Hexagon nut 六角螺母 M10 |
4 | ||||
| 9 | D01182258 | Grooved-ring L++ 波型密封环 |
1 | ||||
| 10 | D01182257 | Grooved-ring L++ 波型密封环 |
5 | ||||
| 11 | 1008047-D003 | Exhaust pipe 排气歧管前段 |
1 | ||||
| 12 | 1008048-D003 | Exhaust pipe 排气歧管后段 |
1 | ||||
| Turbocharger | |||||||
| 05070056 | Blanking parts 密封件 |
1 | 1118641-52D | Screw plug 螺塞DIN 910-M14X1,5- ST-A4C |
1 | 24V | |
| 2 | 3509644-52D | Sealing ring B14G+密封垫DIN 7603- A14X18-CU |
1 | 24V | |||
| 05071593 | Return line 回油管 |
1 | 1118080-D003 | Return line 增压器回油管（下） |
1 | ||
| 2 | 1118075-D003 | Plug-in flange 增压器回油管总成 （上） |
1 | ||||
| 3 | 1118684-52D | O-seal 密封圈 21.8×3.5 |
2 | ||||
| 4 | 1118083-52D | Gasket 密封垫 |
1 | ||||
| 5 | 1009619-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X20-LG2,5- 10.9 |
2 | ||||
| 6 | 1118051-30D | Retainer 增压器回油管定位钩 |
1 | ||||
| 7 | 3509646-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X16-LG2,5- 10.9 |
1 | ||||
| 05074940 | Blanking parts 密封件 |
1 | 1118605-52D | Cover 碗形塞片H 2860-A28- ST-FE/ZNPHR |
1 | ||
| 05077116 | Lubricat. oil line 增压器进油管总成 |
1 | 1118060-D003 | Lubricat. oil line 增压器进油管总成 |
1 | ||
| 2 | 3509642-52D | Hollow screw 空心螺栓H 3102-D10M- ST-ZNAL-A |
2 | ||||
| 3 | 3509644-52D | Sealing ring 密封垫DIN 7603- A14*18-CU |
4 | ||||
| 05077187 | Turbocharger 增压器 |
1 | D04259315 | Turbocharger 增压器总成 |
1 | ||
| Alternator/starter motor | |||||||
| 05070157 | Fastenings 紧固件 |
1 | 1308626-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M10*38-10.9- ZNAL-A |
3 | ||
| 05070508 | Narrow v-belt 齿形三角带H 3710- AV*10*1200LA-WA |
1 | B01182053 | Narrow v-belt 汽车V带 H 3710-AVX 10X1025LA-WA +0 -10* |
1 | ||
| 05072725 | Starter 起动机 |
1 | 3708010CD129 | Starter 起动机总成 |
1 | ||
| 05079557 | Generator 发电机 |
4 | 3701010-D445 | Generator 发电机 |
1 | ||
0511 1023 |
Accessories 发电机支架 |
1 | Q1840825TF36 | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M8X25-10.9- |
4 | ||
| 3 | F04299029 | Hexagon bolt 六角头导颈螺栓 ISO004017-M8X120- 10.9-A4C |
1 | ||||
| 4 | Clamping strap 发电机调节臂 |
1 | Incluce 6- 12 |
||||
| 6 | Plain washer 垫圈GB 97.1-8-200HV |
1 | |||||
| 11 | Threaded piedce 滑块 |
1 | |||||
| 12 | Plain washer 平垫圈,ISO 7349-8,4- ST-A4C |
1 | |||||
| 5 | 3754629-52D | Hexagon bolt 六角头凸缘螺栓 EN1662-F-M8X65-10.9- |
1 | ||||
| 7 | F04208010 | Bush 垫圈 |
1 | ||||
| 8 | F04208011 | Bush 隔套 |
1 | ||||
| 9 | 1307629-52D | Hexagon bolt 六角凸缘螺栓EN 1662- F-M8X75-10.9-ZNAL-A |
1 | ||||
| 10 | F04255396 | Bracket 发电机支架 |
1 | ||||
| Engine mounting, rigid | |||||||
| 05072424 | Fastenings 紧固件 |
1 | CQ2181260TF36 | Cheese head screw 内六角圆柱头螺钉 M12X60 |
4 | ||
| 2 | CQ34012TF36 | Hexagon nut 六角螺母 |
4 | ||||
| 3 | 3701624-30D | Plain washer 平垫圈 13×24×3 |
4 | ||||
| 05072747 | Accessories 支架 |
1 | CQ1501645TF36 | Hexagon bolt 螺栓 ISO 4017-M16 X 45 - 10.9-ZNAL- A |
4 | ||
| 2 | CQ2181240TF36 | Cheese head screw 内六角圆柱头螺钉ISO 4762-M12X40-10.9- ZNAL-A |
2 | ||||
| 3 | F04288659 | Bracke 前悬置运输左支架 |
1 | ||||
| 4 | F04288660 | Bracke 前悬置运输右支架 |
1 | ||||
| 5 | 1314021-D392 | Angled retainer 右支架-水箱托架 |
1 | ||||
| 6 | 1314022-D392 | Angled retainer 左支架-水箱托架 |
1 | ||||
| 7 | 3701624-30D | Plain washer 平垫圈 13×24×3 |
2 | ||||
| 8 | 3701623-30D | Plain washer 平垫圈 |
4 | ||||
| 05072994 | Mounting foot 前悬运输支架 |
1 | F04253287 | Mounting foot 前悬运输支架 |
2 | ||
| Electrical accessories | |||||||
| 05070621 | Plug-in connector 连接插头 |
1 | D04199145 | Plug-in connector 调速器插头 |
1 | ||
| 05071486 | Plug-in connector 连接插头 |
1 | 3724018-52D | Plug-in connector 链接插头 |
1 | ||
| 05111201 | Temper.transmitter 水温传感器 |
1 | X3808020-JSFD | Temper.transmitter 温度传感器总成 |
1 | ||
| Oil pressur.switch | 1 | X3810020-JSFD | Oil pressur.switch 传感器-机油压力表 |
1 | |||
| 油压传感器 | 3810021-D307 | Plug 接头-油压传感器 |
1 | ||||
| Clutch | |||||||
| 05071389 | Fastenings 紧固件 |
1 | D01181403 | Bush 飞轮壳定位套 |
2 | ||
| 2 | 1002667-52D | Torx-head bolt 六角梅花凸缘螺栓M12 ×159 |
1 | ||||
| 3 | 1002668-52D | Torx-head bolt 六角梅花凸缘螺栓M16 ×149 |
1 | ||||
| 4 | 1002063-52D | Cover plate 飞轮壳盖板 |
1 | ||||
| 5 | CQ1460612TF36 | Hexagon bolt 六角头导颈螺栓ISO 4017-M6X12-8.8-ZNAL- |
4 | ||||
| 6 | 1002669-52D | Torx-head bolt 六角梅花凸缘螺栓M12 ×84 |
1 | ||||
| 7 | 1002672-52D | Torx-head bolt 六角梅花凸缘螺栓M16 |
3 | ||||
| 05078468 | Connection housing 飞轮壳 |
1 | 1002061-D010 | Connection housing 飞轮壳 |
1 | ||
| 2 | 1002063-52D | Cover plate 飞轮壳盖板 |
1 | ||||
| 3 | CQ1460612TF36 | Hexagon bolt 六角头导颈螺栓ISO 4017-M6*10-8.8-ZNAL- |
7 | ||||
| 4 | 1002071-56D | Cover plate 飞轮壳防尘盖板 |
1 | ||||
| Engine shutdown | |||||||
| 05076186 | Accessories 附件 |
1 | 3754629-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8*65-10.9- ZNAL-A |
1 | ||
| 2 | Q1840825TF36 | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8*25-10.9- ZNAL-A |
1 | ||||
| 05111334 | Shutdown device 停车电磁铁 |
1 | 3754010A52D | Shutdown device 停车电磁铁 |
1 | ||
| 2 | 3754631-52D | O-seal 圆形密封圈H 2927- 26X3-ACM-1-70 |
1 | ||||
| Intercooler | |||||||
| 05072024 | Charge air pipe 中冷管 |
1 | F04209030 | Charge air pipe 增压器出气管总成 |
1 | ||
| 2 | B01182078 | Rubber sleeve 连接胶管 |
1 | ||||
| 3 | CQ676100B | Hose clip 卡箍 |
2 | ||||
| 4 | F04293656 | Pipe clamp 管夹子 |
1 | ||||
| 5 | F04293657 | Retainer 垫块 |
1 | ||||
| 6 | 3509639-52D | Hexagon bolt 六角头凸缘螺栓EN 1662-F-M8X30-10.9- |
2 | ||||
| 7 | 1106609-52D | Plain washer 平垫圈,ISO 7349-8,4- ST-A4C |
2 | ||||
| 8 | CQ34008TF36 | Hexagon nut 六角螺母M8 |
2 | ||||
| 05072025 | Charge air pipe 中冷管 |
1 | F04209000 | Charge air pipe 中冷出气管 |
1 | ||
| 2 | CQ676100B | Hose clip B14K+软管管箍100X13 |
2 | ||||
| Starting aid | |||||||
| 05070159 | Blanking parts 密封件 |
1 | 3750211-56D | Blanking parts 预热器孔堵塞 |
6 | ||
| Heating system | |||||||
| 05071162 | Blanking parts | 1 | 1013632A52D | Screw plug 螺塞DIN 908-M26X1,5- ST-A4C |
1 | ||
| 2 | 1013633-52D | Sealing ring 密封垫DIN7603- |
1 | ||||
| Hydraulic pump | |||||||
| 05070067 | Blanking parts 密封件 |
1 | 3407651-52D | Core hole plug 碗形塞片H 711-B50 FE/ZN12C |
1 | ||
| 2 | 3509643-52D | Sealing ring 密封垫DIN 7603- A10X13.5-CU |
2 | ||||
| 3 | 3407021-52D | Screw plug 螺堵 |
2 | ||||
| 05076097 | Blanking parts | 1 | F04296824 | Cover 盖板 |
1 | ||
| 2 | 3407602-52D | O-seal 密封圈H 2927-82X4- NBR-1-70 |
1 | ||||
| 密封件 | 3 | Q1840860TF36 | Hexagon bolt 六角头凸缘螺栓 |
1 | |||
| 4 | 1010627-52D | Hexagon bolt 六角头凸缘螺栓M8×55 |
3 | ||||
| 05078117 | Blanking parts 密封件 |
2 | 1002622-52D | Screw plug 螺塞DIN 7604- AM14X1,5-ST-A4C |
1 | ||
| 3 | 3509644-52D | Sealing ring 密封垫DIN 7603- A14*18-CU |
1 | ||||
| 4 | F04283180 | Cover 盖板 |
1 | ||||
| 5 | 3509648-D007 | O-seal O型密封圈H 2927- 96 X 4 -NBR-1-70 |
1 | ||||
| 6 | 1005639-30D | Hexagon bolt 六角头凸缘螺栓M10× |
2 | ||||
| 7 | 3509643-52D | Sealing ring 密封垫DIN 7603- A10X13,5-CU |
1 | ||||
| 8 | 1013646A52D | Screw plug 螺塞H 2812-DIN908- M10X1-ST-A4C-PRE80 |
1 | ||||
BRAND LIST
