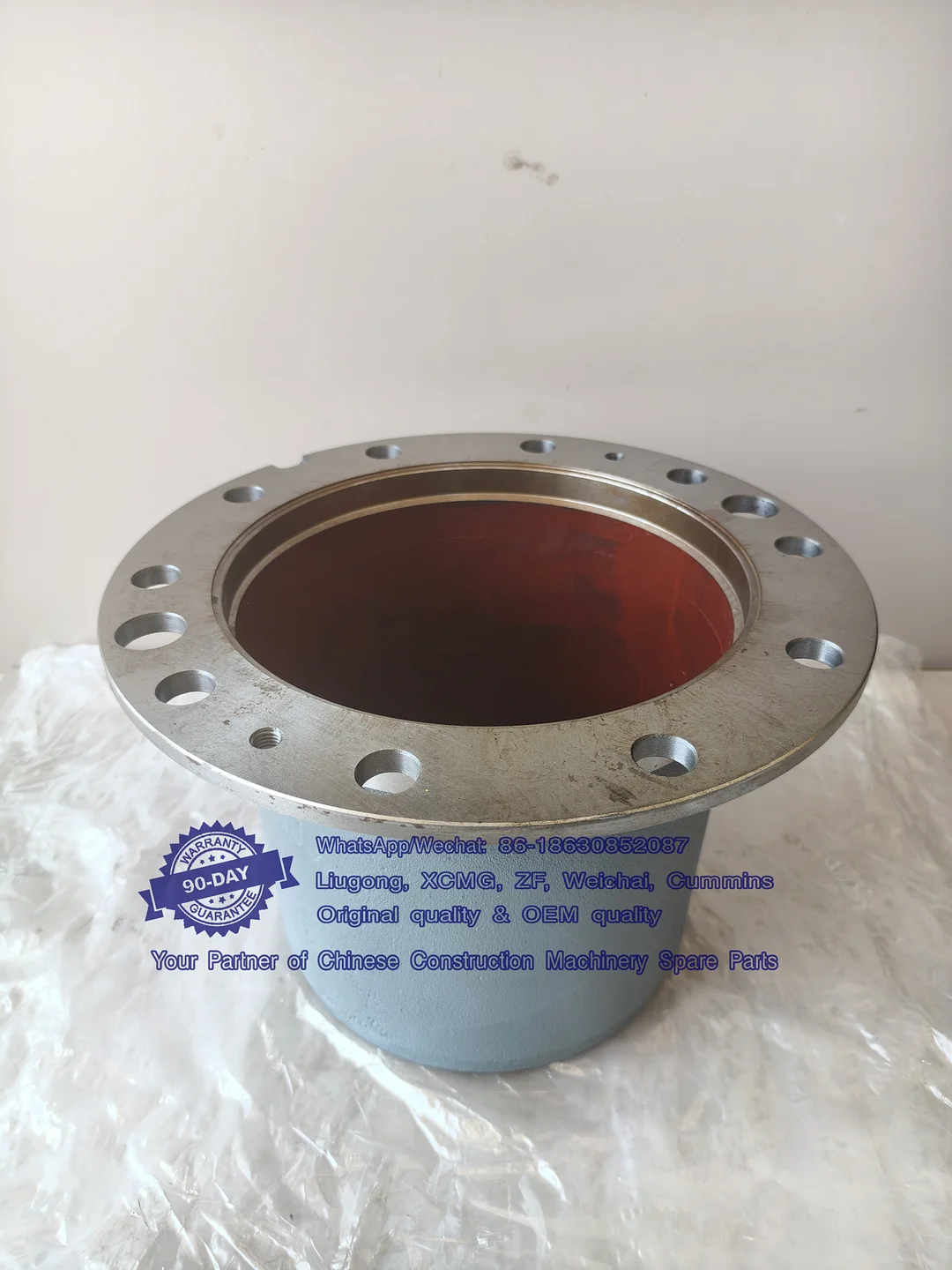

Doosan Wheel Excavator DX140W DX160W DX160W-3 Planet Carrier 100502-00130
Doosan DX140W/DX160W OUTPUT - REAR AXLE parts catalogue
Pos. Part No Qty Parts name
10. 401107-00007 [2]
120. 100502-00047 [2]
130. 401002-00086 [4]
135. 401002-00310 [2]
160. 130422-00021 [2]
200. 130602-00278 [2]
205. K9001537 [6] PIN;CYLINDRICAL
210. 1.180-00371 [2] U-RING
214. 1.115-00113 [2] RING;SUPPORT
230. K9001538 [2] U-RING
232. K9001539 [2] RING;SUPPORT
238. 1.131-00110 [12] SPRING;COMPR.
239. K9001540 [12] SPRING;COMPR.
256. K9004140 [12] SCREW
258. 1.425-00019 [12] SLEEVE;SPRING
270. 130107-00003 [16]
280. K9001543 [12] DISC;I.CLUTCH S=2.5
285. K9001542 [4] DISC;I.CLUTCH S=2.0
285. K9001543 [4] DISC;I.CLUTCH S=2.5
285. K9001544 [4] DISC;I.CLUTCH S=3.0
30. 1.109-00093 [2] BEARING;ROLLER
320. 1.114-00517 [2] WASHER;THRUST S=1.5
320. 1.114-00518 [2] WASHER;THRUST S=1.7
320. 1.114-00519 [2] WASHER;THRUST S=2.0
320. 1.114-00520 [2] WASHER;THRUST S=2.2
320. 1.114-00521 [2] WASHER;THRUST S=2.5
320. 1.114-00522 [2] WASHER;THRUST S=2.7
320. 1.114-00523 [2] WASHER;THRUST S=3.0
320. 120816-00061 [2]
390. 100502-00048 [2]
390. 100502-00130 [2]
390-1. 100502-00049 [1]
390-1. 100502-00131 [1]
390-2. 130413-00005 [3]
390-3. 140107-00072 [3]
390-3. 140107-00105 [3]
390-5. 111104-00086 [3]
40. K9001530 [2] BEARING;ROLLER
501. K9001478 [2] PLUG;SCREW
502. 1.180-00135 [2] . O-RING
510. 1.120-00109 [4] SCREW;CAP
540. 120112-00185 [20]
630. 1.120-00103 [2] SCREW;CAP
80. 900122-00046 [2]
90. 401002-00305 [2]
