Doosan Wheel Excavator Sun Gear Shaft K9001556

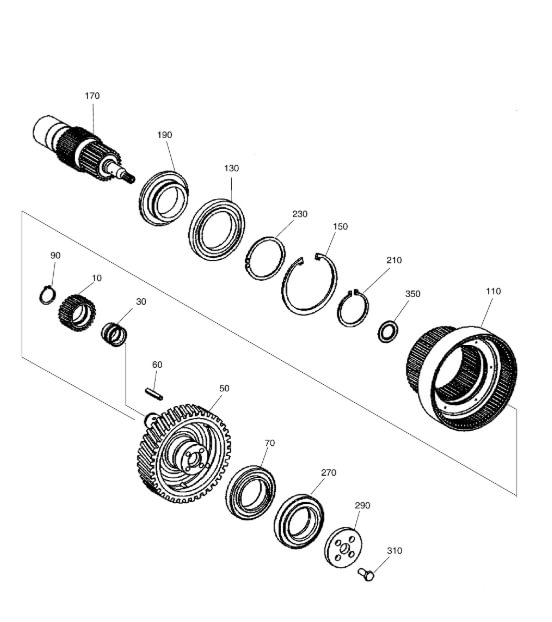

Doosan DX140W / DX160W TIER-III OUTPUT-REAR AXLE parts catalog
Pos. Part No Qty Parts name
10. K9001529 [2] SEAL;SHAFT
120. K9001532 [2] CARRIER;DISC
130. K9001533 [4] O-RING
135. K9001534 [2] O-RING
160. K9001535 [2] RING;GEAR
200. K9001536 [2] PISTON
205. K9001537 [6] PIN;CYLINDRICAL
210. 1.180-00371 [2] U-RING
214. 1.115-00113 [2] RING;SUPPORT
230. K9001538 [2] U-RING
232. K9001539 [2] RING;SUPPORT
238. 1.131-00110 [12] SPRING;COMPR.
239. K9001540 [12] SPRING;COMPR.
256. 1.120-00148 [12] SCREW
258. 1.425-00019 [12] SLEEVE;SPRING
270. K9001541 [16] DISC;O.CLUTCH
280. K9001542 [16] DISC;I.CLUTCH S=2.0
280. K9001543 [16] DISC;I.CLUTCH S=2.5
280. K9001544 [16] DISC;I.CLUTCH S=3.0
30. 1.109-00093 [2] BEARING;ROLLER
320. 1.114-00517 [2] WASHER;THRUST S=1.5
320. 1.114-00519 [2] WASHER;THRUST S=2.0
320. 1.114-00521 [2] WASHER;THRUST S=2.5
320. 1.114-00523 [2] WASHER;THRUST S=3.0
320. 1.114-00518 [2] WASHER;THRUST S=1.7
320. 1.114-00520 [2] WASHER;THRUST S=2.2
320. 1.114-00522 [2] WASHER;THRUST S=2.7
390. K9001545 [2] PLANET CARRIER ASS'Y 100502-00031
390. 100502-00031 [2]
390-1. K9001546 [1] CARRIER;PLANET
390-2. K9001547 [3] GEAR;PLANET
390-2. 130413-00005 [3]
390-3. 1.109-00089 [3] BEARING;ROLLER
390-3. 140107-00072 [3]
390-4. 1.115-00178 [6] RING
390-5. 1.115-00038 [3] RING;RETAINING
390-5. 111104-00086 [3]
40. K9001530 [2] BEARING;ROLLER
501. K9001478 [2] PLUG;SCREW
502. 1.180-00135 [4] . O-RING
510. 1.120-00109 [4] SCREW;CAP
540. K9001548 [20] BOLT
630. 1.120-00103 [2] SCREW;CAP
80. K9001531 [2] HUB
90. 1.180-00136 [2] O-RING
