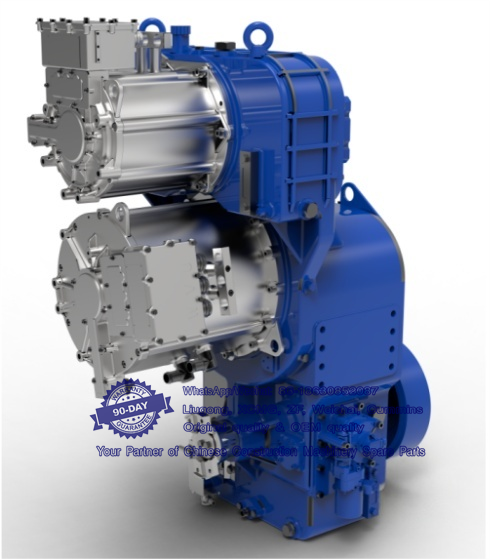

EBJ235 Electric Drive Gearbox
Product Introduction
The EBJ235 electric drive gearbox features dual-motor input, integrating the traveling powertrain and hydraulic powertrain. The traveling powertrain is equipped with high and low gears (reverse gear is achieved through motor reversal), enabling vehicle propulsion via front and rear output flanges. The hydraulic powertrain fulfills the power take-off requirements for hydraulic pumps.
Main Technical Parameters
Maximum travel motor speed: 9500 rpm
Maximum hydraulic motor speed: 9000 rpm
Maximum output torque: 6900 N.m
Gears: Second gear
Shifting method: Electric tooth sleeve shifting
Output form: Front and rear output flanges (optional)
Brake type: Drum/disc brake (optional)
Product Application
Applicable to products for 5-ton, 6-ton loaders or similar working conditions.
