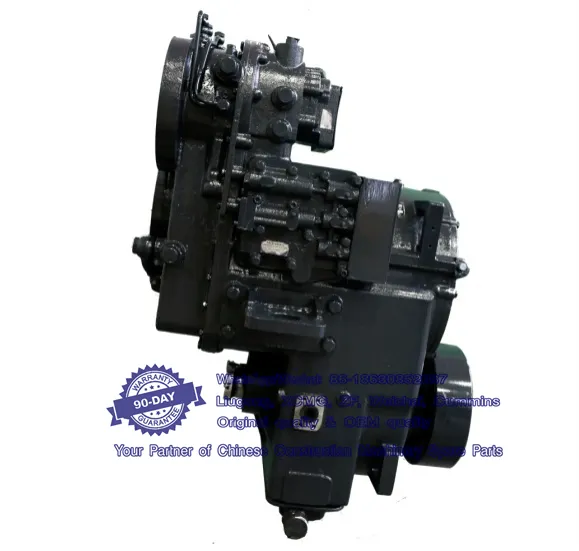

EXB168 Electric Drive Gearbox / EXB178 Electric Drive Gearbox
Product Introduction
The EXB168 Electric Drive Gearbox / EXB178 Electric Drive Gearbox is a planetary structure, achieving high and low gear functions through electro-hydraulic control, transmitting power from the electric motor to the transmission shaft and axle at different gear ratios for speed reduction and torque increase.
Main Technical Parameters
● Travel motor: Rated power 120kW
Maximum torque: 1200N.m
Maximum speed: 6000rpm
● Hydraulic motor: Rated power 60kW
Maximum torque: 350N.m
Maximum speed: 6000rpm
● Travel ratio: 5.758/1.545 (EXB168 Electric Drive Box)
6.255/1.434 (EXB178 Electric Drive Box)
● Hydraulic ratio: PTO1: 2.441/PTO2: 2.829 (EXB168 Electric Drive Box)
PTO1: 2.529/PTO2: 2.529 (EXB178 Electric Drive Box)
● Travel shifting method: Electro-hydraulic control
Product Application
The EXB168 Electric Drive Gearbox / EXB178 Electric Drive Gearbox can be used for 5-6 ton electric loaders and similar products with similar working conditions.
