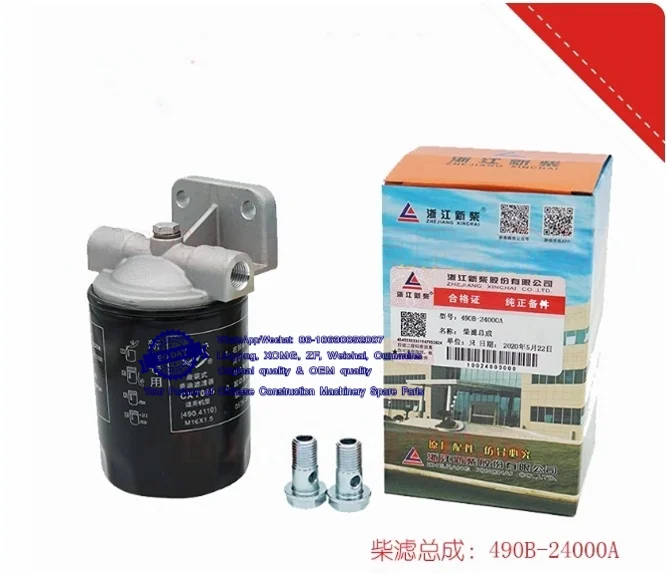

Fuel Filter 490B-24000A For XINCHAI
燃油供油系统 Fuel supply system assembly
序号No. 代 号Part No. 名 称Name 数量Q'ty 备注Remark
1 490B-16011-1 喷油泵垫片 Gasket 1
2 490B-21000 喷油泵4QT F451 Fucl injection pump 1
3 GB/T29 ·1-1988 六角头头部带槽螺栓M6×25 Bolt M6×25 3
4 490B-23501 卡缩 Clamp 6
5 490B-23502" 橡胶垫 Rubber gasket 6
6 GB/T93-.987 弹 簧 垫 圈 6 Spiing washer 6 3
7 GB/T6172-2C00 六 角 螺 母 M 6 Nut M6 3
8 A490B-22000 P列油嘴F019103006 Fuel injector 4
9 A490B-25100-1 喷油器回油管部件 Injector leak-off pipe 1
10 A490B-23101 第一缸高压油管 lst cylinder high pressure fuel tube 1
11 A490B-23201 第二缸高压油管 2nd cylinder high pressure fuel tube 1
12 A490B-23301 第三缸高压油管 3rd cylinder high pressure fuel tube 1
13 A490B-23401 第四缸高压油管 4th cylinder high pressure fuel tube" 1
14 490B-25200 滤清器至喷油泵进油管部件 Fue]supply tube from fuel filter to injection pump 1
15 490B-24000A 柴油滤清器 Fuel fulter 1
16 GB/T97 ·1-2002 平垫圈8 Washer 8 2
17 GB/T93-1987 弹 簧 垫 圈 8 Spring washer 8 2
18 GB/T5783-2000 六角头螺栓M8×30 Bolt M8×30 2
19 490B-25300 输油泵至滤清器进油管部件 Fuel supply tube from supply pump to fucl filter" 1
20 490B-25401-4 输油泵进油接头 Fuel supply pump connector l
21 498B-25002 喷油器回油胶管 Sebific ducl 3
22 498B-25001 喷油器回油防漏帽 Leakproof cap l
23 498B-25004 环箍 Clamp 10
24 JB/T982-1977 组合密封垫圈14 Springlc Washer 2
