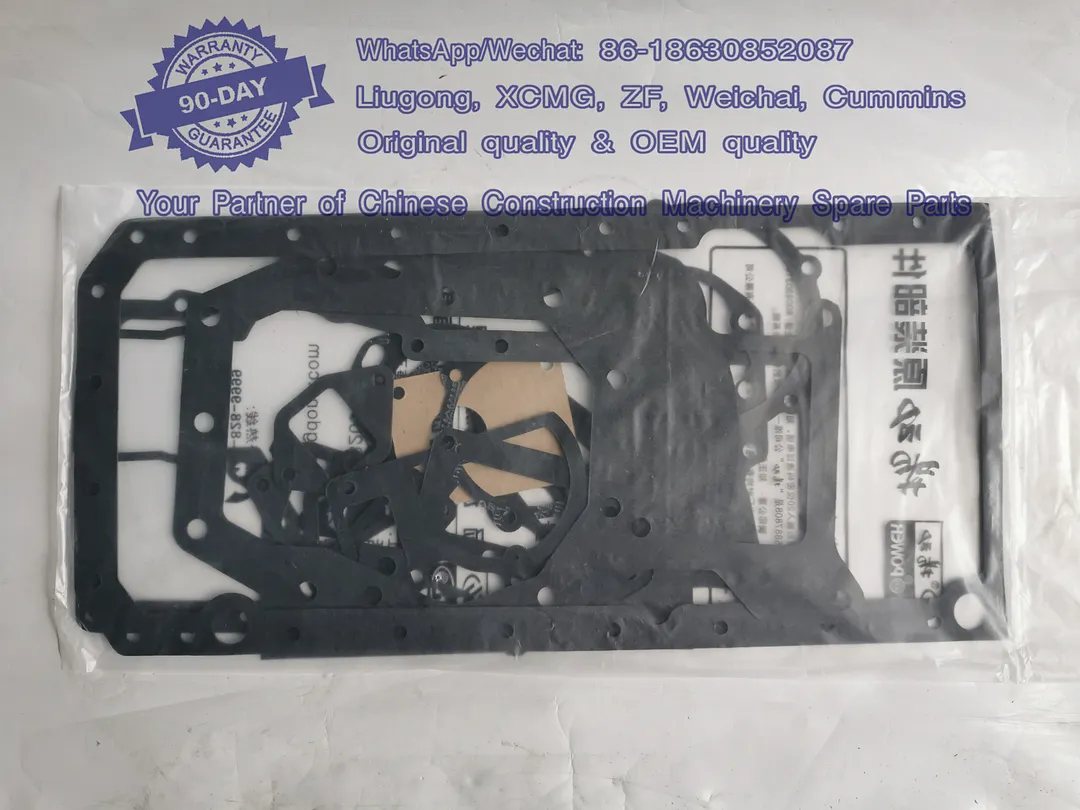

Overhaul gasket for Yangdong engine Y4105ZT, Yangdong Y4105ZT original Spare parts
Genuine and aftermarket Yangdong Diesel Engines and Yangdong Diesel Generator Parts from China
Our range of Yangdong Diesel Engine Parts include:
- Yangdong Diesel Engines
- Filters: oil filter, fuel filter, air filter
- Starter
- Charging Alternator
- Water Pump
- Oil Pump
- Turbo charger
- Piston Ring
- Piston
- Piston pin
- Retainer ring
- Liner
- Liner Oring
- Fuel cut solenoid valve
- Sensors
- ECM controllers
- Gaskets: Overhaul gasket, cylinder head gasket, Valve cover gasket, Crankshaft seal, Valve seal, Oil pan gasket
- Radiators
China Yangdong Y4105ZLD Engine spare parts
China Yangdong Y4105D Engine spare parts
China Yangdong Y4105ZT Engine spare parts
China Yangdong Y4105Q Engine spare parts
China Yangdong YD385 Engine spare parts
China Yangdong YD495 Engine spare parts
Y4105D ENGINE TECHNICAL DATA SHEET
1. Engine Ratings for Generator application
Engine Rated Speed rpm 1500 1800
Generator set Frequency Hz 50 60
Engine Standby Power (LTP) kW 41,8 49,5
Engine Prime Power (PRP) kW 38 45
Engine Continuous Power (COP) kW 38 45
Cooling Fan Power Consumption (kW) kW 1,5 2
Engine Net Standby Output (LTP) kW 39,8 46,9
Engine Net Prime Output (PRP) kW 36,2 42,7
Engine Net Continuous Output (COP) kW 36,2 42,7
YD385D ENGINE TECHNICAL DATA SHEET
1. Engine Ratings for Generator application YD385D
Engine Rated Speed rpm 1500 1800
Generator set Frequency Hz 50 60
Engine Standby Power (LTP) kW 12,1 14,3
Engine Prime Power (PRP) kW 11 13
Engine Continuous Power (COP) kW 11 13
Cooling Fan Power Consumption (kW) kW 1,2 1,5
Engine Net Standby Output (LTP) kW 10,4 12,3
Engine Net Prime Output (PRP) kW 9,5 11,2
Engine Net Continuous Output (COP) kW 9,5 11,2
2. Genearal Specification
Length mm 587
Width mm 474
Height mm 615
Engine Dry Weight w/o Cooling System kg 175
Aspiration Type Natural
Injection Type Direct
Configuration Vertical
No. of Cylinders 3
Displacement liters 1,532
Bore mm 85
Stroke mm 90
Compression Ratio 22
Piston Speed m/s 4.5/5.4
Rotation Direction (from flywheel) Anti-clockwise
Number of Flywheel Teeth 115
Flywheel House Size SAE4
3. Lubrication System
Lube Oil Specification CD40
Oil Capacity liters 5,3
Max. Permissible Oil Temperature °C 110
Low Oil Pressure Warning kPa 100
Low Oil Pressure Shutdown kPa 100
Oil consumption (as % of fuel consumption) 0,67%
4. Cooling System
Coolant Capacity for Engine Liters 6
Max. Permissible Temperature °C 85
Max. Coolant Warning Temperature °C 85
Max. Coolant Shutdown Temperature °C 95
Thermostat Open Temperature °C 75
Radiator Cooling Flow m³/min
Flow of Coolant pump m³/h ≥80 ≥80
Heat dissipation (engine radiator) kW
Heat dissipation (convection) kW
5. Fuel System
Governor Type Mechanical
Fuel Consumption at 25% of generator set prime output l/h 1,61 2,03
Fuel Consumption at 50% of generator set prime output l/h 2,54 3,13
Fuel Consumption at 75% of generator set prime output l/h 3,12 3,67
Fuel Consumption at 100% of generator set prime output l/h 3,64 4,57
Lowest Fuel Consumption Ratio g/kW.hr 275 272
6. Intake & Exhaust System（On Standby Output）
Combustion Air Consumption m³/min 0,79 0,92
Max. Intake Restriction kPa 101
Max. Exhaust Temperature（Before Turbo） °C
Max. Exhaust Temperature（After Turbo） °C 500 500
Max. Exhaust Back Pressure kPa 6
Exhaust Gas Flow m³/min
Exhaust Flange Diameter mm 74
7. Electrical System
Charging Alternator Voltage V 12
Charging Alternator Capacity A
Starting Voltage V 12
Starting Motor Capacity KW 3
Minimum Battery Capacity Ah 80
Minimum Ambient Temperature for Unaided Cold Start °C -10
Note：
1. All engine parameters are in accordance with ISO3046, ISO8528
2. All engine parameters are based on 25°C / 100kPa environment condition
3. No power decrease with below 40ºC environment temperature and 1500 meter altitude
4. More than 40ºC and 1500m above sea level , decrease 0.5% per 1ºC , and 4% per 300m.
5. At calorific value 42700 kJ/kg + 5%, density 0,835 kg/dm3 , temperature 280 K
6. Above data is only the testing data in our laboratory, it can't used to be the data on all contract
Yangdong Construction Engines
YANGDONG Diesel engine provide more than 30 kinds of diesel engines for different kind of Construction machines,
power rang form 20hp to 150hp. To meet emission requirements in different countries and regions, we offer our customers different fuel
including mechanical pumps, electric and etc.
