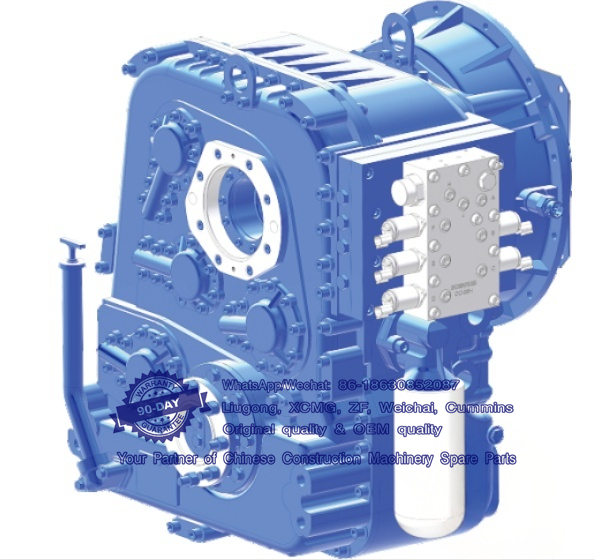

YB171 HYDRAULIC TRANSMISSION
Product Introduction
The YB171 is a fixed shaft multi-speed hydraulic transmission with dual variations, available with electro-hydraulic control, and can also achieve proportional valve automatic control, with 6 forward and 3 reverse gears, and helical gears for noise reduction.
Main Technical Parameters
● Maximum engine power: 170kW
● Maximum engine speed: 2600r/min
● Maximum input torque: 1350Nm
● Gears: 6 forward and 3 reverse
● Shifting method: Electro-hydraulic control, semi-automatic (electro-hydraulic proportional control)
● Input type: The torque converter is directly connected to the SAE3# flywheel housing
● Output type: Flange, dual output
● Torque converter: 305 torque converter
Product Application
The YB171 hydrostatic transmission is widely used in heavy forklifts and similar products with similar working conditions.
