YB230 Hydraulic Transmission
Product Introduction

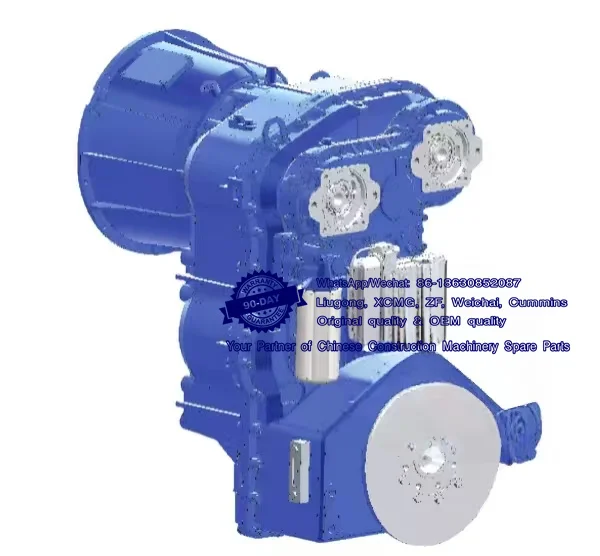

The YB230 hydraulic transmission is a fixed shaft multi-gear hydraulic transmission, double change one, electro-hydraulic control, optional locking function.
Main Technical Parameters
● Maximum Engine Power: 230 kW
● Maximum Engine RPM: 2500 rpm
● Maximum Torque: 1650 N.m
● Gears: 6 forward and 3 reverse
4 forward and 3 reverse
● Shifting method: Electro-hydraulic control (upgradable to automatic transmission)
● Input type: Volute-type torque converter directly connected to flywheel housing / Mechanical flange and universal joint connection
● Output type: Flange, dual outputs
● Torque Converter: 340/350 torque converter
● Power Take-off Configuration: Single power take-off / Dual power take-off
Product Application
The YB230 hydraulic transmission is widely used in engineering vehicles such as graders, loaders, tractors, and excavators.
