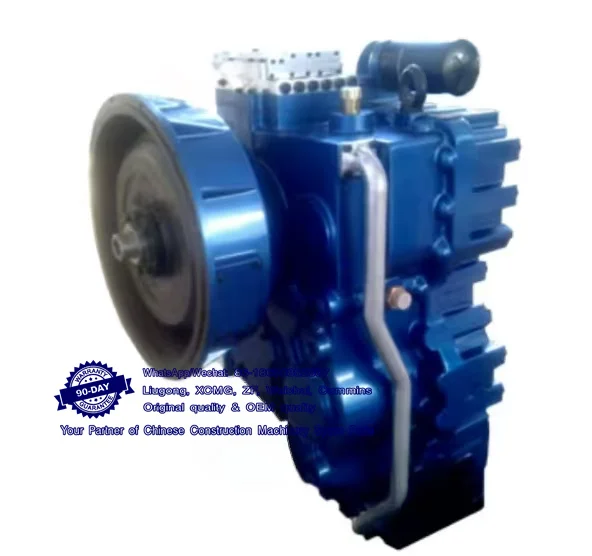

YB310 HYDRAULIC TRANSMISSION
Product Introduction
The YB310 hydraulic transmission is a fixed shaft multi-speed hydraulic transmission with dual variations, electro-hydraulic control, and an optional lock-up function.
Main Technical Parameters
● Maximum engine power: 310kW
● Maximum engine speed: 2500r/min
● Maximum input torque: 2950Nm
● Gears: 6 forward and 3 reverse, 4 forward and 3 reverse, 3 forward and 3 reverse
● Shifting method: Electro-hydraulic control, mechanical-hydraulic control, semi-automatic (electro-hydraulic proportional control)
● Input type: The torque converter can be directly connected to the flywheel housing, or connected with mechanical type flange and universal joints
● Output type: Flange, dual output
● Torque converter: 375 torque converter
● Power take-off: PTO1 power take-off ratio -1, PTO2 power take-off ratio -1
● Optional DB310 (without torque converter), optional electro-hydraulic shifting, mechanical-hydraulic shifting
Product Application
The YB310 hydraulic transmission is widely used in engineering vehicles such as loaders, forklifts, graders, and tractors.
