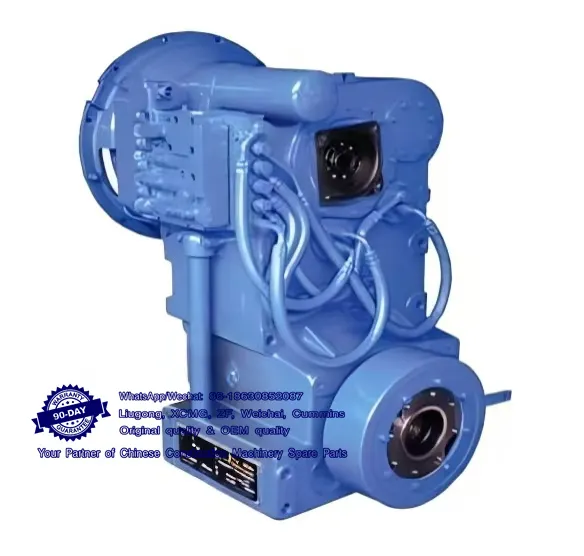

YD130 Hydraulic Transmission
Product Introduction
The YD130 hydraulic transmission is a fixed shaft multi-speed hydraulic transmission with dual variations, available with electro-hydraulic control or mechanical-hydraulic control. The gear options include 6 forward and 3 reverse, or 4 forward and 3 reverse, 3 forward and 3 reverse, with an optional gear shift lever and lock-up function.
Main Technical Parameters
● Maximum engine power: 130kW
● Maximum engine speed: 2600r/min
● Maximum input torque: 1000N.m
● Gears: 6 forward and 3 reverse, 4 forward and 3 reverse, 3 forward and 3 reverse
● Shifting method: Electro-hydraulic control, mechanical-hydraulic control, semi-automatic
● Input type: The torque converter can be directly connected to the SAE2#, 3# (limited to 305 torque converter) flywheel housing, or connected with flange and universal joints
● Output type: Flange, dual output
Product Application
The YD130 hydraulic transmission is widely used in engineering vehicles such as graders, loaders, tractors, and scrapers.
