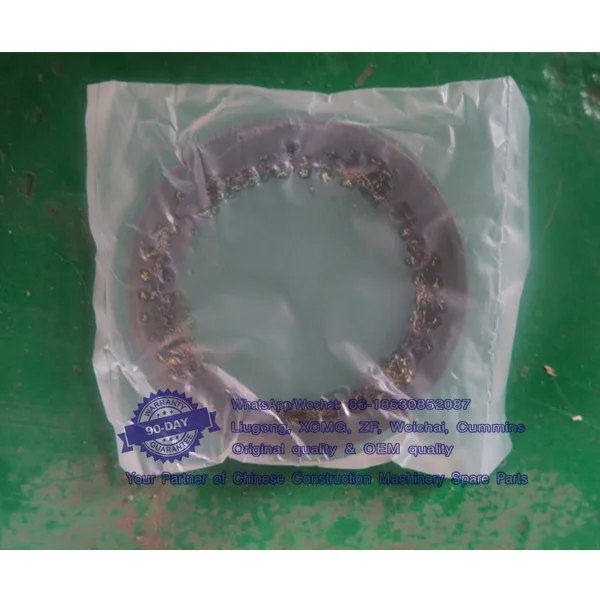

ZF 4WG200 4WG-200 Seal ring 0750111116, WG180 Seal ring 0750 111 116
Product Specification:
Part Name: ZF 4WG200 4WG-200 Seal ring 0750111116, WG180 Seal ring 0750 111 116
Part Number/OE Number: 0750111116
Application Model: For F 4WG200 4WG-200 WG180 SDLG LG958L
Condition: New
Country/Region of Manufacture: China
Number of Pieces: 1
Warranty: 3 Month
Fast Shipping: ZF 4WG200 4WG-200 Seal ring 0750111116, WG180 Seal ring 0750 111 116 will be shipped out in 1-3 days by DHL/FEDEX/UPS/TNT and arrive in 6-8 working days
Full Range of spare parts for 4WG200 4WG-200 WG180, Whatsapp 86-18630852087
Related parts:
LG938 WHEEL LOADER PARTS CATALOG
A 发动机系统DIESEL ENGINE SYSTEM
001 发动机系统 DIESEL ENGINE SYSTEM——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 2903000780 压板 PRESS PLATE 1 Q235A
2 4011000461 螺栓 GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8 8
3 4011000091 螺栓 GB5783-M12*40EpZn-8.8 BOLT GB5783-M12*40EpZn-8.8 4
4 4190000459 散热器 RADIATOR 1 部件
5 4011000399 螺栓 JB999-M24*1.5*50-35 BOLT JB999-M24*1.5*50-35 2
6 4015000233 垫圈 JB1002-24-T2 WASHER JB1002-24-T2 4
7 4120001061 油冷却器 B1342 OIL COOLER B1342 1 部件
8 4030000279 O 形圈 GB3452.1-25*3.55G O-RING GB3452.1-25*3.55G 2
9 4011000475 螺栓 GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 8
10 4041000137 分体法兰 LGB117306400 FLANGE LGB117306400 2
11 2903000781 过渡钢管 TRATNSITION STEEL PIPE 2 部件
12 2903000789 发动机进水胶管 HOSE 1 耐油橡胶
13 4017000014 喉箍 JB8870-d80 CLAMP JB8870-d80 2 部件
14 4041000725 软管 LGB164012160 SOFT HOSE LGB164012160 1
15 4041000713 软管 LGB165012250 SOFT HOSE LGB165012250 1 部件
16 2903000790 变矩器至冷却器油管 TO COOLER OIL PIPE 1 部件
17 2903000791 冷却器至变矩器油管 TO TORQUE CONVERTER OIL PIPE 1 部件
18 2903000793 接头体 CONNECTOR 2 35
19 4015000073 垫圈 JB1002-30-T2 WASHER JB1002-30-T2 2
20 2903000784 发动机出水胶管 HOSE 1 耐油橡胶
21 4120000388 胶管 JB8406-B10*800 HOSE JB8406-B10*800 1
22 4017000018 喉箍 JB8870-d70 CLAMP JB8870-d70 2 部件
23 4017000015 喉箍 JB8870-d25 CLAMP JB8870-d25 2 部件
24 2903000786 压板 PRESS PLATE 1 Q235A
25 2903000785 挡风橡胶板 RUBBER PLATE 1 工业胶板
26 4190000138 风扇 610 FAN 610/7-7/37.5/PAG/2ZR/25.4/4*10/BC60/AFAN 1 部件
27 4011000085 螺栓 GB5783-M10*35EpZn-8.8 BOLT GB5783-M10*35EpZn-8.8 4
28 4013000007 螺母 G B6170-M10EpZn-8 NUT GB6170-M10EpZn-8 8
29 4015000162 垫圈 GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV 8
30 2901000935 消声器支架 FRAME 1 部件
31 4110000187 消声器 XH.G402X.W DISSIPATIVE MUFFLER XH.G402X.W 1 部件
32 2901000936 波纹管 ACCORDION PIPE 1 部件
33 4110000192 V 形抱箍 3903652 V-ANCHOR EAR 3903652 1 部件
34 4110000267 空气滤清器 A669 AIR FILLTER A669 1 部件
35 4110000181 盆式粗滤器 PC100-0000 FILLTER PC100-0000 1 部件
36 4011000102 螺栓 GB5783-M8*16EpZn-8.8 BOLT GB5783-M8*16EpZn-8.8 4
37 4013000033 螺母 GB6170-M8EpZn-8 NUT GB6170-M8EpZn-8 4
38 4015000072 垫圈 GB97.1-8EpZn-300HV WASHER GB97.1-8EpZn-300HV 4
39 2901000950 空滤器支架 FRAME 1 部件
40 4011000474 螺栓 GB16674-M10*25EpZn-8.8 BOLT GB16674-M10*25EpZn-8.8 6
41 2010900277 油门操纵机构 GOVERNOR CONTROL SYSTEM 1 部件
42 4015000025 垫圈 GB93-10-65Mn WASHER GB93-10-65Mn 24
43 2901000971 双头螺栓 BOLT 8 45
44 2901000954 软轴固定支架 FRAME 1 Q235A
45 2901000955 油门拉杆 STICK 1 Q235A
46 2901000956 燃油回油管 OIL-RETURN PIPE 1 部件
47 2901000957 二通接头 CONNECTOR 1 35
48 2901000958 燃油进油管 OIL-INPUT PIPE 1 部件
49 4120001078 胶管 JB8406-B25*1300 HOSE JB8406-B25*1300 1
50 4017000008 喉箍 JB8870-d40 CLAMP JB8870-d40 2 部件
51 4011000641 螺栓 JB6013-M14*1.5EpZn-45 BOLT JB6013-M14*1.5EpZn-45 2
52 4015000231 垫圈 JB6013-14-T2 WASHER JB6013-14-T2 4
53 4011000236 螺栓 GB5782-M20*130EpZn-8.8 BOLT GB5782-M20*130EpZn-8.8 2
54 4013000020 螺母 GB6170-M20EpZn-8 NUT GB6170-M20EpZn-8 2
55 4015000176 垫圈 GB97.1-20EpZn-300HV WASHER GB97.1-20EpZn-300HV 2
56 2905000010 减震块 SHOCK MOUNT 4 部件
57 2905000012 垫圈 WASHER 4 Q235A
58 2901000972 水(油)温表接头 WATER(OIL)TEMPERATURE INDICATOR 1 Q235A
59 4011000090 螺栓 GB5783-M12*35EpZn-8.8 BOLT GB5783-M12*35EpZn-8.8 6
60 4110000179 发动机总成 6BT5.9-C120 DIESEL ENGINE SYSTEM 6BT5.9-C120 1 部件
002 油门操纵机构 GOVERNOR CONTROL SYSTEM——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 4013000167 螺母 GB6172-M12EPZN-05 NUT GB6172-M12EPZN-05 4
2 4015000168 垫圈 GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV 4
3 2901000668 连接叉 JOINT FORK 1
4 4016000138 销轴 GB882-B6*22EpZn-35 PIN GB882-B6*22EpZn-35 2
5 4016000114 开口销 GB91-2*16EpZn-Q235A SPLINT PIN GB91-2*16EpZn-Q235A 2
6 4013000028 螺母 GB6170-M6EpZn-8 NUT GB6170-M6EpZn-8 3
7 4015000207 垫圈 GB97.1-6EpZn-300HV WASHER GB97.1-6EpZn-300HV 6
8 4011000101 螺栓 GB5783-M6*20EpZn-8.8 BLOT GB5783-M6*20EpZn-8.8 3
9 4110000271 油门操纵阀 xz（LY） ACCELERATOR PEDAL xz（LY） 1 部件
10 2901001192 操纵软轴 CABLE SHAFT 1 部件
B 变速箱系统TRANSMISSION SYSTEM
003 变速箱系统 TRANSMISSION SYSTEM——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 2905001044 飞轮过渡盘 TRANSITION PAN OF FLYWHEEL 1 ZG270-500
2 2905001045 压盖 COVER 2 Q235A
3 2905001046 垫片 WASHER 2 石棉橡胶板
4 4011000102 螺栓 GB5783-M8*16EpZn-8.8 BOLT GB5783-M8*16EpZn-8.8 8
5 4015000072 垫圈 GB97.1-8EpZn-300HV WASHER GB97.1-8EpZn-300HV 8
6 2905001047 飞轮过渡筒 TRANSITION CANISTER OF FLYWHEEL 1 HT250
7 4011000569 螺栓 GB5783-M10*35EpZn-10.9 BOLT GB5783-M10*35EpZn-10.9 4
8 4011000197 螺栓 GB5783-M12*25EpZn-8.8 BOLT GB5783-M12*25EpZn-8.8 12
9 4015000026 垫圈 GB93-12-65Mn WASHER GB93-12-65Mn 12
10 4011000184 螺栓 GB5783-M10*40EpZn-8.8 BOLT GB5783-M10*40EpZn-8.8 12
11 4015000162 垫圈 GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV 12
12 2905000760 变矩器油温表接头 CONNECTOR 1 35
13 4030000057 垫圈 JB1002-14-T2 WASHER 1
14 2901000111 接头 CONNECTOR 2 35
15 4015000139 垫圈 JB1002-10-T2 WASHER JB1002-10-T2 1
16 4110000076 变速箱 YD13 TRANSMISSION ASS'Y YD13 1 部件
17 2905001067 变速压力油管 PRESS PIPE 1 部件
18 2905001049 变速箱支架 FRAME 1 部件
19 2905000010 减震块 RUBBER BLOCK 4 部件
20 2905000012 垫圈 WASHER 4 Q235A
21 4011000236 螺栓 GB5782-M20*130EpZn-8.8 BOLT GB5782-M20*130EpZn-8.8 2
22 4015000030 垫圈 GB93-20-65Mn WASHER GB93-20-65Mn 6
23 4015000176 垫圈 GB97.1-20EpZn-300HV WASHER GB97.1-20EpZn-300HV 2
24 4013000020 螺母 GB6170-M20EpZn-8 NUT GB6170-M20EpZn-8 2
25 4015000030 螺栓 GB5783-M20*50EpZn-8.8 BOLT GB5783-M20*50EpZn-8.8 4
26 YJH315-15 液力变矩器 TORQUE CONVERTER 1
004 变速器系统 TRANSMISSION SYSTEM——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD13301006 箱体 GEARBOXHOUSING 1
2 0636305019 螺塞 M26*1.5 PLUG M26*1.5 1
3 0634303233 O 形圈 23*2 O-RING 23*2 1
4 403091A 铭牌 TYPE PLATE 1
5 GB/T827-1986 铆钉 GROOVE STUD 4
6 0636305007 螺塞 M14*1.5 PLUG M14*1.5 1
7 0634306522 O 形圈 11*2 O-RING 11*2 1
8 YD13301002 盖板 COVER PLATE 1
9 YD13301003 盖板 COVER PLATE 1
10 GB/T5783-2000 螺栓 M8*16 BOLT M8*16 2
11 GB/T848-1985 垫圈 8 WASHER 8 2
12 4466351081 密封帽 SEALING COVER 2
13 0634304275 O 形圈 27*2 O-RING 27*2 1
14 0636305023 螺塞 M30*1.5 PLUG M30*1.5 1
15 0636305023 螺塞 M30*1.5 PLUG M30*1.5 1
16 0634304275 O 形圈 27*2 O-RING 27*2 1
17 0637510206 螺塞 M30*1.5 PLUG M30*1.5 2
18 0750131027 透气件 BREATHER CAP 1
19 YD13301004 润滑端盖 LUBE-IN COVER 1
20 0634113529 O 形圈 27*2 O-RING 27*2 1
21 GB/T5782-2000 螺栓 M8*70 BOLT M8*70 4
22 YD13301007 进油口盖 OIL-IN COVER 1
23 YD13301008 衬垫 GASKET 1
24 GB/T5783-2000 螺栓 M8*20 BOLT M8*20 4
25 0636305011 螺塞 M18*1.5 PLUG M18*1.5 1
26 0636306524 O 形圈 15*2 O-RING 15*2 1
27 GB/T825-1988 螺钉 M16 SCREW M16 2
005 动力输入装置 POWER INPUT——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD13301002 主动轴 INPUT AHAFT 1
2 GB/T27-1994 球轴承 6308 BALL BEARING 6308 1
3 0769120427 补偿垫圈 REGULATING SHIM 1
4 0630501031 卡环 40*1.75 RETAINING RING 40*1.75 1
5 YD13301004 主动齿轮 Z=50 INPUT GEAR Z=50 1
6 GB/T27-1994 滚针轴承 N3263L NEEDLE BEARING N3263L 1
7 0734317252 密封环 SEALING RING 1
8 YD13301001 进油法兰 OIL FEED FLANGAE 1
9 4644302211 衬垫 GASKET 1
10 4642301136 轴承座 BEARING SEAT 1
11 YD13301005 衬垫 GASKET 1
12 GB/T27-1994 螺栓 M8*25 BOLT M8*25 12
13 0734401078 密封环 SEALING RING 1
14 0735298027 滚针轴承 HK75*83*16 NEEDLE BEARING HK75*83*16 1
15 0750111231 密封环 75*100*10 SEALING RING FOR SHAFT 75*100*10 1
16 YD13301003 输出轴 STAND-BY DRIVE 1
17 0634402025 密封环 SEALING RING 1
18 4644301265 衬垫 GASKET 1
19 0501004171 齿轮泵 GEAR PUMP 1
20 GB/T27-1994 球轴承 6206-RS BALL BEARING 6206-RS 1
21 GB/T1096-1979 键 6*22 KEY 6*22 1
22 GB/T27-1994 球轴承 6206-RS BALL BEARING 6206-RS 1
23 GB/T5782-2000 螺栓 M8*85 BOLT M8*85 4
24 GB/T5782-2000 螺栓 M8*110 BOLT M8*110 4
25 0630501024 卡环 30*1.5 RETAINING RING 30*1.5 1
006 动力输出装置 POWER OUTPUT——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD13303001 输出轴 OUT PUT SHAFT 1
2 YD13303003 输出齿轮 OUT PUT GEAR 1
3 GB/T283-1994 滚柱轴承 NJ213E ROLLER BEARING NJ213E 1
4 1204308062 补偿垫圈 REGULATING SHIM 1
5 4620303247 压板 PRESS PLATE 2
6 GB/T5783-2000 螺栓 M10*30 BOLT M10*30 4
7 1269302164 止动螺钉 RETAINER SCREW 2
8 0750111116 密封环 SEALING RING FOR SHAFT 2
9 GB/T276-1994 球轴承 6311 BALL BEARING 6311 1
10 0630502048 挡圈 120*4 RETAINING RING FOR HOLE 120*4 3
11 0769120338 补偿垫圈 REGULATING SHIM 1
12 0730062296 套筒 L=20 SLEEVE L=20 1
13 YD13301002 输出法兰 OUTPUT FLANGE 1
007 控制阀总成(Ⅰ) CONTROL VALVE ASSEMBLY(Ⅰ)——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 4642306050 下挡板 LOWER BAFFLE 1
2 4644306464 密封垫 SEALING PAD 1
3 4644306466 密封垫 SEALING PAD 1
4 4642306149 油道板 OIL-LINE PLATE 1
5 4642306089 节流喷嘴 THROTTLE NOZZLE 1
6 4642306167 节流喷嘴 THROTTLE NOZZLE 1
7 0635460027 钢球 STEEL BALL 2
8 0732041226 弹簧 SPRING 2
9 0636101031 螺栓 M8*30 BOLT M8*30 3
10 0636101035 凸头螺栓 M8*45 SOCKET SCREW M8*45 3
11 0636101032 凸头螺栓 M8*75 SOCKET SCREW M8*75 6
12 4642306163 上挡板 UPPER BAFFLE 1
13 4642306318 密封垫 SEALING PAD 1
14 4642306320 密封垫 SEALING PAD 1
15 0636101035 凸头螺栓 M8*45 SOCKET SCREW M8*45 10
16 0636101124 凸头螺栓 M8*35 SOCKET SCREW M8*35 6
17 0636304019 螺塞 M10*1 PLUG M10*1 1
18 0634801152 铜垫圈 M10*13.5 COPPER WASHER M10*13.5 1
19 0631610025 调节螺钉 M10*10 SET SCREW M10*10 1
20 0634810152 铜垫圈 M10*13.5 COPPER WASHER M10*13.5 1
21 0636304019 螺塞 M10*1 PLUG M10*1 1
22 0634801152 铜垫圈 M10*13.5 COPPER WASHER M10*13.5 1
008 转速表 SPEEDOMETER——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 Q20-03 垫圈 36 WASHER 36 1
2 0636302018 螺塞 M36*1.5 PLUG M36*1.5 1
3 0636305011 螺塞 AM18*1.5 PLUG AM18*1.5 1
4 0636306024 O 形圈 15*2 O-RING 15*2 1
009 空转轮 IDLE WHEEL——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD13308003 空转轮轴 IDLE WHEEL SHAFT 1
2 0634313529 O 形圈 57*3 O-RING 57*3 1
3 4644308542 止推垫片 THRUST SHIM 1
4 GB/T119.2-2000 销轴 A4*10 PIN A4*10 1
5 YD13308001 空转轮 Z=34 IDLE WHEEL Z=34 1
6 GB/T5783-2000 螺栓 M8*20 BOLT M8*20 4
7 YD13308002 滚柱 ROLLER GROUP 1
8 GB/T97.2-1985 垫圈 10 WASHER 10 1
9 0501308832 卡环 RETAINING RING 1
10 GB/T5783-2000 螺栓 M10*20 BOLT M10*20 1
010 离合器 151 CLUTCH 151 KV+K1——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD13351008 轮轴 AXLE 1
2 0634313516 O 形圈 49*3 O-RING 49*3 1
3 0734401106 密封环 SEALING RING 3
4 GB/T898-1988 螺柱 M8*18 STUD M8*18 3
5 GB/T6170-2000 螺母 M8 NUT M8 3
6 0769120468 补偿垫圈 REGULATING SHIM 1
7 YD13351006 齿轮 Z=50 GEAR Z=50 1
8 0730150774 止推垫圈 THRUST WASHER DUP 1
9 YD13351007 轴承 BEARING 1
10 4642308185 压榨纸板 PRESS BOARD 2
11 4644353051 活塞 PISTON 1
12 4644353051 活塞 PISTON 1
13 0750112141 特殊密封环 SPECIAL SEALING RING 2
14 4644351094 端垫 LIMIT PLATE 1
15 4642308555 端垫 LIMIT PLATE 1
16 0750112140 特殊密封环 SPECIAL SEALING RING 2
17 0732041183 压力弹簧 PRESSURE SPRING 2
18 4642308083 导轮环 GUIDE RING 4
19 0630531346 滚针轴承 NEEDLE BEARING 2
20 4642308084 柔性卡环 FLEXIBLE RETAINING RING 2
21 0750115182 滚针轴承 NEEDLE BEARING 1
22 0730513610 柔性卡环 FLEXIBLE RETAINING RING 1
23 0635303204 滚针轴承 NEEDLE BEARING 1
24 0730150779 柔性卡环 FLEXIBLE RETAINING RING 1
25 0769124115 柔性卡环 FLEXIBLE RETAINING RING 2
26 0730150779 止推垫圈 THRUST WASHER DUP 1
27 YD13351113 齿轮 Z=25 GEAR Z=25 1
28 0630502037 卡环 75*2.5 RETAINING RING FOR HOLE 75*2.5 1
29 0769120556 补偿垫圈 REGULATING SHIM 1
30 0750115109 滚针组 NEEDLE SET 1
31 4644351029 密封环 RETAINING RING 1
32 GB/T308-1989 钢球 10 STEEL BALL 10 2
33 4642351015 直销 STRAIGHT PIN 2
34 GB/T79-2000GB 螺钉 M12*20 SCREW M12*20 2
35 GB/T276-1994 球轴承 6009 BALL BEARING 6009 1
36 YD13251001 离合器 CLUTCH ASS'Y 1
37 0501309329 外摩擦片 S=2.0 EX. FRICTIONAL DISC S=2.0 13
38 4642308330 内摩擦片 S=1.5 IN. FRICTIONAL DISC S=1.5 5
39 4642308332 内摩擦片 S=2.0 IN. FRICTIONAL DISC S=2.0 6
40 1769129011 内摩擦片 D=137.5 S=2.0 IN. FRICTIONAL DISC S=1.5/2.0/2.5 1
41 0501309329 外摩擦片 D=137.5 S=2.0 EX. FRICTIONAL DISC D=137.5 S=2.0 9
42 4642308330 内摩擦片 S=1.5 IN. FRICTIONAL DISC S=1.5 6
43 4642308332 内摩擦片 S=2.0 IN. FRICTIONAL DISC S=2.0 1
44 0769129011 内摩擦片 S=1.5/2.0/2.5 IN. FRICTIONAL DISC S=1.5/2.0/2.5 1
011 离合器 152 CLUTCH 152 KR+K2——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD13352009 轮轴 AXLE 1
2 0632313536 O 形圈 49*3 O-RING 49*3 1
3 0734401106 密封环 SEALING RING 3
4 GB/T898--1988 螺柱 M8*18 STUD M8*18 3
5 GB/T6170-2000 螺母 M8 NUT M8 3
6 0769120468 补偿垫圈 REGULATING SHIM 1
7 YD13351006 齿轮 Z=50 GEAR Z=50 1
8 0730150774 止推垫圈 THRUST WASHER DUP 1
9 YD13351007 轴承 BEARING 1
10 4642308185 压榨纸板 PRESS BOARD 2
11 4644353051 活塞 PISTON 1
12 4644353051 活塞 PISTON 1
13 0750112141 特殊密封环 SPECIAL SEALING RING 2
14 4644351094 端垫 LIMIT PLATE 1
15 4642308084 端垫 LIMIT PLATE 1
16 0750112140 特殊密封环 SPECIAL SEALING RING 2
17 0732041183 压力弹簧 PRESSURE SPRING 2
18 4642308083 导轮环 GUIDE RING 4
19 0630531346 卡环 AV55 RETAINING RING AV55 2
20 4642308084 导轮环 GUIDE RING 2
21 0750115182 滚针轴承 NEEDLE BEARING 1
22 0730513610 柔性卡环 FLEXIBLE RETAINING RING 1
23 0635303204 滚针轴承 NEEDLE BEARING 1
24 0730513611 柔性卡环 FLEXIBLE RETAINING RING 1
25 0769124115 柔性卡环 FLEXIBLE RETAINING RING 2
26 0730150779 止推垫圈 THRUST WASHER DUP 1
27 YD13252009 齿轮 Z=64/23 GEAR Z=64/23 1
28 YD13352015 滚子轴承 ROLLER BEARING 1
29 YD133520110 卡环 RETAINING RING 3
30 YD13251001 离合器 CLUTCH ASS'Y 1
31 0501309329 外摩擦片 S=2.0 EX. FRICTIONAL DISC S=2.0 13
32 4642308330 内摩擦片 S=1.5 IN. FRICTIONAL DISC S=1.5 5
33 4642308332 内摩擦片 S=2.0 IN. FRICTIONAL DISC S=2.0 6
34 0769129011 内摩擦片 S=1.5/2.0/2.5 IN. FRICTIONAL DISC S=1.5/2.0/2.5 1
35 0501309329 外摩擦片 D=137.5 S=2.0 EX. FRICTIONAL DISC D=137.5 S=2.0 9
36 4642308330 内摩擦片 S=1.5 IN. FRICTIONAL DISC S=1.5 6
37 4642308332 内摩擦片 S=2.0 IN. FRICTIONAL DISC S=2.0 1
38 0769129011 内摩擦片 S=1.5/2.0/2.5 IN. FRICTIONAL DISC S=1.5/2.0/2.5 1
012 离合器 153 CLUTCH 153 K4+K3——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD13353012 轮轴 AXLE 1
2 0632313536 O 形圈 49*3 O-RING 49*3 1
3 0734401106 密封环 SEALING RING 3
4 GB/T898--1988 螺柱 M8*18 STUD M8*18 3
5 GB/T6170-2000 螺母 M8 NUT M8 3
6 0769120468 补偿垫圈 REGULATING SHIM 1
7 YD13353002 齿轮 Z=32 GEAR Z=32 1
8 0730150774 止推垫圈 THRUST WASHER DUP 1
9 YD13351007 轴承 BEARING 1
10 4642308185 压榨纸板 PRESS BOARD 2
11 4644353051 活塞 PISTON 1
12 4644353051 活塞 PISTON 1
13 0750112141 密封环 SEALING RING 2
14 4644351094 端垫 LIMIT PLATE 1
15 4642308084 端垫 LIMIT PLATE 1
16 0750112140 密封环 SEALING RING 2
17 0732041183 压力弹簧 PRESSURE SPRING 2
18 4642308083 导轮环 GUIDE RING 4
19 0630531346 卡环 AV55 RETAINING RING AV55 2
20 4642308084 导轮环 GUIDE RING 2
21 0750115182 滚针轴承 NEEDLE BEARING 1
22 0730513610 柔性卡环 FLEXIBLE RETAINING RING 1
23 0635303204 滚针轴承 NEEDLE BEARING 1
24 0730513611 柔性卡环 FLEXIBLE RETAINING RING 1
25 0769124115 柔性卡环 FLEXIBLE RETAINING RING 2
26 0730150779 止推垫圈 THRUST WASHER DUP 1
27 YD13252009 齿轮 Z=55 GEAR Z=55 1
28 YD13352015 滚子轴承 ROLLER BEARING 1
29 0750115109 滚针组 NEEDLE SET 1
30 YD13251001 离合器 CLUTCH ASS'Y 1
31 0501309329 外摩擦片 S=2.0 EX. FRICTIONAL DISC S=2.0 8
32 4642308332 内摩擦片 S=2.0 IN. FRICTIONAL DISC S=2.0 3
33 4642308330 内摩擦片 S=1.5 IN. FRICTIONAL DISC S=1.5 2
34 4642308331 内摩擦片 S=2.5 IN. FRICTIONAL DISC S=2.5 1
35 0769129011 内摩擦片 S=1.5/2.0/2.5 IN. FRICTIONAL DISC S=1.5/2.0/2.5 1
36 0501309329 外摩擦片 D=137.5 S=2.0 EX. FRICTIONAL DISC D=137.5 S=2.0 8
37 4642308332 内摩擦片 S=2.0 IN. FRICTIONAL DISC S=2.0 5
38 4642308331 内摩擦片 S=2.5 IN. FRICTIONAL DISC S=2.5 1
39 0769129011 内摩擦片 S=1.5/2.0/2.5 IN. FRICTIONAL DISC S=1.5/2.0/2.5 1
013 停车制动系统 PARKING BRAKE ASS’Y——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD13209001 行车制动器 PARKING BRAKE 1
2 GB/T5783-2000 螺栓 M14*30 BOLT M14*30 4
3 GB/T97-1987 垫圈 14 WASHER 14 4
4 YD13303005 制动器法兰 PARKING BRAKE FLANGE 1
5 GB/T5783-2000 螺栓 M10*325 BOLT M10*325 8
6 GB/T97-1987 垫圈 10 WASHER 10 8
014 变速压力阀 PRESSURE VALVE——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 GB/T308-1989 钢球 20 STEEL BALL 20 1
2 0732041352 压力弹簧 PRESSURE SPRING 1
3 YD13320001 阀扣 VALVE BUCKLE 1
4 4044306022 阀柱 VALVE CORE 1
5 4068306029 弹簧 SPRING 1
6 YD13320002 阀座 VALVE SEAT 1
015 加油管总成 SUCTION PIPE ASS’Y——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD12221001 吸油管 SUCTION PIPE ASS'Y 1
2 4644221821 吸油管 SUCTION PIPE ASS'Y 1
3 4644321244 衬垫 GASKET 2
4 GB/T5782-2000 螺栓 M8*50 BOLT M8*50 4
5 Q20-03 垫圈 16 WASHER 16 20
6 0501204427 胶管 L=516/2，Ф16 HOSE TUBE L=516/2，Ф16 1
7 0501204673 胶管 L=530/2，Ф16 HOSE TUBE L=530/2，Ф16 1
8 0501204523 胶管 L=818/1，Ф16/1，M18*1.5 HOSE TUBE L=818/1，Ф16/1，M18*1.5 1
9 0501204422 胶管 L=526/1，Ф16/1，M18*1.5 HOSE TUBE L=526/1，Ф16/1，M18*1.5 1
10 0501204427 胶管 L=516/2，Ф16 HOSE TUBE L=516/2，Ф16 1
11 0501204427 胶管 L=516/2，Ф16 HOSE TUBE L=516/2，Ф16 1
12 0637842509 接 套 M18/16*1.5 ADAPTER M18/16*1.5 4
13 0737835153 带槽螺柱 M16*1.5 HOLLOW BOLT M16*1.5 8
14 YD13211002 吸油胶管 M22 SUCTION TUBE M22 1
15 Q21-18 带槽螺柱 M22*1.5 HOLLOW BOLT M22*1.5 2
16 Q20-03 垫圈 22 WASHER 22 4
17 YD13211003 吸油胶管 M14 SUCTION TUBE M14 1
18 Q21-19 带槽螺柱 M14*1.5 HOLLOW BOLT M14*1.5 2
19 Q20-03 垫圈 14 WASHER 14 4
20 0636305007 螺塞 AM14*1.5 PLUG AM14*1.5 1
21 Q20-03 垫圈 16 WASHER 14 1
016 油管、滤清器 OIL PIPE、FILTER——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 YD13231001 油管总成 OILING PIPE ASS'Y 1
2 4842331216 衬垫 GASKET 3
3 BG/T5783-2000 螺栓 M8*16 BOLT M8*16 2
4 4644331086 油标尺（A=279） DIPSTICK ASS，Y 1
5 4644331056 挡板 BAFFLE 1
6 4644301016 盖板 COVER PALTE 1
7 BG/T5783-2000 螺栓 M8*16 BOLT M8*16 2
8 0636305016 螺塞 AM22*1.5 PLUG AM22*1.5 1
9 Q20-03 铜垫圈 22 COPPER WASHER 22 1
10 0750131053 可换式滤清器 FILTER 1
017 取力器 POWER TAKE-OFF（P.T.O）——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 750116259 球轴承 6209N/C3 BALL BEARING 6209N/C3 2
2 1630503011 柔性卡环 SP85 FLEXIBLE RETAINING RING SP85 1
3 630501033 挡圈 45*1.75 RETAINING FOR SHAFT45*1.75 2
4 GB/T5783-2000 螺栓 M8*20 BOLT M8*20 1
5 YD13354008 法兰 PUMP FLANGE 1
6 YD13354011 输出轴毂盘 P.T.O OUTPUT WHEEL HUB 12
7 YD13354007 输出轴 P.T.O OUTPUT SHAFT 1
8 YD13355006 端盖 END COVER 1
9 YD13355004 衬垫 GASKET 1
10 GB/T70.1-2000 螺钉 M8*20 SCREW M8*20 7
11 636305007 螺塞 AM14*1.5 PLUG AM14*1.5 1
12 Q20-03 垫圈 14 WASHER 14 1
018 控制阀总成(Ⅱ) CONTROL VALVE ASSEMBLY(Ⅱ)——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 4642306152 阀体 VALVE BODY 1
2 4620306248 衬垫 GASKET 1
3 0732040838 螺钉 M8*20 SCREW M8*20 1
4 4620306245 螺塞 AM14*1.5 PLUG AM14*1.5 1
5 0732040837 垫圈 14 WASHER 14 1
6 0730061778 接头螺套 SCREW-IN SLEEVE 1
7 0769120747 垫片 SHIM 6
8 4620306247 衬套 BUSHING 1
9 4642306094 阀芯 VALVE CORE 1
10 0732041254 弹簧 SPRING 1
11 4620306252 挡销 BACKING PIN 1
12 0634303118 O 形圈 O-RING 1
13 4620306413 固定板 FIXING PLATE 1
14 0732041390 阀芯 VALVE CORE 1
15 4620306414 固定板 FIXING PLATE 1
16 4644306549 阀芯 VALVE CORE 1
17 4644306241 固定板 FIXING PLATE 1
18 4620306255 阀芯 VALVE CORE 1
19 0732041154 弹簧 SPRING 1
20 0732041254 弹簧 SPRING 1
21 4642306093 阀芯 VALVE CORE 1
22 4620306252 挡销 BACKING PIN 1
23 0634308118 O 形圈 O-RING 1
24 4642306049 锁片 LOCKING PLATE 1
25 4644306549 挡销 BACKING PIN 1
26 0732041254 弹簧 SPRING 1
27 4642306095 阀芯 VALVE CORE 1
28 0732041254 弹簧 SPRING 1
29 4642306096 阀芯 VALVE CORE 1
30 4620306252 挡销 BACKING PIN 1
31 0634303118 O 形圈 O-RING 1
32 4620306415 盖 COVER 1
33 4620306479 衬垫 GASKET 1
34 0636015244 螺栓 M5*18 BOLT M5*18 11
35 0501315338 电磁阀 SOLENOID VALVE 4
36 0636101129 凸头螺栓 M5*12 SOCKET BOLT M5*12 8
37 0630305012 弹性垫圈 5 SPRING WASHER 5 8
38 4620206019 调整线圈 CABLE SET 1
39 0636404299 凹槽螺钉 M4*12 SLOTTED SCREW M4*12 4
40 0630302076 鞍形垫圈 SADDLE FLEXIBLE WASHER 4
41 4620306259 电磁阀壳体 SOLENOID VALVE HOUSING 1
42 0634303951 O 形圈 O-RING 1
43 4620306241 喉箍 CLAMP 1
44 0636304019 螺塞 M10*1 PLUG M10*1 6
45 0634801152 铜垫圈 A10*13.5 COPPER WASHER A10*13.5 6
C 驱动桥系统 AXLE SYSTEM
019 驱动桥系统 AXLE SYSTEM——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 2050900033 后主传动 REAR AXLE MAIN DRIVE ASS’Y 1
2 2050900010 后桥壳总成 REAR AXLE ASS’Y 1
3 2050900004 轮边减速器 FINAL DRIVE ASS’Y 1
4 2050900005 轮辋 WHEEL FELLONE 4
5 2908000766 后传动轴 REAR MOTION SHAFT 1
6 3050900001 螺栓 BOLT 4
7 3050900006 止动垫圈 WASHER 2
8 2908000767 中间传动轴 MIDDLE MOTION SHAFT 1
9 3050900002 螺栓 BOLT 20
10 4013000180 螺母 GB889.1-M14*1.5EpZn-8 NUT GB889.1-M14*1.5EpZn-8 24
11 2050900054 中间支承 HOLDER 1
12 4011000241 螺栓 GB5785-M14*1.5*55EpZn-8.8 BOLT GB5785-M14*1.5*55EpZn-8.8 4
13 4015000177 垫圈 GB97.1-14-300HV WASHER GB97.1-14-300HV 4
14 2050900055 前传动轴 FRONT MOTION SHAFT 1
15 2050900006 前主传动 FRONT AXLE MAIN DRIVE ASS’Y 1
16 2050900003 前桥壳总成 FRONT AXLE ASSEMBLY 1
17 3050900005 前桥标牌 FRONT AXLE BRAND 1
18 4019000012 铆钉 GB827-3*5-BL2 RIVET GB827-3*5-BL2 8
19 3050900004 后桥标牌 REAR AXLE BRAND 1
020 驱动桥总成 AXLE ASSEMBLY——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 4011000520 螺栓 GB5785-M24*2*100-8.8 BOLT 8
2 4015000031 垫圈 GB93-24-65Mn WASHER 16
3 4013000157 螺母 GB889.2-M24*2-8 LOCKING NUT 16
4 4120000080 螺塞 Q/ZB286-ZG3/4"-Q235A PLUG 4
5 2050900003 前桥壳总成 FRONT AXLE HOUSING 1
6 2907000005 透气管 BREATHER PIPE 1
7 4013000078 螺母 GB6173-M10*1EpZn-05 NUT 1
8 2050900010 后桥壳总成 REAR AXLE HOUSING 1
9 4011000521 螺栓 GB5785-M24*2*95-8.8 REAR AXLE BOLT 8
021 前(后)主传动总成 FRONT(REAR)AXLE MAINDRIVE ASS’Y——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 4013000066 螺母 GB889.2-M33*1.5-8 NUT GB889.2-M33*1.5-8 1
2 3050900007 垫圈 WASHER 1
3 2050900011 输入法兰 INPUT PLANGE 1
4 4030000048 骨架油封 HG4-692-SG70*95*12 SKELETON OIL SEAL HG4-692-SG70*95*12 1
5 3050900009 密封盖 SEALING COVER 1
6 4011000067 螺栓 GB5782-M14*55EpZn-8.8 BOLT 7
7 4015000027 垫圈 GB93-14-65Mn WASHER 7
8 3050900172 垫片 GASKET 1
9 4021000028 滚动轴承 GB297-31310 BEARING 1
10 3050900013 轴承套 BEARING SEAT 1
11 3050900008 0 型密封圈 O-RING 1
12 4011000186 螺栓 GB5782-M12*55EpZn-8.8 BOLT 1
13 4015000026 垫圈 GB93-12-65Mn WASHER 1
14 3050900011 调整垫片 ADJUSTING SHIM 1
15 3050900030 垫片 SPACER 1
16 3050900012 轴套 SHAFT SLEEVE 1
17 4021000029 滚动轴承 GB297-31311 BEARING 1
18 4011000124 螺栓 GB5786-M12*1.25*35EpZn-10.9 BOLT 14
19 4015000026 垫圈 GB93-12-65Mn WASHER 14
20 4021000035 滚动轴承 GB297-32215 BEARING 2
21 3050900019 调整螺母 ADJUSTING NUT 2
22 3050900016 托架 CARRIER 1
23 3050900080 锁紧片 LOCKING SHIM 1
24 4013000052 螺母 GB6173-M27*2-05 NUT 1
25 3050900102 铜套 COPPER SLEEVE 1
26 3050900101 螺栓 BOLT 1
27 3050900023 轴承座 BEARING SEAT 1
28 3050900024 锁紧片 LOCKING LEAF 2
29 4015000025 垫圈 GB93-10-65Mn WASHER 2
30 4011000009 螺栓 GB32.3-M10*1*20-8.8 BOLT 2
31 4015000184 垫圈 GB97.1-22EpZn-300HV WASHER 4
32 4090000014 低碳钢丝 GB343-1.6*450 STEEL WIRE 2
33 4011000332 螺栓 GB32.1-M22*80EpZn-8.8 BOLT 4
34 3050900015 主动螺旋伞齿轮(右) SPIRAL BEVELGEAR PINION(RIGHT) 1
34* 3050900055 主动螺旋伞齿轮(左) SPIRAL BEVELGEAR PINION(LEFT) 1
35 4021000026 滚动轴承 GB283-NUP2306 BEARING NUP 1
36 4015000019 挡圈 GB894.1-30-65Mn RING SNAP 1
37 3050900017 锥齿轮垫片 WASHER 4
38 3050900018 锥齿轮 PINION FOR DIFFERENTAL 4
39 4016000123 开口销 GB91-3.2*28 SPLIT PIN 8
40 4013000154 螺母 GB6178-M14-8 NUT 8
41 3050900020 差速器左壳 LEFT CASE DIFF 1
42 3050900022 半轴齿轮垫片 WSGER THRUST 2
43 3050900021 半轴齿轮 AXLE SHAFT GAER 2
44 3050900026 十字轴 CARDAN SHAFT 1
45 3050900028 螺栓 BOLT 12
46 4016000122 开口销 GB91-4*28EpZn-Q235A SPLIT PIN 12
47 4013000155 螺母 GB6178-M16-10 NUT 12
48 3050900025 螺栓 BOLT 8
49 3050900027 差速器右壳 RIGHT CASE DIFF 1
50 3050900029 大螺旋伞齿轮 SPIRAL BEVEL DRIVEN GEAR(LEFT) 1
50* 3050900056 大螺旋伞齿轮 SPIRAL BEVEL DRIVEN GEAR(RIGHT) 1
51 3050900032 挡圈 RING SNAP 1
52 2907000046 固定销 FIXED PIN 1
53 4016000124 固定销 10u8×30 FIXED PIN 10u8×30 2
022 轮边减速器总成 FINAL DRIVE ASSEMBLY——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 4011000084 螺栓 GB5783-M10*30EpZn-8.8 BOLT 10
2 4015000026 垫圈 GB93-12-65Mn WASHER 10
3 2907000767 盖 COVER 1
4 2907000916 定位块 LOCK BLOCK 1
5 2907000768 O 型密封圈 O－RING 1
6 4120000080 螺塞 Q/ZB286-ZG3/4"-Q235A PLUG 1
7 4090000007 钢球 GB308-8-GCr15 STEEL BALL 3
8 4090000006 钢球 GB308-171462-GCr15 STEEL BALL 1
9 3050900044 轮辋螺栓 RIM BOLT 10
10 2907000766 行星轮架 CARRIER OF PLANT GEAR 1
11 3050900043 行星齿轮轴 PLANT GEAR SPINDLE 3
12 3050900052 垫片 SPACER 6
13 3050900042 挡环 RING SNAP 6
14 3050900041 行星齿轮 PLANET GEAR 3
15 4090000003 滚针 GB309-4*38-GCr15 ROLLER 93
16 4015000046 挡圈 GB894.1-50-65Mn RING SNAP GB894.1-50-65Mn 1
17 3050900040 太阳轮 GEAR－SUN 1
18 3050900050 半轴 DIFFERENTIAL AXLE 1
19 4014000118 螺钉 GB70-M8*1*20-8.8 SCREW GB70-M8*1*20-8.8 1
20 4015000036 垫圈 GB93-8-65Mn WASHER 1
21 3050900047 圆螺母 ROUND NUT 1
22 3050900037 内齿轮 AXLE RING GEAR 1
23 3050900045 O 形圈 O－RING 1
24 4021000044 滚动轴承 GB297- 32220 ROLLING BEARING GB297- 32220 1
25 3050900046 轮毂 HUB WHEEL 1
26 4015000029 垫圈 GB93-18-65Mn WASHER GB93-18-65Mn 10
27 4013000136 螺母 GB6171-M18*1.5EpZn-8 NUT GB6171-M18*1.5EpZn-8 10
28 4021000045 滚动轴承 GB297-32021 ROLLING BEARING GB297-32021 1
29 3050900051 轴承隔套 BEARING COWL 1
30 4030000046 骨架油封 HG4-692-PD130*160*12 FRAME OIL SEAL 1
31 3050900048 垫片 BACKUP PLATE 1
32 3050900049 油封端盖 OIL SEAL COVER 1
33 4015000036 垫圈 GB93-8-65Mn WASHER GB93-8-65Mn 1
34 4011000195 螺栓 GB5783-M8*35EpZn-8.8 BOLT GB5783-M8*35EpZn-8.8 6
023 轮胎轮辋总成 RIM AND TYRE ASSEMBLY——LG938 WHEEL LOADER PARTS CATALOG
序号 代号 名称 数量 备注
KEY PART NO. DESCRIPTION QTY REMARKS
1 2050900005 轮辋 RIM 4
2 4110000003 轮胎 GB2980-17.5-25 TIRE ASS’Y 4
