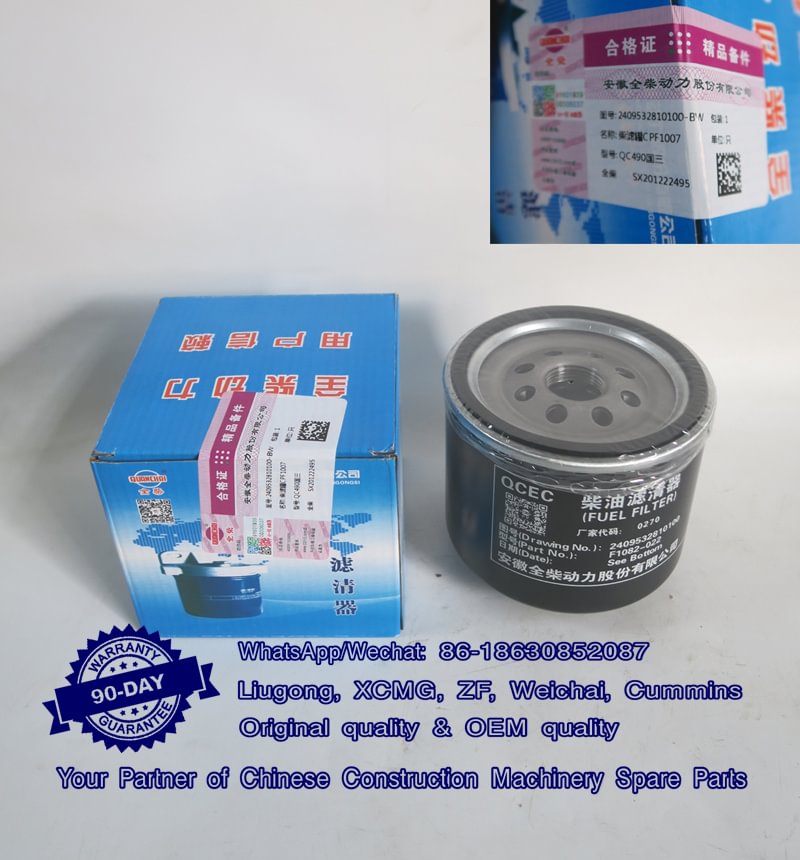

Original Quanchai 490 Engine Diesel filter 2409532810100, 2409532810100-BW, F1082-022
C PF1007 SX20122495
SERVICE INSTRUCTION
1. Apply to Euro IV and beyond Diesel engine
2. Replace Filter element every 10,000-12,0000km, or 200-250 hour
3. Please take the reference of the above instruction to exchange the filter
4. Start the engine and check if havefuel leakage
Note: Fuel leakage or improper maintenance could damage the engine
Remove element from head
Fill with clean Diesel fuel
Lube the new element rubber seal
Tighten the filter firmly by hand
Related parts:
Diesel filter
Original part number F1050-000
F1050-000
UF0149-009
JAC 1105010D6710
Quanchai 2409532810100
FF220-0003
3022003
Outer diametar×Height: 107×102MM
Applicable to : Weichai WP3 Engine
Thread: 1"-14
Diesel filter
Original part number UF0107-009
1105010W6000
UF0107-009
F0107-000
JAC W1173-009
JAC 1105102LD300
Outer diametar×Height: 93×179MM
Applicable to : Quanchai 4A1-68C43 Quanchai A15G
Thread: M16×1.5
Oil-water separator
Original part number: X300TB2
DX300
DX300TB2
JAC 1105010E8Q52
Quanchai UW0246-022
Quanchai 2409532810101
Thread: 1"-14
Outer diametar×Height : 106.9×176MM
Applicable to : Yangchai YZ4DB1-40
Yangchai YZ4DA2-30
Yangchai YZ4DA2-40
Yunnei Dongli Yunnei Engine YN33CRD2
Oil-water separator
Original part number F1092-000
112253221092-000
Thread: M16×1.5
Outer diametar×Height : 93×170MM
Applicable to : Quanchai 4A1-68C43
Quanchai A15G
JAC HFC4DB2-1D
Oil-water separator
Original part number UW0109-009
UW0109-009
W0109-000
Thread：M16×1.5
Outer diametar×Height: 93×201MM
Applicable to : Quanchai 4A1-68C43
Quanchai A15G
JAC HFC4DB2-1D
