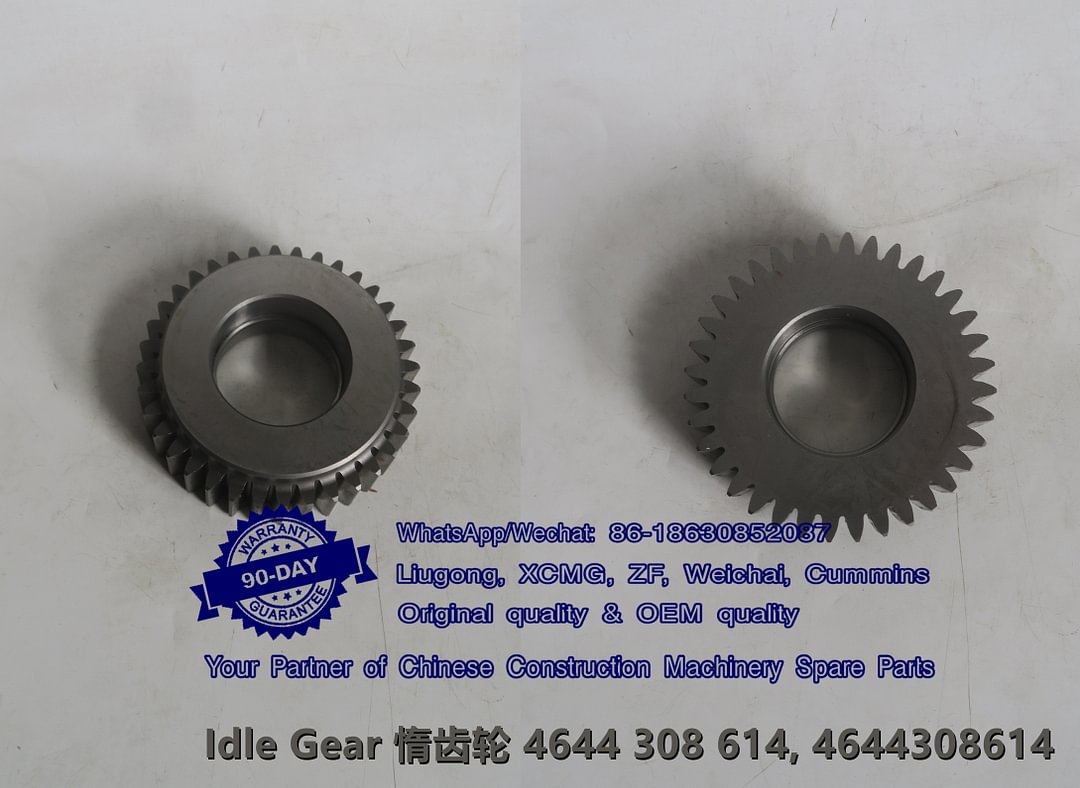

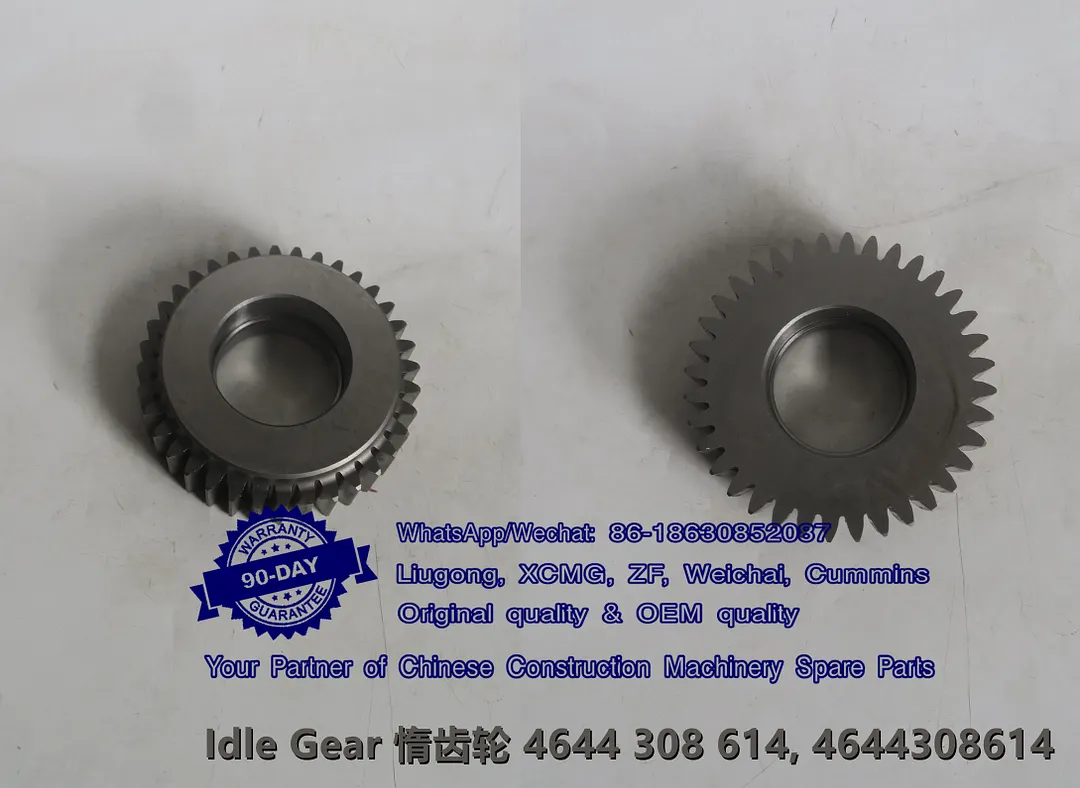

Idle Gear 4644 308 614, 4644308614 for Liugong CLG856 Liuzhou ZF 4WG200
1 / 1
2% OFF

Idle Gear 4644 308 614, 4644308614 for Liugong CLG856 Liuzhou ZF 4WG200

Idle Gear 4644 308 614, 4644308614 for Liugong CLG856 ZF 4WG200

$70.80 $72.50
0 sold
Qty

Idle Gear 4644 308 614, 4644308614 for Liugong CLG856 ZF 4WG200

Produce specification:

Part Name: Idle Gear
Part Number: 4644 308 614, 4644308614
Application Model and OE Number: SEM Wheel loader SEM658 SEM659 W030601170
Liugong Wheel loader CLG856
Liuzhou Transmission assy ZF 4WG200 for Liugong CLG856

Shipping Weight: 1.90 kg
Condition: New
Country/Region of Manufacture: China
Number of Pieces: 1
Type: Transmission parts, LAYSHAFT
Warranty: 3 Month
Fast Shipping: will be shipped out in 1-3 days by DHL/FEDEX/UPS/TNT and arrive in 6-8 working days

Idle Gear 惰齿轮 4644 308 614, 4644308614 for ZF 4WG200

Full range of spare parts for Liugong CLG856,CLG856H, ZF 4WG200, SEM658 SEM659 ,Whatsapp 86-18630852087

Liugong CLG856 ZF 4WG200


Related parts:

4644 108 惰性轮总成 GROUP 4644 108 LAYSHAFT for Liugong CLG856

010 4644 308 611 轴 AXLE 1
020 0634 313 529 O 形圈 O-RING 57X3 ZFN 744 FPM-70-10 1
050 4644 308 610 止推垫圈 THRUST WASHER 1
090 4644 308 614 惰轮 IDLE GEAR Z=36(HVZ) 1
100 0636 104 146 内六角螺钉 CAP SCREW M12X100 DIN 7984 10.9 1
110 0750 119 101 滚柱轴承 ROLLER SET 1
170 0630 362 024 密封片 SEALING DISC 25 DIN 470 FE/ZNPHR8F 1

中间轴 LAYSHAFT LAYSHA for SEM Wheel loade SEM658 SEM659

8.010 轴 AXLE W030601140 4644 308 611 1
8.020 ZFN 744 NBR-70-10 O 形圈 O-RING W030601150 0634 313 529 1
8.050 止推垫圈 THRUST WASHER W030601160 4644 308 610 1
8.090 中间齿轮 Z=36(HVZ) IDLER GEAR W030601170 4644 308 614 1
8.100 螺钉 M12×100 CAP SCREW W030601180 0636 104 146 1
8.110 滚柱轴承组件 ROLLER SET W030601190 0750 119 101 1
8.170 DIN470 FE/ZNPHR8F 密封垫圈 25 SEALING DISC 25 W030601200 0630 362 024 1

Full range of spare parts for Liugong CLG856,CLG856H, ZF 4WG200, SEM658 SEM659 ,Whatsapp 86-18630852087


AXLE; P/N : 4644353 058 轴 4644353058
DISC, SEALING; P/N :  0630 362 024 密封垫圈 0630362024
DISC, CARRIER; P/N :  4644 253 045 摩擦片支承 4644253045
GASKET; P/N : 4645  306 364 垫圈 4645306364
GASKET; P/N : 4646  306 497 垫圈 4646306497
GASKET; P/N : 4644  306 584 垫圈 4644306584
GEAR INPUT; Z=74; P/N  : 4644 311 117 齿轮 4644311117
GEAR IDLER; Z=36; P/N  : 4644 308 614 齿轮 4644308614
GEAR SPUR; Z=63; P/N  : 4644 308 625 齿轮 4644308625
GEAR SPUR; Z=29; P/N  : 4644 308 587 齿轮 4644308587
PLATE THRUST; P/N :  4644 351 094 止推片 4644351094
PLATE THRUST; P/N :  0642 308 555 止推片 0642308555
RING V; P/N : 0630  531 346 环 0630531346
RING GUIDE; P/N :  4642 308 083 导向环 4642308083
RING GUIDE; P/N :  4642 308 084 导向环 4642308084
SCREW CAP; P/N : 0636  104 146 内螺栓 0636104146
SHIM; P/N : 0730 003  502 垫圈 0730003502
SHIM; P/N : 0730 003  504 垫圈 0730003504
SHIM; P/N : 0730 108  160 垫圈 0730108160
SPRING COMPRESSION;  P/N : 0732 041 183 压缩弹簧 0732041183
TRANSMITTER; P/N :  9041 315 008 传感器 9041315008
VALVE SELENOID; P/N :  0501 313 375 电磁阀 0501313375
WASHER THRUST; P/N :  4644 303 529 止推垫圈 4644303529
WASHER THRUST; P/N :  0737 513 779 止推垫圈 0737513779
WASHER THRUST; P/N :  0730 513 779 止推垫圈 0730513779
WASHER THRUST; P/N :  4644 303 534 止推垫圈 4644303534
WASHER THRUST; P/N :  0730 150 777 止推垫圈 0730150777
WASHER THRUST; P/N :  0730 150 779 止推垫圈 0730150779

4168 034 034 CONVERTER 变矩器
4644 308 614 IDLER GEAR 齿轮
0630 362 024 SEALING DISC 密封垫圈
4644 308 329 INNER CLUTCH DISC 摩擦片
4644 351 094 THRUST PLATE 止推片
0730 150 779 THRUST WASHER 止推垫圈
0634 303 466 O-RING O型圈
4644 351 070 PISTON 活塞
0730 513 610 SNAP RING 挡圈
4644 252 098 DISC CARRIER 摩擦片支架
0501 309 330 OUTER CLUTCH DISC 摩擦片
4644 252 097 HELICAL GEAR 齿轮
0501 308 830 ANGLE RING 环
4644 308 266 WASHER 垫圈
4642 211 001 SPRAY TUBE 管
4644 306 362 GASKET 垫圈
4644 306 370 GASKET 垫圈
0501 313 375 SOLENOID VALVE 电磁阀
4642 331 216 GASKET 垫圈
4644 311 209 GASKET 垫圈
4644 330 239 DIAPHRAGM 膜片
4607 302 033 SHIM 调整垫片
4644 308 611 AXLE 轴
4642 308 083 GUIDE RING 导环
0730 150 773 THRUST WASHER 止推垫圈
4644 351 032 SPUR GEAR 齿轮
4644 252 097 SPUR GEAR 齿轮
4644 253 045 DISC CARRIER 离合器壳体
0501 309 329 OCLUTCH DISC 外摩擦片
4644 353 058 AXLE 轴
4644 308 587 SPUR GEAR 齿轮
0735 358 069 NEEDLE CAGE 轴承
4644 308 630 SPUR GEAR 齿轮
0750 119 048 CYLROLLER 滚柱
4644 303 279 OUTPUT GEAR 齿轮
0501 317 160 INDTRANSMITTER 传感器
0634 306 524 O-RING O型圈
0634 303 283 O-RING O型圈
0634 306 525 O-RING O型圈
4644 309 001 OUTPUT FLANGE 输出法兰
4644 308 567 IDLER GEAR 齿轮
0501 216 205 RANGE SELECTOR 档选
6006 022 230 GEAR SELECTOR 档选
4644 251 047 DISC CARRIER 离合器壳体
4644 351 098 SPUR GEAR 齿轮
0501 312 280 OCLUTCH DISC 摩擦片
4644 308 330 INNER CLUTCH DISC 摩擦片
4644 253 045 DISC CARRIER 离合器壳体
0501 309 329 OCLUTCH DISC 摩擦片
4642 308 330 INNER CLUTCH DISC 摩擦片

Full range of spare parts for Liugong CLG856,CLG856H, ZF 4WG200, SEM658 SEM659 ,Whatsapp 86-18630852087

SEM Wheel loader SEM658 SEM659 Spare parts
Liugong Wheel loader CLG856 Spare parts
Liuzhou Transmission assy ZF 4WG200 for Liugong CLG856 Spare parts
