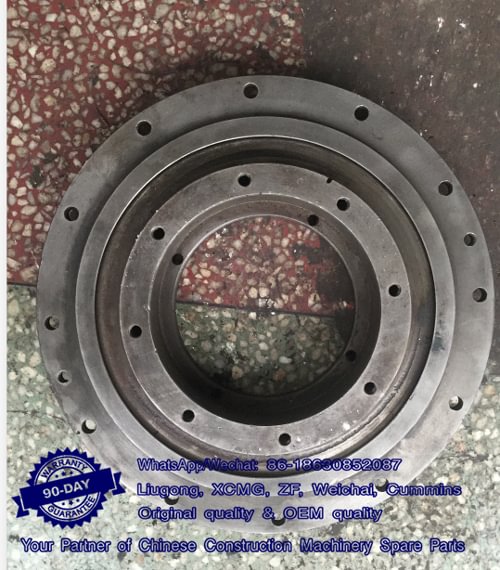

XCMG Grader Parts, XCMG GR180 Bearing seat 800107351 Bearing support
Related parts
GRADER TANDEM PARTS LIST MERITOR AXLE PARTS
No Description Description Part Number
1 Plug M24*1.5 堵头 75500197
2 Washer 垫圈 53200005
3 Bearing (33113) 轴承 54100059
4 Sproket assy 链轮与轴组件 85513031 860106746
5 Sproket assy 链轮与轴组件 85513030 860106748
6 Seal (15*140*12) 密封圈 53100029
7 Oil seal 油封 53000055
8 Hub 连接盘(美驰) 85513019 85763001 L00360146 860106790 SP109946 W44002062
9 Washer 垫圈 85513043
10 Bearing (32018) 轴承 54100002
11 Seal (FB100*125*12) 油封 53100038
12 Sleeve 轴套 85513042
13 Washer 垫圈 85513035
14 Seal cage / Oil seal seat 油封座 85513034
15 Seal (135*3.1) 油封 53000013
16 Bearing cage / Bearing seat 轴承座 85513015
17 Washer 垫圈 52020004
18 Bolt (M12*40) 螺母 50009021
19 M10*1 Dipstick 油杯 56300002
20 Sleeve 铜套 85763201 85763021
21 Seal (260*5.7) 油封 53000016
22 Sproket two / Two chain wheels shaft 双排链轮轴 85513022
23 Chain 滚子链 55410003
24 Bearing cage / Bearing seat 轴承座 85513027
25 Bearing (22319C) 轴承 54900008
26 Washer 垫圈 85513033
27 Cover 压板 85513021
28 Breather 通气塞 56100001
30 Two chain wheel shaft 双排链轮轴 83513201
31 Seal (160*190*15) 油封 53100007
32 Bearing(33022) 轴承 54100058
33 Retarder hub / Planetary reducer housing 行星减速壳体 83513202 800106652 SP109937
34 Sleeve 隔套 83513203
35 Adjust washer 调整垫圈 83513204
36 Bearing(32026) 轴承 54100007
37 Spider / Planet carrier 行星轮架 83513206 800107345 SP109874 W44002046 860102920
38 Planet board 挡板 75600457
39 Roll needle 滚针 75600330
40 Planet gear shim / Planet gear 行星轮 79001547 860115645
41 Sleeve 隔套 75000021
42 Planet pin / Planetary gear shaft 行星轮轴 79001545 SOMA40/50 860115219
43 Sleeve 隔套 79000021
44 Sun gear 太阳轮 79001524
45 Adjust pin 调整支柱 79605020
46 Guard block 限位块 73520042
47 Nut(m85*2) 螺母 75501646
48 Washer 垫圈 52060006
49 Cone sleeve 锥套 76101041
50 Ring hub assemly 齿圈支撑总成 83513208
51 Ring gear 齿圈 76101031 76101031A 860115522 Z00360479 SP105306 SP109914 W046100202
52 Lock ring 卡环 76101033
53 Ring gear 齿圈支撑 77500940 SP105309 SP109918 W046100201 4110001903094
54 Washer 垫片 83513207
55 Pin 销 PY180-H.2.6-2
56 Brake shoe 制动蹄 PY180-H.2.6-3 103070018
57 Spring 弹簧 PY180-H.2.6-4
58 Brake pump 制动分泵 PY180-H.2.6.5
59 Nut (M75*2) 圆螺母 85513040
60 Sleeve 支承套 85513041
61 Sproket assy 链轮总成 85763003
61 Two chain wheel shaft 双排链轮轴 83763203
